Description

Overview

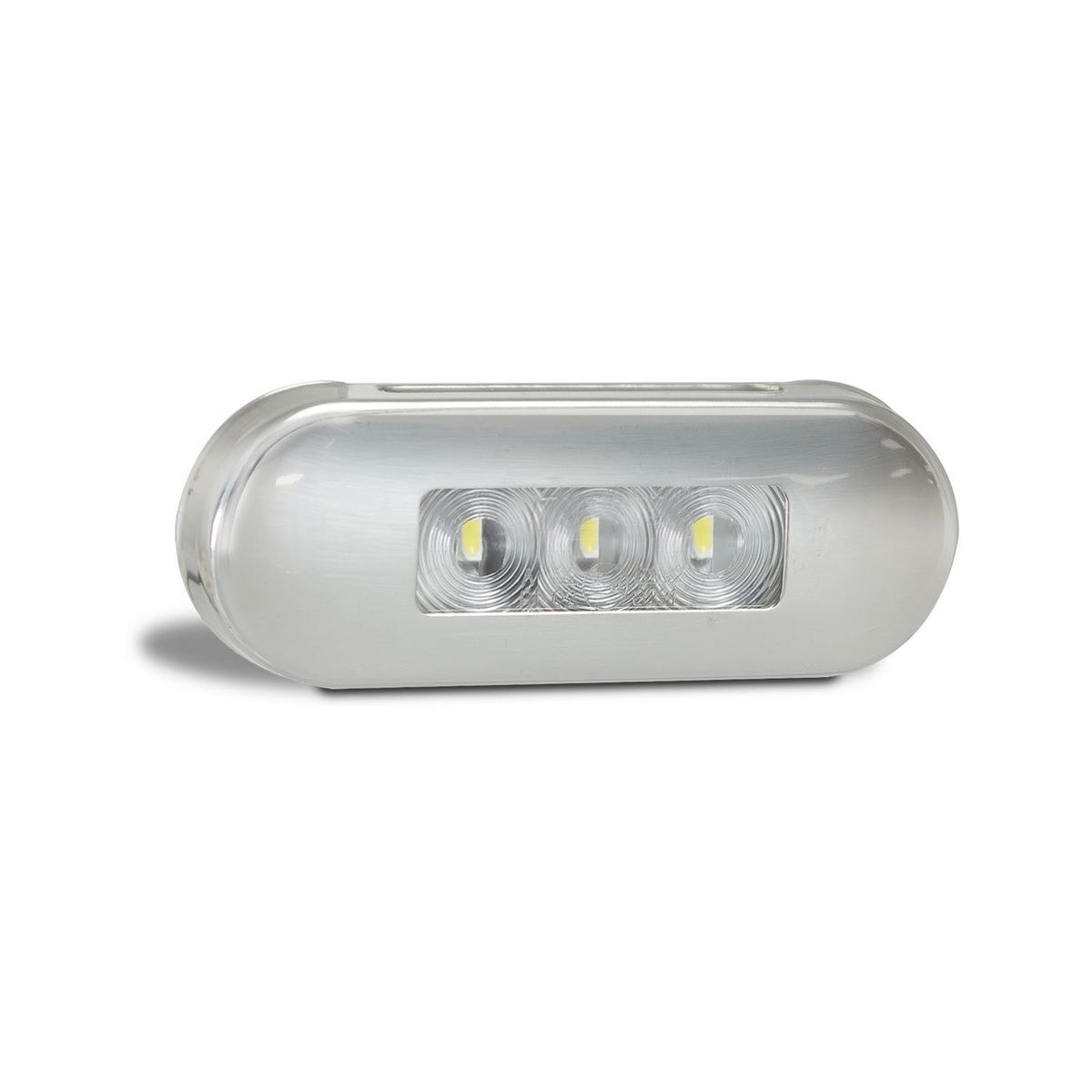

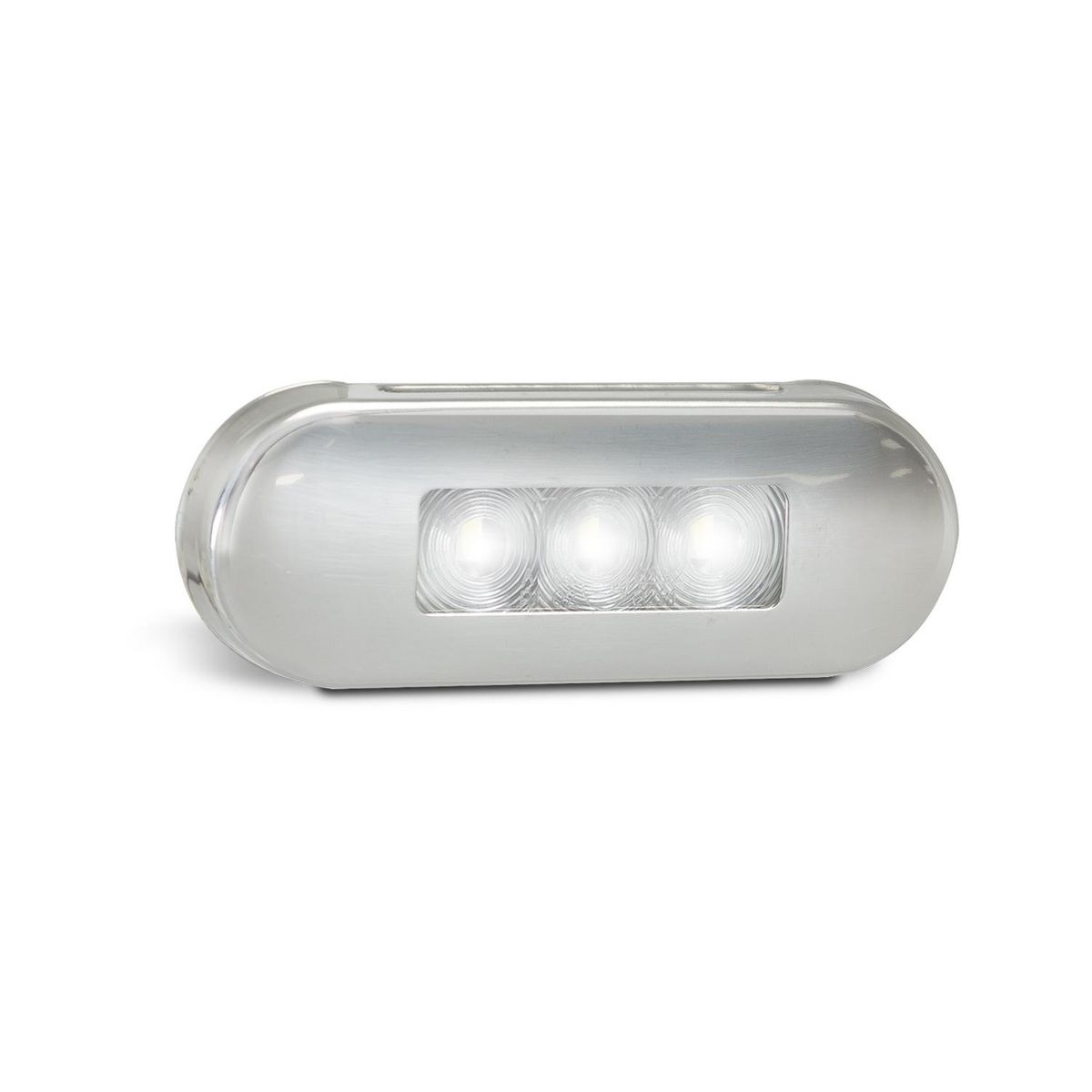

Front marker LED lamp provides white front outline lighting for trailers, truck bodies and service vehicles using 12-24V electrical systems. The low-profile 86 Series body suits tight front marker positions, while the stainless steel bezel gives the lamp a clean truck-style finish. Its compact body also suits repairs where older front outline markers need a neat, shallow replacement.

Features

• 3 LEDs provide white front end marker output.
• Stainless steel bezel gives the lamp a brushed metal finish.
• IP67 rating helps protect the lamp from dust and water exposure.
• 15cm bare-wire cable suits compact front marker wiring runs.

Specifications and Materials

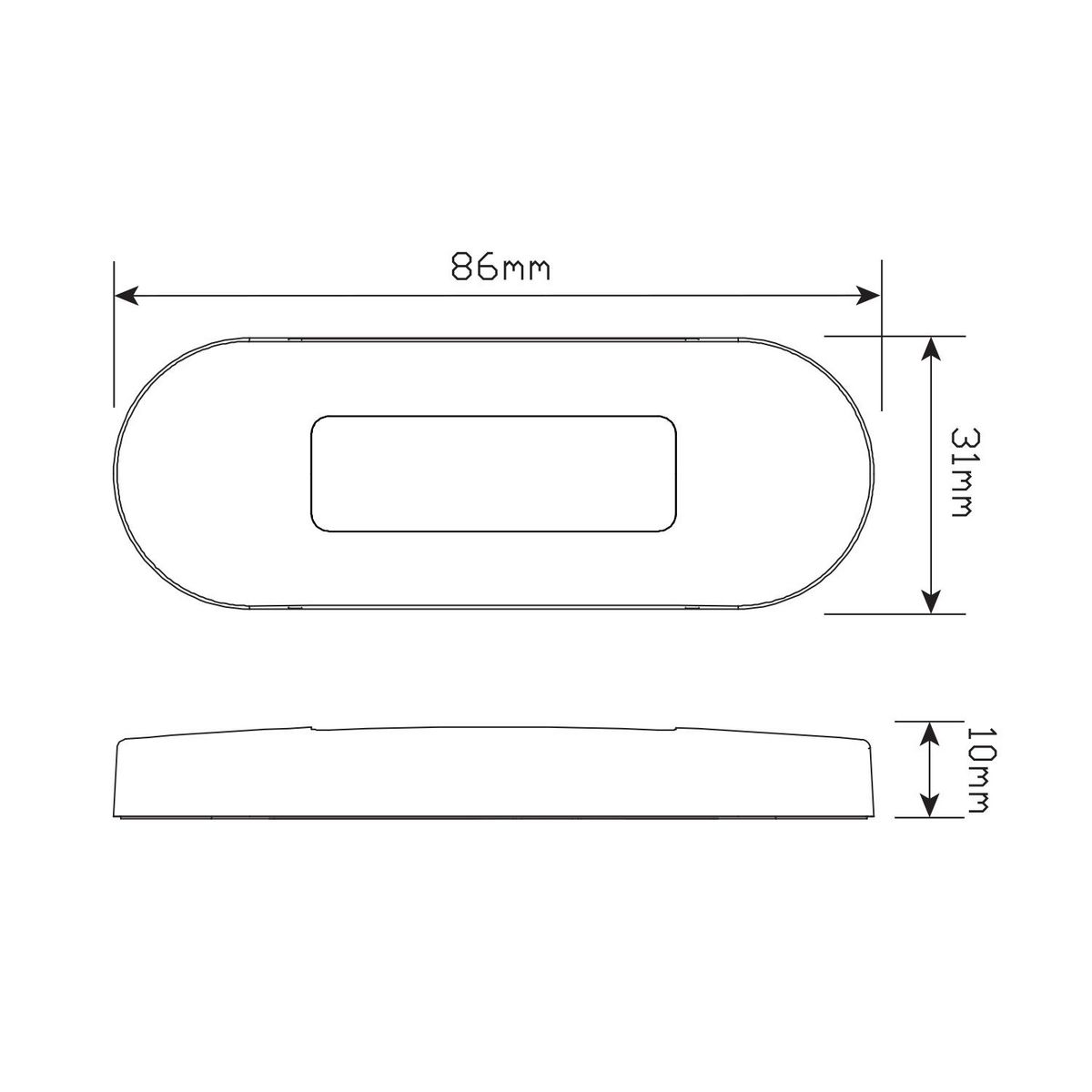

This front marker LED lamp measures 86mm × 31mm × 10mm and runs on 12-24V systems. It uses a polycarbonate lens, stainless steel base and clear lens with coloured LEDs.

The lamp surface-mounts horizontally. Remove the bezel, mount the lamp to a flat surface with screws, run the wires through the back and clip the bezel into place.

Part number: 86WMB.

Use the official datasheet for fitting, approval and series data

Compatibility and Fitment

Match the 86mm body length, 31mm height, 10mm depth, cable style and mounting position before ordering. Because this front marker LED lamp uses a stainless bezel, also check that the existing body recess or mounting face leaves enough room for the bezel to clip back in cleanly.

This front marker LED lamp suits 86 Series front end outline marker layouts where a white marker lamp with a stainless steel bezel is required.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Fit the lamp where the front marker remains visible and protected from body damage where possible. After wiring, test the marker function and check the earth connection, because poor trailer wiring can cause weak or intermittent lamp operation.

Trailer Applications

Workshops fit this style of front outline marker to trailers, rigid bodies, truck bodies and service bodies that use compact stainless-bezel marker lamps. The low-profile body helps on narrow panels, front corners and body faces where larger marker lamps look bulky or sit too proud.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairs, fleet work and body builds, so match the lamp size, cable style and front lighting layout before fitting this marker.
