Description

Overview

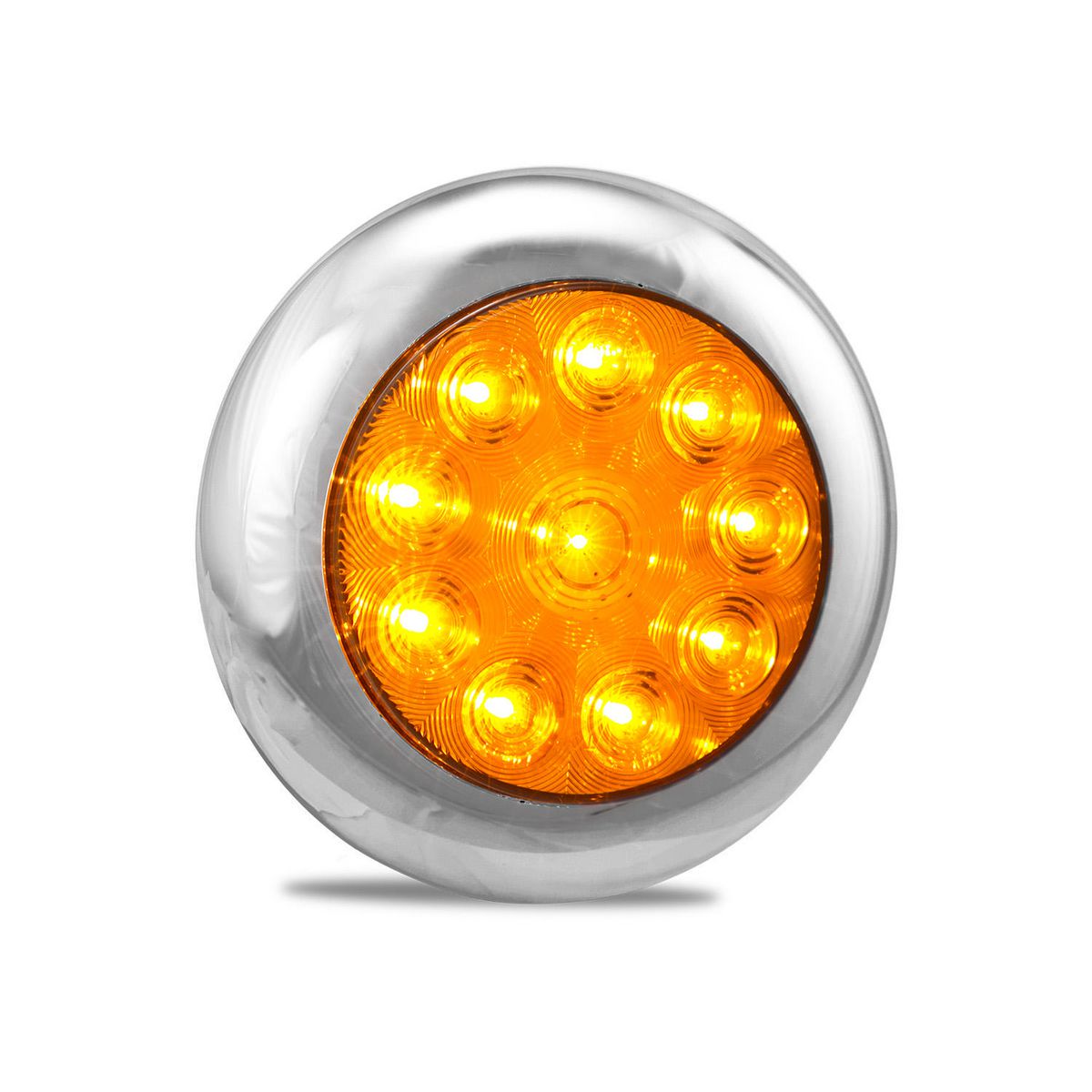

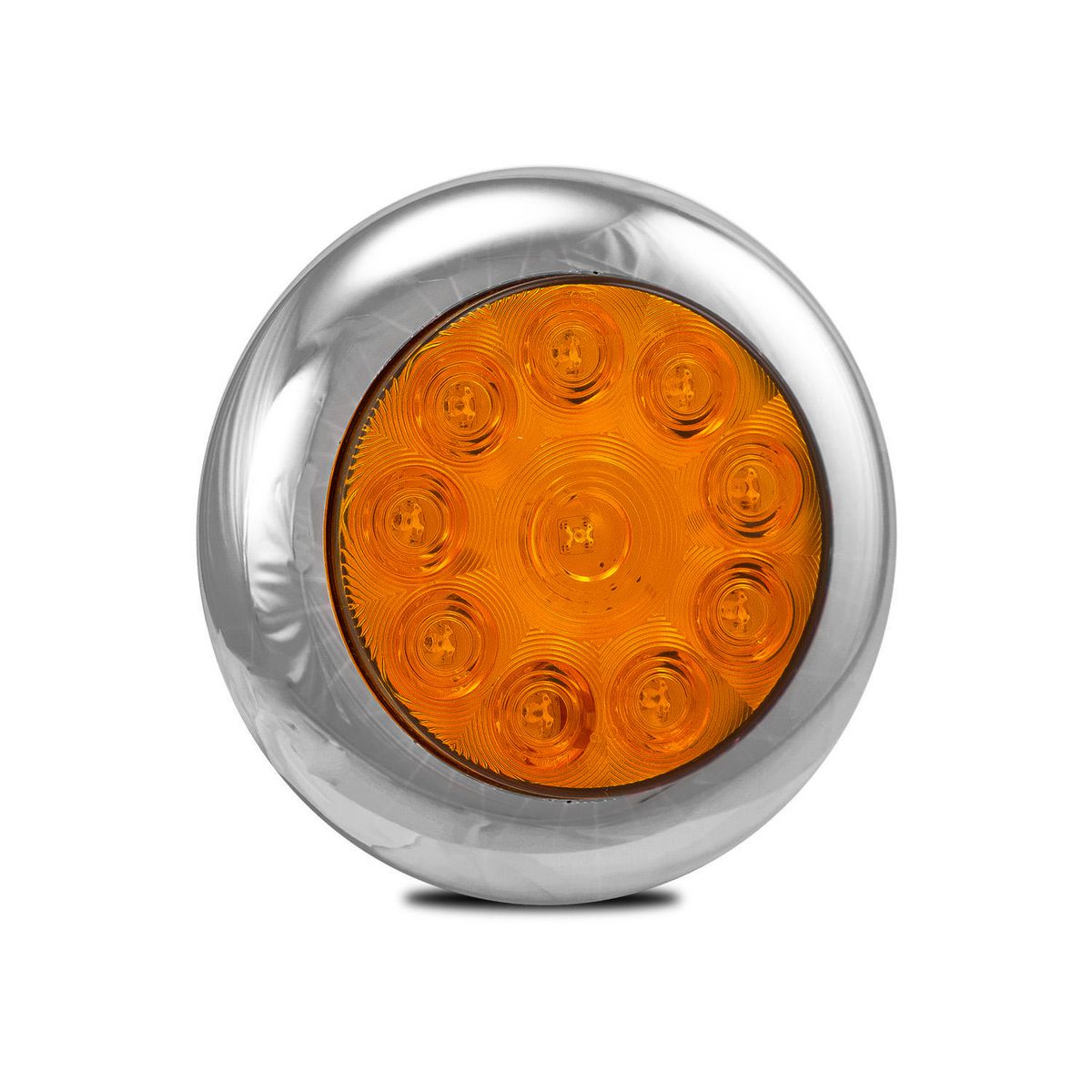

Round amber LED indicator lamp provides rear indicator signalling for trailers, truck bodies and service vehicles using 12-24V electrical systems. The American-style round face gives the lamp a clean chrome-bezel finish, while the shallow body suits rear panels where space behind the lamp matters. Its amber lens and 10 LED layout suit compact single-function indicator lighting.

Features

• 10 LEDs provide amber rear indicator output.
• 144mm round body with 22mm depth suits shallow surface mounting.
• IP67 rating helps protect the lamp against dust and water exposure.
• ADR and CTA approval data supports rear indicator use.

Specifications and Materials

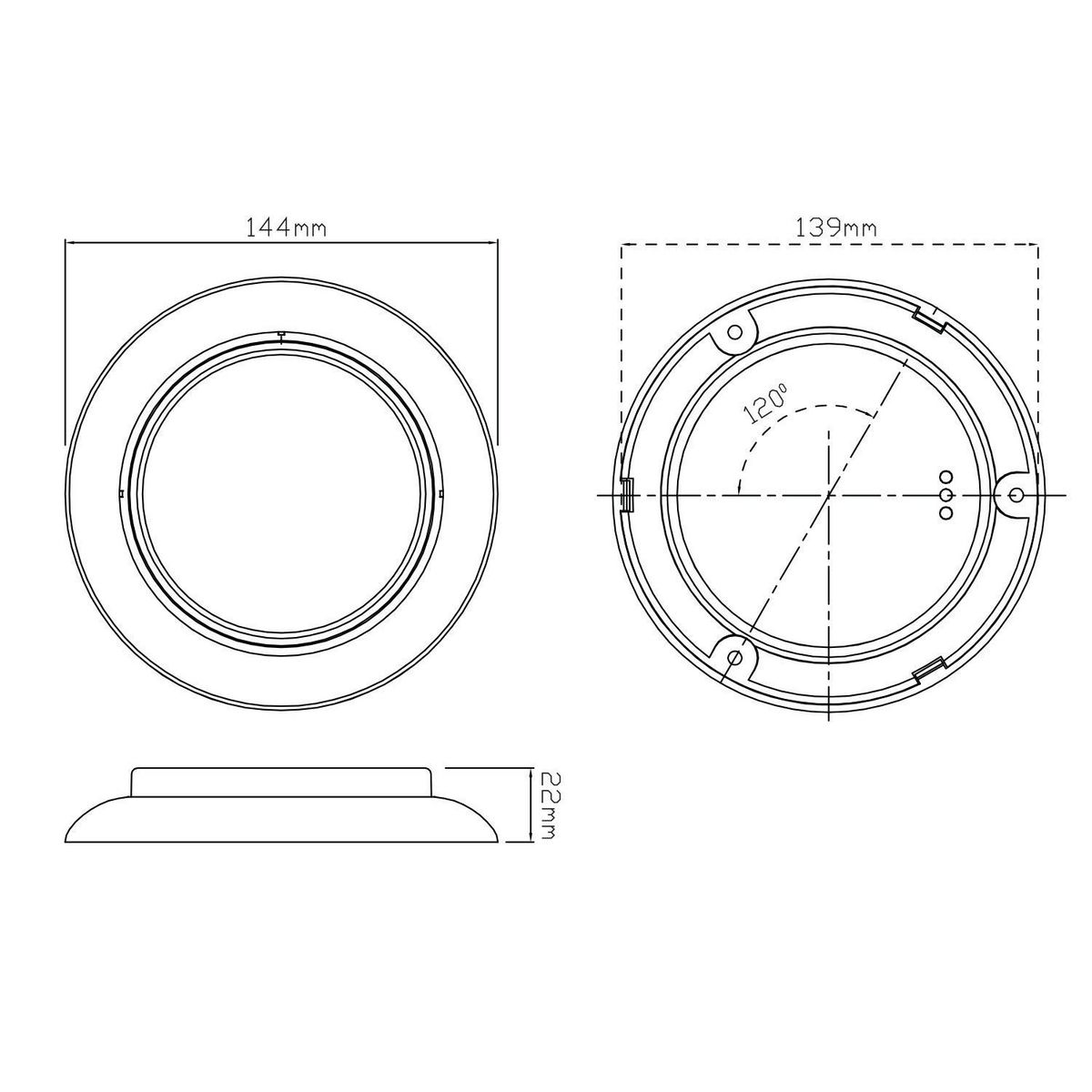

This round amber LED indicator lamp measures 144mm round × 22mm deep and runs on 12-24V systems. It uses a hardened acrylic lens, ABS bezel and 20cm cable.

The indicator function draws 0.15A at 13.8V and 0.12A at 28V. Remove the bezel, mount the lamp to a flat surface with screws, then clip the bezel back into place.

Part number: 5543AM.

Use the official datasheet for current draw, approvals and fitting data

Compatibility and Fitment

Match the 144mm round body, 22mm depth, cable route and 12-24V input range before ordering. Because this lamp surface-mounts behind the bezel, check that the mounting face sits flat and allows a clean cable exit.

This round amber LED indicator lamp suits 5543 Series rear indicator layouts where a single-function amber lamp with chrome-bezel styling is required.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Fit the lamp where the indicator remains visible and protected from load contact where possible. After wiring, test the indicator function and check the earth connection, because poor trailer wiring can cause weak or intermittent lamp operation.

Trailer Applications

Workshops fit this round amber LED indicator lamp to trailers, truck bodies, trays and service bodies that use separate round rear lamps. The shallow 22mm body helps when replacing older round indicator lamps on panels with limited clearance behind the mounting surface.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairs, fleet work and body builds, so match the lamp diameter, wiring path and rear lighting layout before fitting this indicator.
