Description

Overview

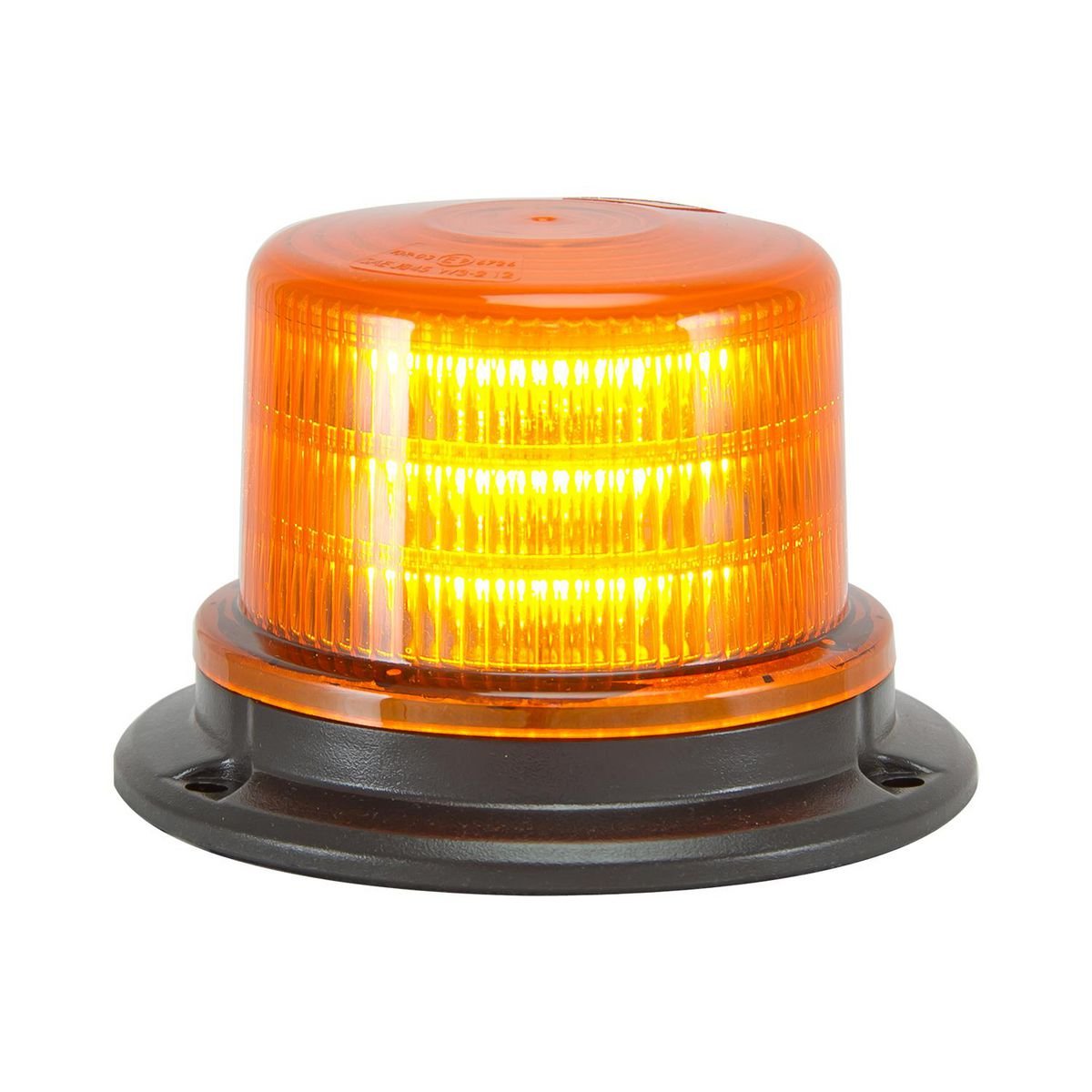

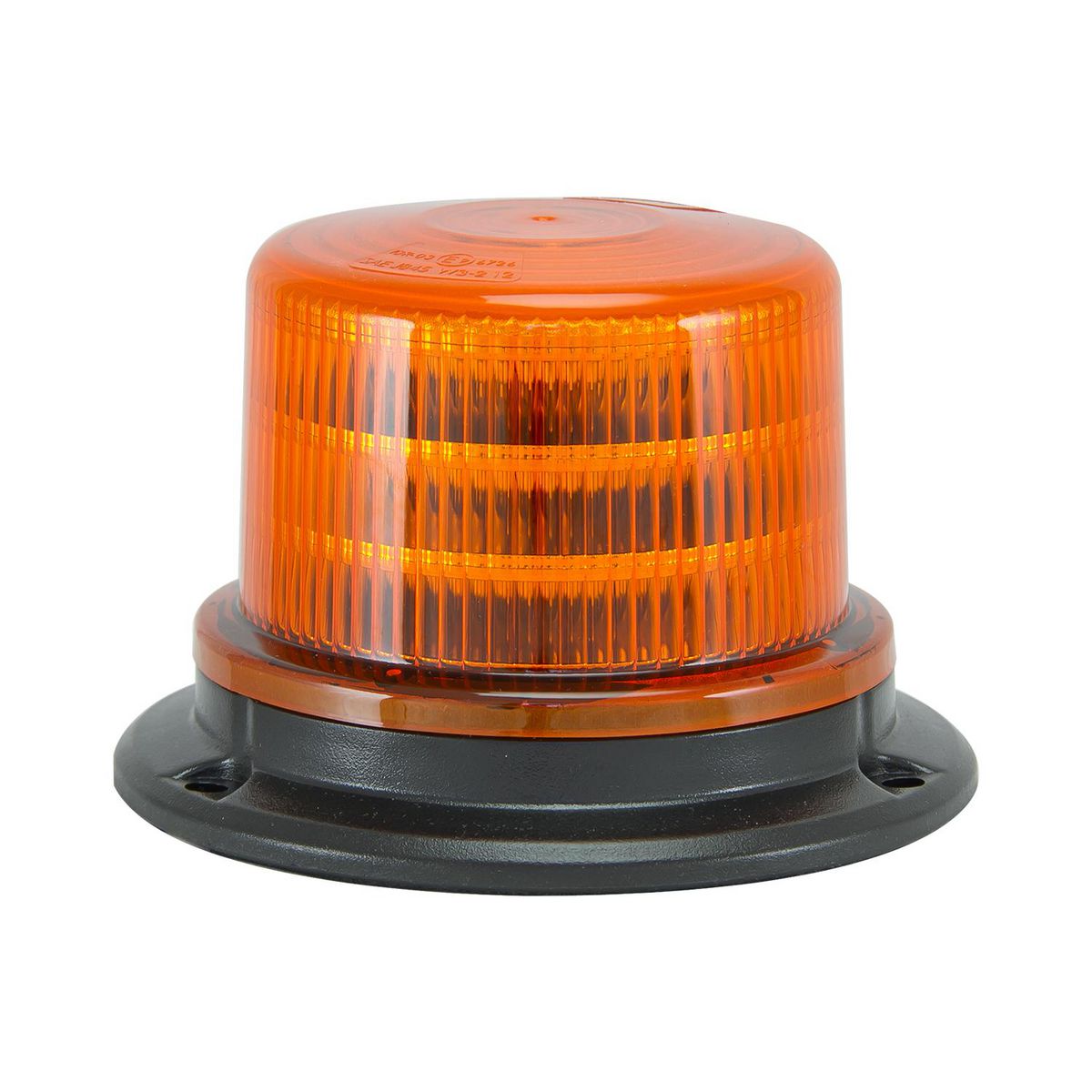

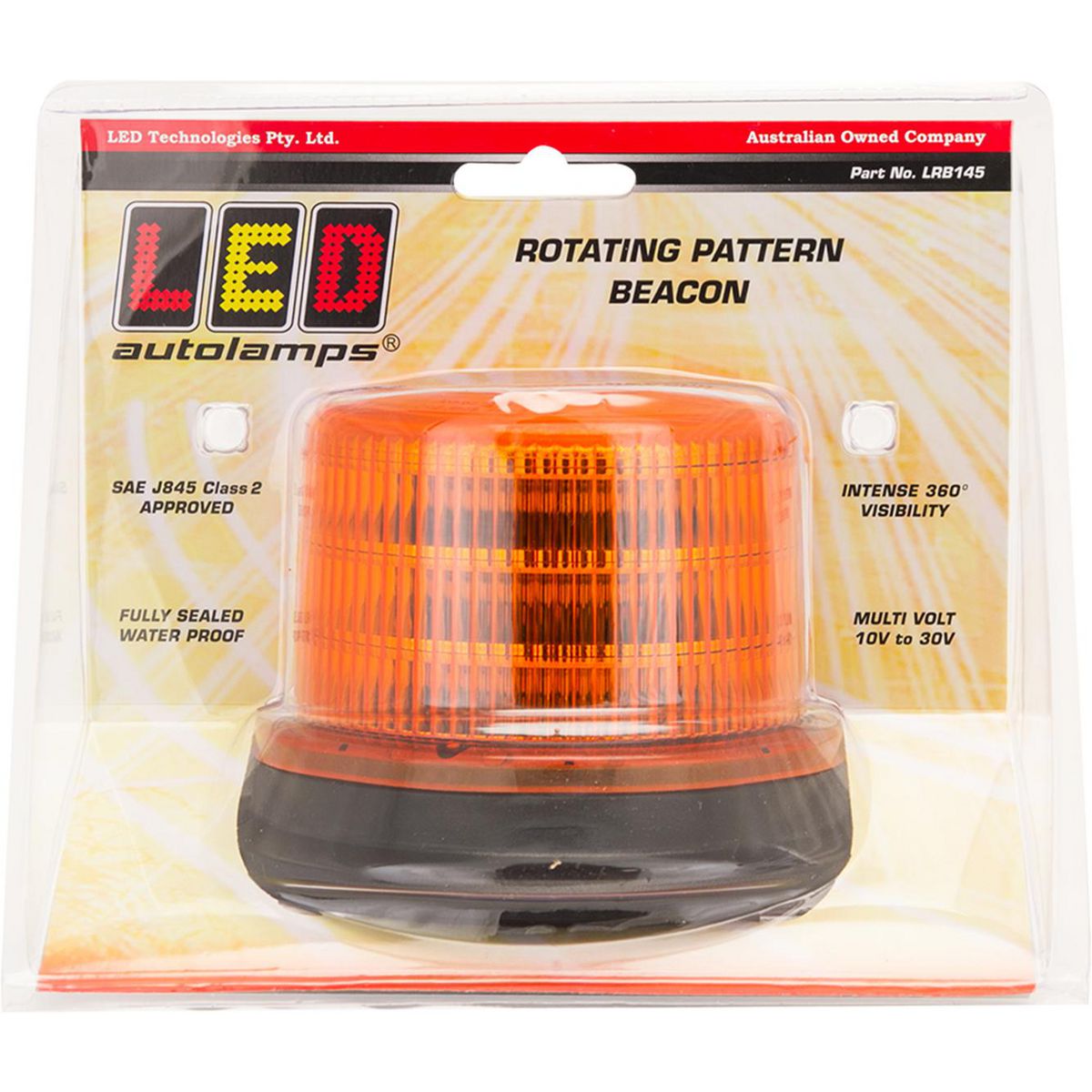

Amber LED rotating beacon gives trailers, service bodies and work vehicles a permanent-mount warning beacon with rotating-effect amber output. The 10-30V multivolt input suits 12V and 24V vehicle systems, while the 145mm round body gives the lamp a visible roof, tray or body-mount profile. Its Class 2 beacon rating suits warning-light applications where a compact amber beacon needs a fixed bolt-on fit.

Features

• 24 LEDs provide a rotating-effect amber beacon pattern.
• SAE J845 Class 2 compliance supports warning-light applications.
• IP67 rating helps protect the beacon from dust and water exposure.
• 40cm cable supports permanent mounting through or beside the base.

Specifications and Materials

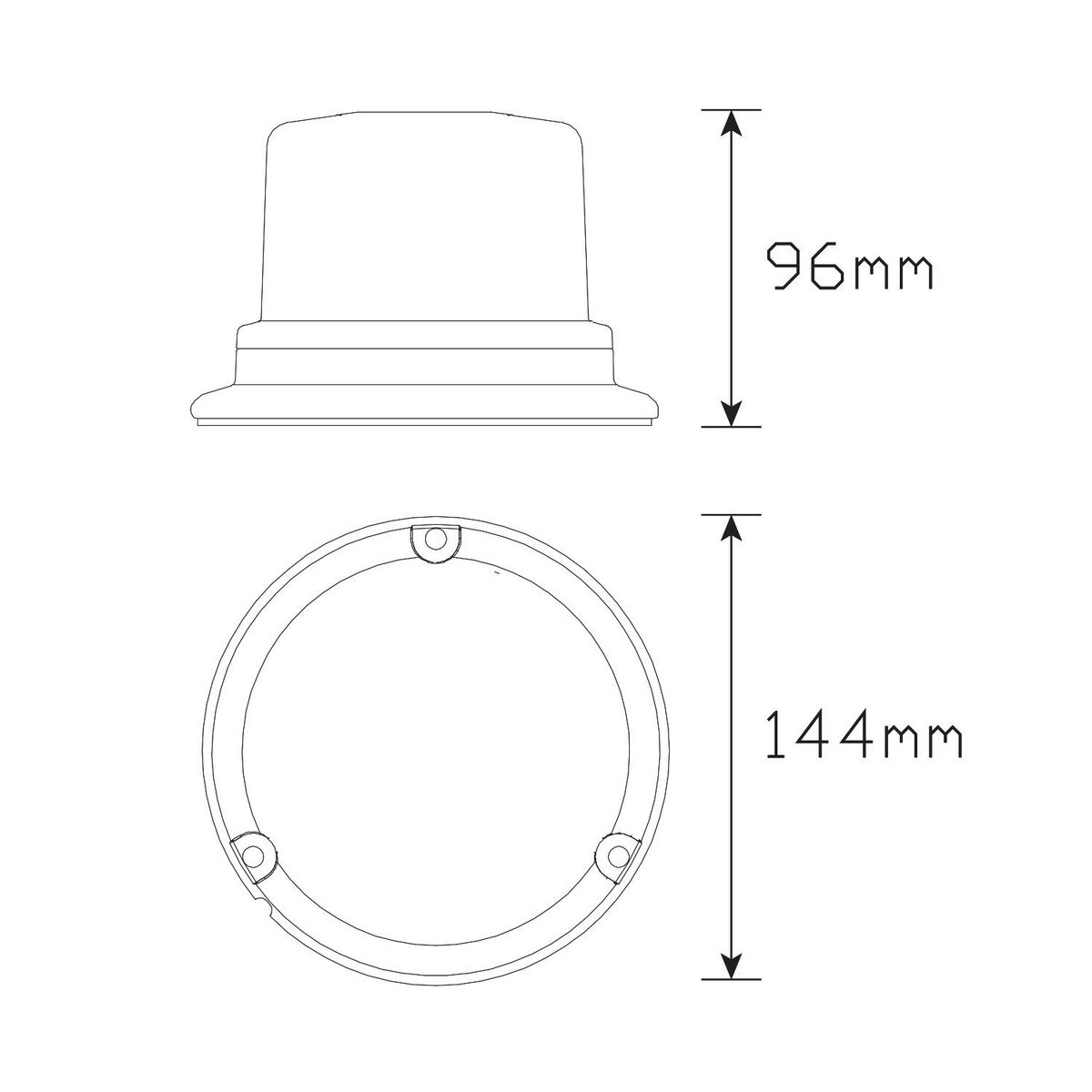

This amber LED rotating beacon measures 145mm round × 96mm high and runs on 10-30V systems. It uses 24 LEDs and produces a rotating pattern at 188 rotations per minute.

The beacon draws 0.45A at 13.8V and 0.22A at 28V. The permanent-mount base uses the supplied screws, with the foam gasket sitting between the lamp and fixing surface.

Part number: LRB145.

Use the official datasheet for mounting, current draw and beacon rating data

Compatibility and Fitment

Check the 145mm round base, 96mm height, cable route and 10-30V input range before ordering. Run the wiring through the fixing surface or from the side of the base, then secure the beacon with the screws and foam gasket supplied.

This amber LED rotating beacon suits permanent-mount warning-light setups where a fixed Class 2 rotating-effect beacon is required.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Fit the beacon where it remains visible and clear of moving equipment, roof obstructions and load contact. After wiring, test the rotating pattern and check that the mount seals properly against the fixing surface.

Trailer Applications

Workshops fit this amber LED rotating beacon to service bodies, trailers, maintenance vehicles, plant support vehicles and truck bodies that need a fixed amber warning lamp. The taller beacon body gives stronger visual presence than low-profile warning lamps in many yard, roadside and site settings.

Why Choose ICS Trailers

ICS Trailers supplies lighting and safety parts for trailer repairs, fleet work and body builds, so match the beacon size, voltage range and mounting surface before fitting.
