Round LED Stop Tail Lamp Chrome 12-24V
Round LED Stop Tail Lamp Chrome 12-24V
$53.00

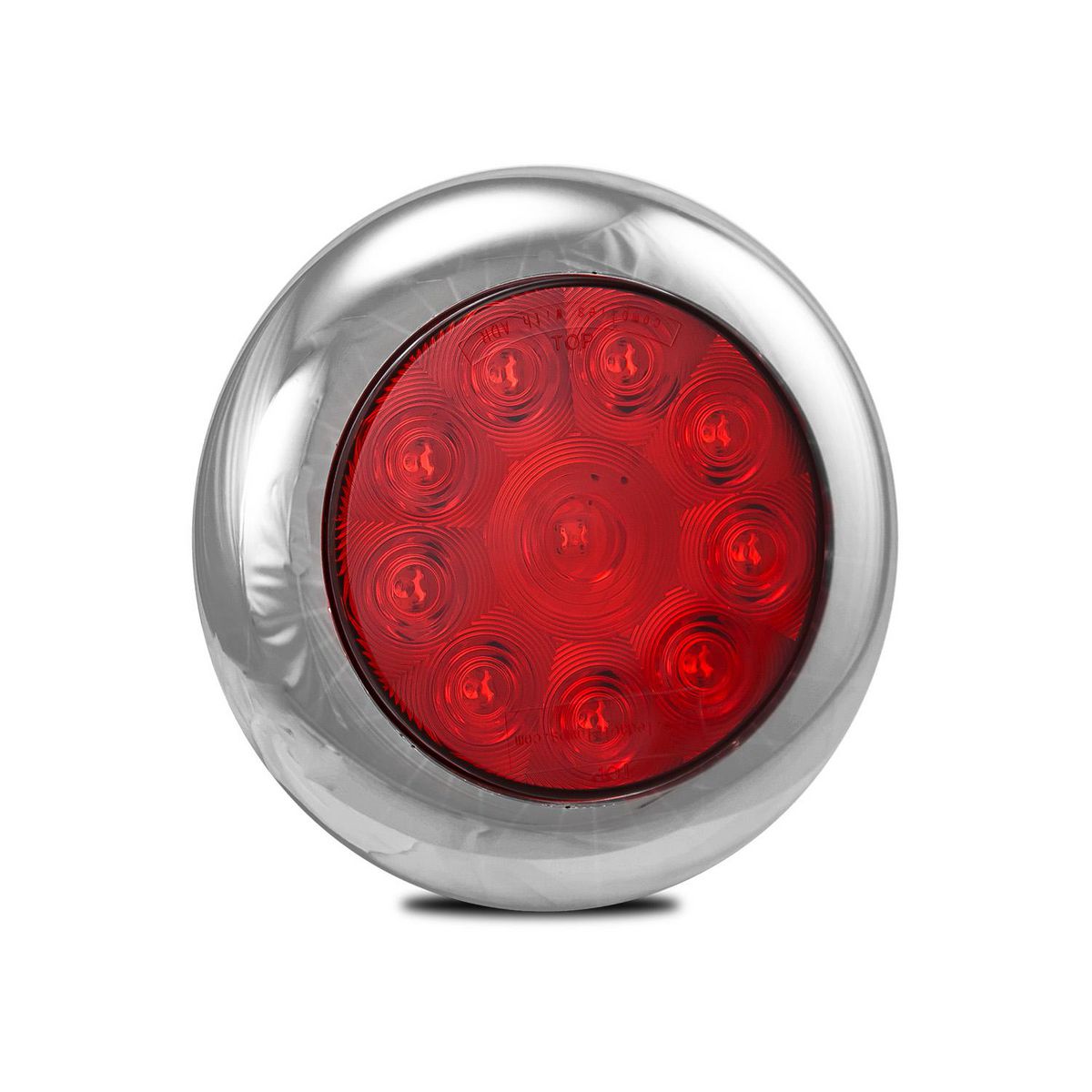

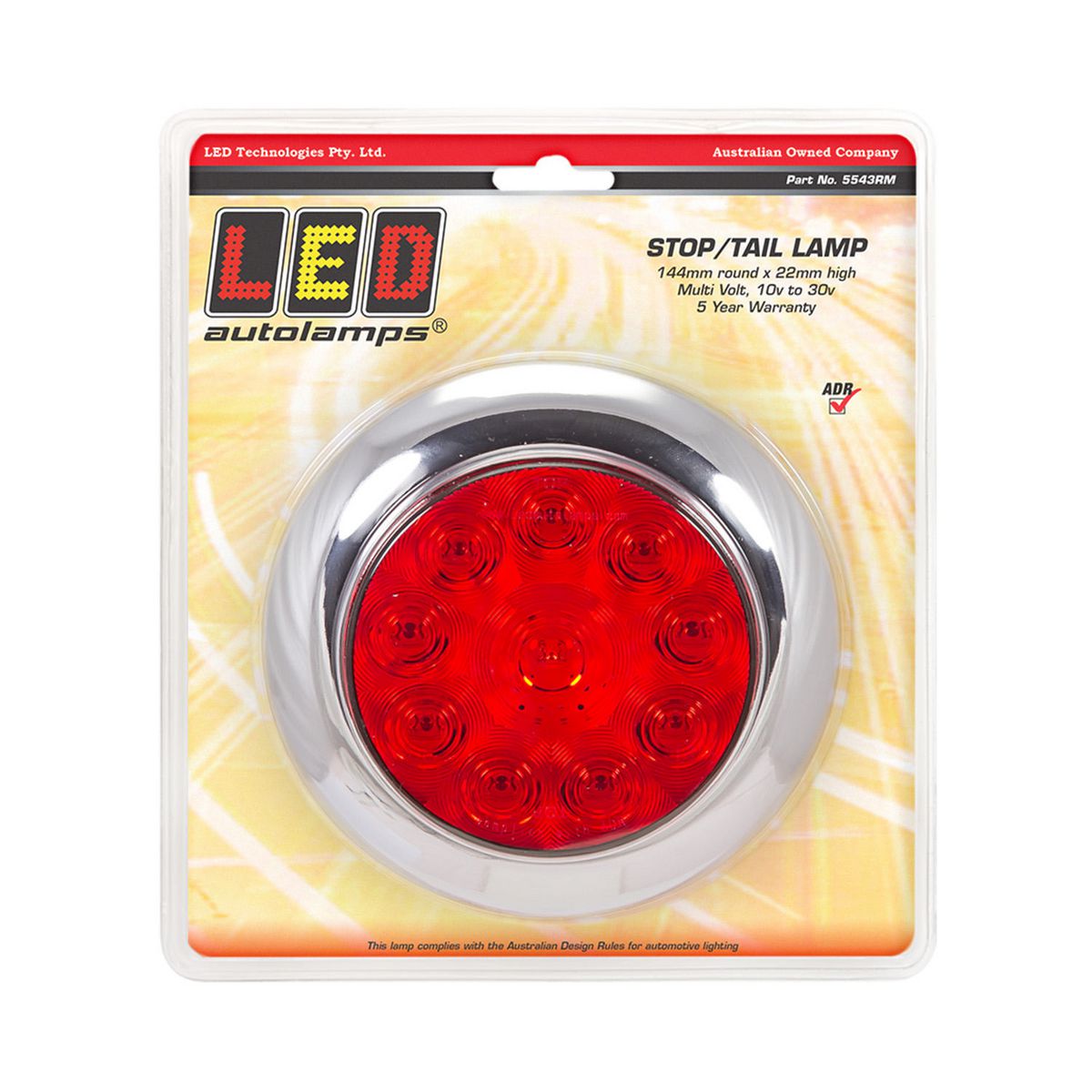

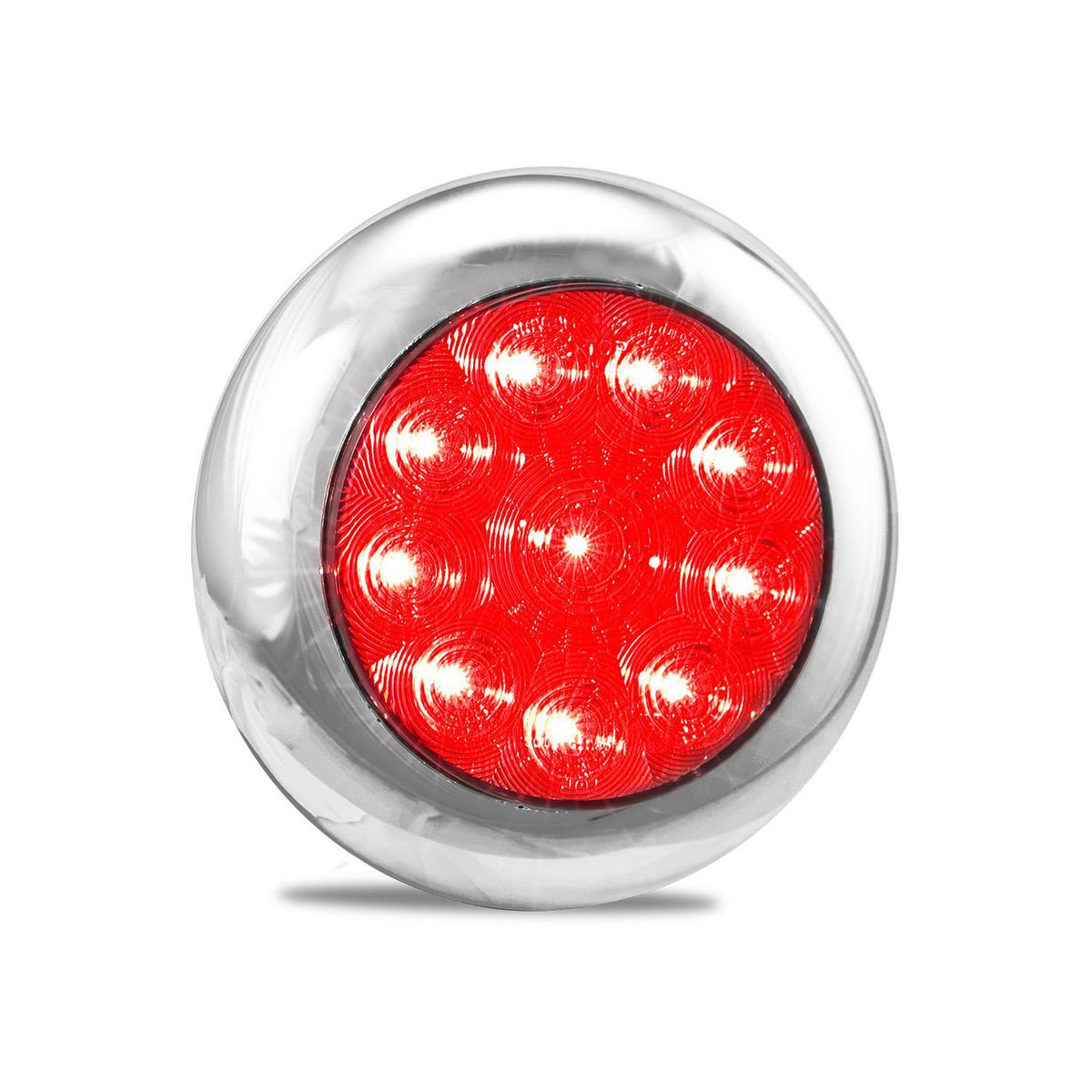

Round LED stop tail lamp for trailer and heavy vehicle rear lighting, with chrome bezel, 12-24V input, 10 LEDs, IP67 sealing and low-profile 144mm x 22mm body for matching round lamp layouts.
Part number 5543RM.
Description
Overview
Round LED stop tail lamp restores red rear stop and tail lighting on trailers, trucks and service bodies. The chrome bezel and American-style round body suit visible rear panels where a 144mm low-profile lamp matches the existing fitment.
Features
- Round red stop/tail lamp with chrome bezel
- 12-24V multivolt operation suits common trailer and truck electrical systems
- 10 LED layout with 20cm cable for hardwired installation
- IP67 rated body with hardened acrylic lens and ABS bezel
Specifications and Materials

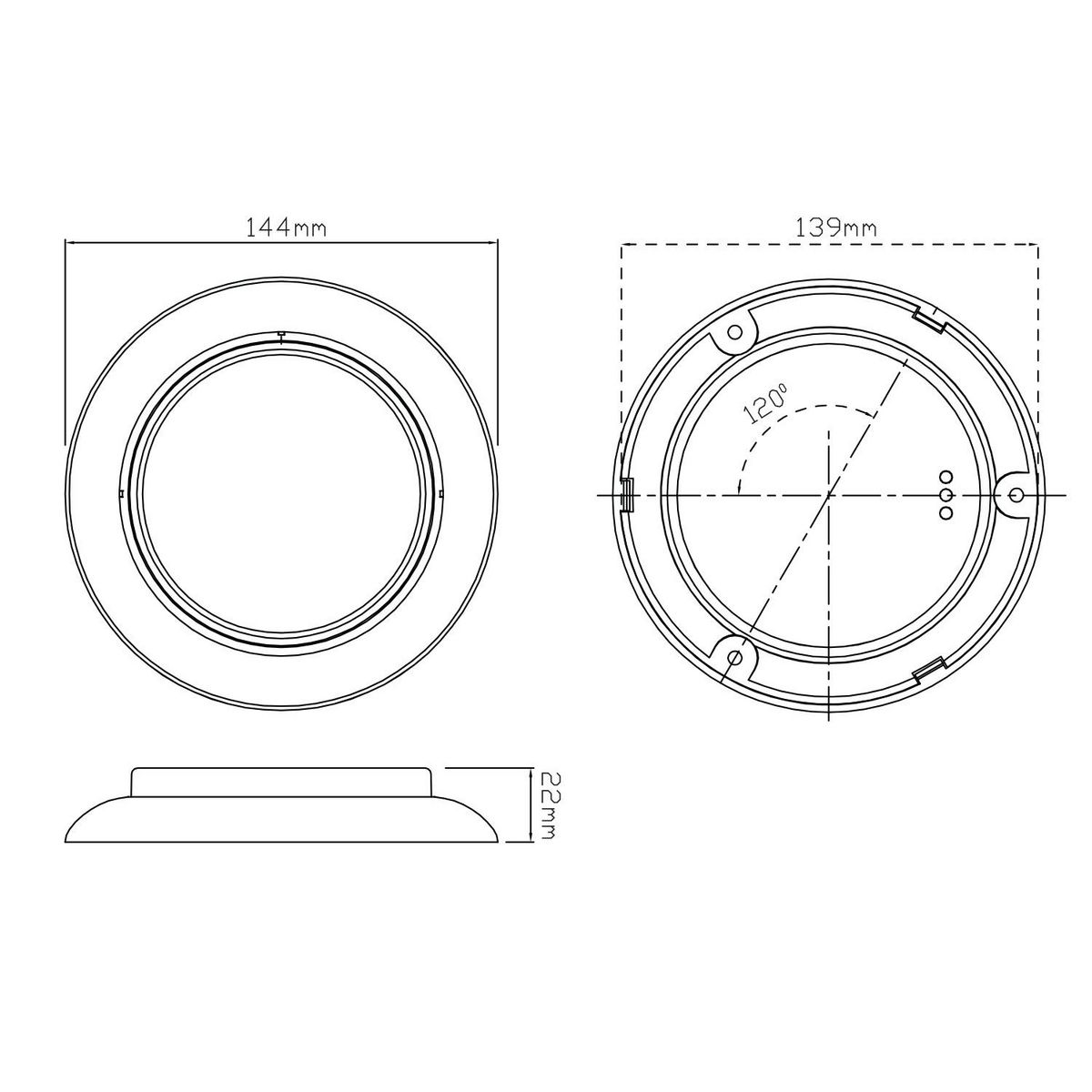

This round LED stop tail lamp measures 144mm round x 22mm and uses 10 LEDs behind a hardened acrylic lens. Current draw is 0.17A stop and 0.01A tail at 13.8V, and 0.09A stop and 0.01A tail at 28V.
Part number: 5543RM.
The lamp carries ADR Stop/Tail 49/00 approval with CRN 45130 and CTA Stop/Tail 49/00 approval with CTA-060270.
Use the manufacturer 5543 Series technical guide when checking fitment, approvals and matching series lamps
Compatibility and Fitment
Check the rear stop/tail function, 12-24V wiring, 144mm round mounting space and chrome finish before ordering. Remove the bezel, surface mount the lamp to a flat panel with screws, run the cable through the rear, then clip the bezel back into place.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Matching series lamp | 5543AM | Rear indicator lamp |
| Matching series lamp | 5543W | Reverse lamp |
Compliance and Safety
Confirm the stop and tail wiring functions before sealing the rear panel. Also check the bezel, cable route and screw tension, because a loose lamp or pinched cable can cause repeat rear lighting faults.
Trailer Applications
Workshops fit this round LED stop tail lamp to trailers, truck bodies, caravans, utes and service vehicles running round rear lamp layouts. It suits repairs where the red stop/tail lamp needs to match a chrome round American-style lamp assembly.
Why Choose ICS Trailers
ICS Trailers keeps trailer lighting, wiring and rear body hardware together so workshops can match stop/tail lamps with the rest of the repair. View more products in LED Lights
