LED Red Amber Side Marker Lamp 12-24V
LED Red Amber Side Marker Lamp 12-24V
$15.00
LED red amber side marker lamp for trailer and heavy vehicle body lighting, with 12-24V input, stainless steel bezel, IP67 sealing and compact 86mm x 31mm surface-mount body.
Part number 86ARM.
Description
Overview

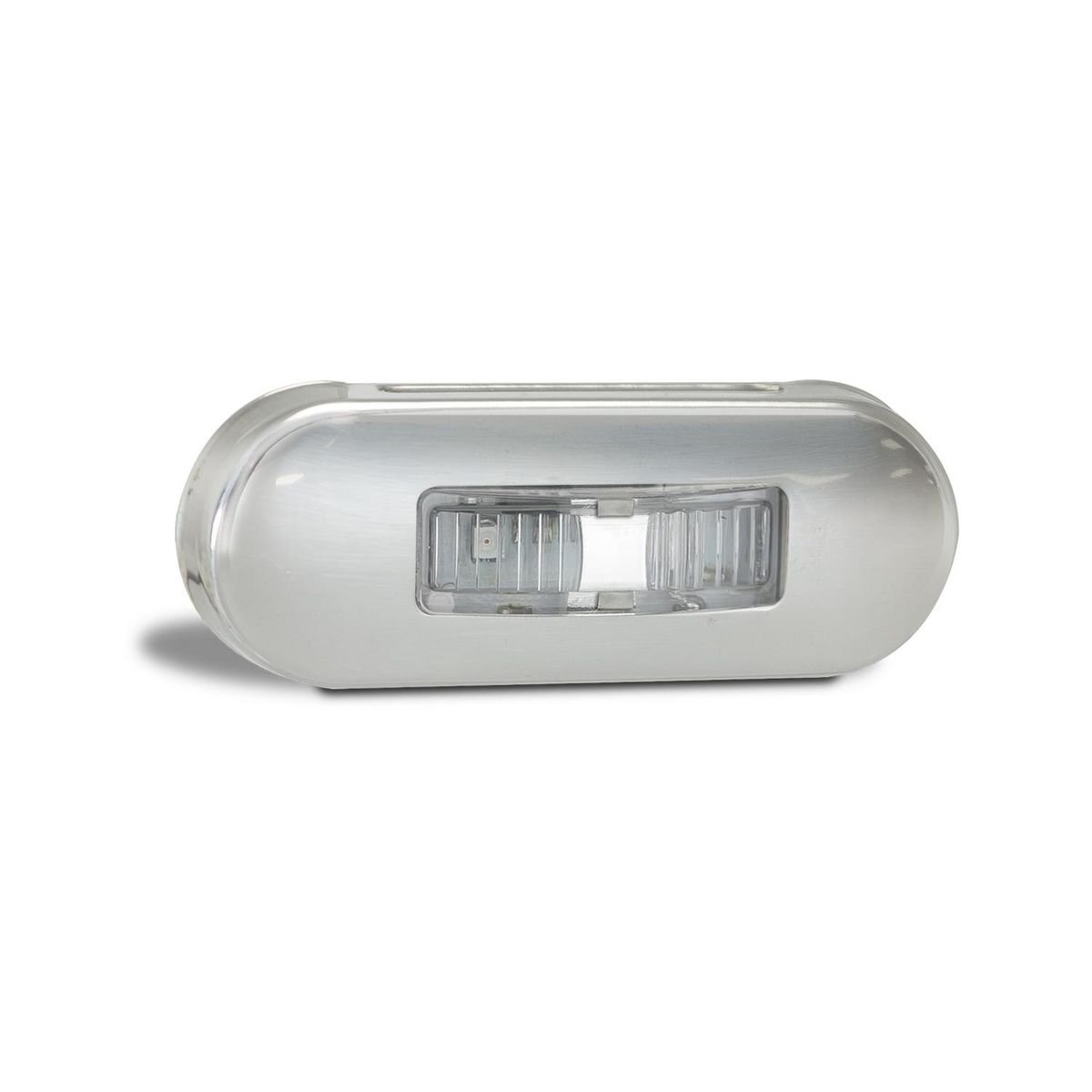

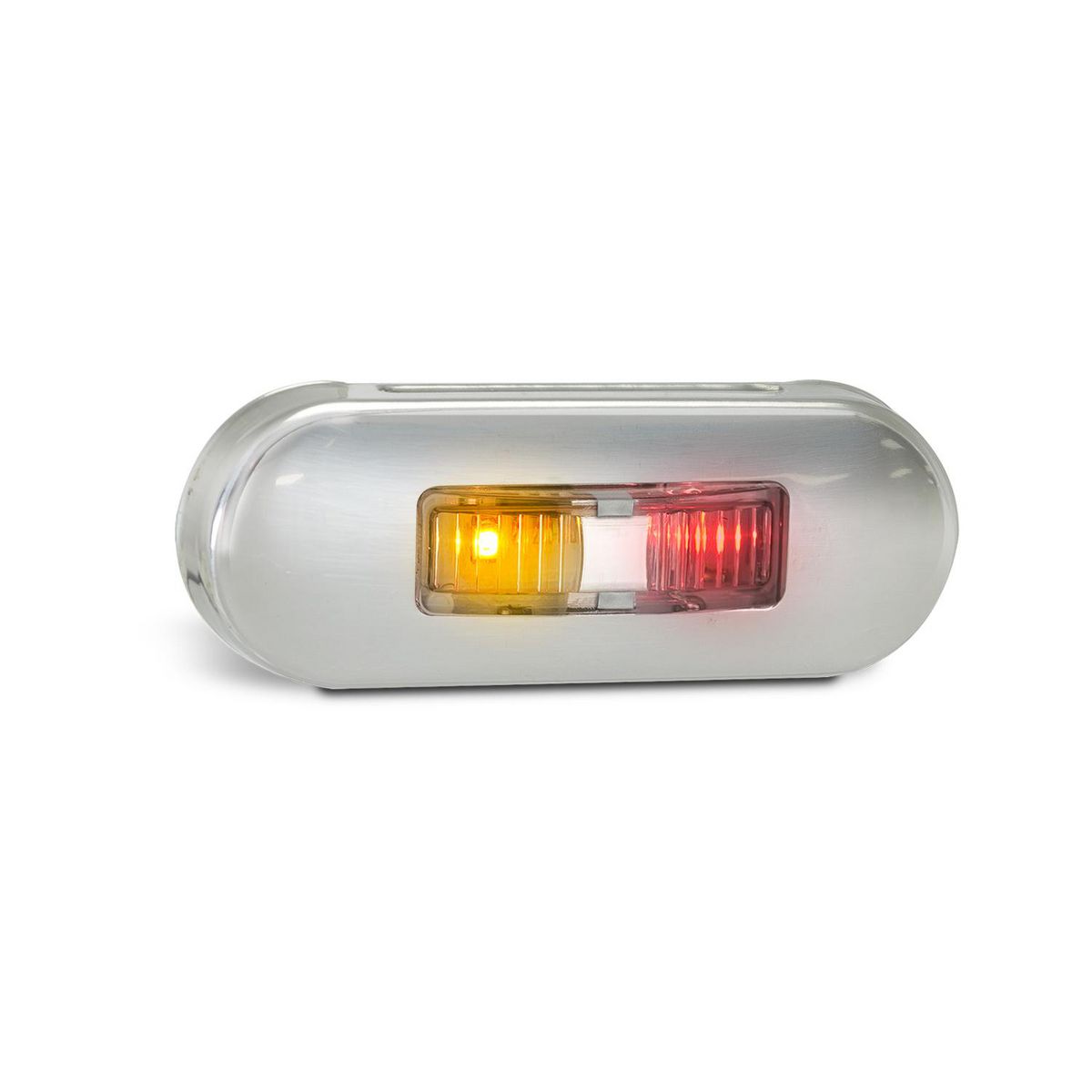

LED red amber side marker lamp marks trailer and heavy vehicle body edges with a compact dual-colour side marker. The clear lens, coloured LEDs and stainless steel bezel suit visible side fitments where a low-profile truck-style marker needs to sit neatly against the panel.
Features
- Red and amber side marker function in one compact lamp
- 12-24V multivolt operation suits common trailer and truck electrical systems
- 2 LED layout with 15cm bare-wire cable for permanent mounting
- IP67 rated lamp with polycarbonate lens and stainless steel base
Specifications and Materials

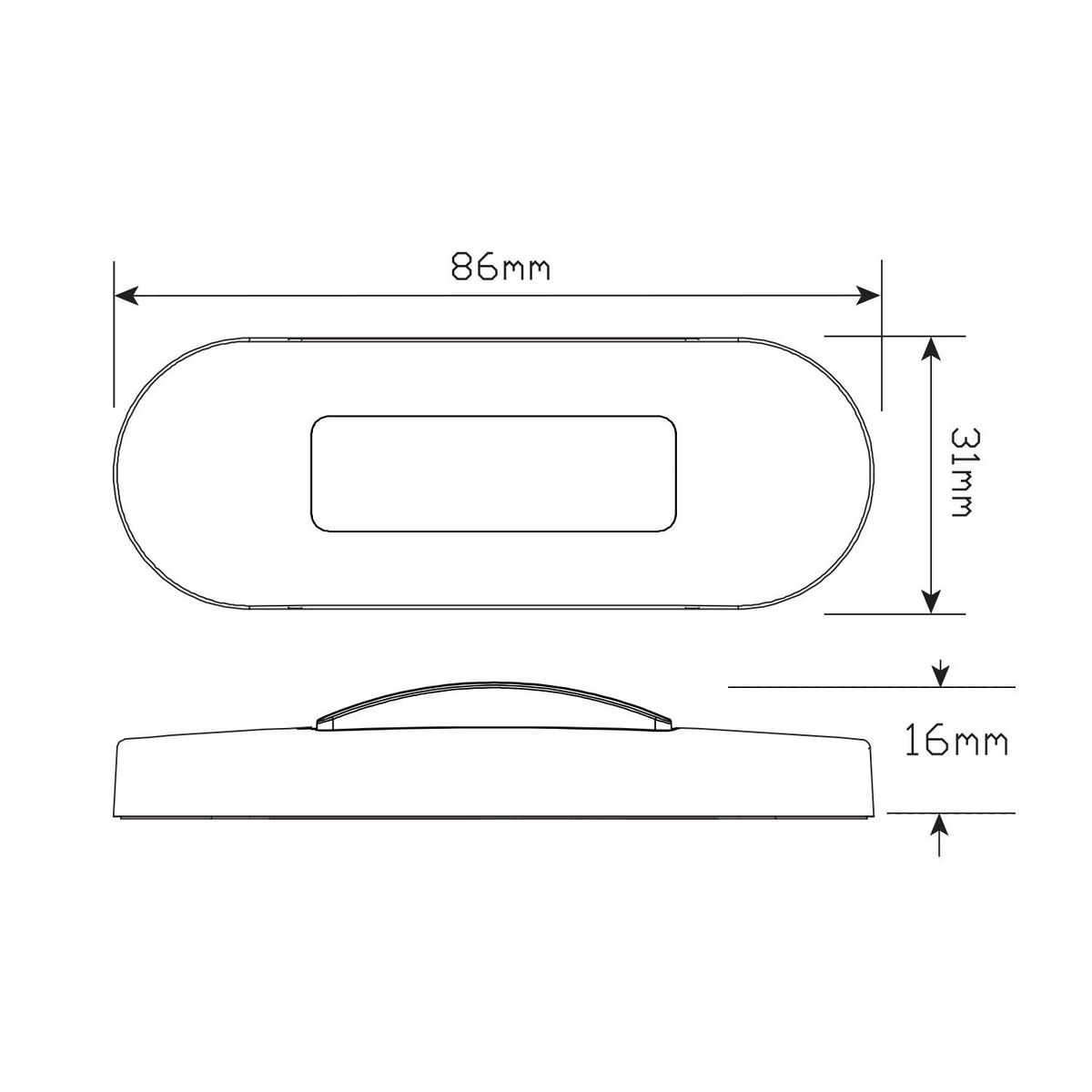

This LED red amber side marker lamp measures 86mm x 31mm x 10mm and uses coloured LEDs behind a clear polycarbonate lens. Current draw is 0.05A at 13.8V and 0.06A at 28V.
Part number: 86ARM.
The lamp carries ADR Marker 45/01 approval with CRN 48024 and CTA Marker 45/01 approval with CTA-048024.
Use the manufacturer 86 Series technical guide when checking marker lamp fitment, approvals and series options
Compatibility and Fitment
Check the side marker position, available mounting space, horizontal orientation and 12-24V wiring before ordering. Remove the stainless steel bezel, mount the lamp to a flat surface with screws, run the wires through the back, then clip the bezel back into place.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Bulk version | 86ARMB | Red amber marker lamp |
| Plug version | 86ARMCSB | Red amber marker with CSB plug |
| Matching series lamp | 86AM | Amber side marker |
| Matching series lamp | 86RM | Rear end marker |
| Matching series lamp | 86WM | Front end marker |
Compliance and Safety
Confirm the side marker location and colour orientation before returning the trailer to service. Also check the bezel, screw tension and cable route, because loose trim or pinched wiring can cause repeat marker lamp faults.
Trailer Applications
Workshops fit this LED red amber side marker lamp to trailers, trucks, caravans, service bodies and commercial vehicle bodies that need a compact side marker with a stainless steel bezel. It suits replacement work where the existing marker uses the 86 Series surface-mount footprint.
Why Choose ICS Trailers
ICS Trailers keeps trailer lighting, wiring and body hardware together so workshops can match side markers with the rest of the repair. View more products in LED Lights
