Description

Overview

Recessed LED flood reverse lamp gives trailers and service bodies a low-profile reverse or work light with a 9-30V multivolt input. The square face suits recessed mounting, so the lamp sits tight against the panel instead of hanging proud. It also carries ECE/ADR approval for 1/00 reverse use, making it a useful match where approved reverse lighting is needed.

Features

• 12W output from four 3W high brightness LEDs.
• Flood beam with 120 degree spread for close-range rear lighting.
• IP67 rated body helps keep dust and water out.
• Black E-coated alloy bracket and polycarbonate lens suit exposed trailer use.

Specifications and Materials

This recessed LED flood reverse lamp runs on 9-30V multivolt systems and carries a 33cm cable. It delivers 489 effective lumens and 660 raw lumens with a 5700K white output.

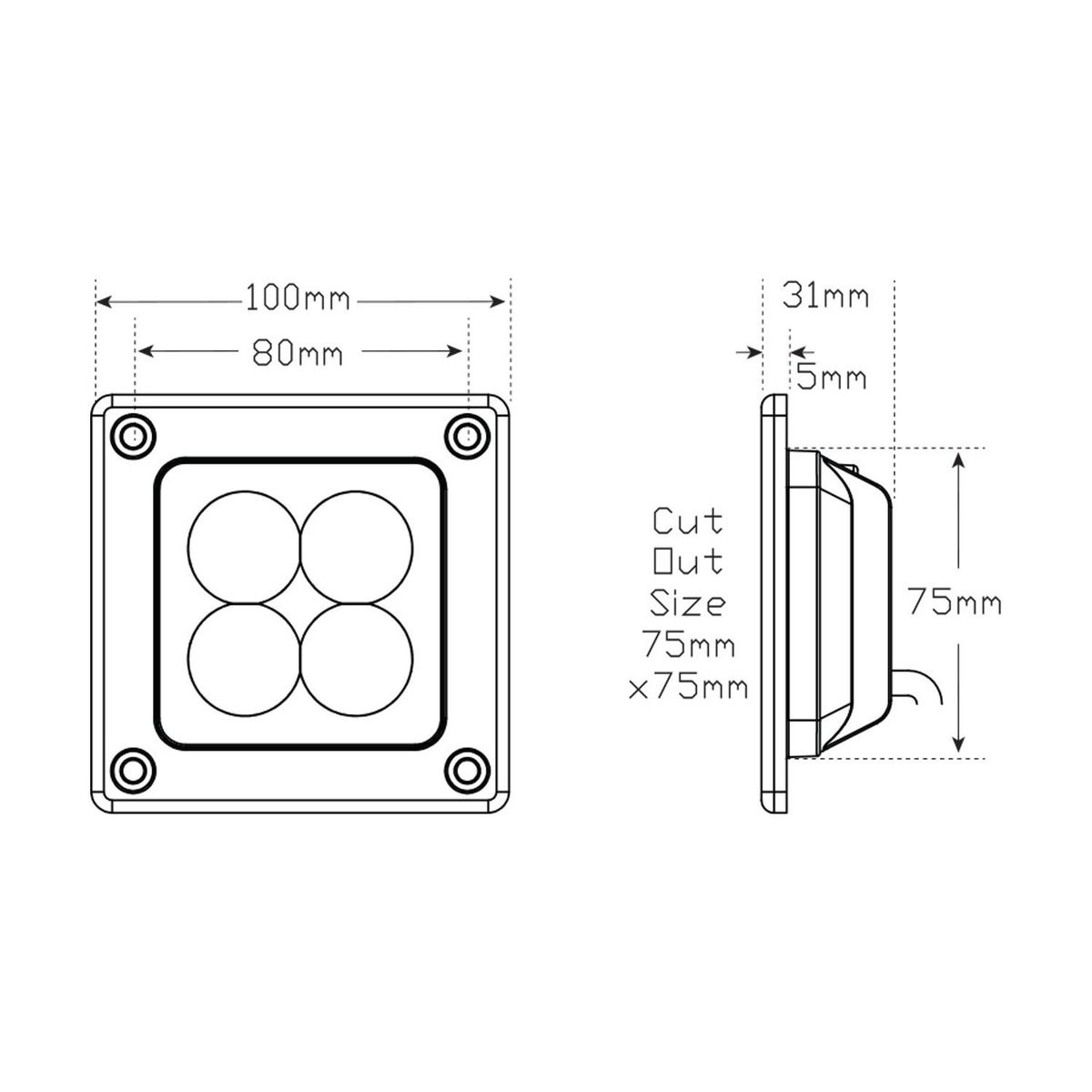

The front face measures 100mm × 100mm, and the recessed body needs a 75mm × 75mm cut-out. Black connects to power, and white connects to earth.

Part number: 73120BM.

For detailed lighting data, use the official datasheet

Compatibility and Fitment

Match the 75mm × 75mm cut-out, square face size, cable length and voltage range before ordering. This lamp suits 12V and 24V vehicle systems because the input range covers 9-30V.

Compliance and Safety

Use this lamp only where the mounting position and wiring comply with the trailer or vehicle lighting layout. Also check ADR 13/00 mounting requirements before road use, then test the reverse lamp function after fitting.

Trailer Applications

Workshops fit this style of recessed flood reverse lamp into trailer rear panels, truck bodies, ute trays and service bodies where a compact square lamp needs to sit close to the panel. The flood beam helps light the area behind the vehicle during reversing or low-speed yard work.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repair work, fleet maintenance and body builds, so match the cut-out and wiring before fitting this lamp.
