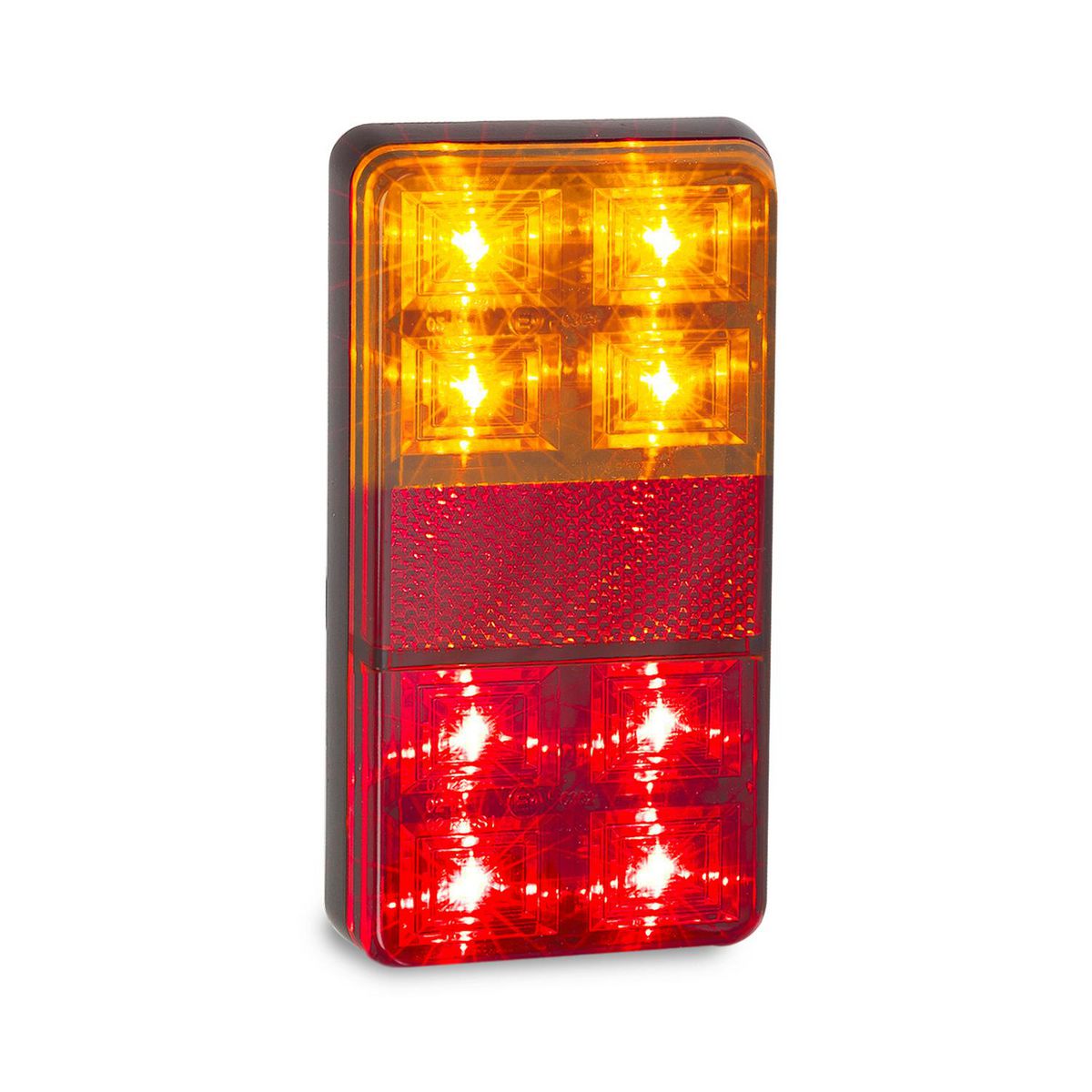

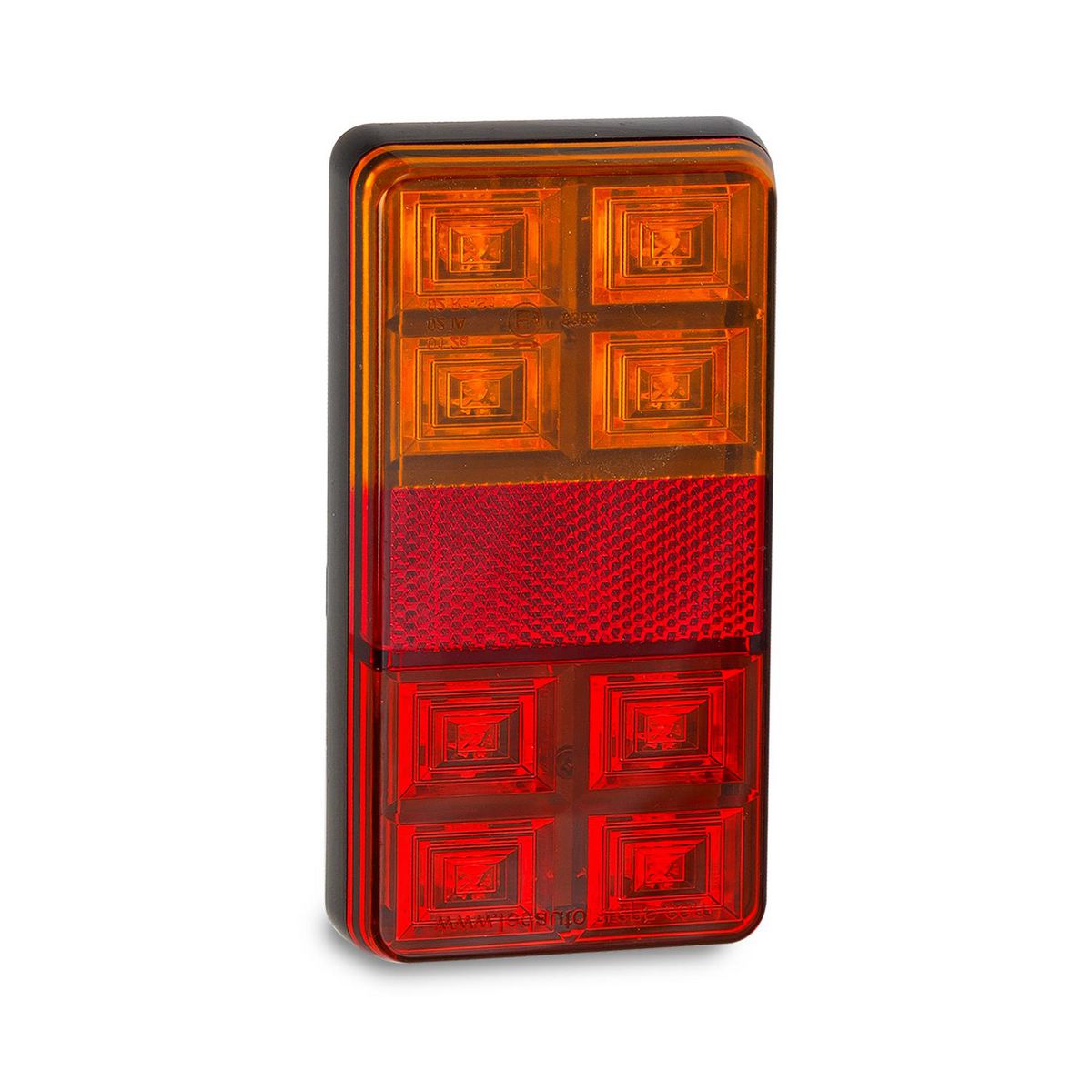

LED stop tail indicator lamp restores rear stop, tail, indicator and reflector functions on small trailer lighting setups. This 2 pack suits left and right rear lamp replacement where a low-profile 12V combination lamp matches the existing mounting position.

Features

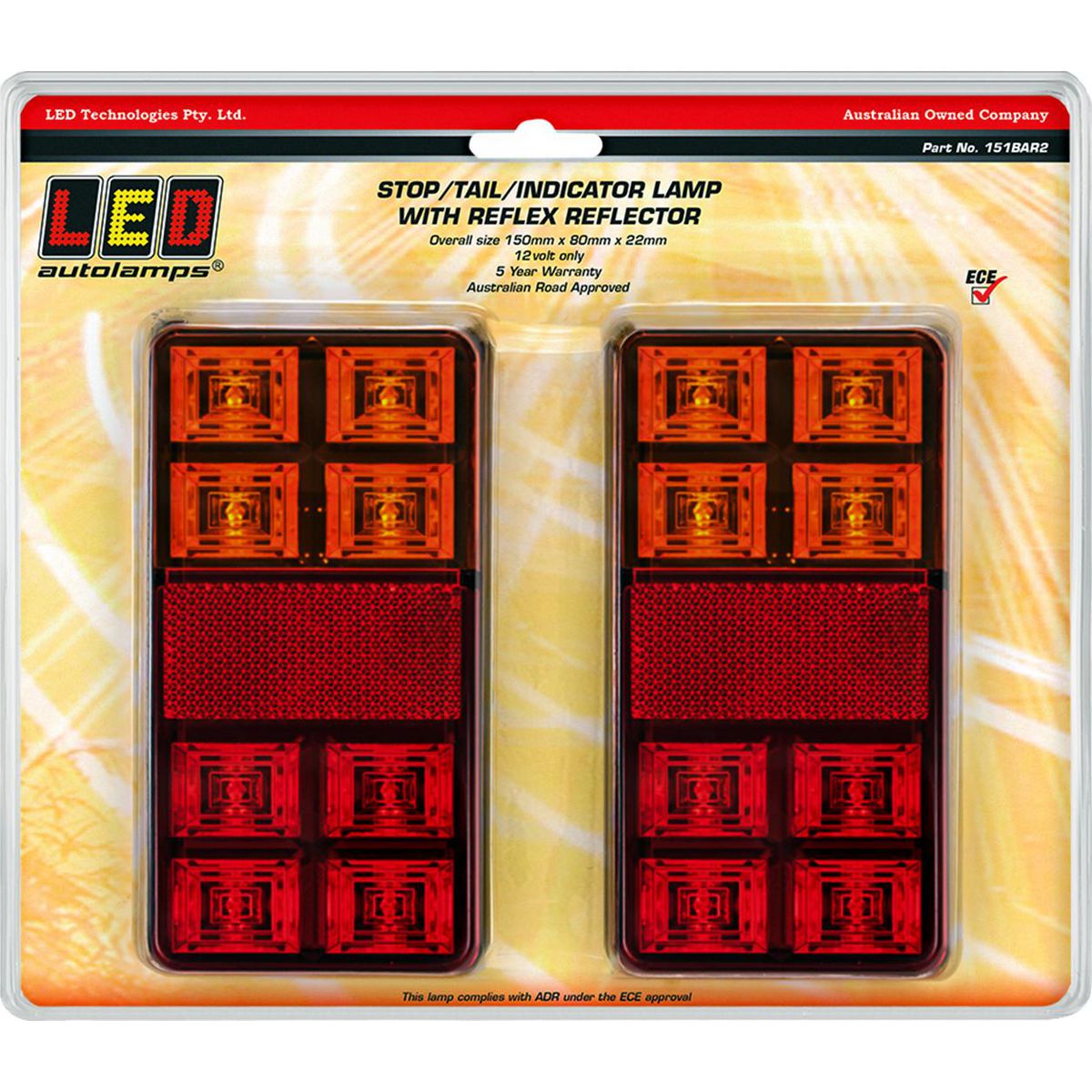

• 2 pack with stop, tail, indicator and reflex reflector functions
• 12V-only trailer lamp for small trailer rear lighting repairs
• 8 LEDs per lamp with 40cm cable for hardwired installation
• IP67 rated body with hardened acrylic lens and ABS base

Specifications and Materials

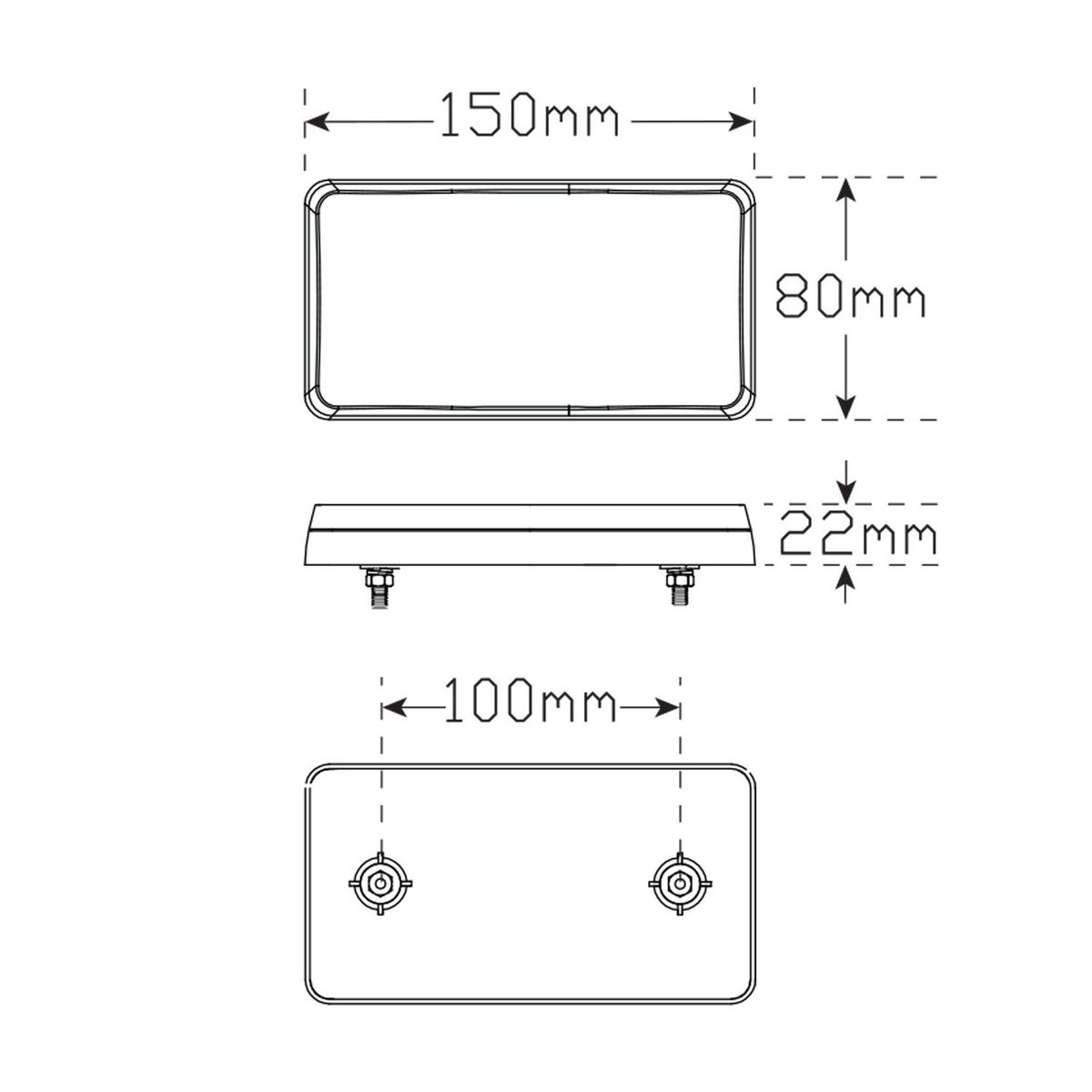

Each LED stop tail indicator lamp measures 150mm x 80mm x 22mm and carries an amber/red lens layout. Current draw at 13.8V is 0.13A stop, 0.04A tail and 0.12A indicator.

Part number: 151BAR2.

The lamp carries ECE stop/tail, indicator and reflector approvals, plus CTA-060147 approval for stop, tail, indicator and reflector functions.

Use the manufacturer 151 Series technical guide when checking fitment, approvals and wiring details

Compatibility and Fitment

Check the 12V supply, rear lamp position, vertical mounting orientation and available 150mm x 80mm panel space before ordering. Surface mount each lamp to a flat face with the indicator at the top, then run the wiring through the fixing surface.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the wiring function before sealing the rear body panel. Also check the lamp orientation, cable route and mounting surface, because water entry or pinched wiring can cause repeat lighting faults.

Trailer Applications

Workshops fit this LED stop tail indicator lamp 2 pack to box trailers, small plant trailers, light-duty service trailers and other 12V trailer bodies. It suits simple rear lamp replacement where separate reverse lighting or built-in licence plate lighting is not required.
