Description

Overview

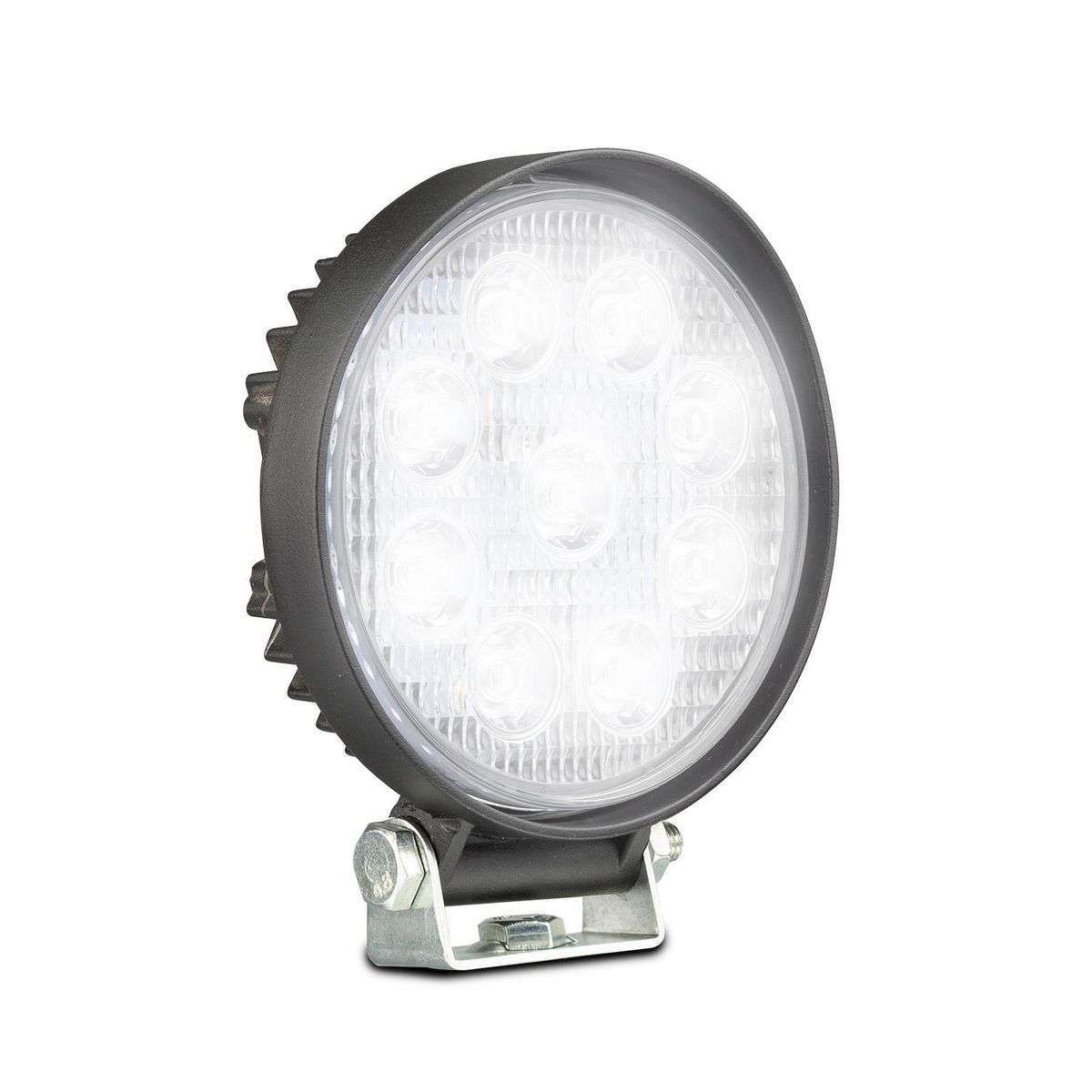

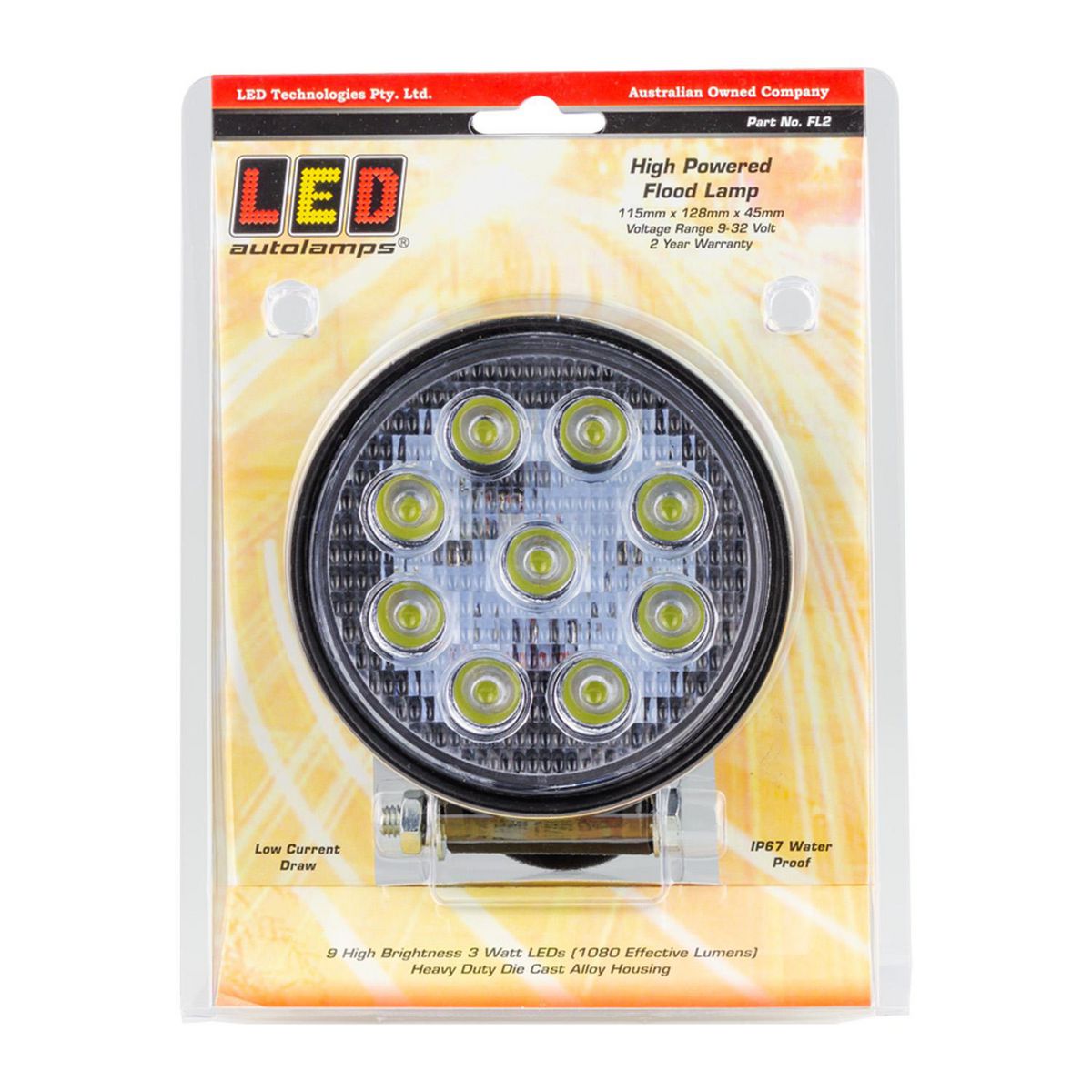

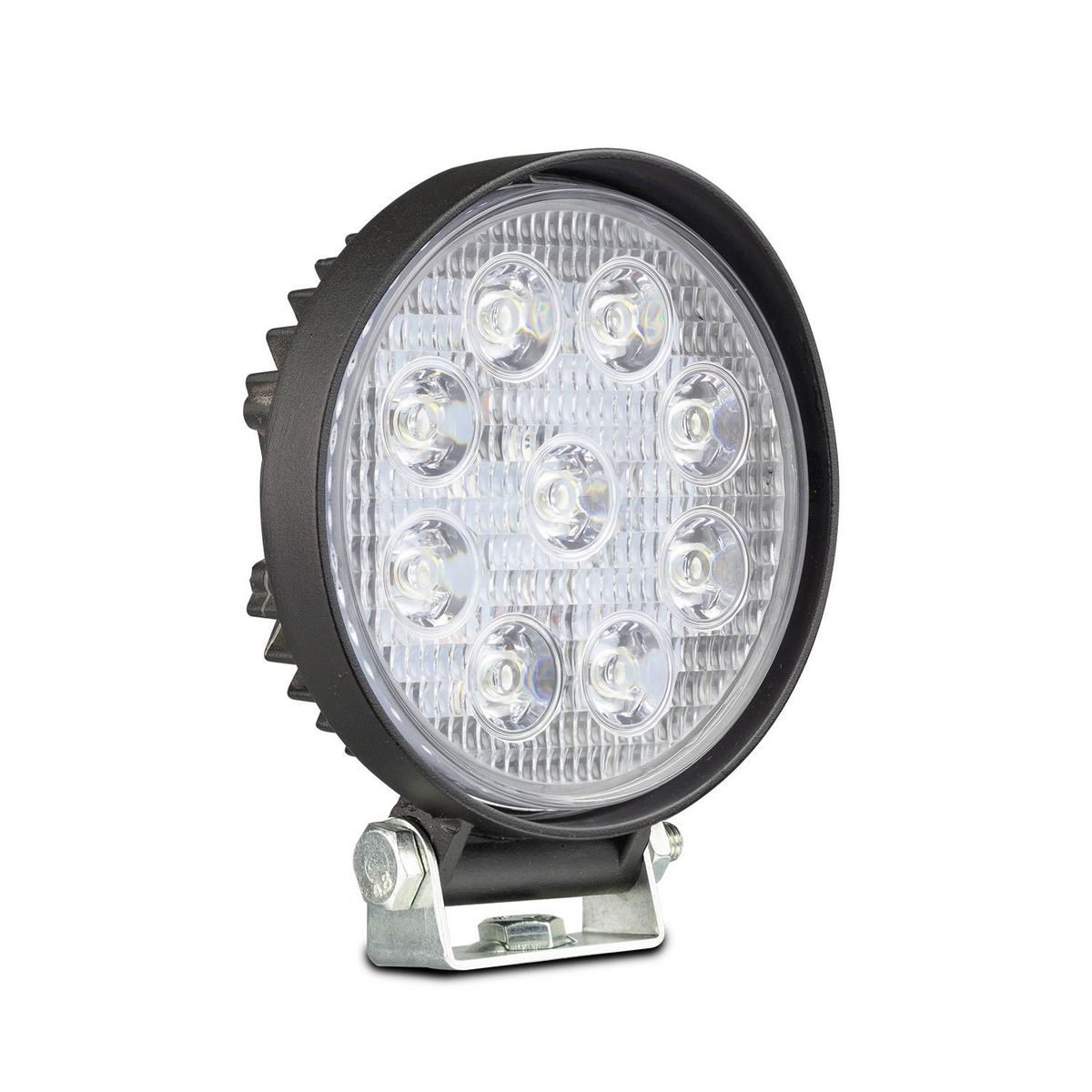

9-32V round flood lamp supports trailer, truck, ute and service body work lighting with a compact high-output LED flood beam.

The round black housing suits exterior work areas where broad near-field light matters more than long-distance driving beam. Because the lamp uses a multivolt 9-32V range, it suits 12V and 24V electrical systems across mixed workshop and fleet setups.

Features

• 9 x 3W LED layout with 1080lm effective output
• 6000K white flood beam for clear work-area visibility
• IP67 rated body for exposed exterior mounting positions
• Adjustable stainless steel bracket and stainless steel fittings

Specifications and Materials

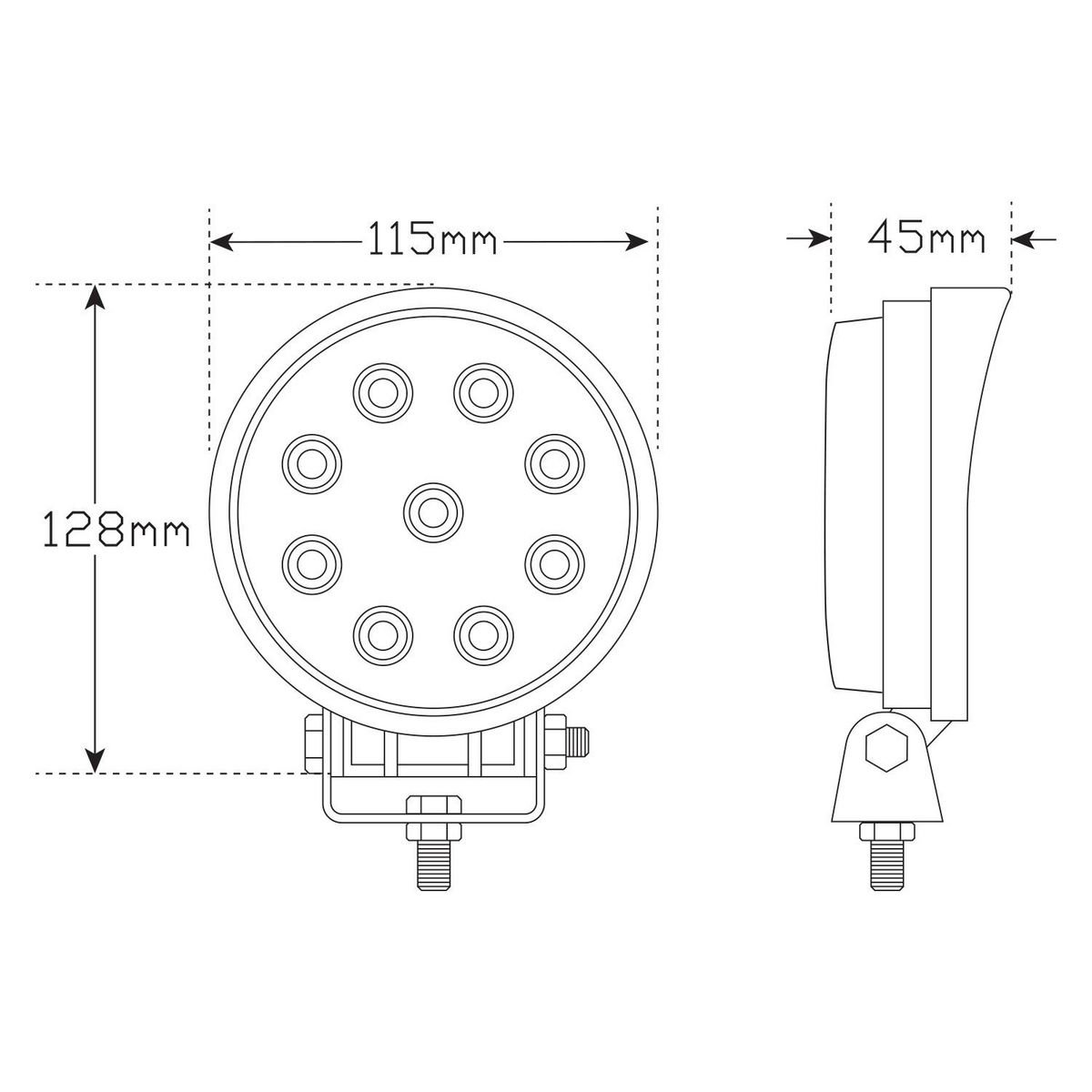

This 9-32V round flood lamp measures 115mm x 128mm x 45mm and runs a 230mm cable. It uses a PMMA lens, aluminium base and stainless steel fitting hardware.

The lamp produces 1170lm raw output, 1080lm effective output and 2837lx at 1m. It draws 1.1A at 13.8V and 0.53A at 28V.

Part number: FL2.

Use the manufacturer technical guide

Compatibility and Fitment

Check the 115mm x 128mm body size, 45mm depth, voltage range and bracket clearance before ordering. Mount the lamp to a firm surface using the supplied stainless steel bolts and adjustable bracket, then aim the flood beam before tightening the hardware.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 11618FBM

Compliance and Safety

Use this lamp as work-area lighting rather than a road driving beam. Also check cable routing, earth and mounting angle before final tightening, because vibration or poor wiring can shorten the life of the lamp installation.

Trailer Applications

Workshops fit this 9-32V round flood lamp to trailers, trucks, canopies, service bodies, trays and workshop vehicles needing broad light around loading areas. The adjustable bracket helps aim light onto toolboxes, ramps, work benches and rear service zones.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
