Description

Overview

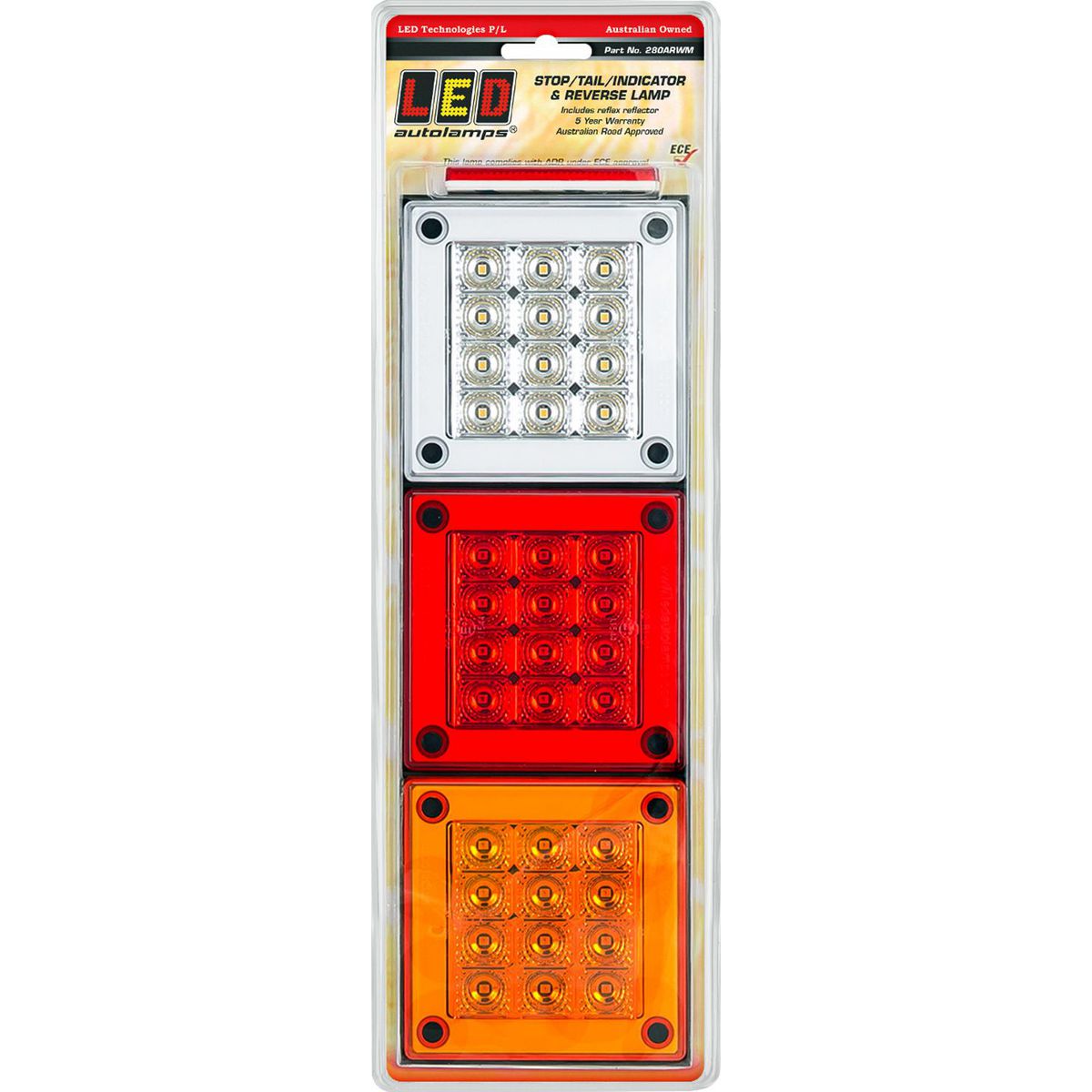

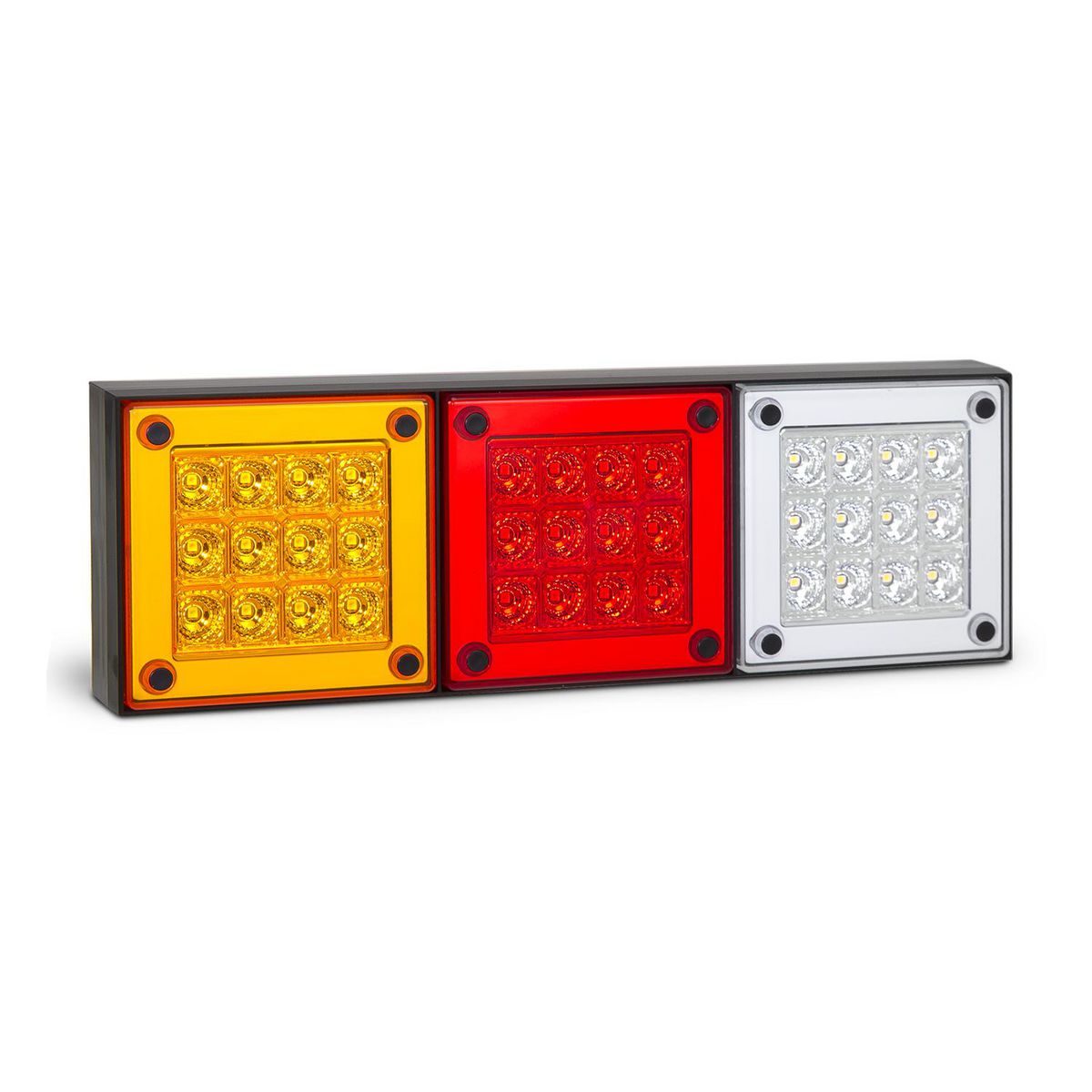

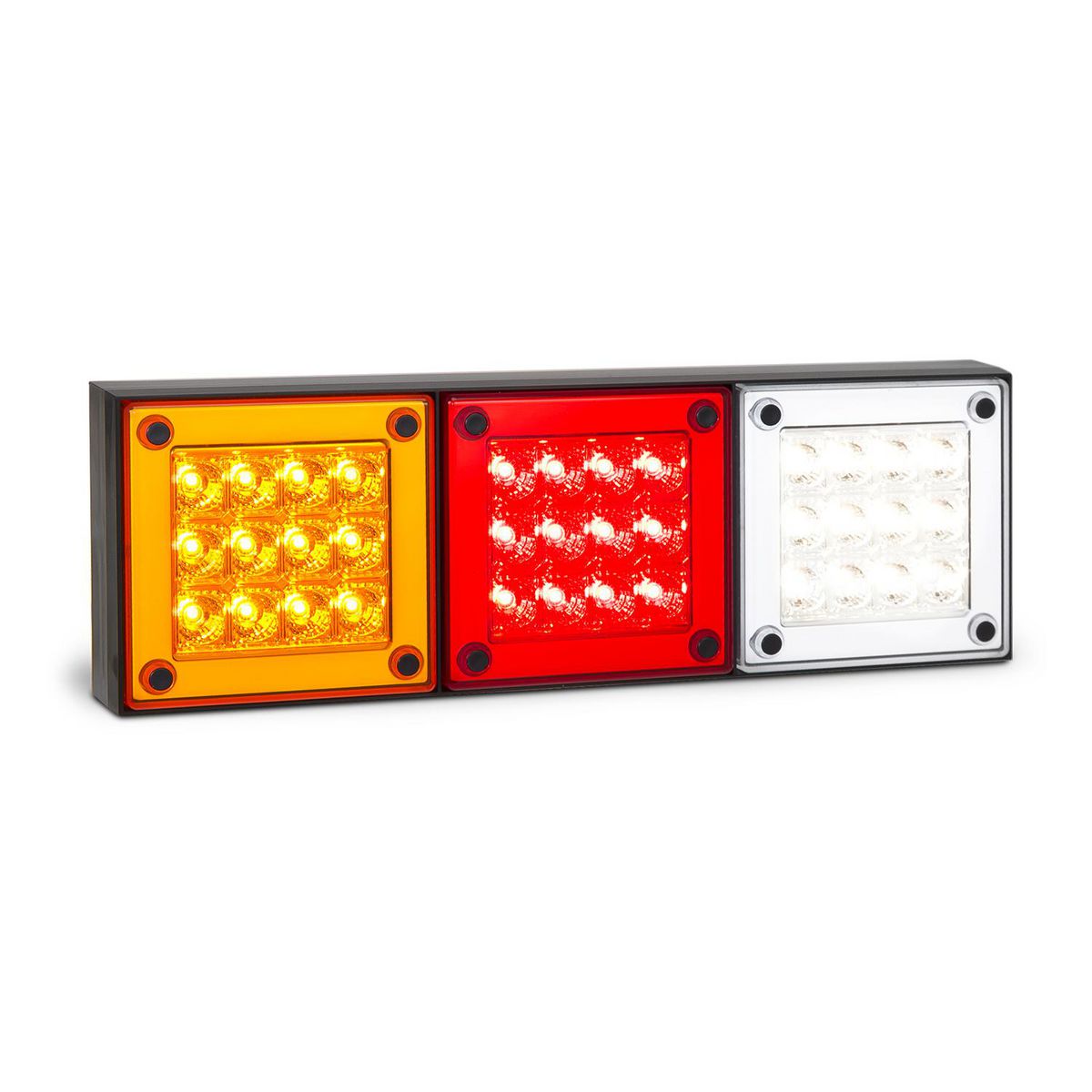

12/24V mini jumbo combination lamp handles stop, tail, indicator and reverse lighting in one compact rear LED assembly.

The 280 Series body suits rear trailer, tray, caravan and service body fitments where a smaller rectangular combination lamp is easier to mount than a full-size jumbo lamp. Because it includes reverse function and a red reflector, it keeps the rear lighting layout compact without dropping core road-lighting functions.

Features

• Stop, tail, indicator, reverse and reflector functions in one lamp
• 36 LED layout with 1.2m bare-wire cable
• 12-24V operating range for mixed trailer and truck systems
• IP67 rated body with surface-mount fitting

Specifications and Materials

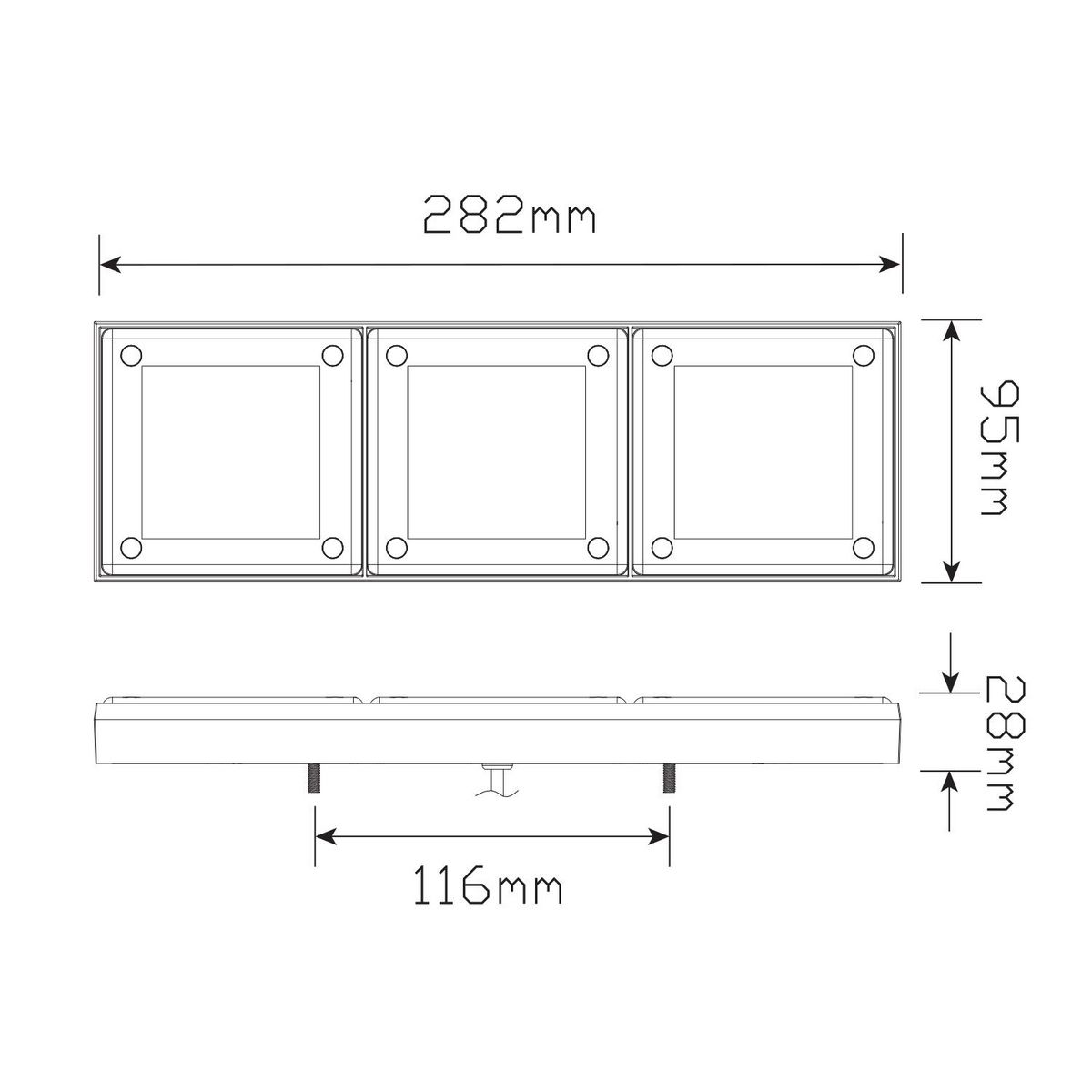

This 12/24V mini jumbo combination lamp measures 282mm x 95mm x 28mm and runs through a 1.2m bare-wire cable. It carries stainless steel mounting bolts and mounts to a flat rear surface.

Part number: 280ARWM.

Use the manufacturer technical guide

Compatibility and Fitment

Check the 282mm x 95mm body size, 12-24V supply, rear panel space and cable routing before ordering. Mount the lamp horizontally or vertically on a flat surface, then run the cable through a 12mm hole before testing each lighting function.

Related Parts

Check the related 280 Series parts below against the trailer or vehicle lighting setup before ordering.

Compliance and Safety

Fit the lamp to suit ADR 13/00 mounting requirements for the trailer or vehicle body. Also test stop, tail, indicator and reverse circuits before road use, because one wiring fault can leave more than one rear lighting function inactive.

Trailer Applications

Workshops fit this 12/24V mini jumbo combination lamp to trailers, trays, caravans, utes and service bodies needing a compact rear combination light. The smaller 280 Series footprint suits builds where rear panel space is limited but full rear signalling still matters.
