Reverse Lamp 135mm 12-24V Surface Mount
Reverse Lamp 135mm 12-24V Surface Mount
$65.00

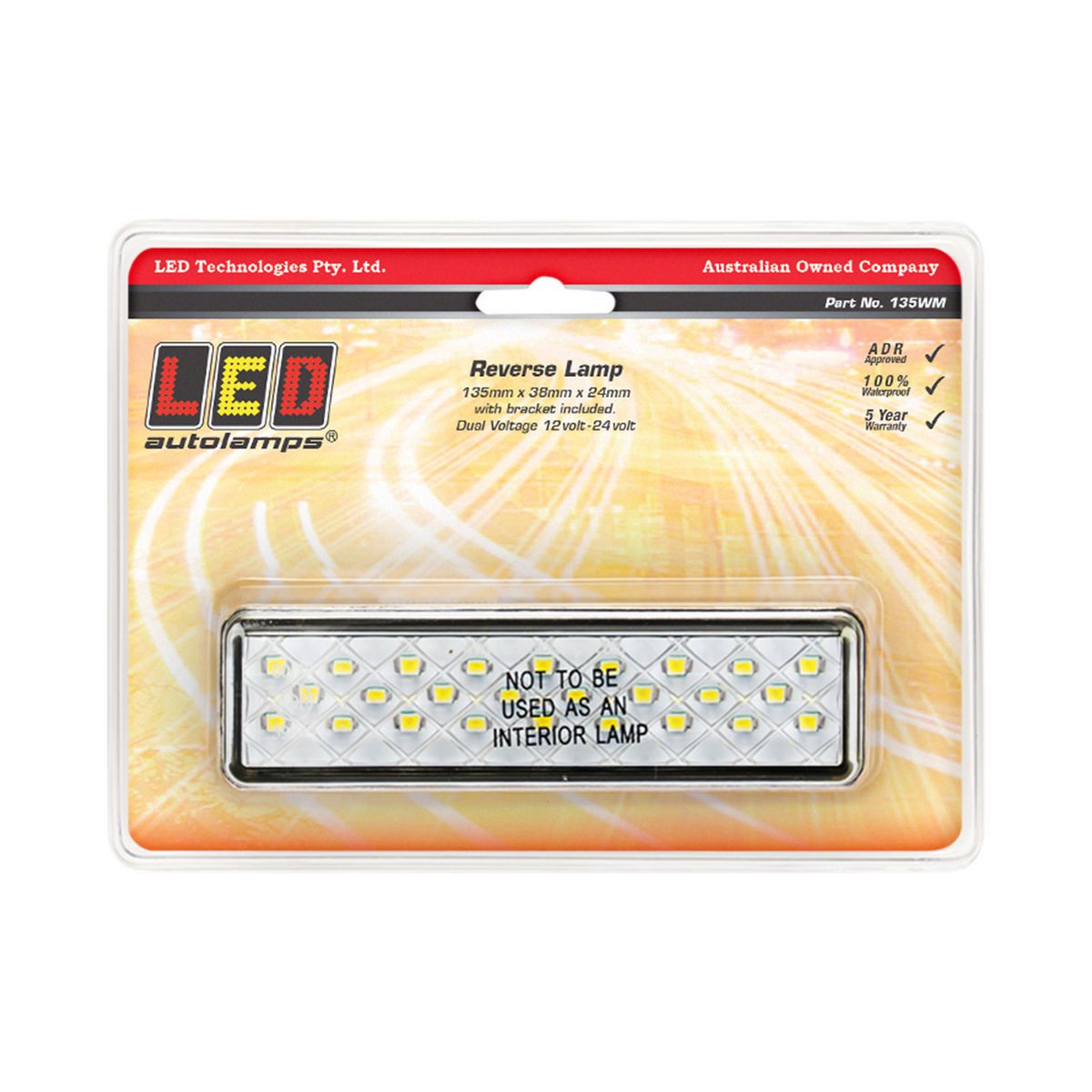

Reverse lamp for 12-24V trailer and commercial vehicle rear lighting, with a 135mm x 38mm x 24mm body, IP67 sealing, 40cm cable and surface or recessed mounting options for compact reverse light positions.
Part number 135WM.
Description
Overview

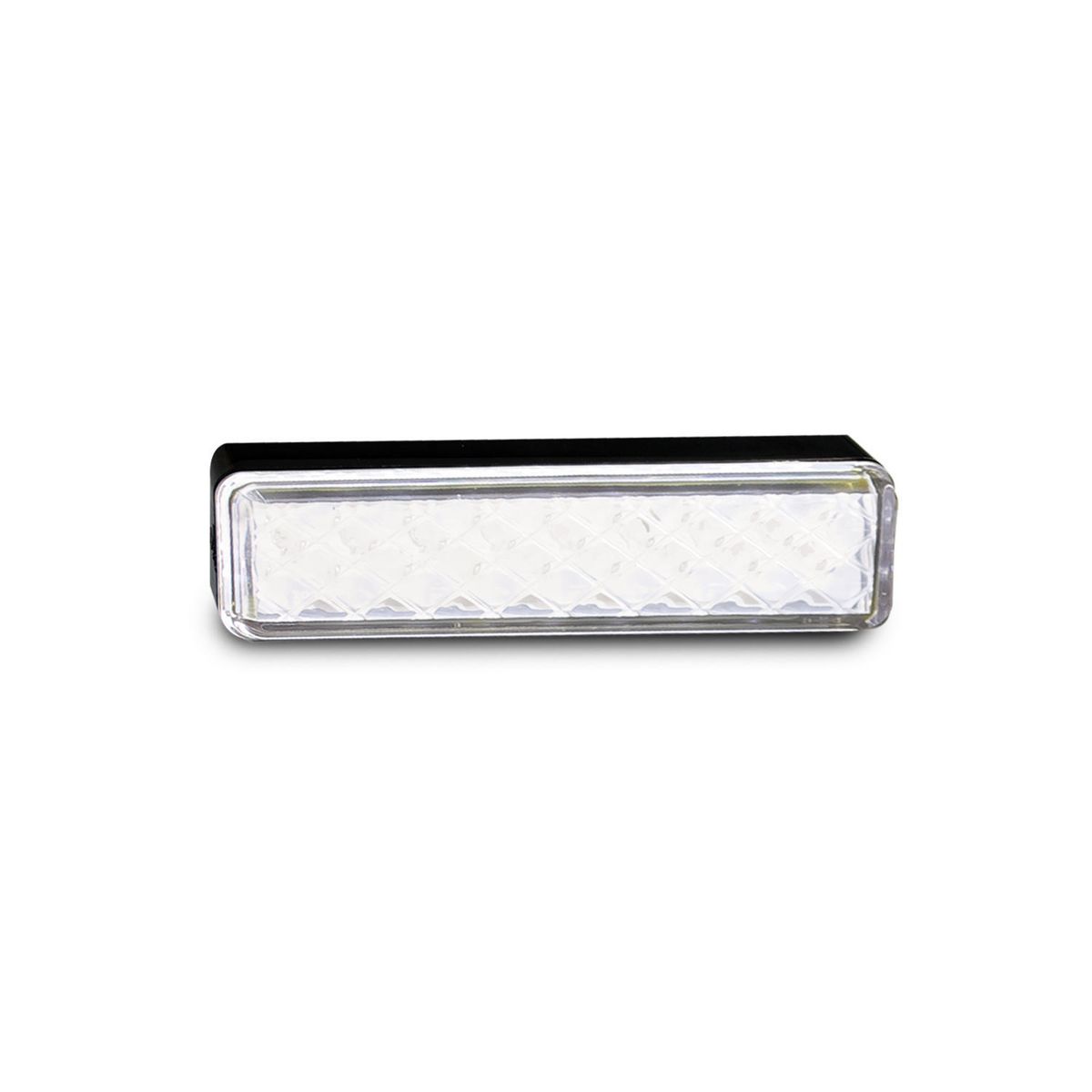

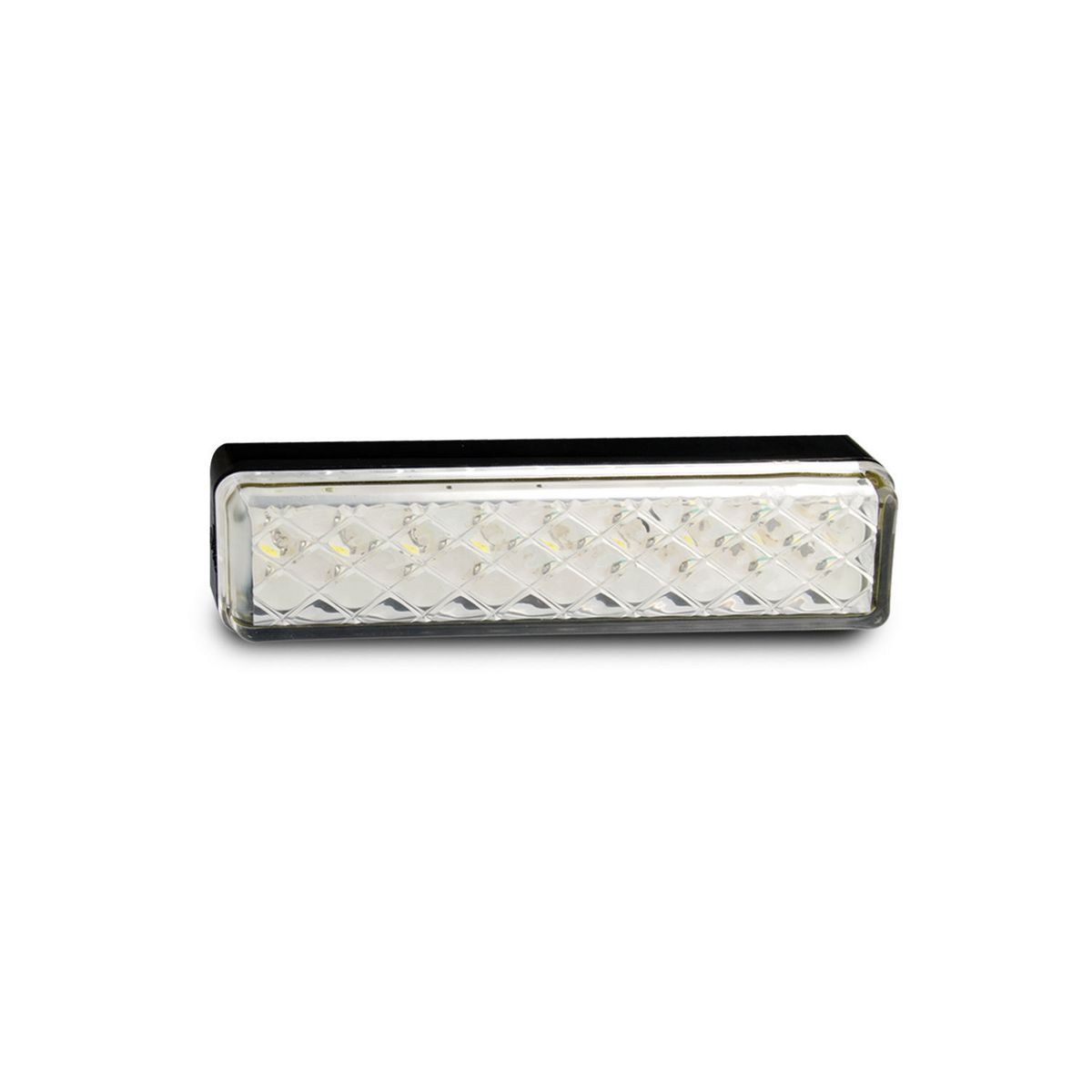

12-24V reverse lamp handles rear reversing light output on trailers, truck bodies and commercial vehicle panels. Its compact 135mm x 38mm body suits tight rear lighting layouts where a smaller rectangular lamp gives enough output without taking over the panel.
Features
- Reverse function lamp for 12-24V electrical systems.
- Surface mounts with bracket, or recess mounts with a separate grommet.
- IP67 rating helps protect the lamp from dust and water ingress.
- 40cm cable supports straightforward rear lighting wiring.
Specifications and Materials
Part number: 135WM.

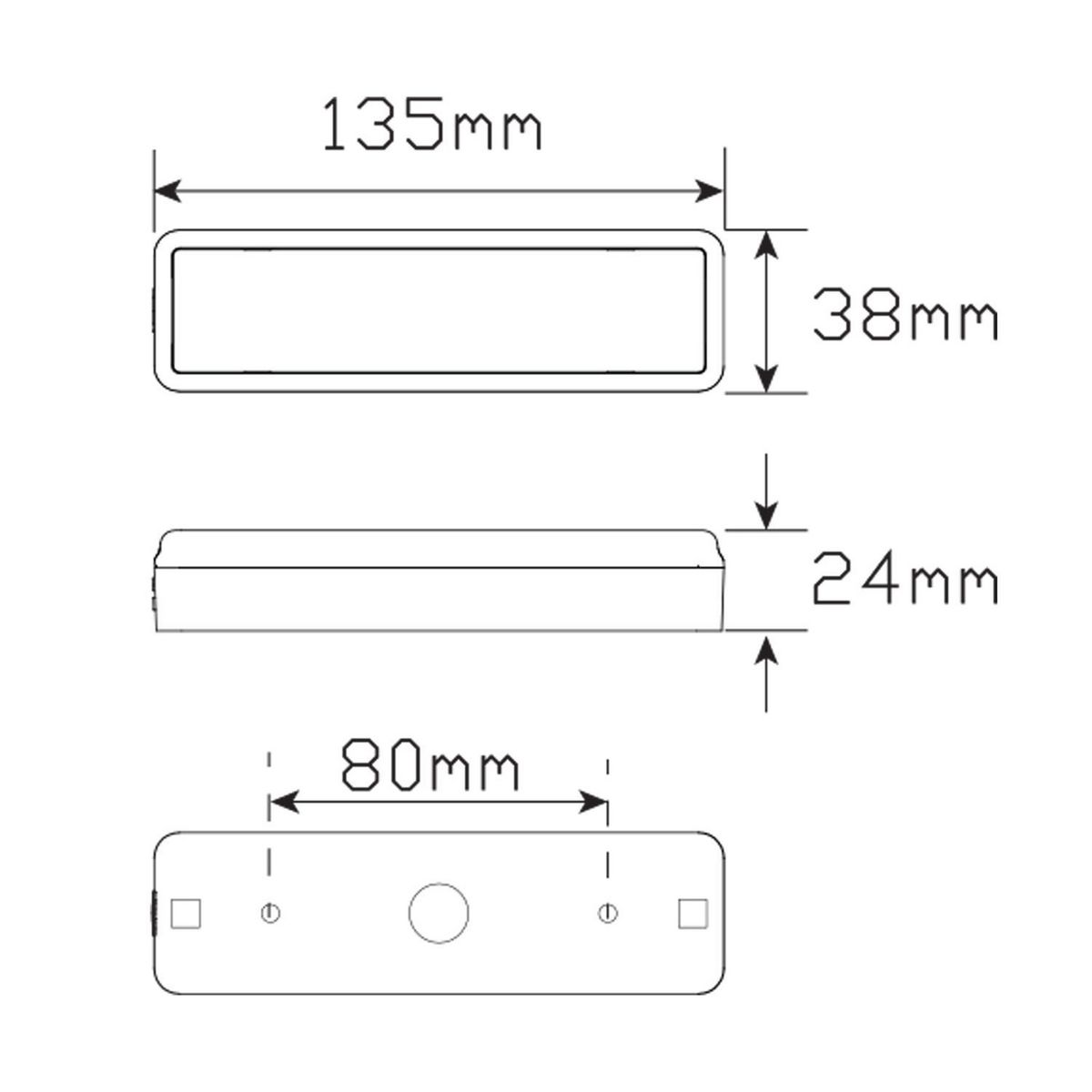

This 12-24V reverse lamp measures 135mm x 38mm x 24mm and uses a 133mm x 36mm cut-out when recess mounted with the matching grommet. The reverse circuit draws 0.16A at 13.8V and 0.06A at 28V.
LED Autolamps 135 Series technical page
Compatibility and Fitment
Match the 135mm x 38mm x 24mm body size, 12-24V supply and reverse lamp function before ordering. For surface mounting, fit the bracket horizontally and run the wiring through the back. For recessed mounting, use the matching grommet and check the 133mm x 36mm cut-out before drilling or trimming the panel.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Grommet to suit | 135G-1 | Rubber recessed mount grommet |
| Bracket to suit | 135BKT-1 | Replacement surface mount bracket |
| Matching series version | 135RM | Stop/tail lamp |
| Matching series version | 135AM | Rear indicator lamp |
Compliance and Safety
Check reverse lamp position, wiring polarity and mounting security before putting the trailer back into service. Also confirm the cable path avoids sharp panel edges, because damaged insulation can cause lighting faults after the lamp has been fitted.
Trailer Applications
Workshops fit this 12-24V reverse lamp to trailer rear panels, ute trays, truck bodies and commercial vehicle lighting layouts. It suits compact reverse lighting positions where the installer needs a low-profile rectangular lamp with either surface or recessed mounting.
