Stop Tail Strip Lamp Recessed 12V
Stop Tail Strip Lamp Recessed 12V
$35.00

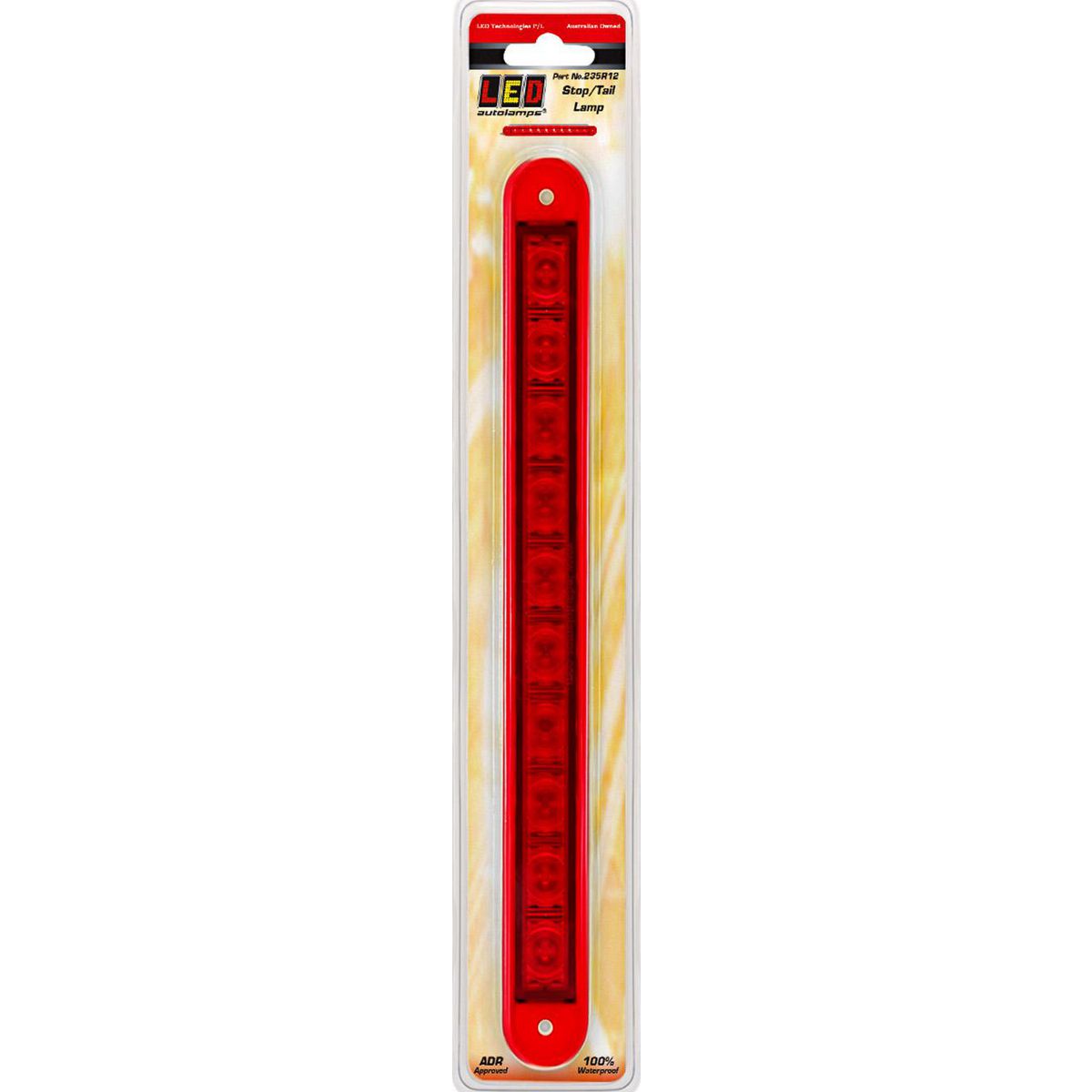

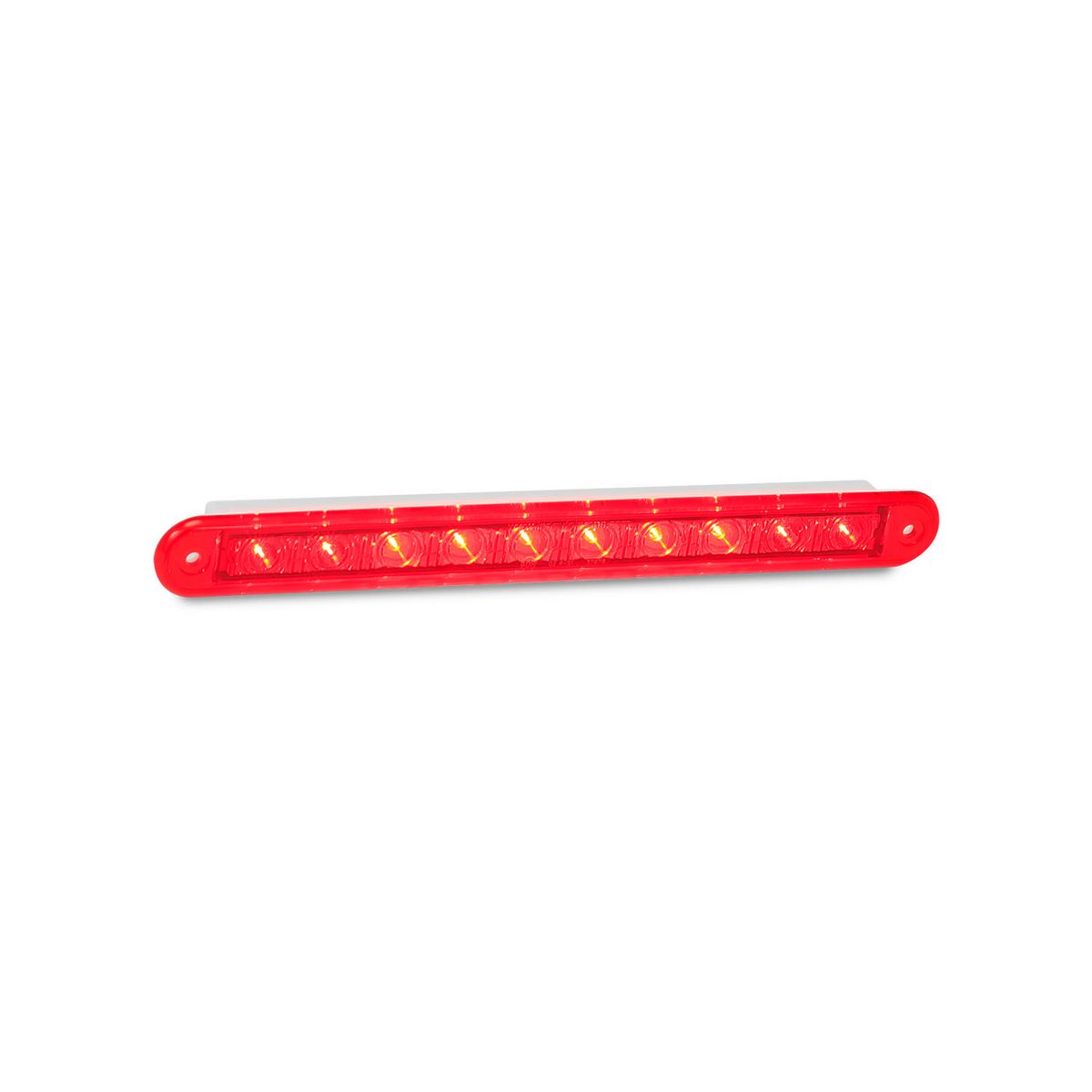

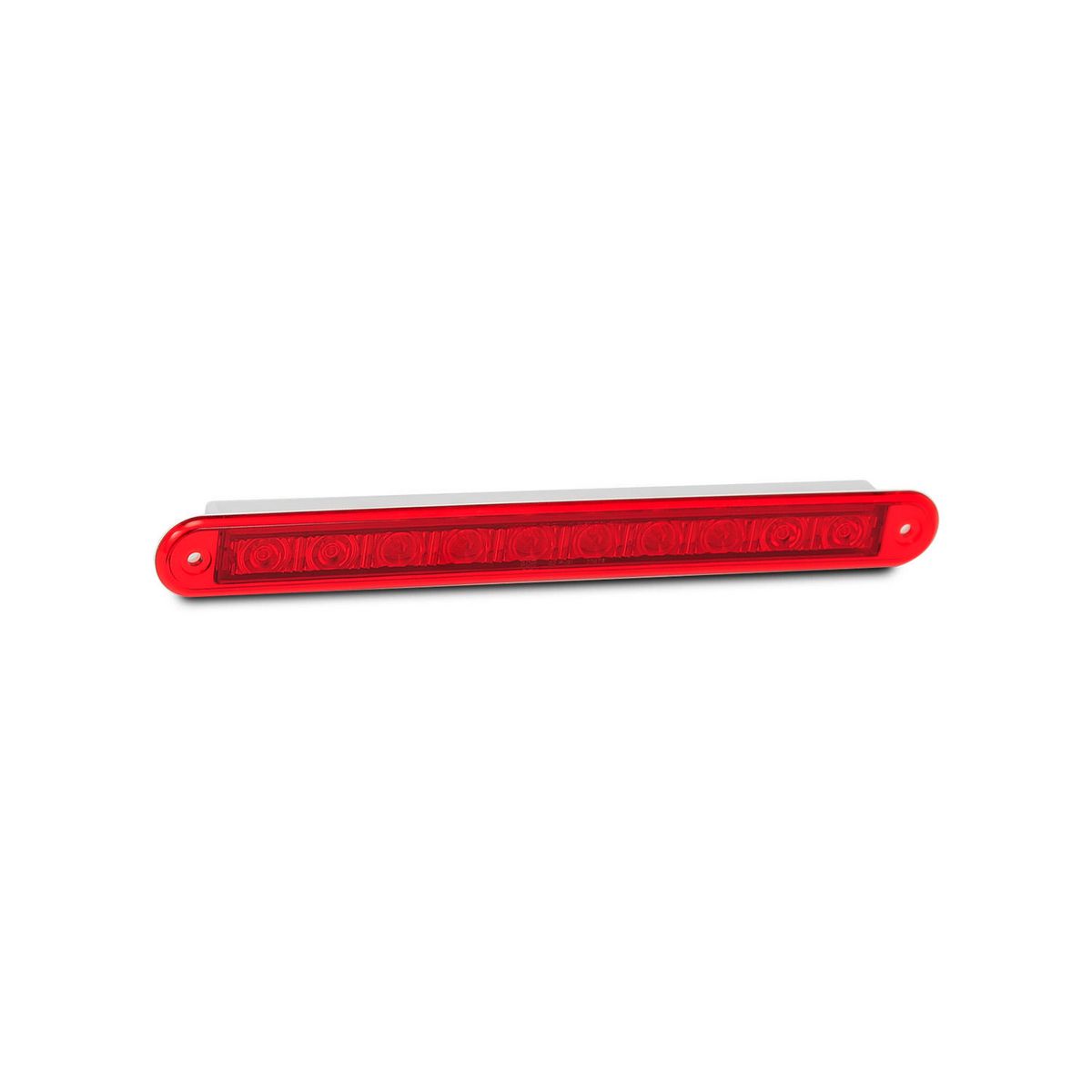

Stop tail strip lamp for 12V trailer and commercial vehicle rear lighting, with 10 LEDs, recessed mounting, 40cm cable, IP67 sealing and a slim 237mm x 25mm face for neat panel fitment.
Part number 235R12.
Description
Overview
Stop tail strip lamp handles rear brake and tail lighting on trailers, truck bodies and commercial vehicle panels. Its slim recessed body keeps the lamp close to the panel, so it suits clean rear layouts where a bulky surface lamp would sit proud.
Features
- 10 LED red stop/tail lamp for 12V systems.
- Recessed slimline body with low-profile panel finish.
- 40cm cable supports straightforward rear lamp wiring.
- IP67 rating helps protect the lamp from dust and water ingress.
Specifications and Materials
Part number: 235R12.

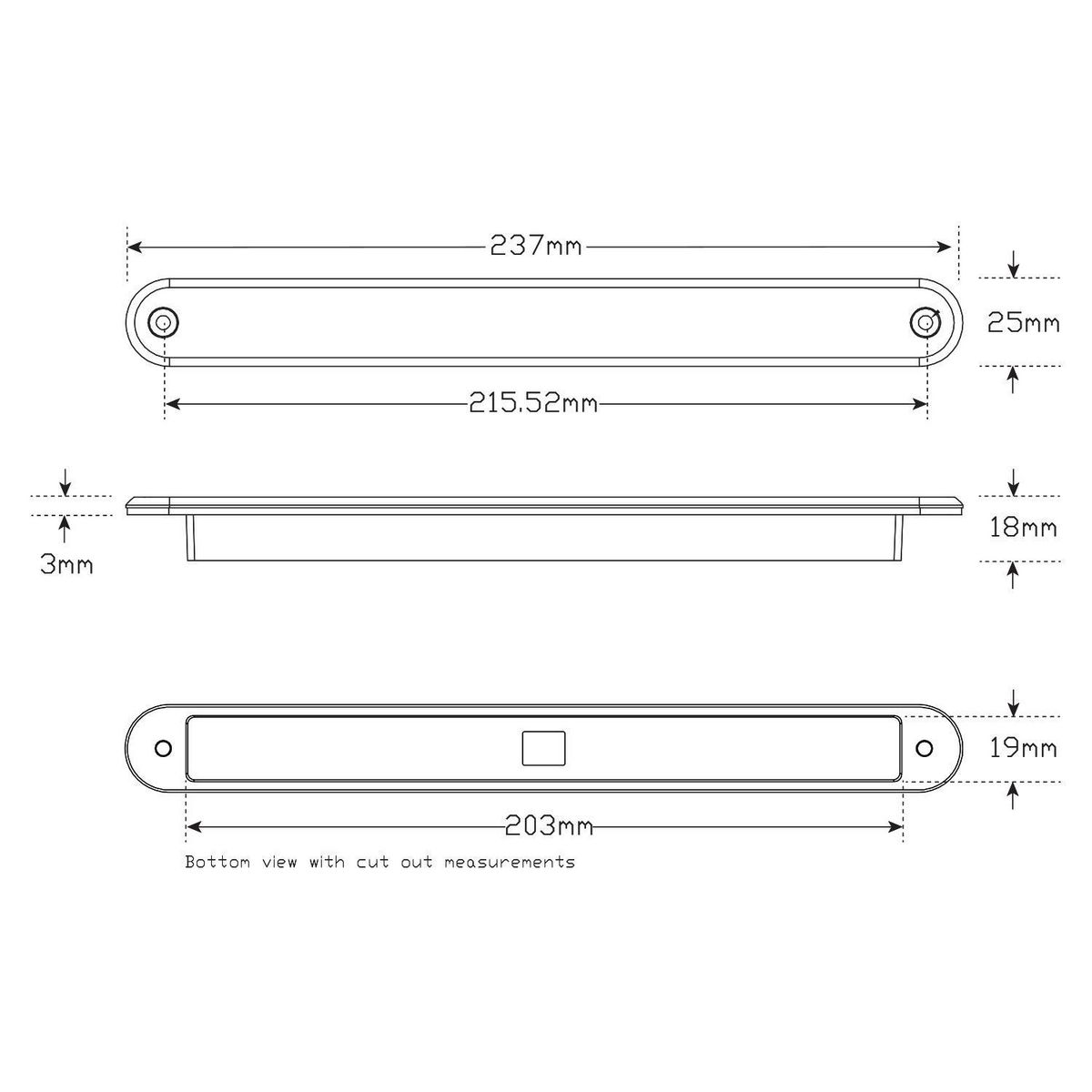

The stop tail strip lamp measures 237mm x 25mm across the face and uses a 203mm x 19mm panel cut-out. It carries ADR Stop/Tail 49/00 approval, with 0.14A stop draw and 0.04A tail draw at 13.8V.
LED Autolamps 235 Series technical page
Compatibility and Fitment
Match the 237mm x 25mm lamp face, 203mm x 19mm cut-out, 12V supply and stop/tail function before ordering. The lamp mounts horizontally into a flat surface, then the cable runs through the rear of the panel before the lamp and grommet push into place.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related voltage version | 235R24 | 24V stop/tail strip lamp |
| Related lens version | 235CR12 | 12V clear lens stop/tail lamp |
| Bracket to suit | 235B1B | Single black surface bracket |
| Bracket to suit | 235C1B | Single chrome surface bracket |
| Housing to suit | 235BT-2 | Twin tail lamp housing |
| Housing to suit | 235BTB | Single tail lamp housing |
Compliance and Safety
Check lamp position, wiring polarity and mounting orientation before fitting. Also inspect the cut-out and screw tension, because an overtightened lamp or rough panel edge can damage the housing, grommet or cable.
Trailer Applications
Workshops fit this stop tail strip lamp to rear trailer panels, ute trays, truck bodies and commercial vehicle lighting layouts. For matching side, indicator or reverse positions, use the correct colour, function and voltage from the same lamp family.
Why Choose ICS Trailers
ICS Trailers supplies trailer lighting parts with the practical fitment details repairers need before the trailer goes back to work. Shop more trailer lighting parts in our LED Lights category
Online prices apply to website orders only. In-store pricing may differ.
