Description

Overview

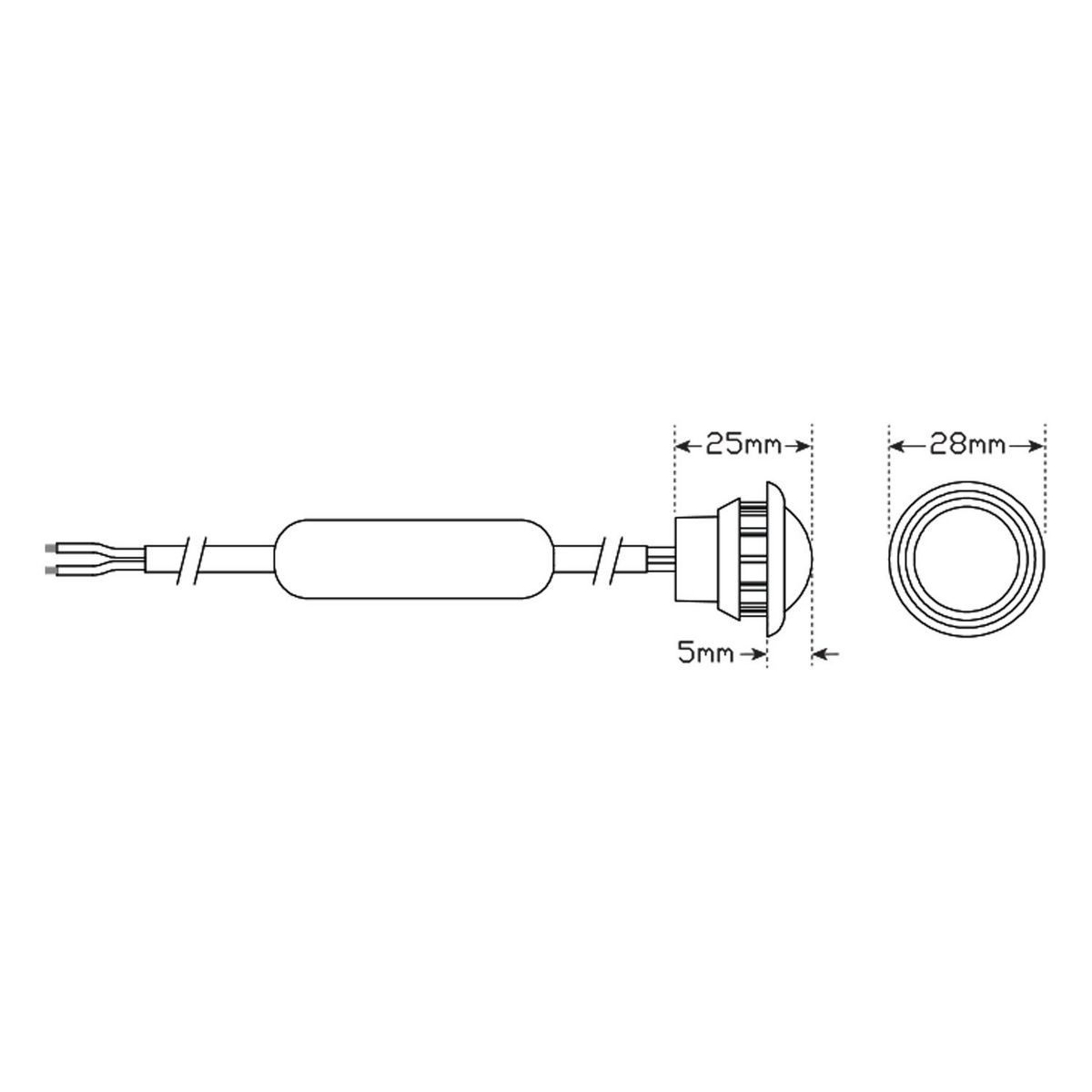

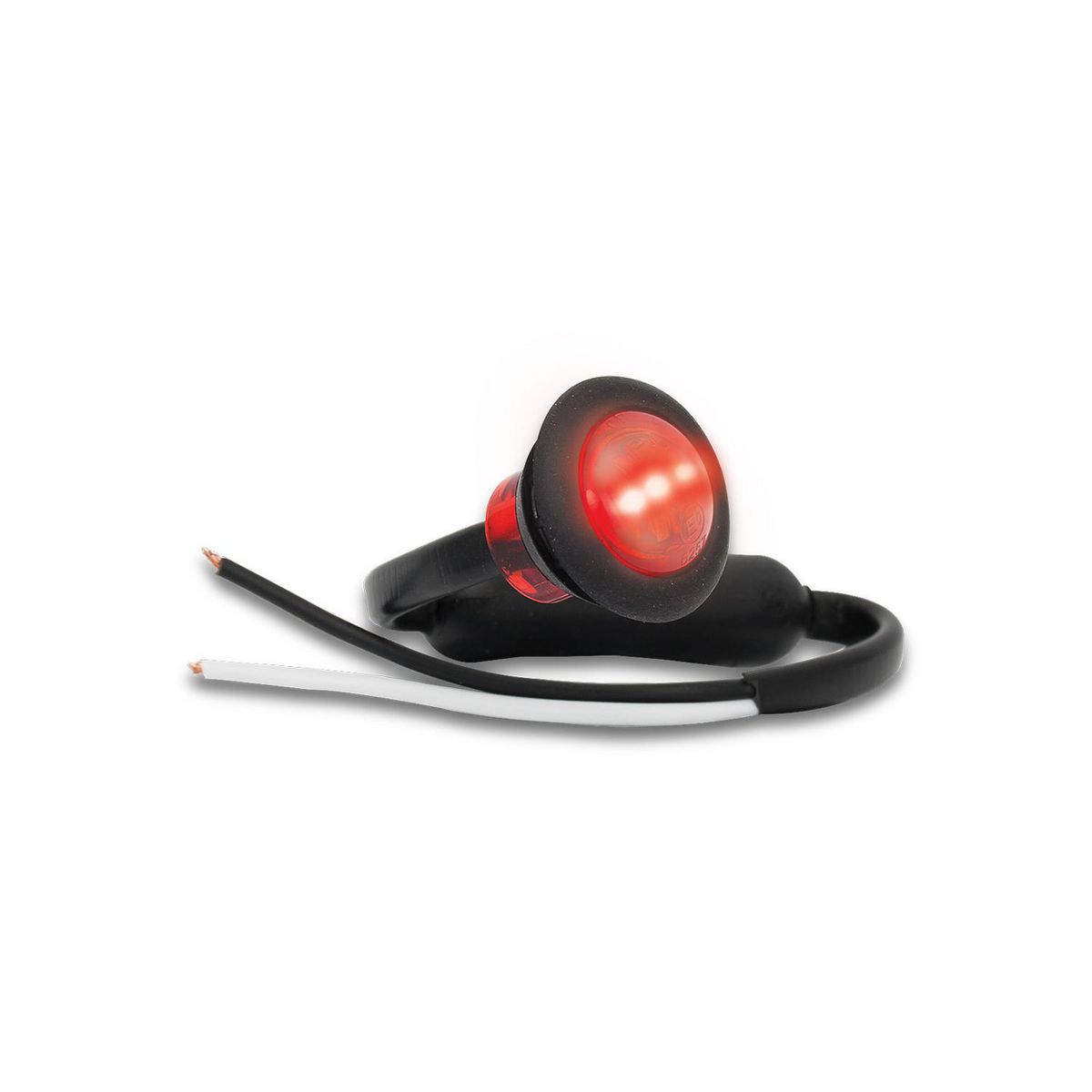

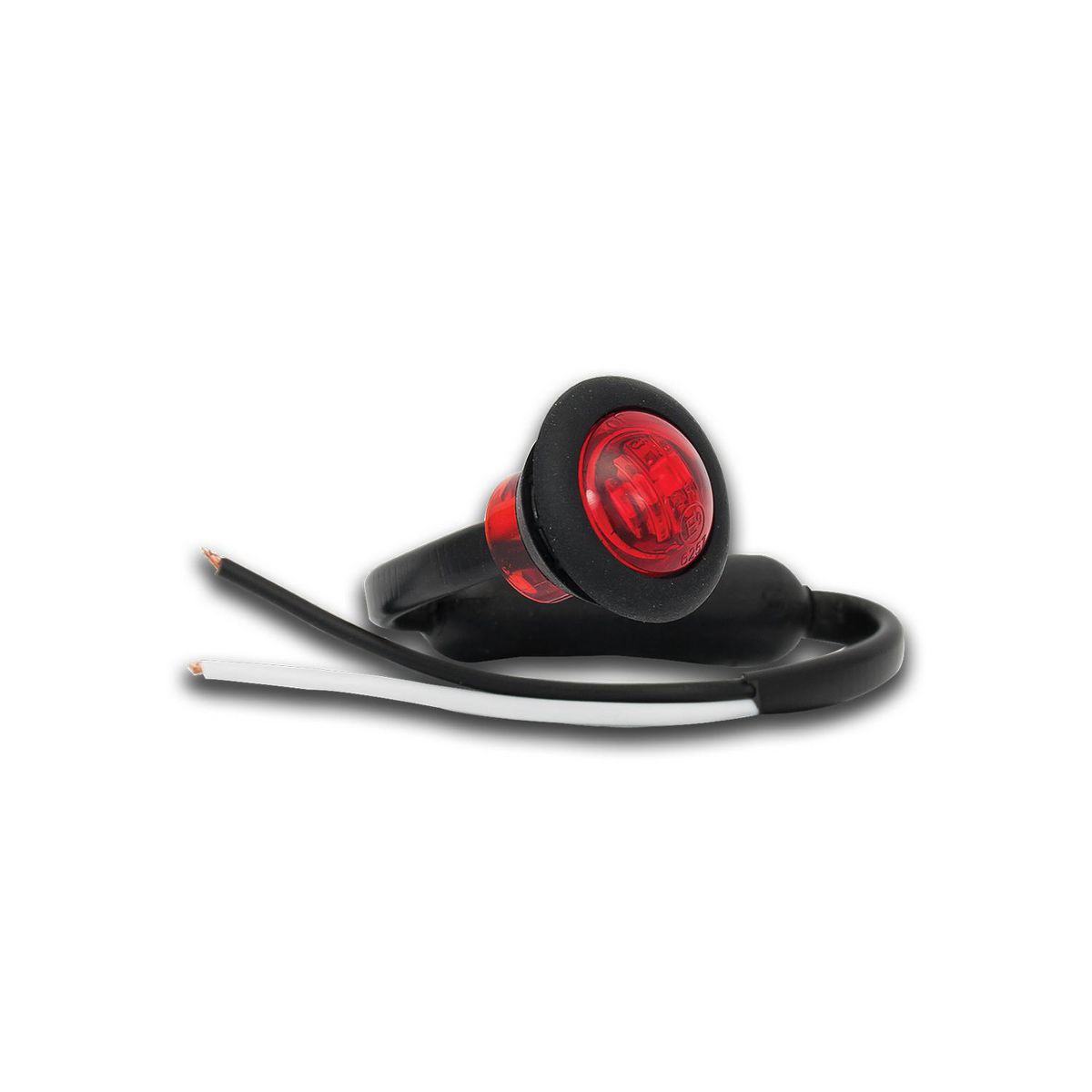

Red rear marker lamp suits compact rear outline marker positions where a small recessed LED lamp needs a clean face and low current draw. The 28mm round lamp sits with a low 5mm face, so it suits tight body panels, trailer rear frames and marker locations where bulky housings get in the way.

Features

• Recessed 28mm round marker with a 20mm cut-out.
• 12-24V operation suits mixed trailer and commercial vehicle electrical systems.
• 3 SMD LED layout with 0.03A draw at 13.8V and 28V.
• IP67 rated body with acrylic lens and rubber base.

Specifications and Materials

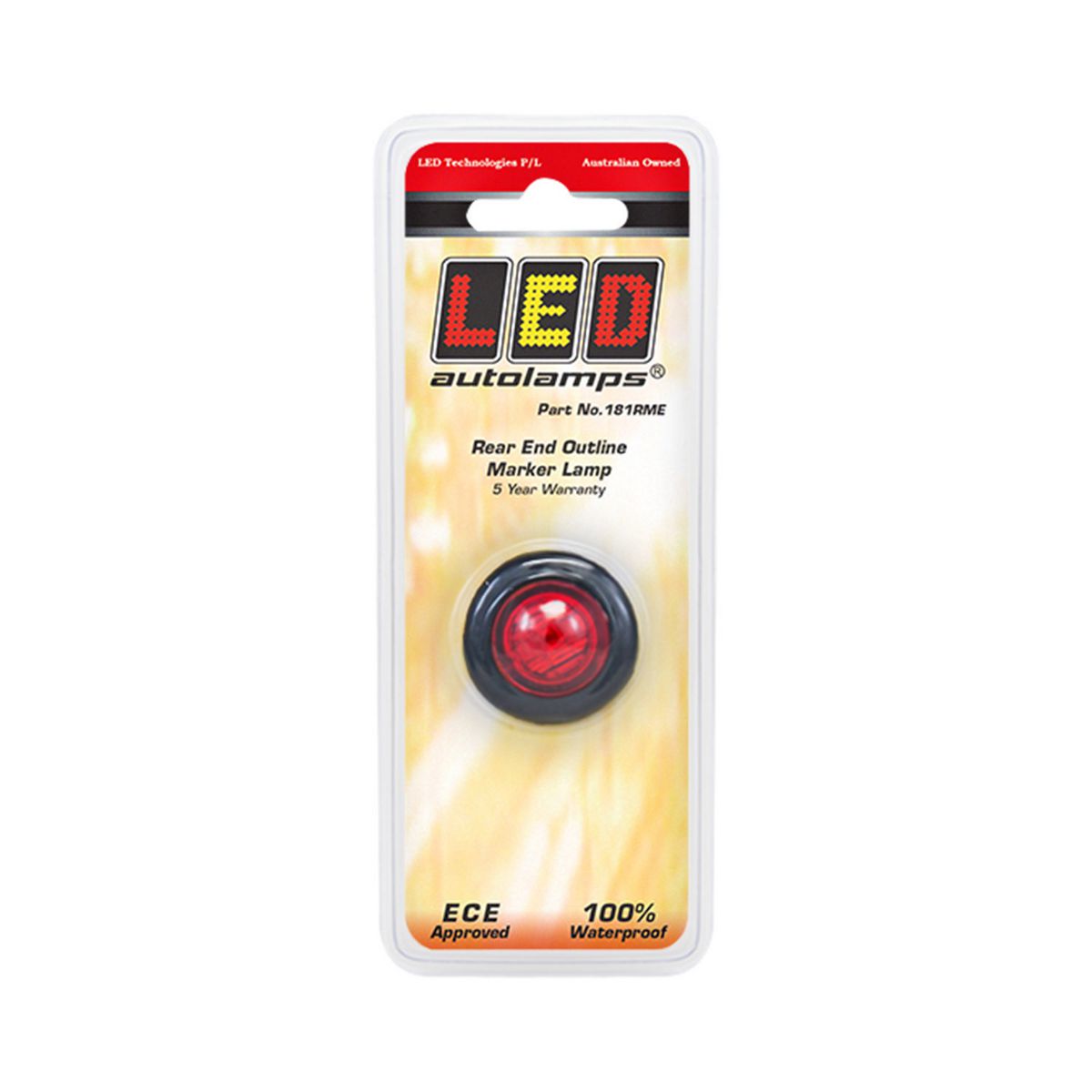

Part number: 181RME.

This red rear marker lamp uses a 20cm bare-wire lead, with black for power and white for earth. The lamp carries ECE rear end approval and CTA rear end approval, with a 5 year warranty on the 181 Series marker lamp range.

LED Autolamps 181 Series technical page

Compatibility and Fitment

Match the 28mm lamp diameter, 20mm panel cut-out, 12-24V supply and rear marker function before ordering. Mount the lamp into a flat surface, then push the rubber housing into the cut-out so the face sits low against the panel.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Check marker colour and position against the trailer lighting layout before fitting. Also inspect the panel hole and wiring path, because a loose cut-out or pinched cable can shorten the life of a small recessed lamp.

Trailer Applications

Trailer builders, body repairers and fleet workshops fit this red rear marker lamp when they need a compact rear outline marker for trailers, semi-trailers, truck bodies and commercial vehicle panels. For matching front or side marker positions, use the correct lamp colour and function for that location.
