Stop Tail Reflector Lamp 12-24V Recessed
Stop Tail Reflector Lamp 12-24V Recessed
$45.00
Stop tail reflector lamp for 12-24V trailer and commercial vehicle rear lighting, with 4 LEDs, recessed rubber grommet mounting, IP67 sealing and brake/tail functions in one rear panel lamp assembly.
Part number 133RMG.
Description
Overview
Stop tail reflector lamp handles rear brake, tail and reflector functions on trailer and commercial vehicle rear panels. The recessed low-profile body keeps the lamp tight against the panel, so it suits tidy rear lighting layouts where the lamp needs to sit cleanly in a grommet.
Features
- 4 LED stop/tail lamp with integrated reflector section.
- 12-24V operation suits mixed trailer and truck electrical systems.

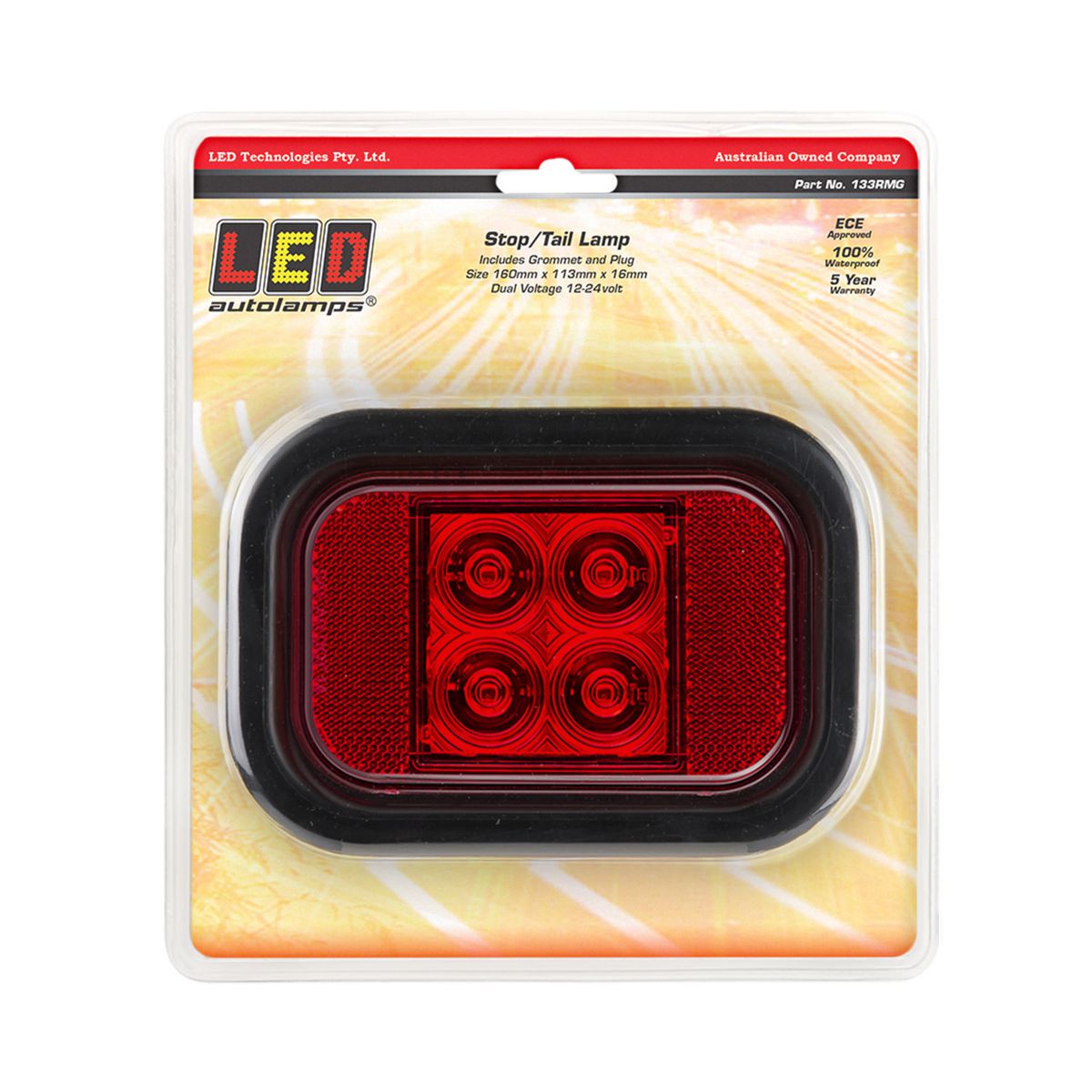

- Blister pack includes the matching rubber grommet and plug.
- IP67 rating helps protect the lamp from dust and water ingress.
Specifications and Materials
Part number: 133RMG.

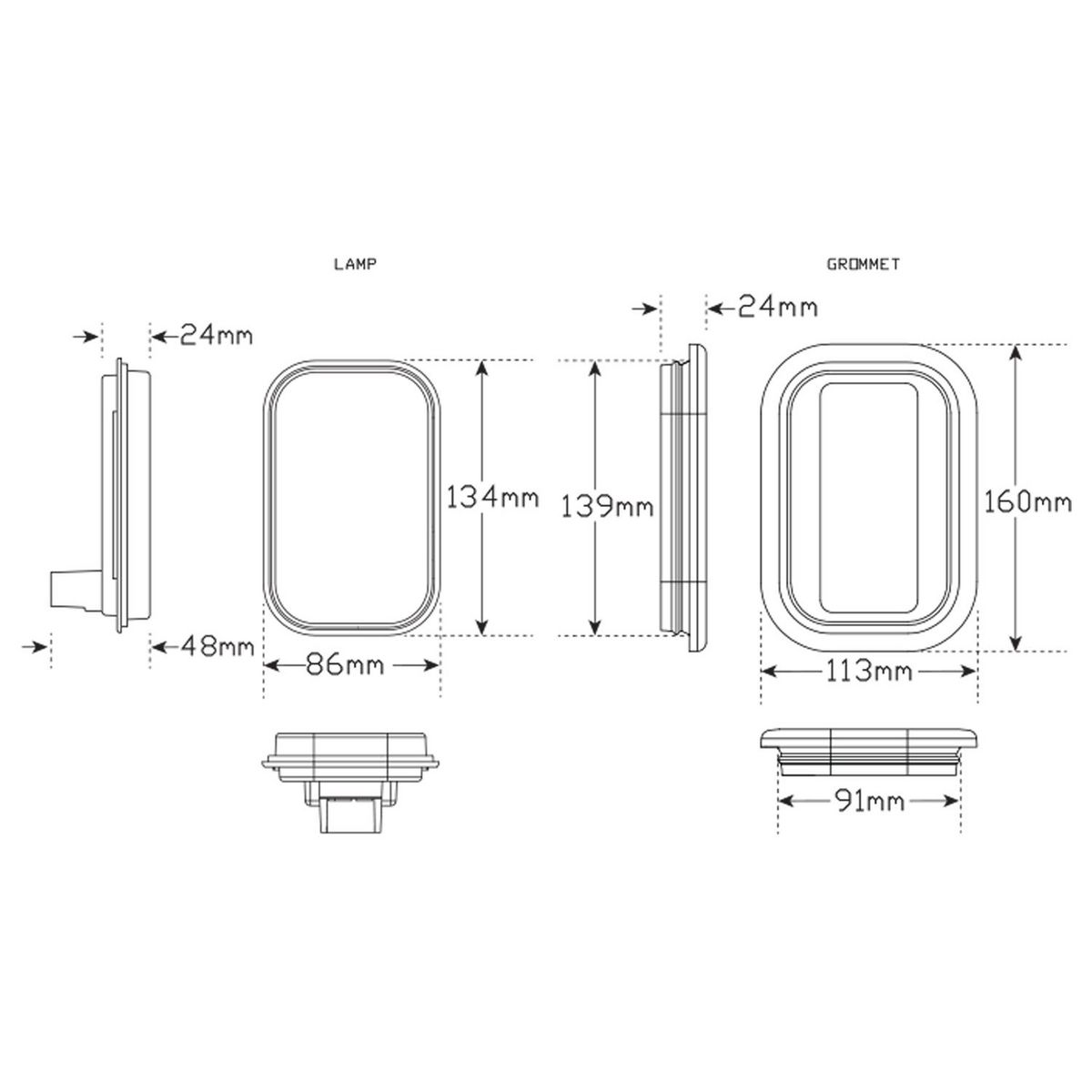

The stop tail reflector lamp uses a hardened acrylic lens, 53102 plug cable and low-profile recessed mounting. The lamp measures 87mm x 135mm x 22mm, while the grommet measures 113mm x 160mm x 12mm. Stop draw is 0.10A at 13.8V and 0.05A at 28V. Tail draw is 0.03A at 13.8V and 0.02A at 28V.
LED Autolamps 133 Series technical page
Compatibility and Fitment
Match this stop tail reflector lamp against the rear lamp function, 12-24V supply, grommet size and panel opening before ordering. For a new installation, cut the panel to 139mm x 91mm with a 23mm radius, then fit the grommet or flange before pushing the lamp into place.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Grommet to suit | 59401 | Rubber recessed mount grommet |
| Bracket to suit | 59401C | Chrome mounting bracket |
| Plug to suit | 53102 | 3 pin plug cable |
| Harness to suit | 3PFSTB | Stop/tail CSB plug harness |
| Matching series version | 133AMG | Rear indicator reflector lamp |
| Matching series version | 133WMG | Reverse reflector lamp |
Compliance and Safety
Check lamp position, mounting direction and wiring connection before the trailer returns to service. Also inspect the grommet seat and cable path, because rough panel edges or poor cable routing can damage the lamp after installation.
Trailer Applications
Workshops fit this stop tail reflector lamp to rear trailer panels, truck bodies, ute trays and commercial vehicle lighting layouts. It suits recessed rear lamp positions where the installer needs brake, tail and reflector functions in one compact assembly.
Why Choose ICS Trailers
ICS Trailers supplies trailer lighting parts with the practical fitment details repairers need before the trailer goes back to work. Shop more trailer lighting parts in our LED Lights category
