Description

Overview

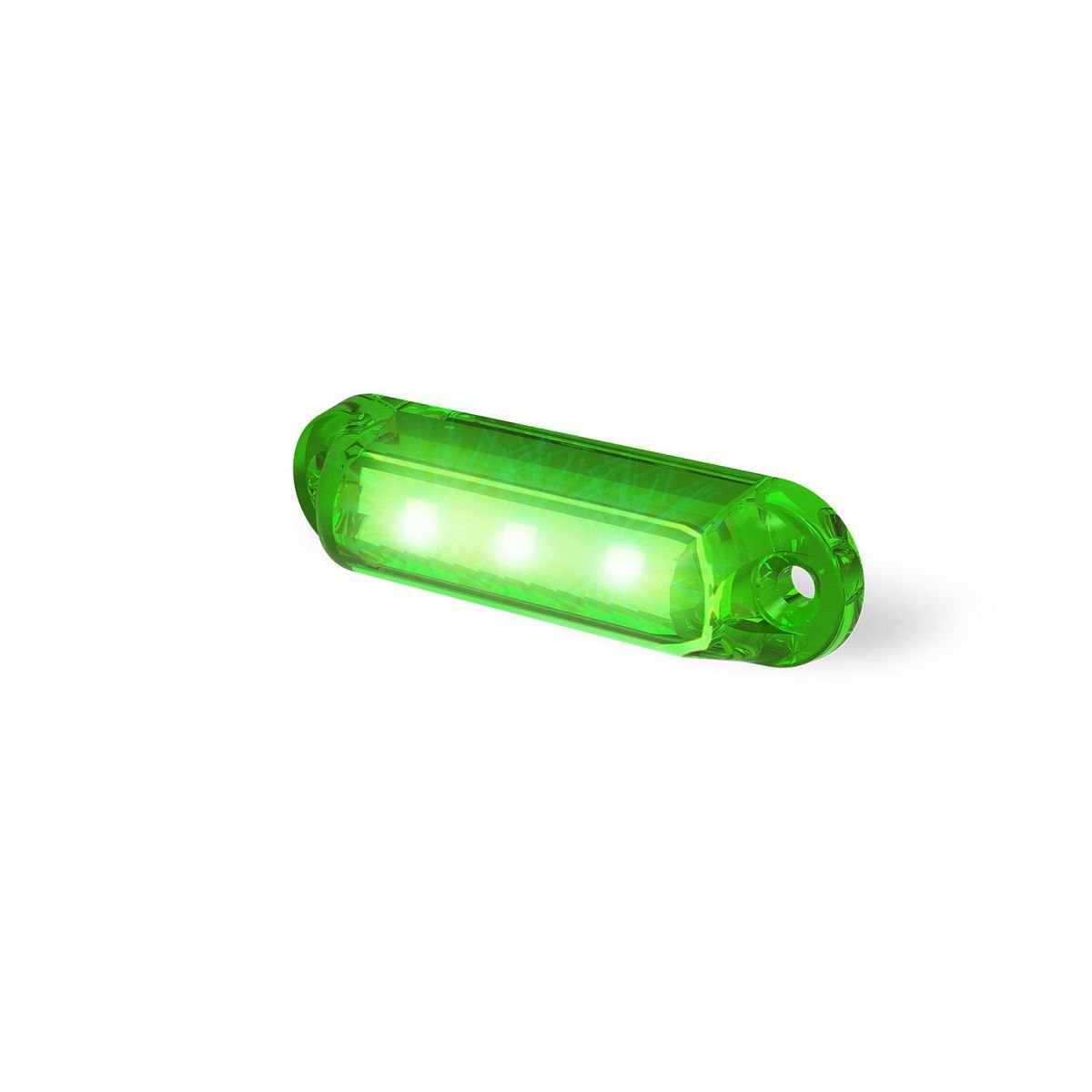

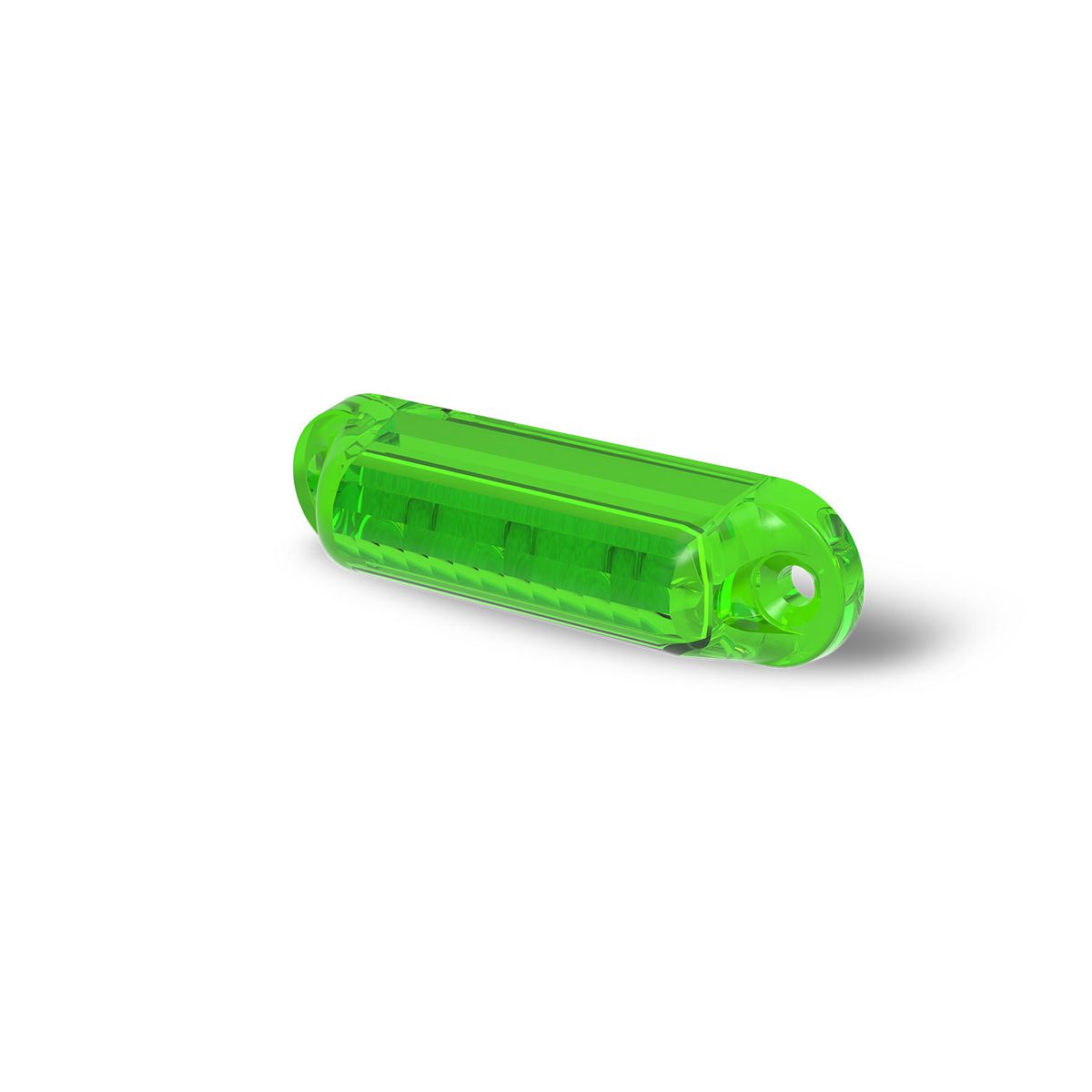

Green courtesy lamp adds compact auxiliary lighting to trailer, marine, caravan and commercial vehicle fit-outs. Its 58mm x 16mm body keeps the lamp small on the panel, so it suits steps, access areas, service compartments and low-clearance mounting spots.

Features

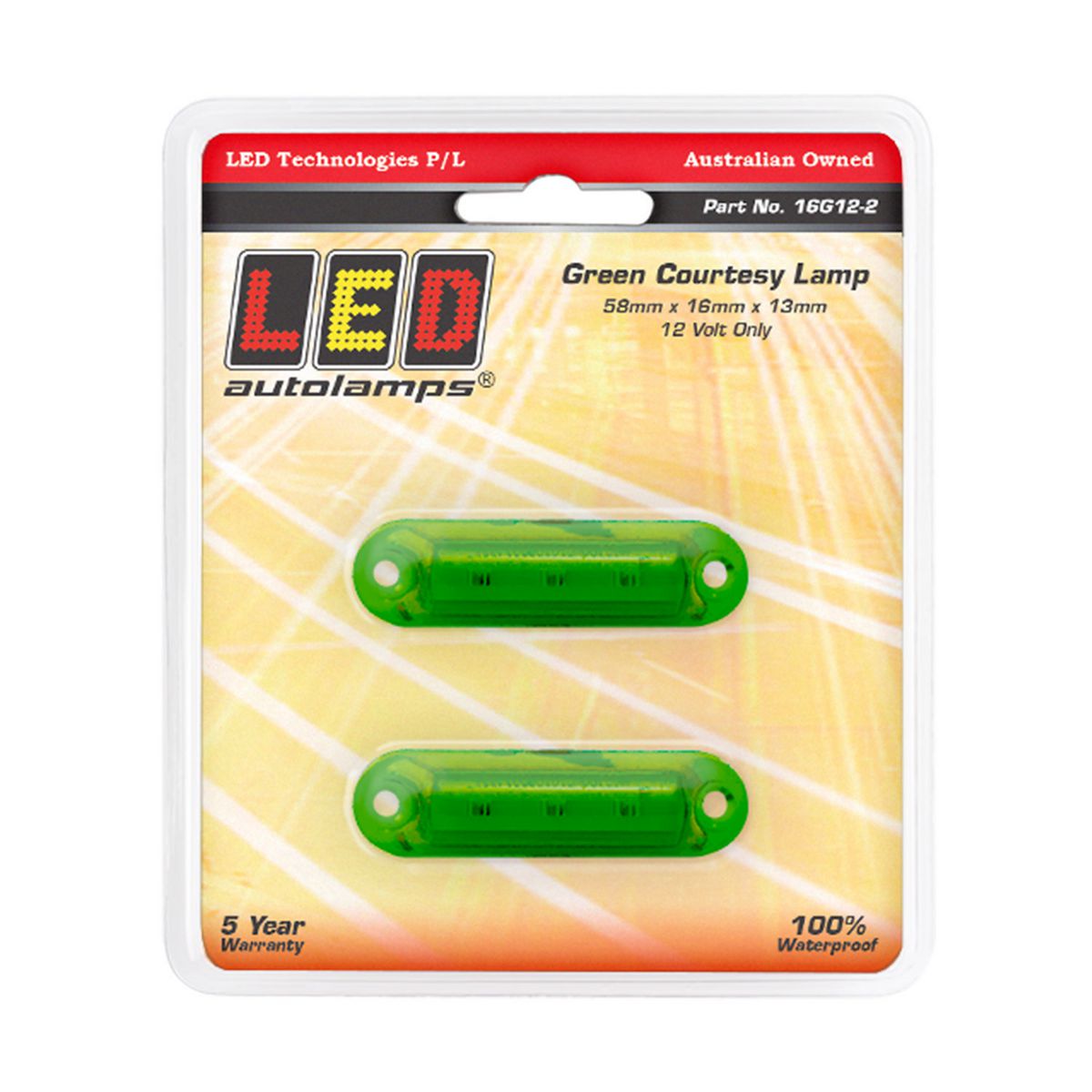

• Green 12V courtesy lamp supplied as a twin blister pack.
• Ultra-compact 58mm x 16mm x 13mm surface mount body.
• 3 LED layout with low 0.031A draw at 13.8V.
• IP67 rated body with PMMA acrylic lens.

Specifications and Materials

Part number: 16G12-2.

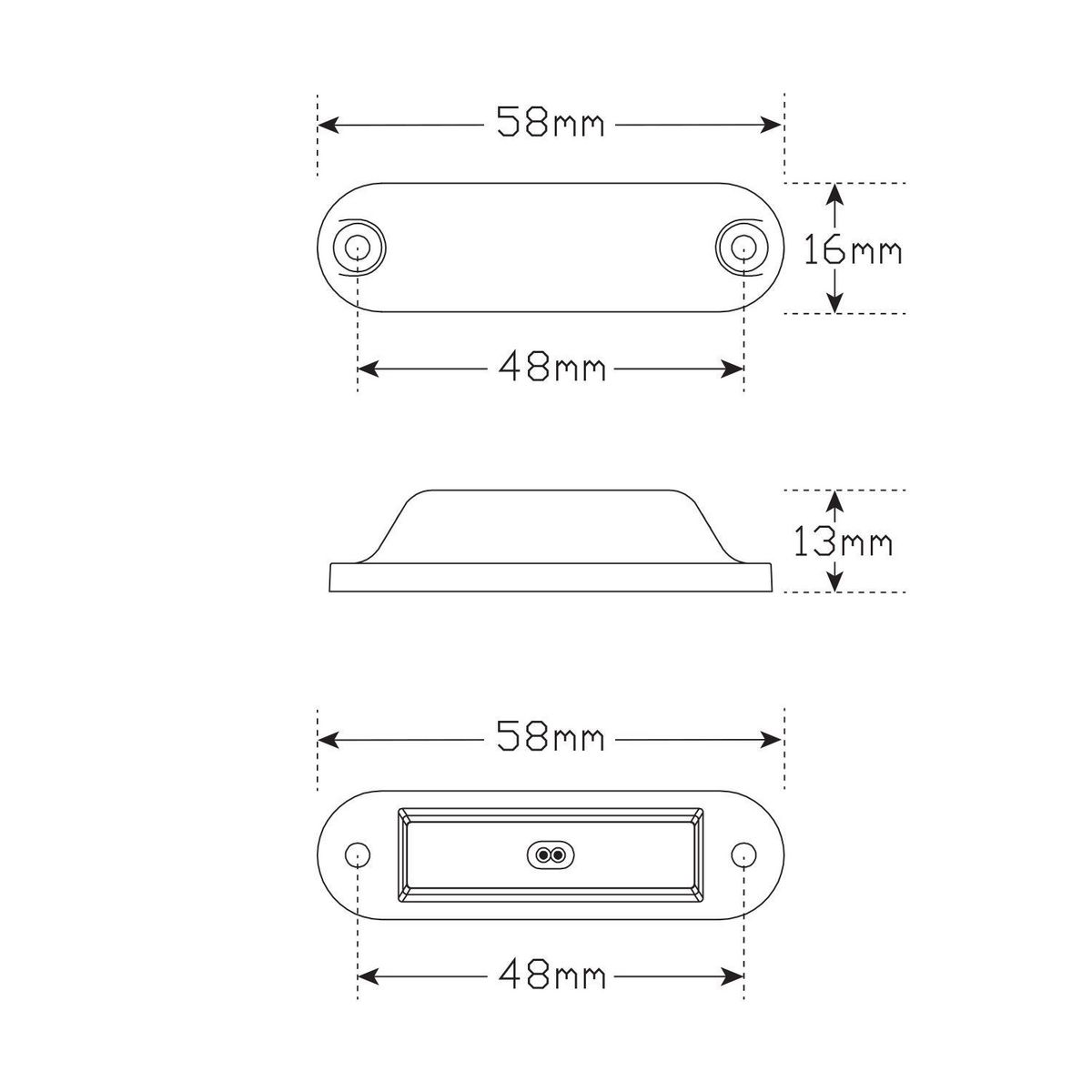

The green courtesy lamp uses a 20cm cable and screw-mount surface fitting. The 16 Series lamp body mounts horizontally or vertically on a flat surface, with a 48mm mounting-hole spacing for the supplied screws.

LED Autolamps 16 Series technical page

Compatibility and Fitment

Match this green courtesy lamp against a 12V circuit, the 58mm x 16mm body size and the intended courtesy lighting position before ordering. Use it for auxiliary green illumination rather than required red, amber or white road marker positions.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Check the lighting role before fitting, because the green and blue 16 Series lamps suit courtesy lighting rather than ECE marker lamp positions. Also route the cable away from sharp edges and seal the mounting surface properly where the lamp sits outside or near wash-down areas.

Trailer Applications

Installers use this green courtesy lamp on trailer steps, access panels, marine fit-outs, caravan areas and service compartments. The small surface mount body also suits tight spaces where a larger strip light or marker lamp would be too bulky.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts with the practical fitment details repairers need before the trailer goes back to work. Shop more trailer lighting parts in our LED Lights category
