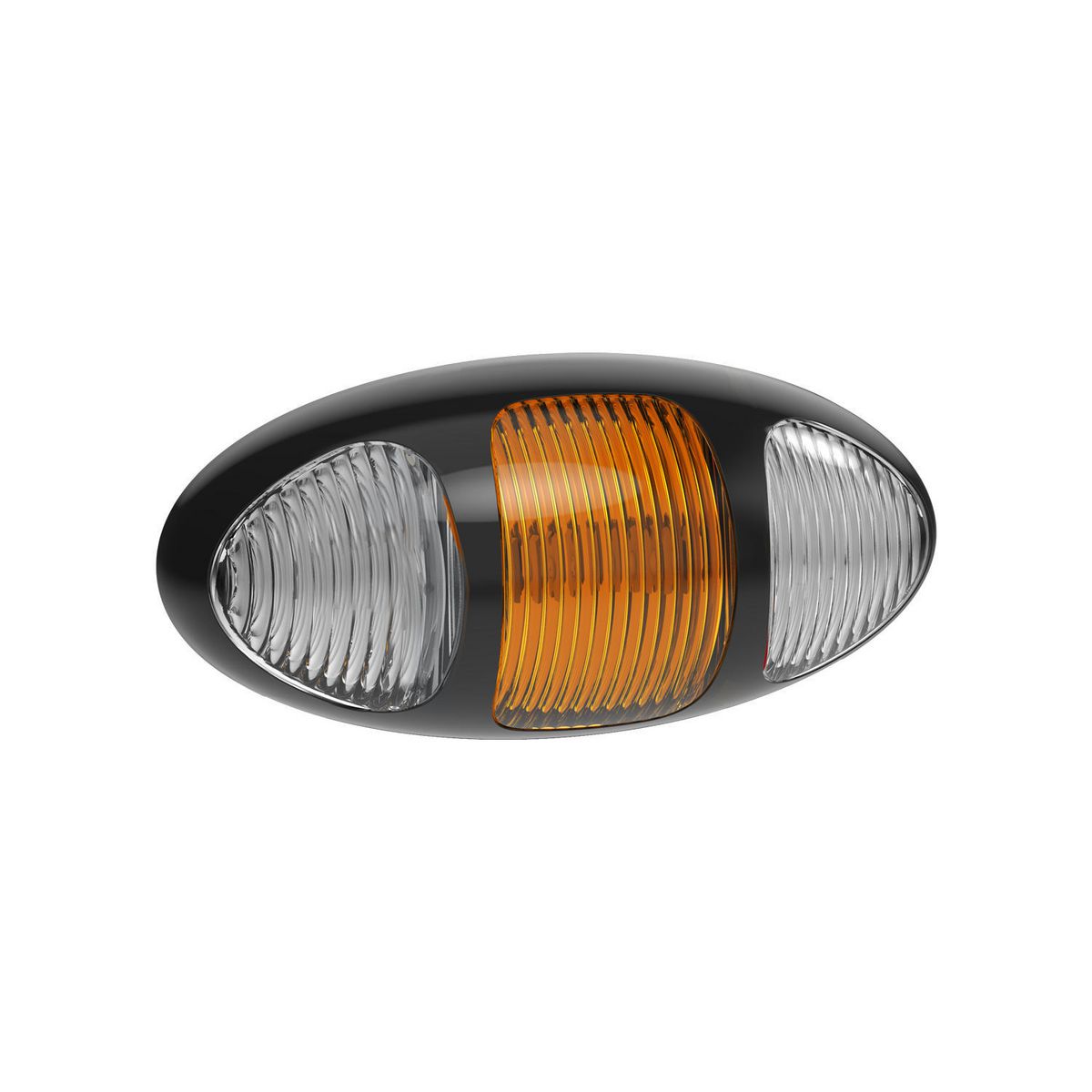

Rear Position Indicator Lamp Black Bezel
Rear Position Indicator Lamp Black Bezel
$25.00
Rear position indicator lamp for 12/24V trailer and truck rear lighting, with black bezel, 14 LEDs, 40cm cable, IP67 sealing and concealed base mounting for a clean clip-in fit.

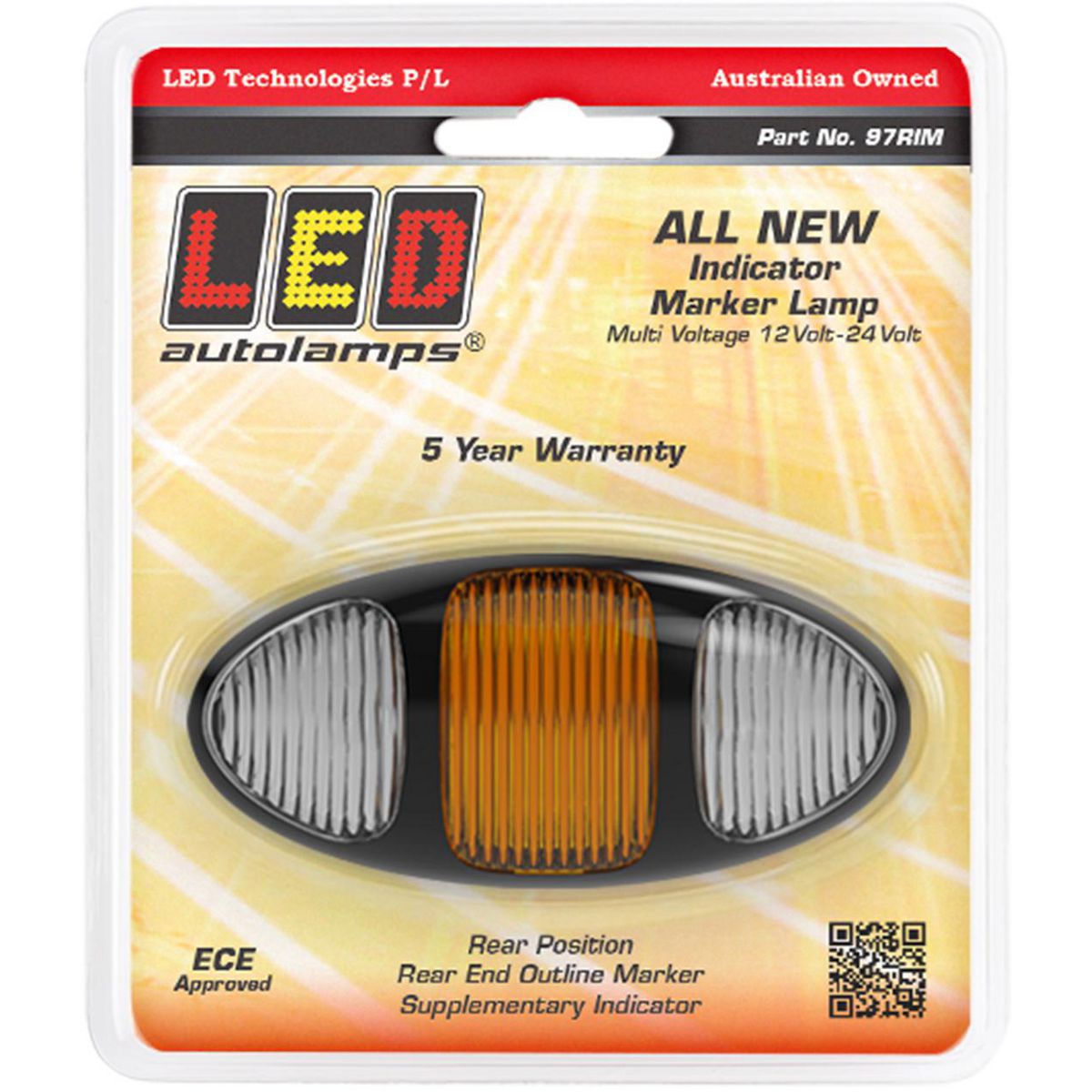

Part number 97RIM.
Description
Overview

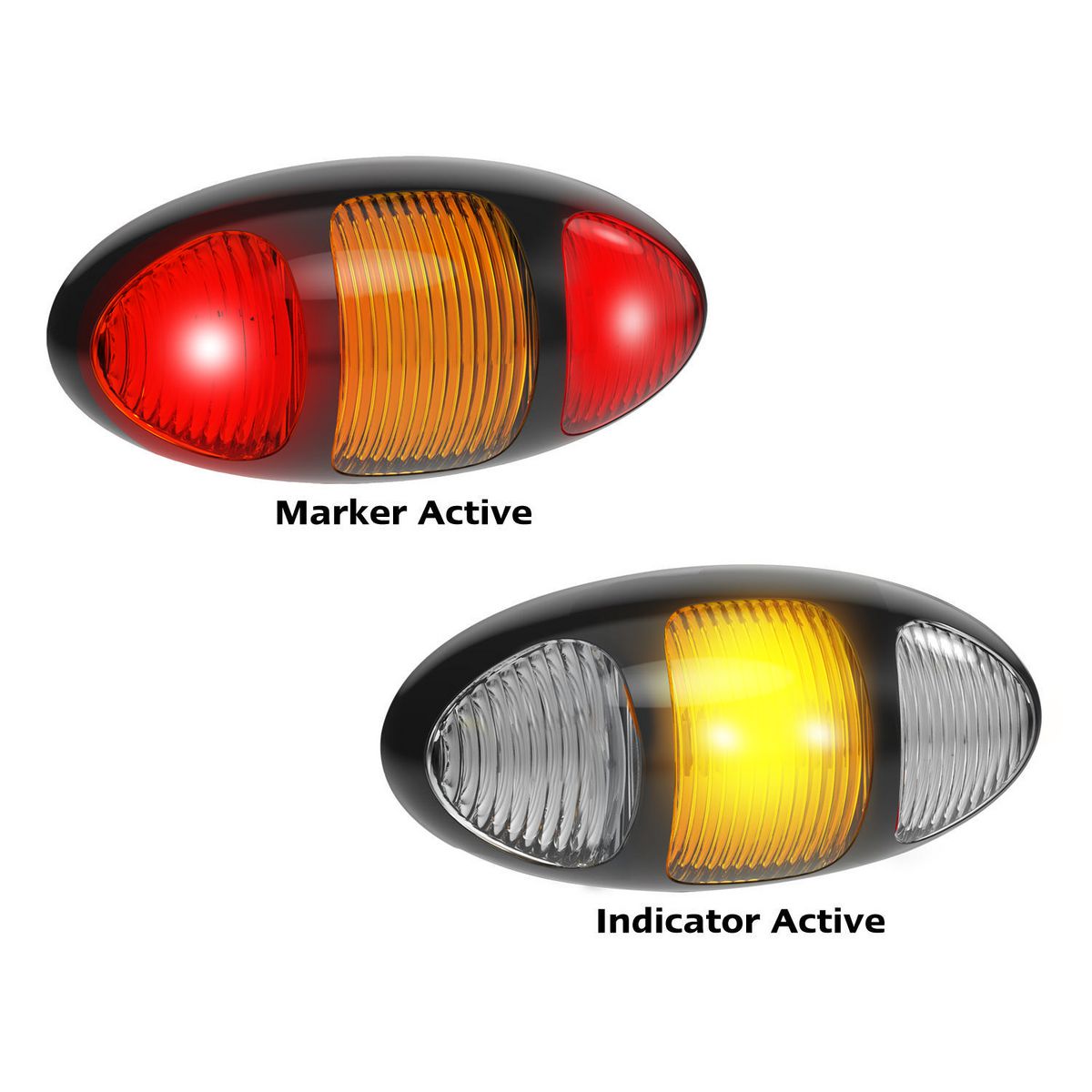

Rear position indicator lamp combines rear end outline marker lighting with a supplementary rear direction indicator function. The black bezel and concealed mounting base give the lamp a clean rear body finish with no visible screw heads once clipped into place.
Features
- Rear end outline marker with supplementary rear indicator function
- 12-24V multivolt operation for trailer and truck systems
- Black bezel with concealed base mount and clip-in lamp body
- IP67 rated housing with acrylic lens and PC/ABS base
Specifications and Materials

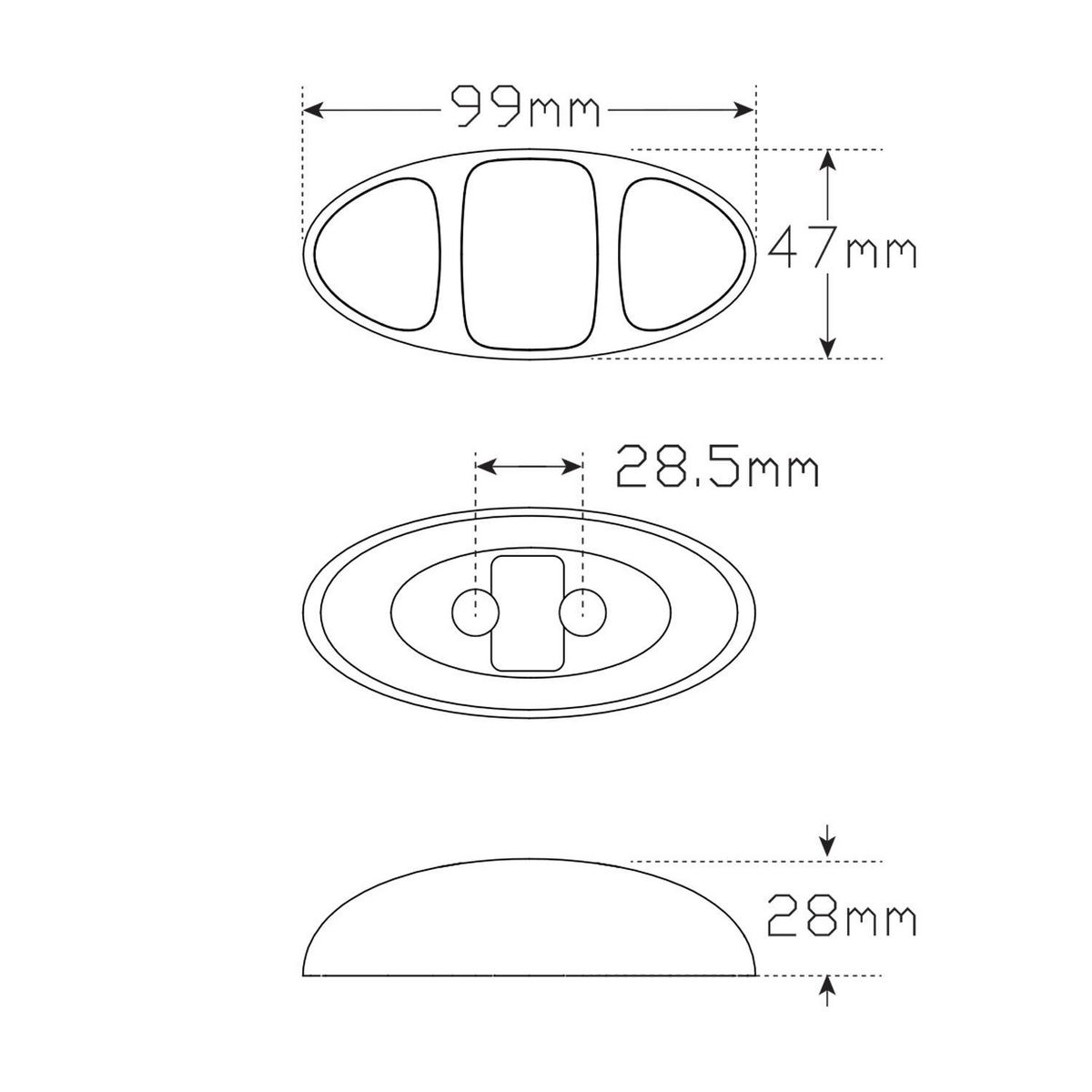

This rear marker and supplementary indicator lamp measures 99mm x 47mm x 28mm and uses a 40cm cable. It carries 14 LEDs, an acrylic lens and a PC/ABS base and bezel.
Part number: 97RIM.
Indicator draw is 0.06A at 13.8V and 0.06A at 28V. Marker draw is 0.03A at 13.8V and 0.03A at 28V, with ECE Rear End 49/00 and CTA Rear End CTA-060119 approval details.
See the manufacturer technical guide
Compatibility and Fitment
Check the rear marker position, supplementary indicator wiring and mounting space before ordering. Drill a 10mm hole for the wire and plug, surface mount the base with the supplied screws, then clip the lamp into place.
Related Parts
Check the related versions below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | 97RIMB | Bulk rear marker indicator lamp |
| Related version | 97RIMCSB | CSB plug rear marker indicator lamp |
| Related version | 97CRIM | Chrome bezel rear marker indicator lamp |
| Related version | 97CRIMB | Chrome bezel bulk rear marker indicator lamp |
| Replacement component | 97BB | Black bezel |
| Bracket to suit | 97BKT | Black rail bracket with reflector |
Compliance and Safety
Confirm the marker and supplementary rear indicator circuits operate correctly after installation. Also check the lamp orientation, cable route and clip engagement before road use, because the base needs to sit flat and hold the lamp securely.
Trailer Applications
Workshops fit rear position indicator lamp units on trailers, rigid bodies and commercial vehicle rear corner lighting setups. This black bezel version suits replacement work where the rear outline marker and supplementary indicator need to match the 97 Series footprint.
Why Choose ICS Trailers
ICS Trailers supplies trailer lighting parts for repairs, refits and fleet servicing, with practical details to help match the lamp to the job.
