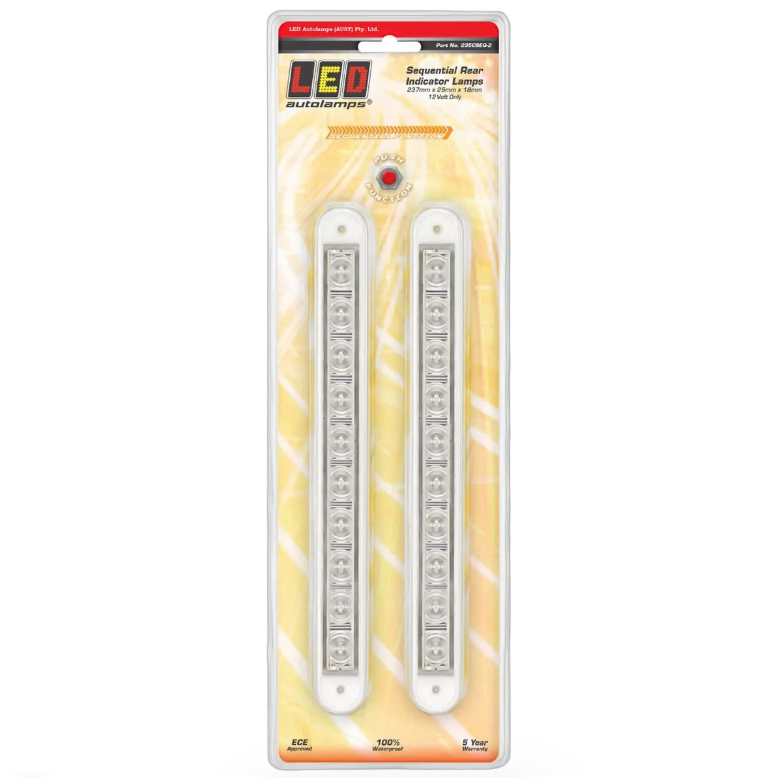

Sequential indicator strip lamp gives rear trailer lighting a slim 12V amber indicator with a clear lens and sequential LED sweep. The twin pack suits left and right rear indicator positions where a low profile recessed lamp is needed.

Features

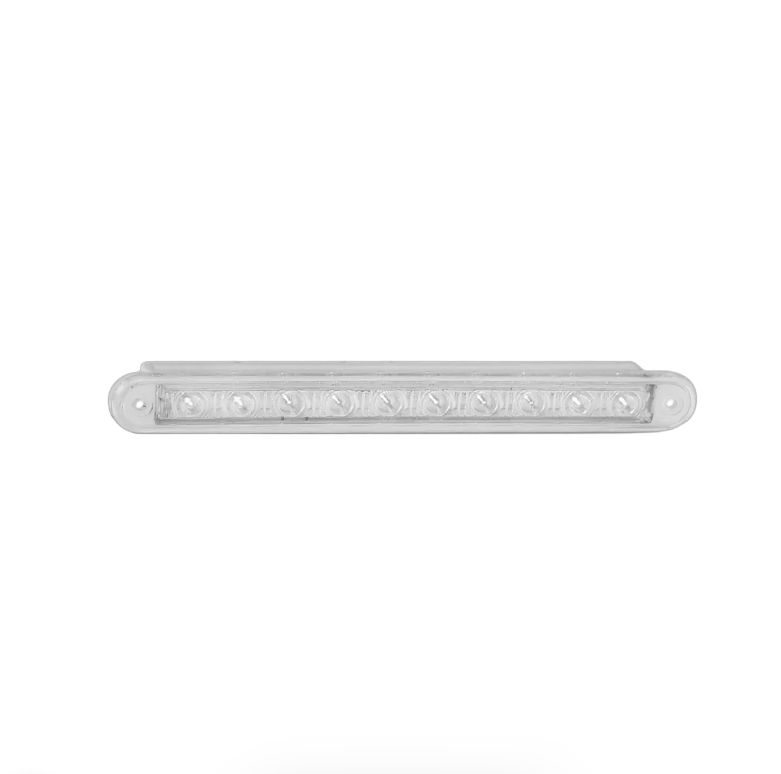

• Clear lens twin pack for rear indicator lighting.

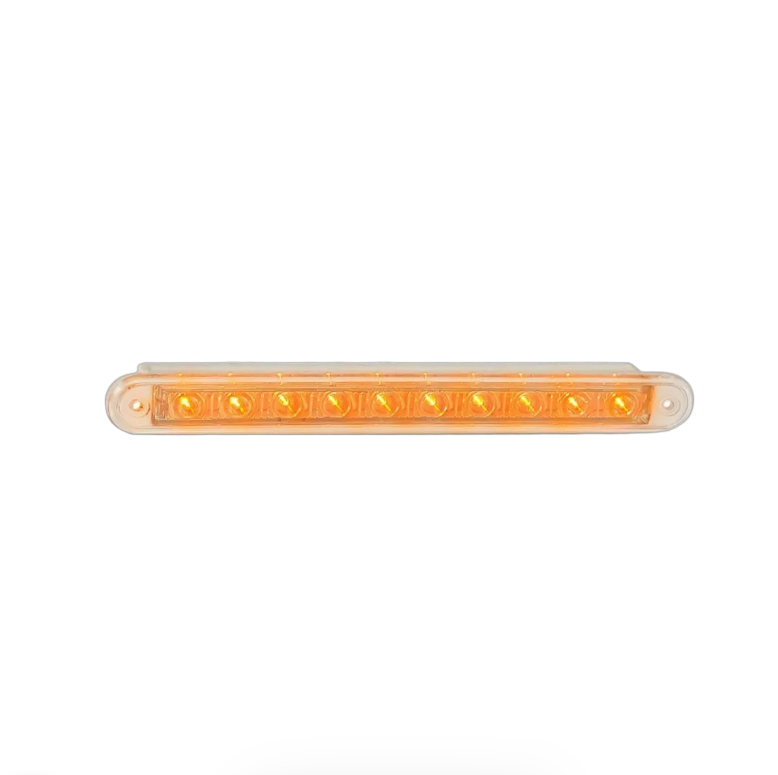

• Individual LEDs light in a 1.2 second sequence.
• 10 LEDs per lamp with 40cm hardwired cable.
• IP67 rated, ECE approved and backed by a 5 year warranty.

Specifications and Materials

This sequential indicator strip lamp measures 237mm x 25mm x 3mm and runs on 12V only. Indicator draw is 0.35A at 13.8V.

Part number: 235CSEQ-2.

Rear indicator approval numbers include ECE Indicator E9*6R01/29*22839*00 and CTA Indicator 6/00 CTA-060125.

See the manufacturer technical details

Compatibility and Fitment

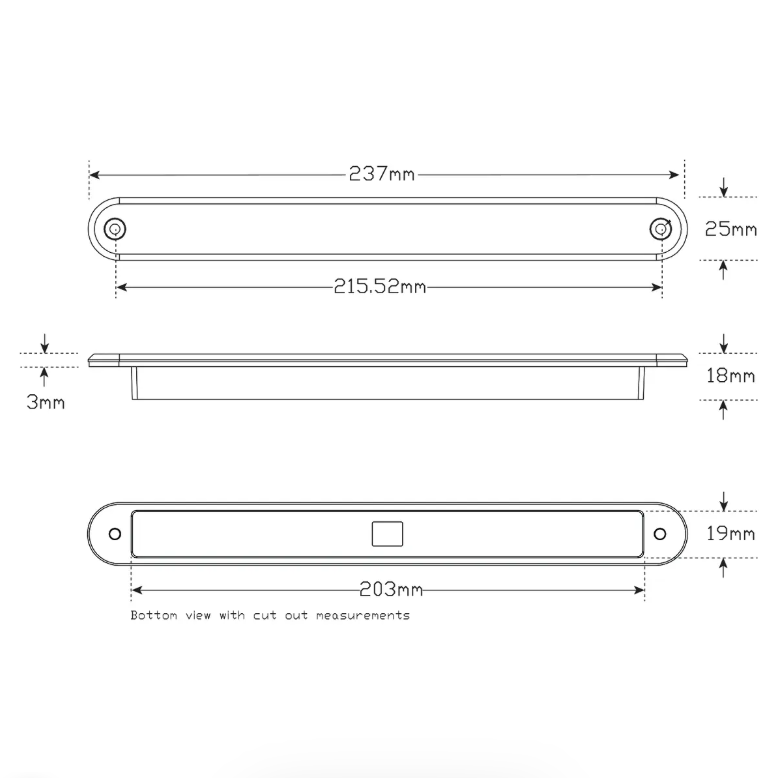

Match this sequential indicator strip lamp to a 12V rear indicator circuit, clear lens requirement and recessed mounting position. For recessed fitment, use a flat horizontal surface and a 203mm x 19mm cutout, then run the wiring through the rear of the panel.

Surface mounting needs separate 235 Series bracket or housing hardware. Check the available space, cable path and final lamp position before drilling.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm rear indicator position, orientation and wiring polarity before final fitment. For road registered trailer work, follow the applicable trailer lighting layout and ADR 13/00 mounting guidance.

Trailer Applications

A sequential indicator strip lamp suits trailer rear panels, ute trays, service bodies and compact lighting positions where a standard round or oval indicator takes too much room. The clear lens keeps the panel looking neat while the amber sequence improves rear direction signalling.
