Description

Overview

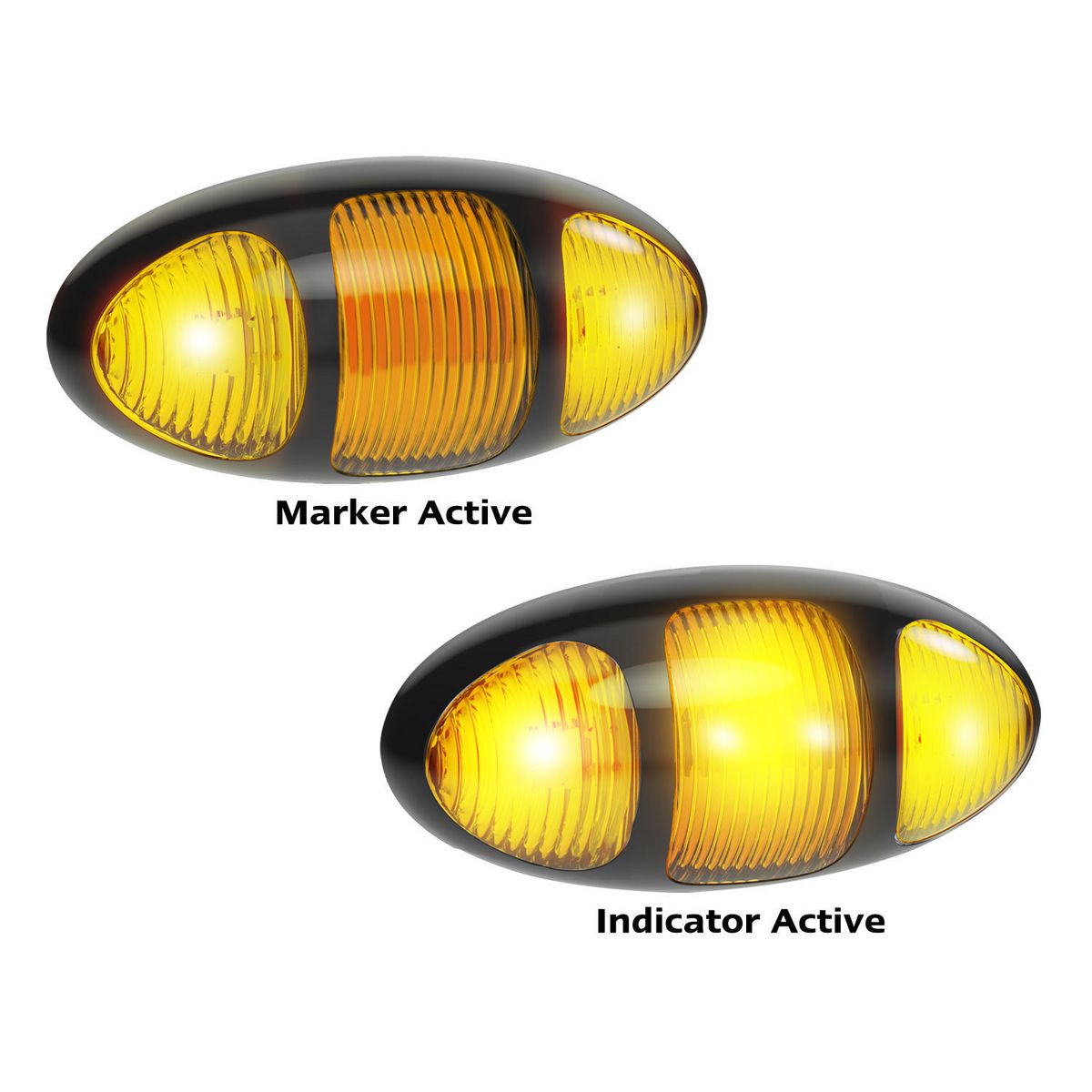

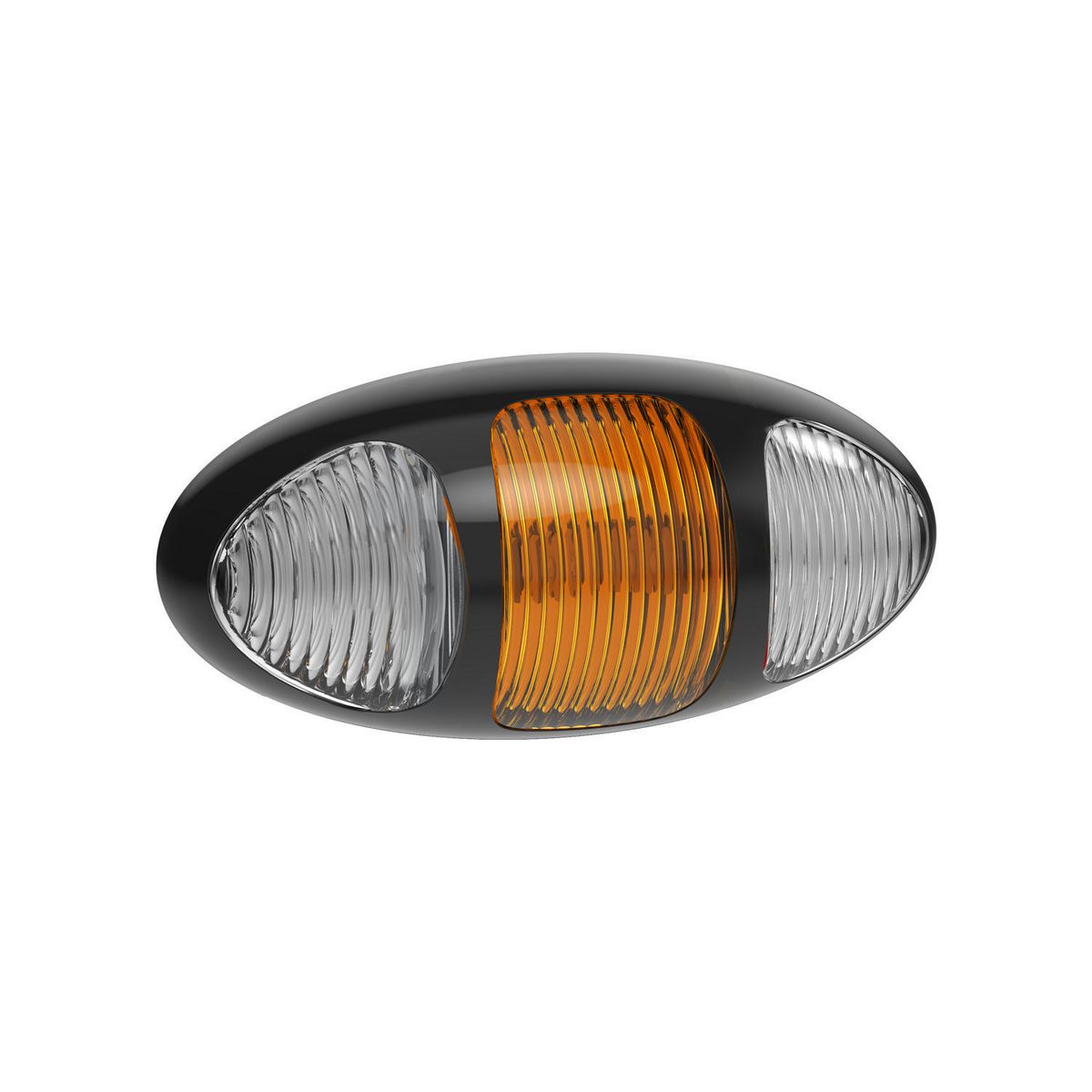

Side marker indicator lamp combines amber side marker lighting with a Category 5 side direction indicator function. The black bezel and concealed mounting base give the lamp a clean side profile with no visible screw heads once clipped into place.

Features

• Amber side marker with supplementary side indicator function
• 12-24V multivolt operation for trailer and truck systems
• Black bezel with concealed base mount and clip-in lamp body
• IP67 rated housing with acrylic lens and PC/ABS base

Specifications and Materials

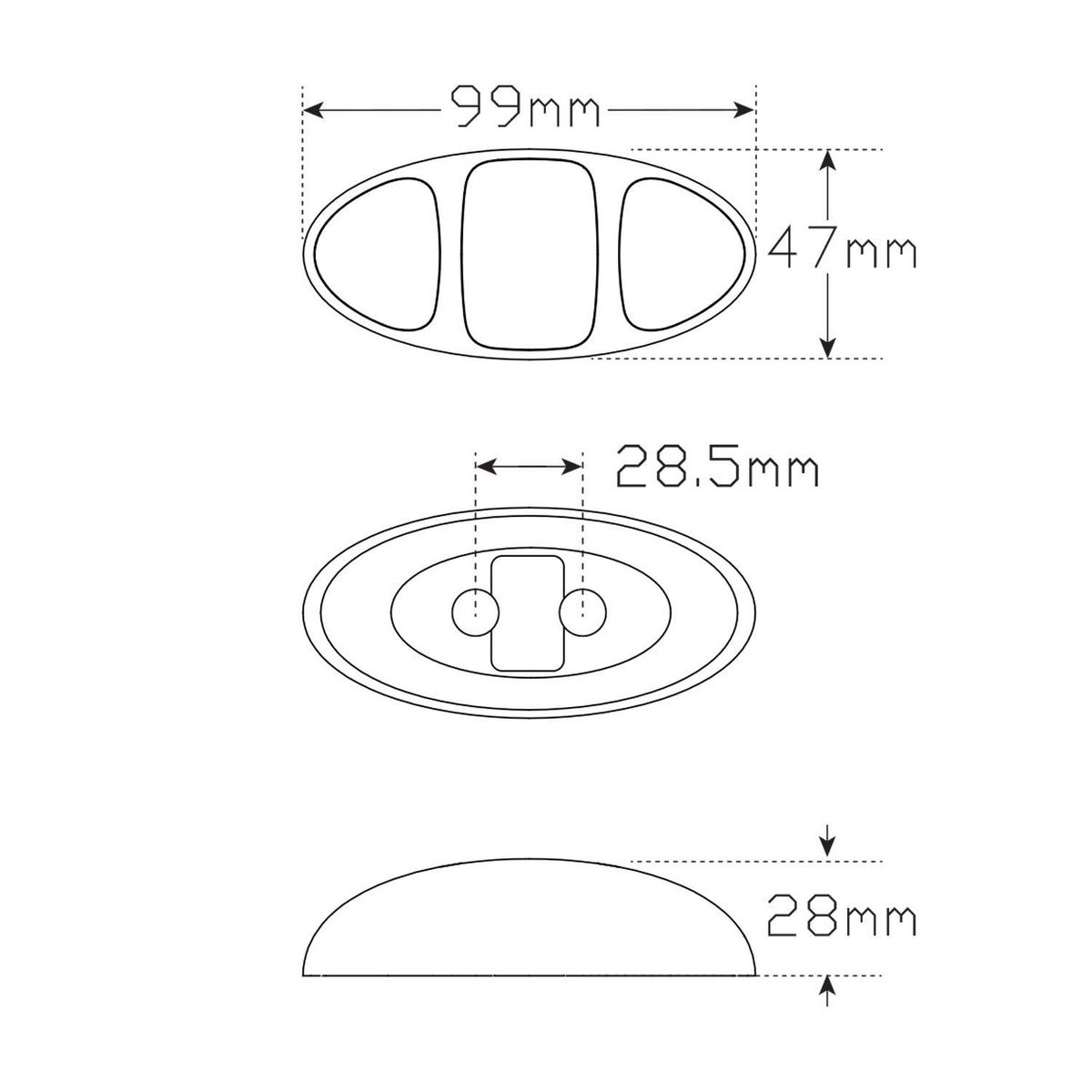

This side marker and side direction indicator lamp measures 99mm x 47mm x 28mm and uses a 40cm cable. It carries 14 LEDs, an acrylic lens and a PC/ABS base and bezel.

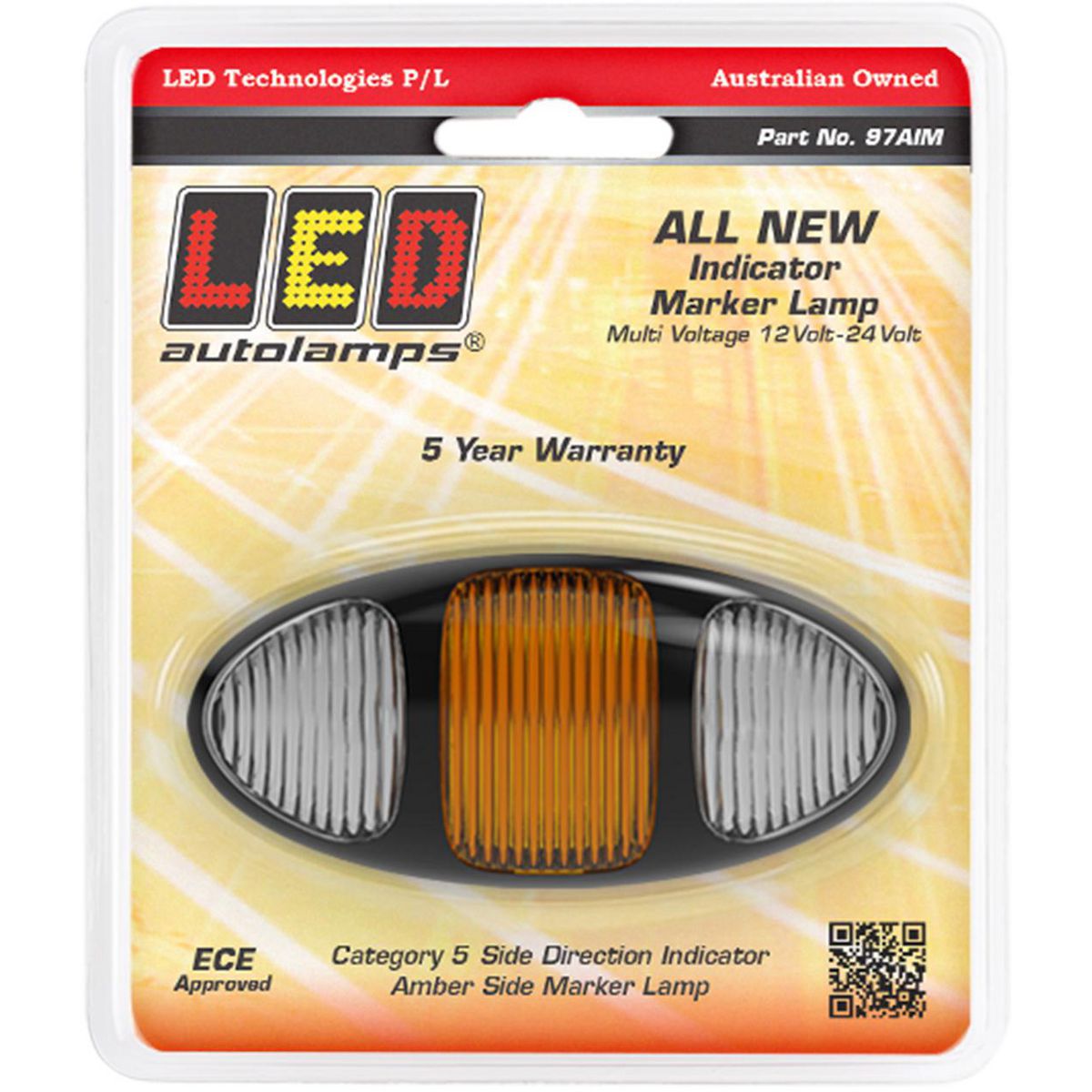

Part number: 97AIM.

Indicator draw is 0.09A at 13.8V and 0.10A at 28V. Marker draw is 0.02A at 13.8V and 0.02A at 28V.

See the manufacturer technical guide

Compatibility and Fitment

Check the side marker position, indicator wiring and mounting space before ordering. Drill a 10mm hole for the wire and plug, surface mount the base with the supplied screws, then clip the lamp into place.

Related Parts

Check the related versions below against the trailer setup before ordering.

Compliance and Safety

Confirm the marker and side indicator circuits operate correctly after installation. Also check the lamp orientation, cable route and clip engagement before road use, because the base needs to sit flat and hold the lamp securely.

Trailer Applications

Workshops fit these lamp units on trailers, rigid bodies and commercial vehicle side lighting setups. This amber black bezel version suits replacement work where the side marker and side direction indicator need to match the 97 Series footprint.
