Description

Overview

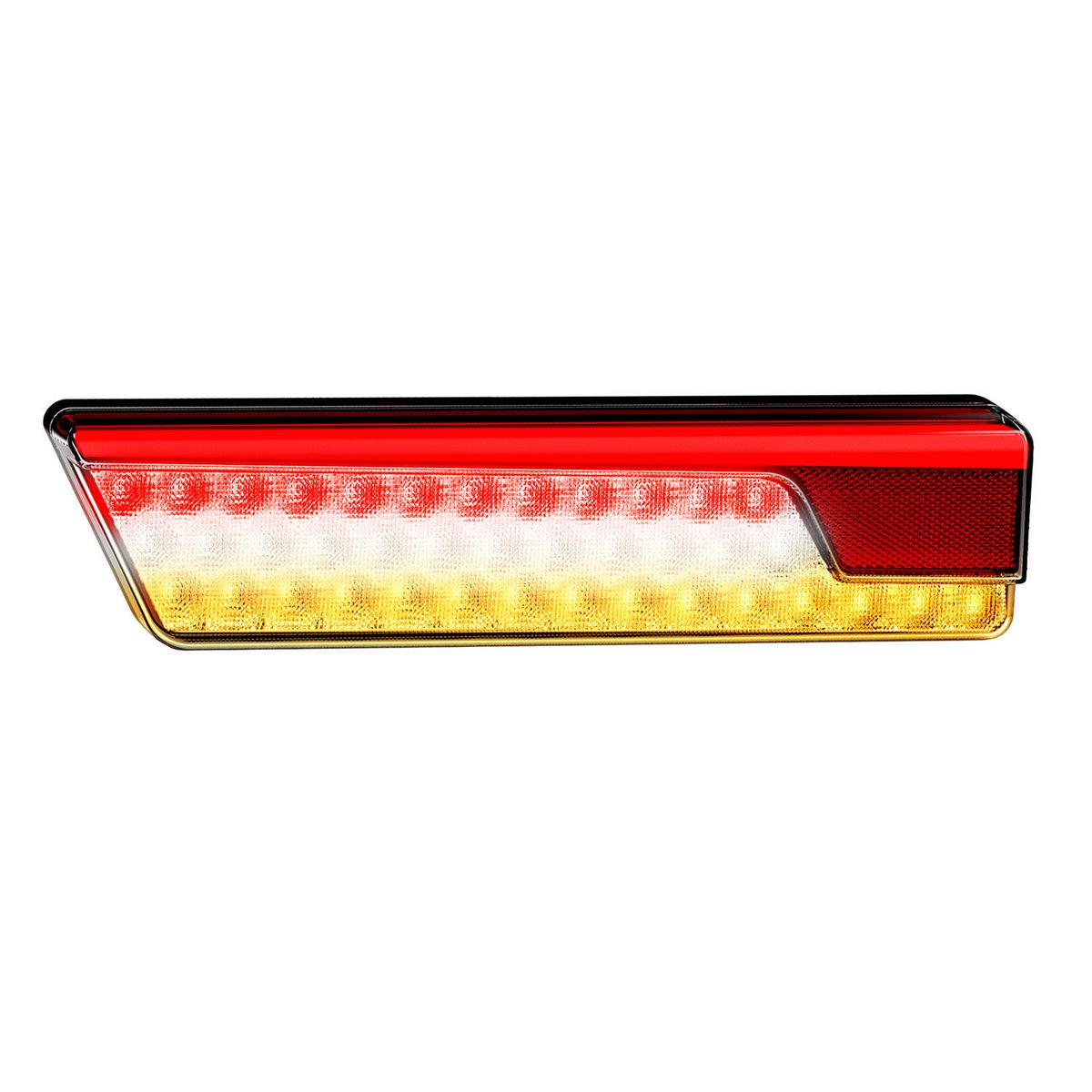

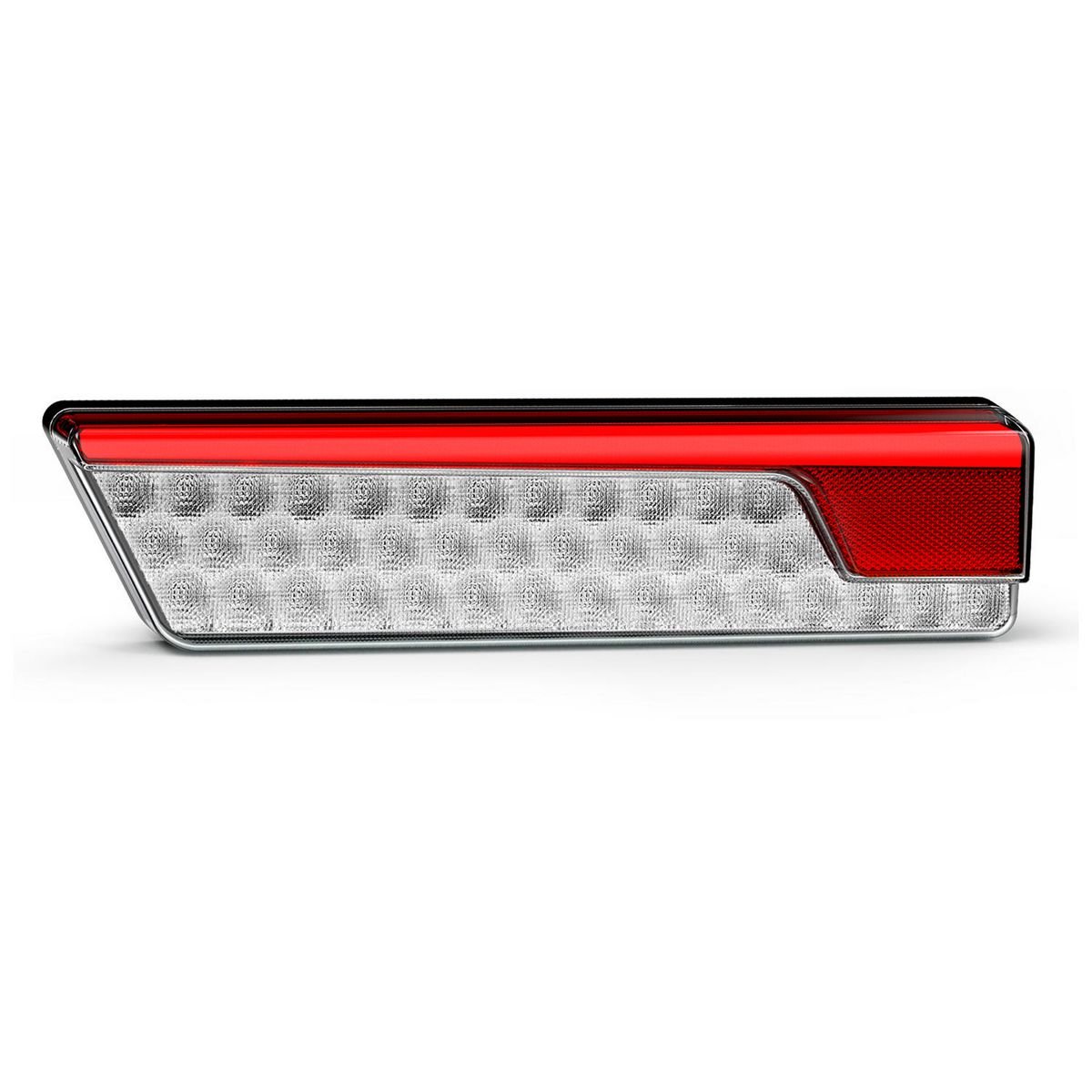

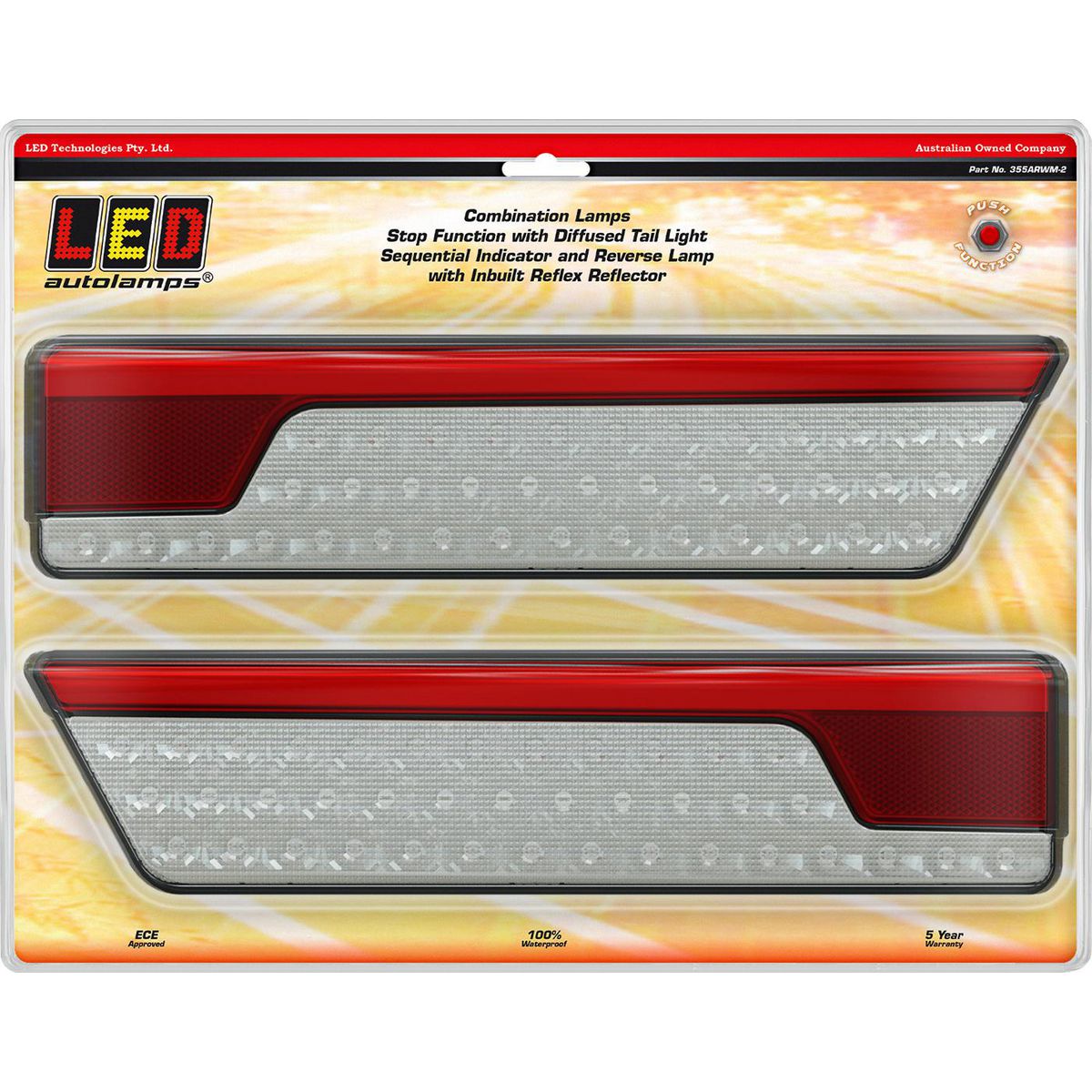

Rear combination sequential tail lights combine stop, tail, indicator, reverse and reflector functions in one left and right chrome lamp pair for trailers and trucks. They give the rear of the trailer a long, clean lamp profile, and the diffused tail section spreads light evenly across the body.

This pair uses a surface-mount design with rear bolts, so it suits tidy rear crossmembers and body panels without separate brackets. The inbuilt reflector also helps when the rear setup needs fewer individual lighting components.

Features

• Left and right rear lamp pair with stop, tail, indicator, reverse and reflector functions
• Sequential indicator, diffused tail function and inbuilt reflector

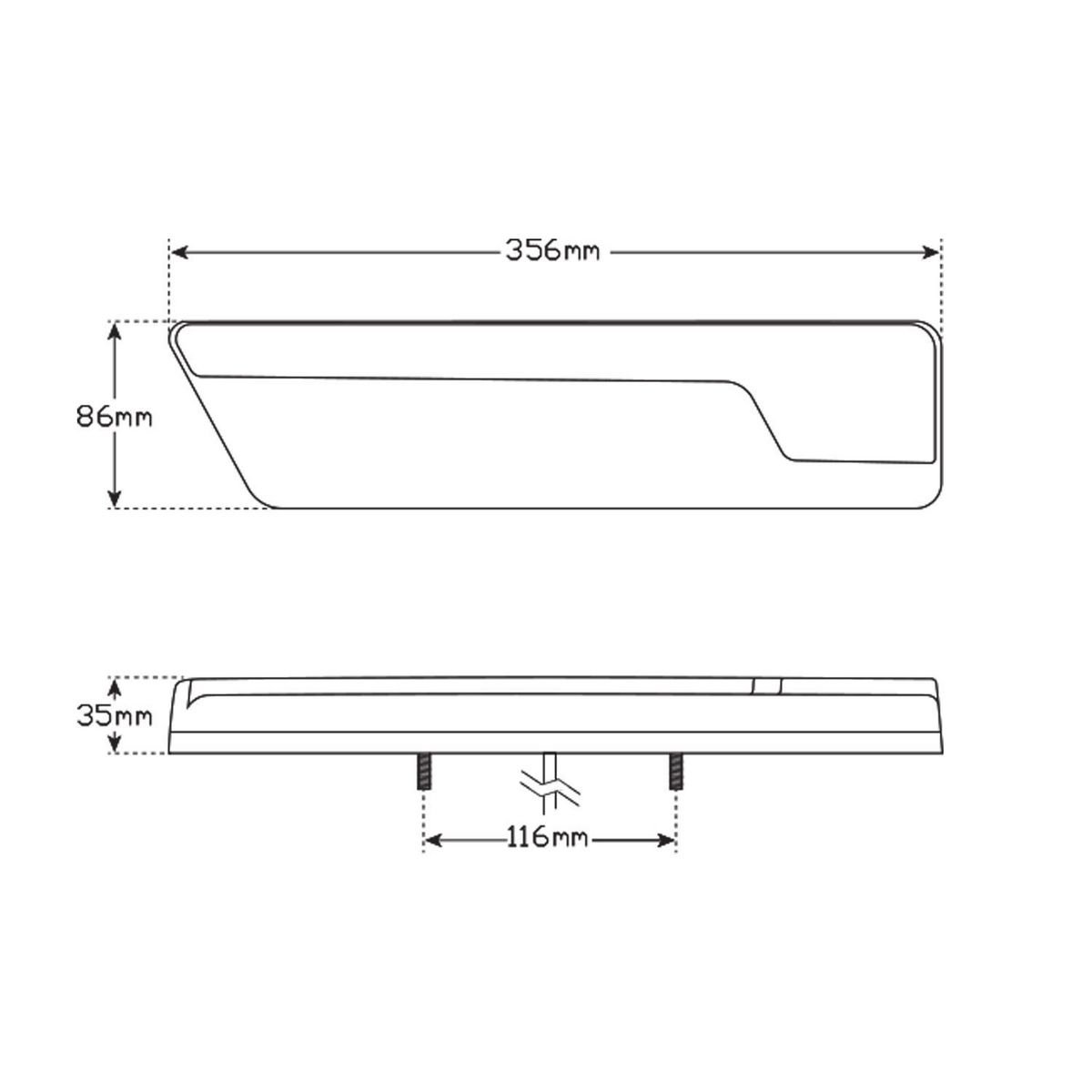

• 356 x 86 x 35mm lamp size with 12-24 multivolt operation
• 63 LEDs, IP67 sealing, 40cm bare wires and 5 year warranty

Specifications and Materials

This lamp pair uses PMMA lenses over ABS bases and carries 63 LEDs in each housing. Current draw sits at 0.13A, 0.45A, 0.35A and 0.19A at 13.8V, then 0.07A, 0.23A, 0.18A and 0.10A at 28V for stop, tail, indicator and reverse functions. Part number: 355ARWM-2.

See the manufacturer technical guide for full series specifications and mounting details

Compatibility and Fitment

Match these rear combination sequential tail lights to surface-mount rear positions that can take the 356mm body length and the rear bolt spacing. Also allow a 10mm hole for the wiring pass-through, then leave the breather clear after fitting.

Because this pair uses bare wires rather than plug ends, it suits custom trailer builds and rewires where the rear loom gets terminated on site. Check the left and right lamp positions before final mounting so the sequential indicator pattern runs the correct way.

Compliance and Safety

Mount the pair in the correct left and right positions, then test stop, tail, sequential indicator and reverse before road use. Keep the rear bolts tight and keep the breather open, because trapped moisture can shorten lamp life.

If the lens cracks or the housing takes a hard hit, replace the damaged lamp before the trailer returns to service. Also confirm the reflector section stays clean and visible during routine lighting checks.

Trailer Applications

Workshops fit rear combination sequential tail lights on trailers, rigid bodies and equipment trailers that need a wide modern lamp with built-in reverse and reflector functions. The chrome finish also suits builds that want a more detailed rear look without adding separate reflectors or extra lamp housings.
