The 662mm 12V/24V interior strip light brightens enclosed trailer, caravan and service body interiors with a slim aluminium housing. It spreads cool white 6500K light through 36 LEDs, so it suits roof linings, cupboards and compartment installs that need long, even coverage.

This non-switch lamp mounts through two screw points and finishes with screw caps for a clean fit. It also runs on 12V and 24V systems with a 20cm cable, so workshops can use the same lamp style across mixed fleets and fit-outs.

Features

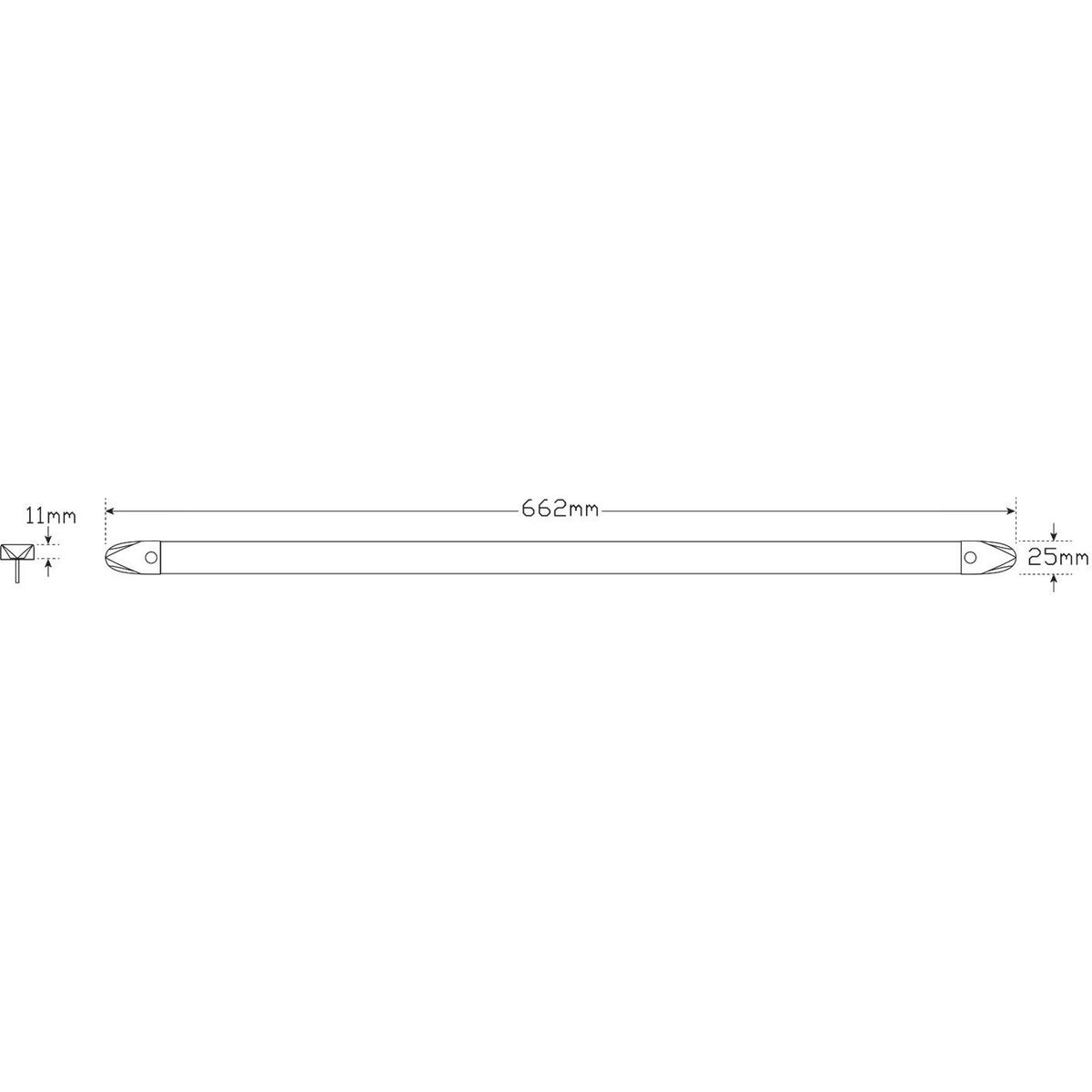

• 662 x 25 x 11mm low-profile body for tight interior spaces

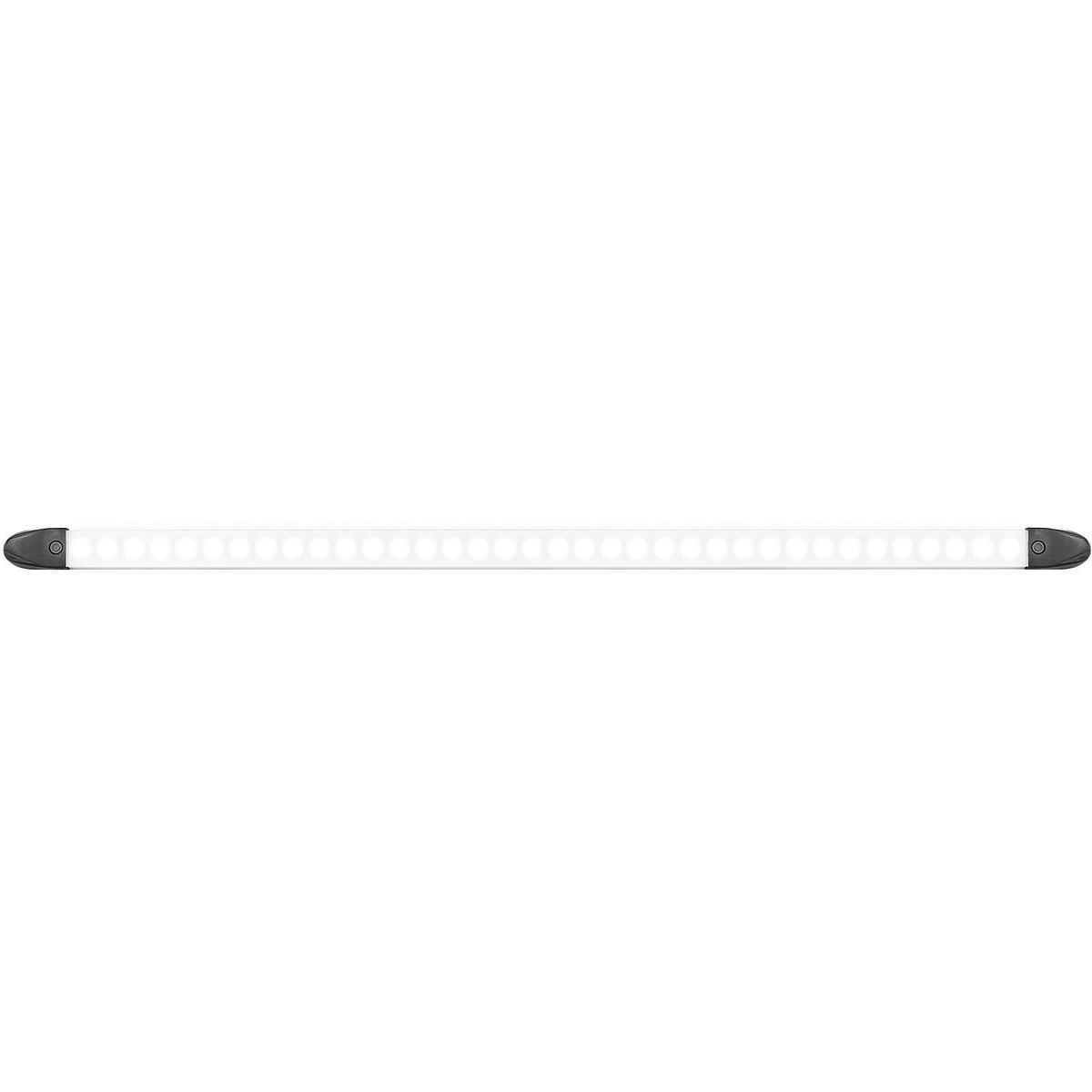

• 36 LEDs with 394lm effective output and CRI above 80
• 6500K cool white light with 12-24 multivolt input
• Aluminium housing with polycarbonate lens and end caps

Specifications and Materials

This interior strip lamp uses an aluminium housing with a polycarbonate lens and polycarbonate end caps. Current draw sits at 0.51A on 12V and 0.26A on 24V. Part number: 2460BMB.

See the manufacturer technical guide for full series specifications and fitting details

Compatibility and Fitment

Match this 662mm 12V/24V interior strip light to interior roof, wall or compartment positions that can take a 662mm lamp body and two screw points. Also allow room for the 20cm cable and confirm the circuit suits a non-switch lamp before ordering.

Run the wires through the mounting surface, then secure the lamp and fit the screw caps. Because the body stands only 11mm high, it suits low-clearance interiors where bulkier housings can get in the way.

Compliance and Safety

Confirm polarity, secure the cable and test the lamp after wiring. Then check the fixing points and screw caps so vibration does not loosen the housing over time.

Keep this light for interior use and replace it if the lens cracks or the housing bends. Also inspect the cable entry during routine trailer electrical checks.

Trailer Applications

Workshops fit this 662mm 12V/24V interior strip light in enclosed trailers, service bodies, caravans and canopy compartments that need long, even white light. The slim body also helps when roof clearance is tight but the fit-out still needs broad light across the interior.
