Description

Overview

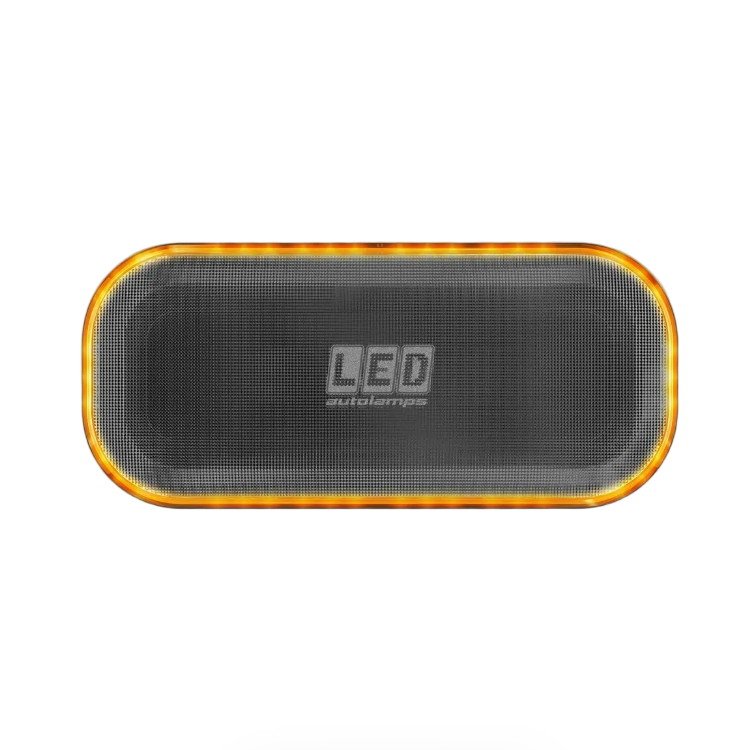

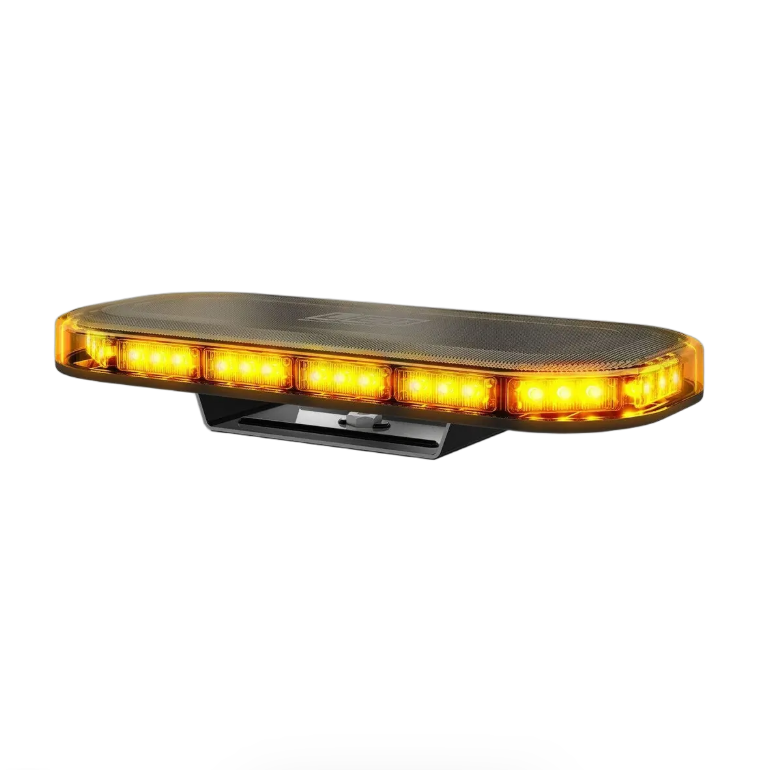

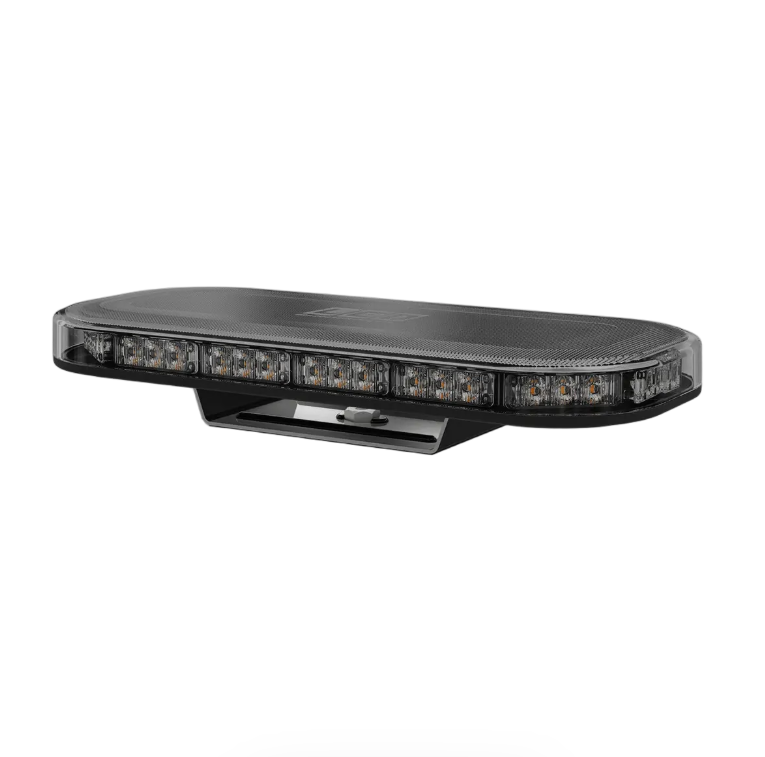

The 380mm amber emergency minibar handles warning light duty on service trailers, worksite equipment and support vehicles with a compact tinted low-profile body. It uses 42 x 1W LEDs and a 360° beam pattern, so it throws strong amber light right around the bar without taking up the space of a full-size roof beacon.

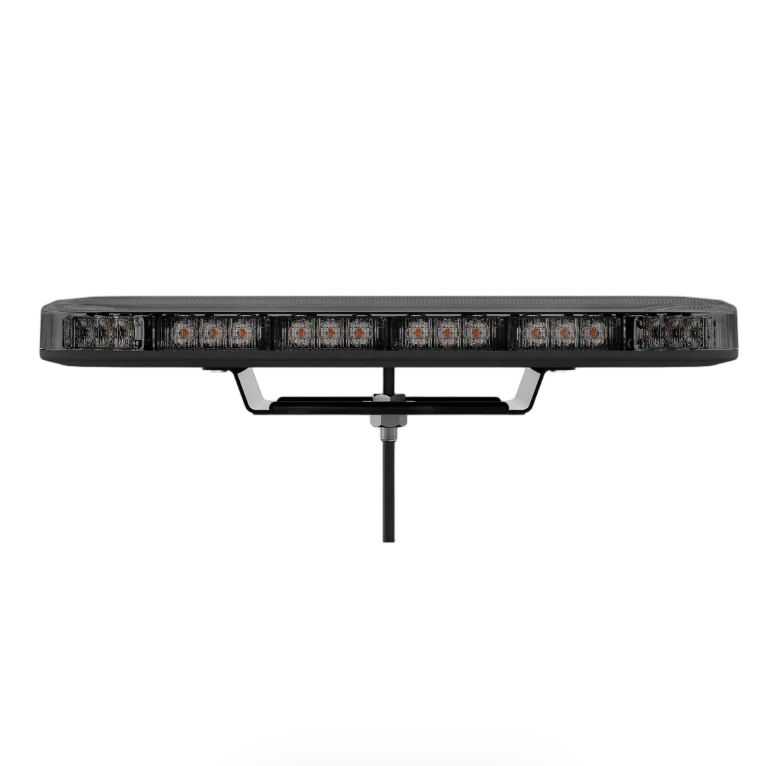

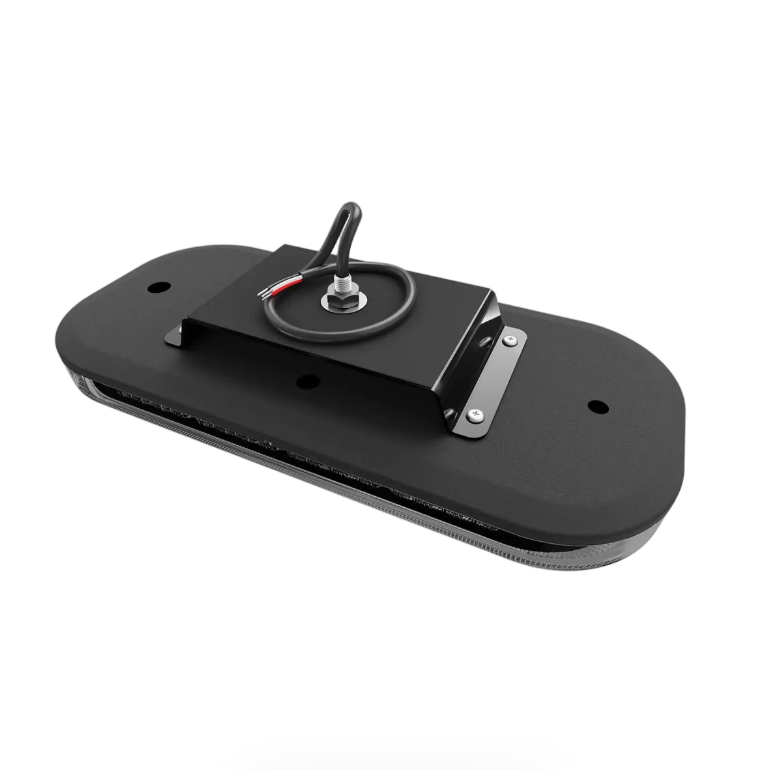

This 380mm amber emergency minibar uses a single-bolt bracket mount, which keeps the install neat and suits flat mounting surfaces where space is tight. It also runs on 10-30V systems, so workshops can fit the same unit across 12V and 24V setups.

Features

• 42 x 1W LEDs with tinted lens and amber output
• 18 selectable flash patterns with multi-unit synchronising capability

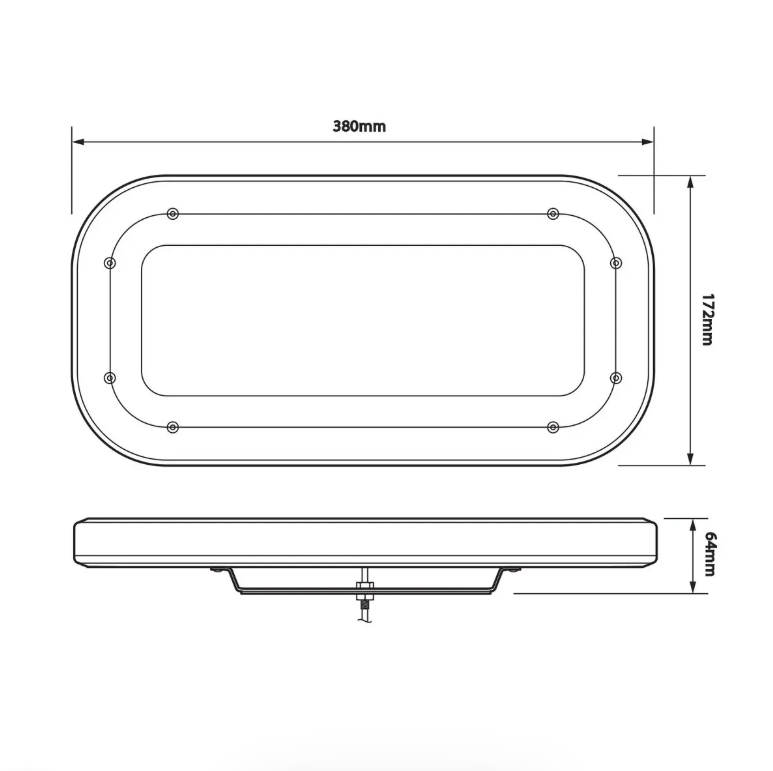

• 380 x 172 x 64mm body with single-bolt bracket mounting
• IP67 protection, SAE J845 Class 1 and ECE R65/R10 approvals

Specifications and Materials

This minibar uses a polycarbonate lens over an ABS housing with painted steel mounting hardware. It draws 2.51A at 13.8V and 0.56A at 28V, carries a 45cm cable and handles temperatures from -40°C to +60°C.

Part number: LB380ATM.

See the manufacturer technical guide for full series specifications and mounting details

Compatibility and Fitment

Match this 380mm amber emergency minibar to a level mounting surface that can take the supplied single-bolt bracket and the 380 x 172mm footprint. Also allow about 64mm overall height and route the 45cm cable clear of sharp edges before final tightening.

If you plan to run multiple warning bars together, keep the flash pattern setup consistent during wiring. Check the mounting position carefully as well, because the bar needs a clear line of sight to do its job properly.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the flash pattern, voltage and mounting position before the unit goes into service. Then test the bar after wiring and keep the lens clean, because dirt and damage can cut warning visibility.

Inspect the bracket and fasteners during routine checks, especially on trailers or equipment that see vibration and rough ground. Replace the bar if the housing cracks, the lens clouds over or the mount no longer holds firmly.

Trailer Applications

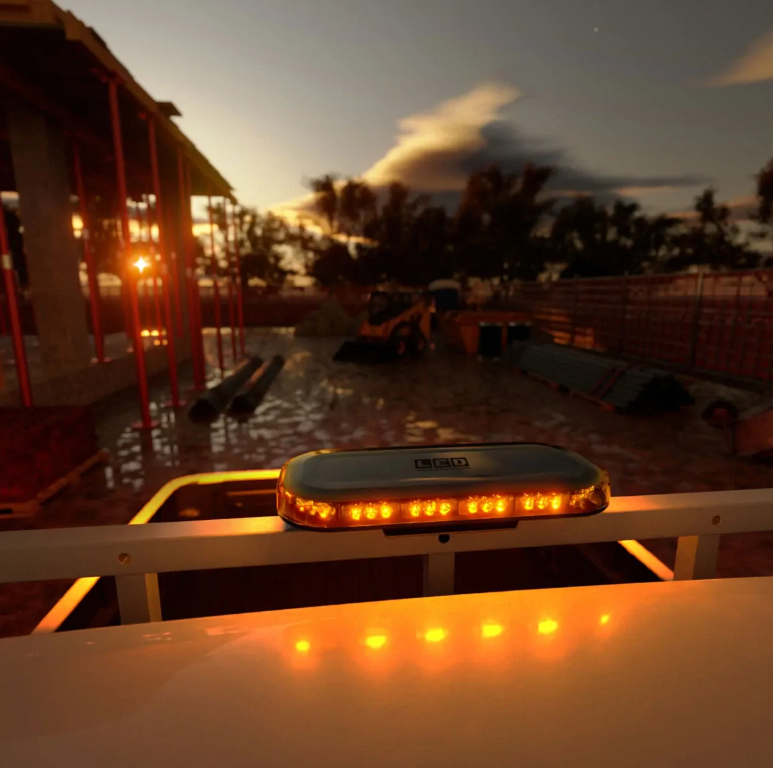

Workshops fit this 380mm amber emergency minibar on service trailers, site support units, plant trailers and recovery equipment that need a compact Class 1 amber warning light. It also suits builds that need strong warning output without the height and bulk of a larger emergency bar.
