Description

Overview

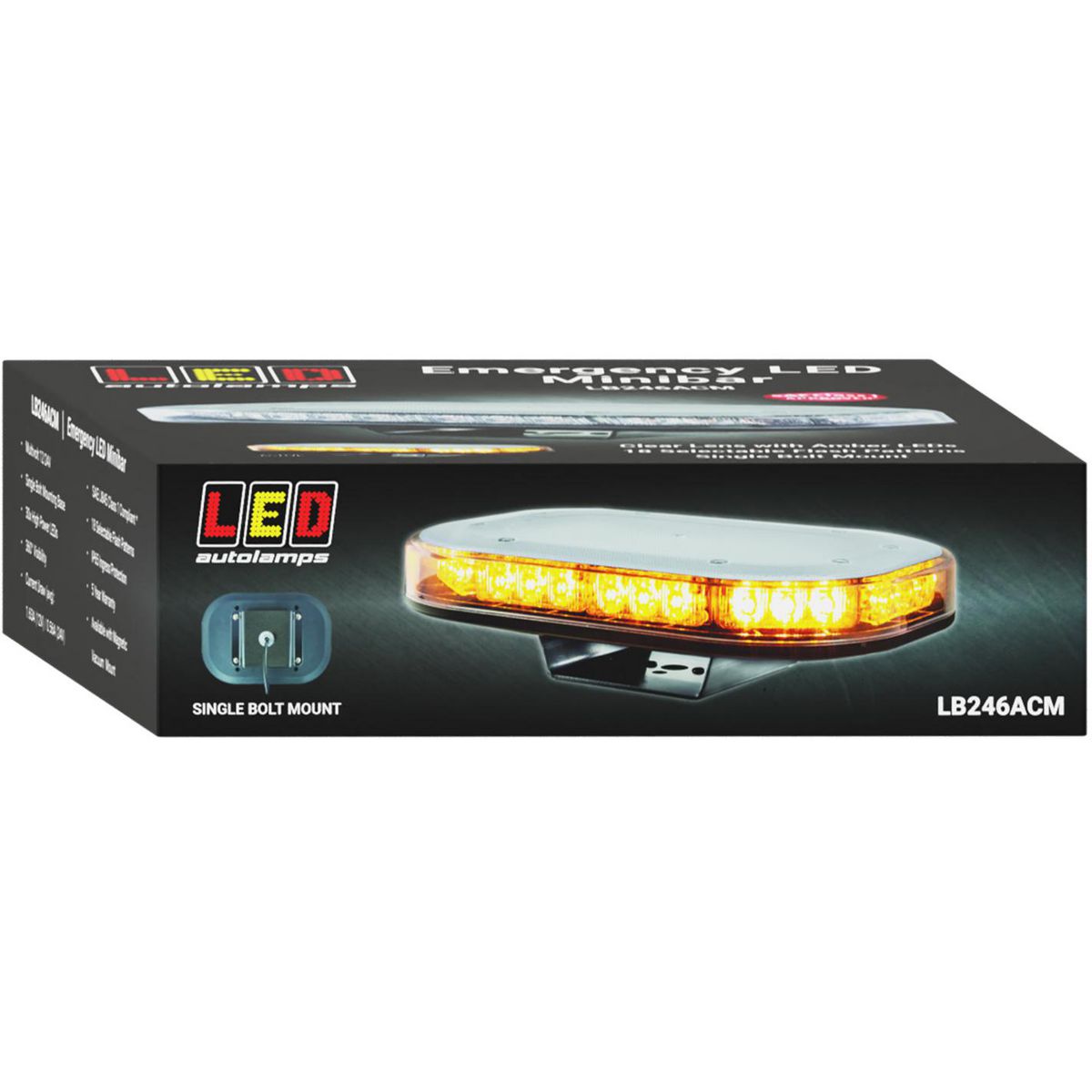

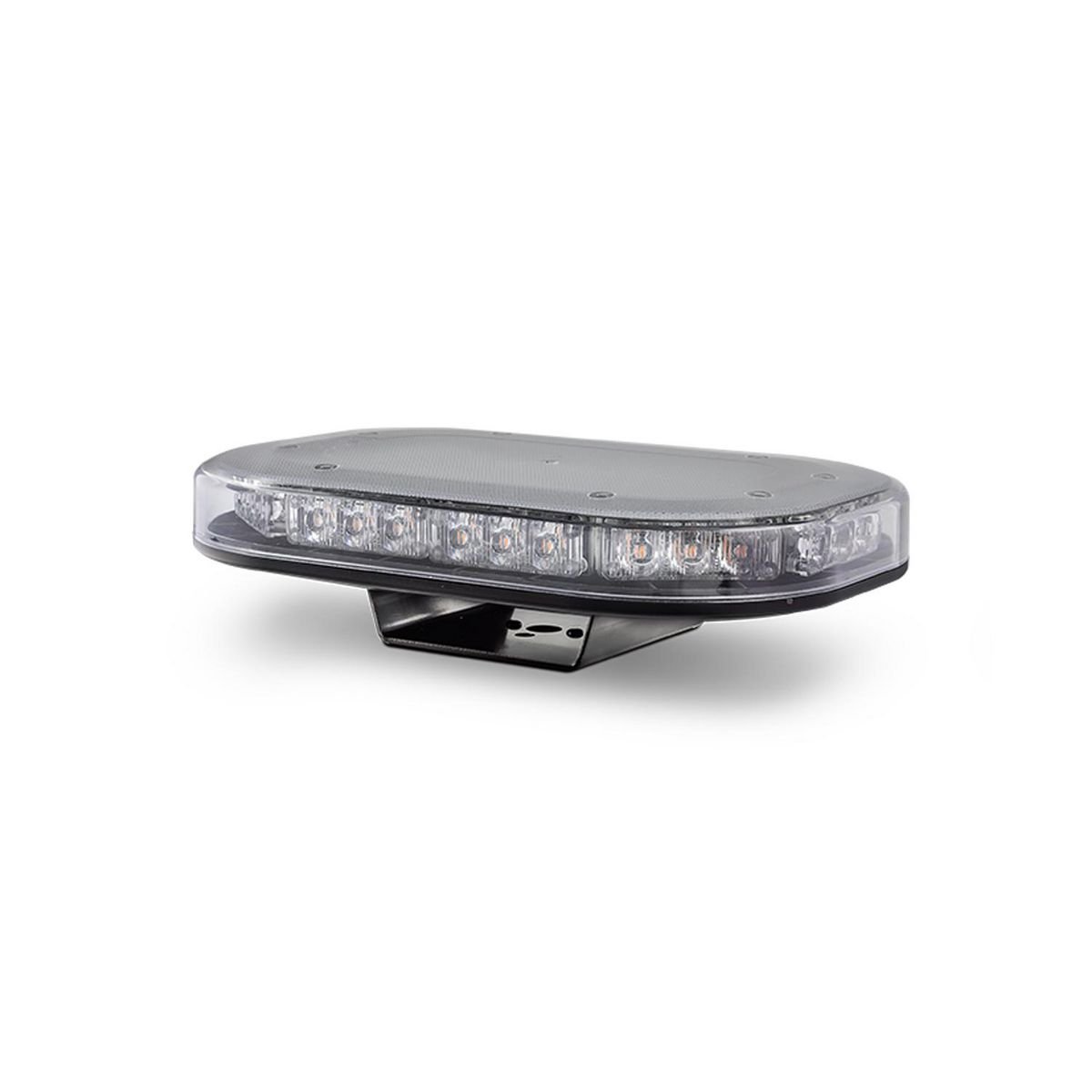

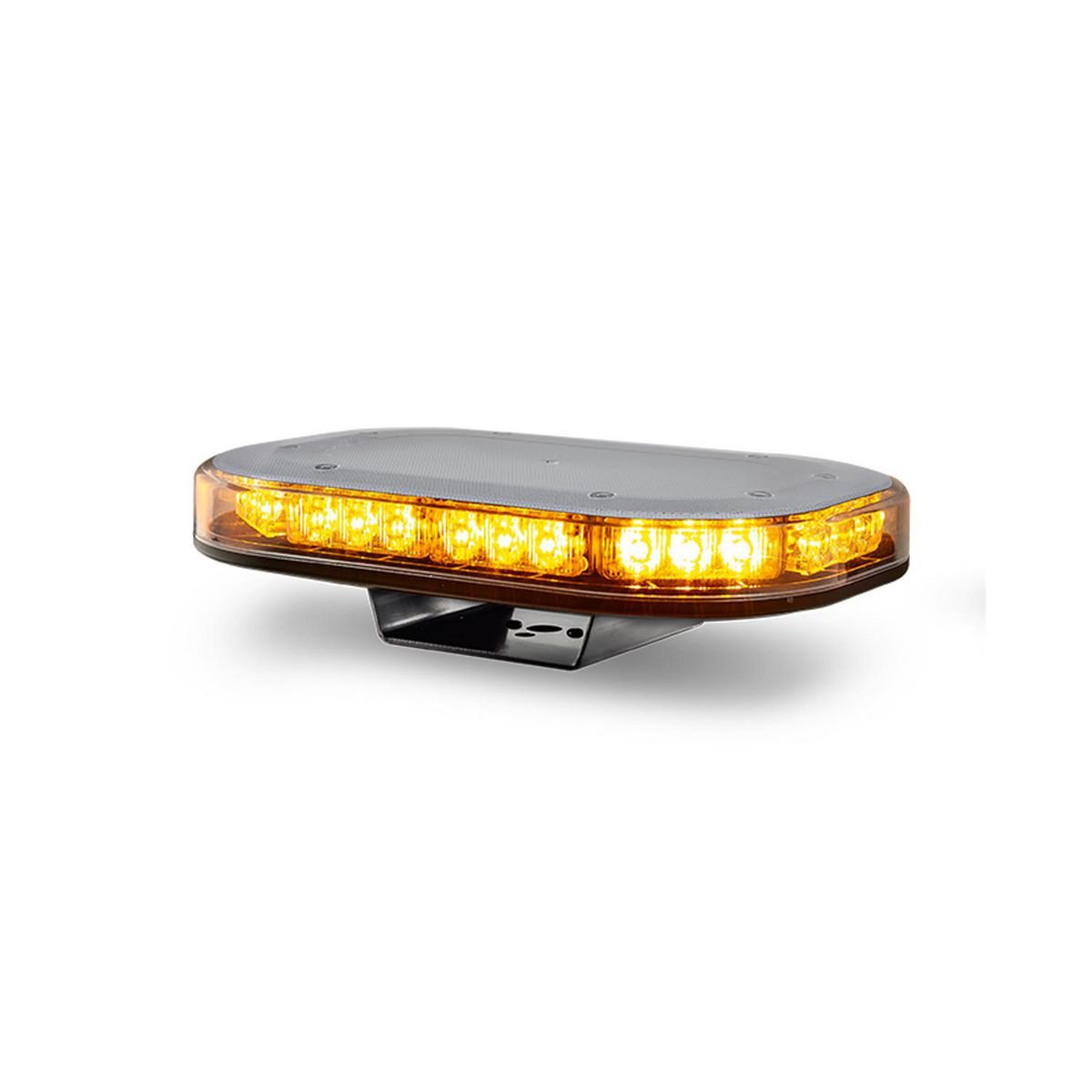

Amber emergency mini light bar gives trailers, service vehicles and roadside plant a compact amber warning light with a clear lens and 360° beam coverage. It suits permanent single bolt mounting where a low-profile emergency minibar needs strong visibility without taking up roof or body space. Because it runs on 10-30V systems, this lamp suits both 12V and 24V vehicle electrical setups.

Features

• Clear lens with amber LEDs for warning and hazard applications
• 30 x 1W LEDs with 18 selectable flash patterns
• Single bolt mount with 45cm cable for permanent installation
• SAE/J845 Class 1 compliant, ECE R65 approved and ECE R10 approved

Specifications and Materials

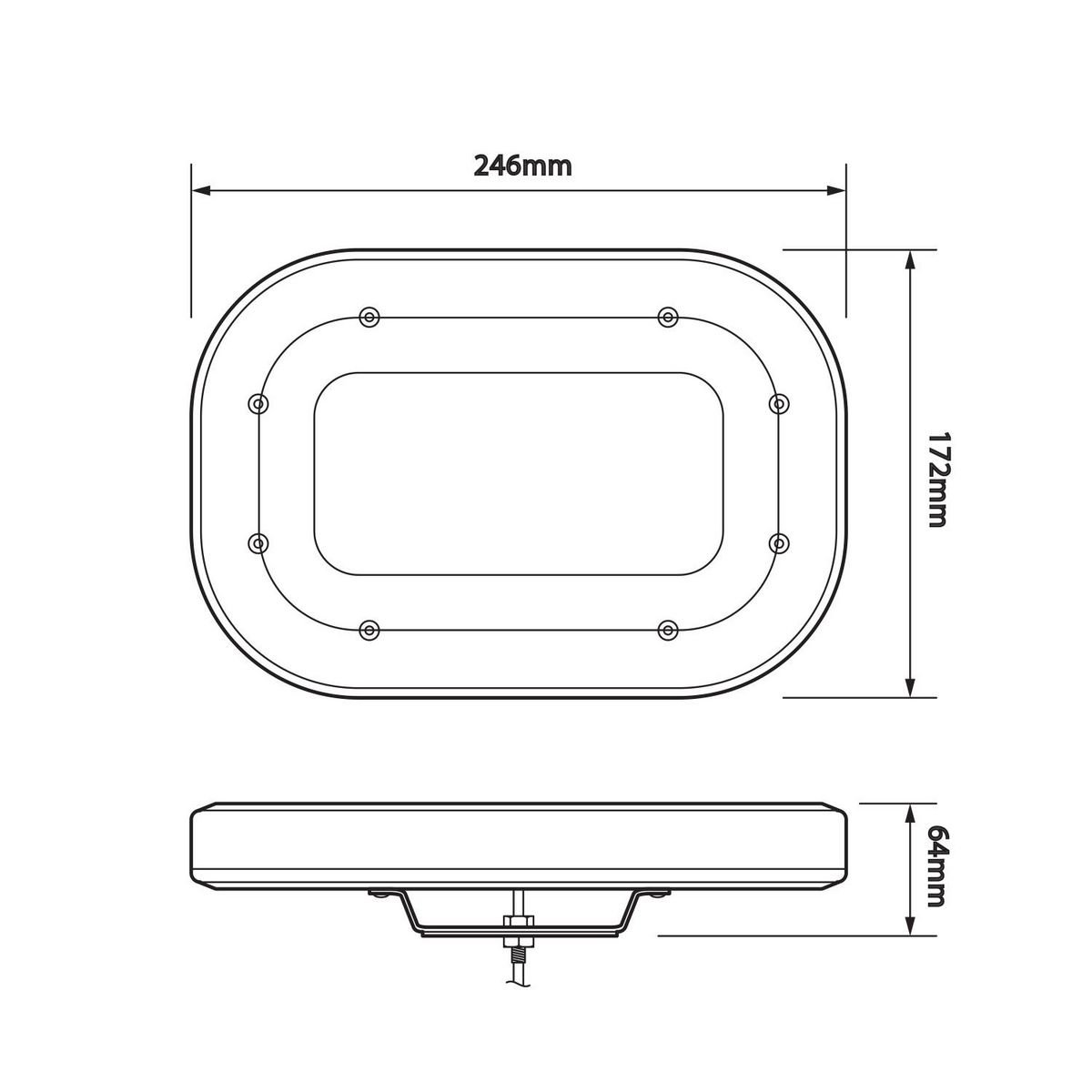

This amber emergency mini light bar measures 246mm x 172mm x 64mm and uses a polycarbonate lens, ABS housing and painted steel fittings. It carries an IP67 ingress rating, a -40°C to +60°C temperature range and a 30,000 hour LED lifespan. Current draw is 1.63A at 13.8V and 0.56A at 28V. Part number: LB246ACM.
Use the LED Autolamps technical page when checking model variants and installation details.

Compatibility and Fitment

Match the mounting surface, available cable path and vehicle voltage before fitting. The lamp mounts to a level surface using the supplied base and fittings, so confirm the panel has enough support for a permanent single bolt installation. If multiple units need matching flash timing, connect the synchronising wiring as part of the installation plan.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Check the vehicle, worksite and road-use requirements before installing any amber warning lamp. Also confirm the lamp position gives clear visibility without blocking other required lighting. After fitting, test the flash pattern, earth connection and cable protection before putting the vehicle back into service.

Trailer Applications

Workshops fit an amber emergency mini light bar to service trailers, maintenance vehicles, roadside support units and plant trailers that need amber hazard warning. The compact 246mm body suits tight mounting areas, while the clear lens keeps the lamp visually clean when inactive.

Why Choose ICS Trailers

ICS Trailers supplies lighting and electrical parts for trailer repairers, fleet operators and workshops working on heavy vehicle equipment. For warning lights, match the voltage, mount type, lens style and compliance requirements before ordering. Browse more trailer lighting in LED Lights
