Description

Overview

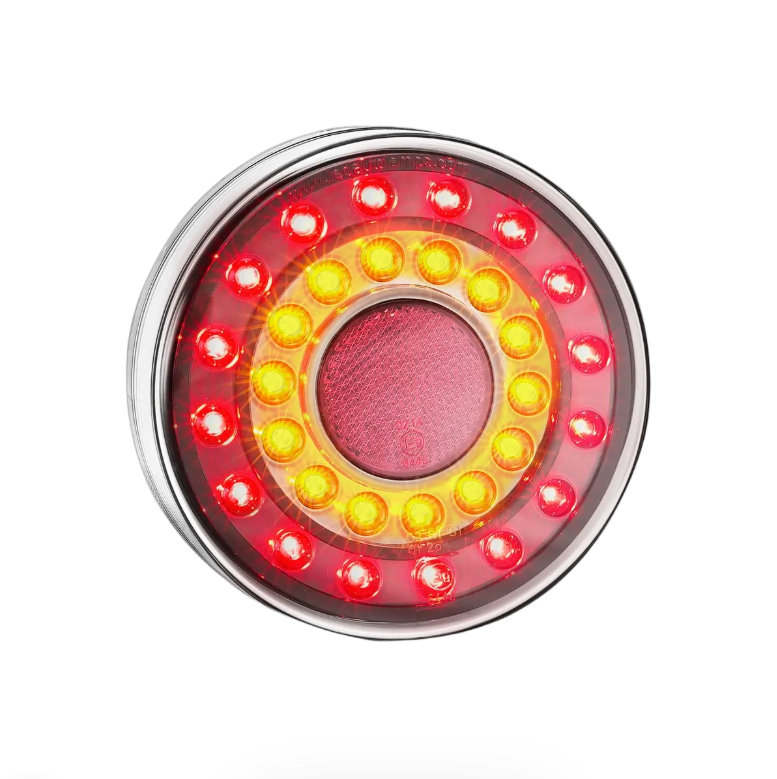

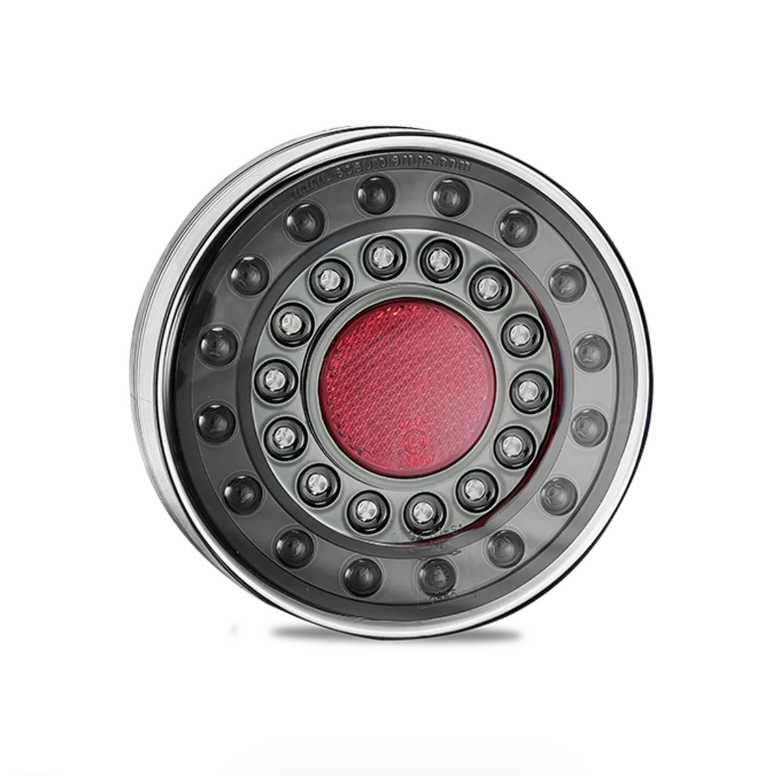

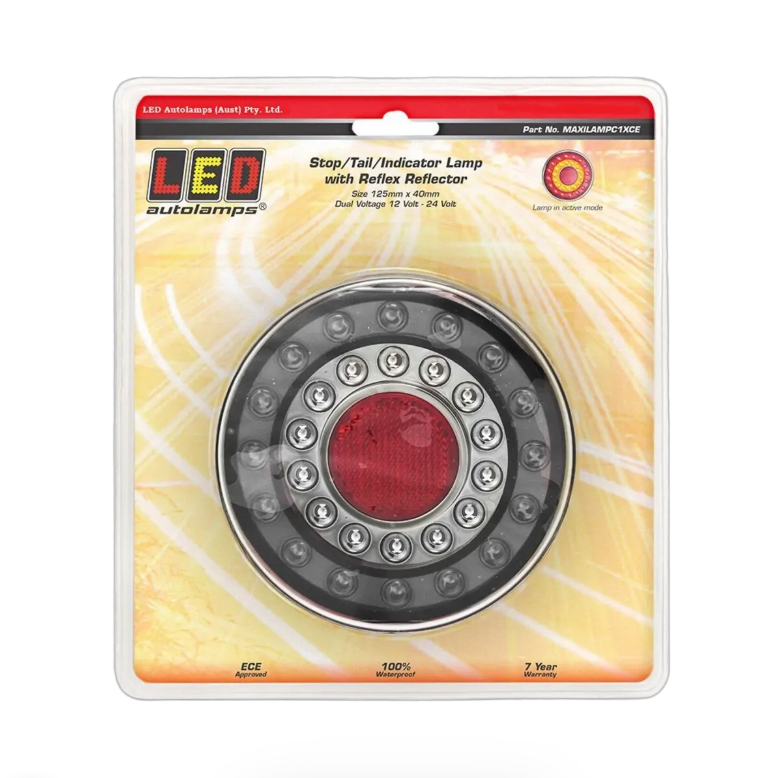

Maxilamp stop tail indicator lamp combines stop, tail, indicator and reflector functions in one compact round rear lamp. The 125mm round body suits trailers, caravans, trays and truck bodies where a single rear combination lamp needs to handle the main signalling functions. Its bolt-mount format also suits repairs where the existing rear panel already uses round Maxilamp-style fitment.

Features

• 30 LEDs cover stop, tail and indicator functions.
• Built-in reflector supports compact rear combination lighting layouts.
• IP67 rating helps protect the lamp against dust and water exposure.
• Bolt-mount body suits flat surface mounting on rear panels.

Specifications and Materials

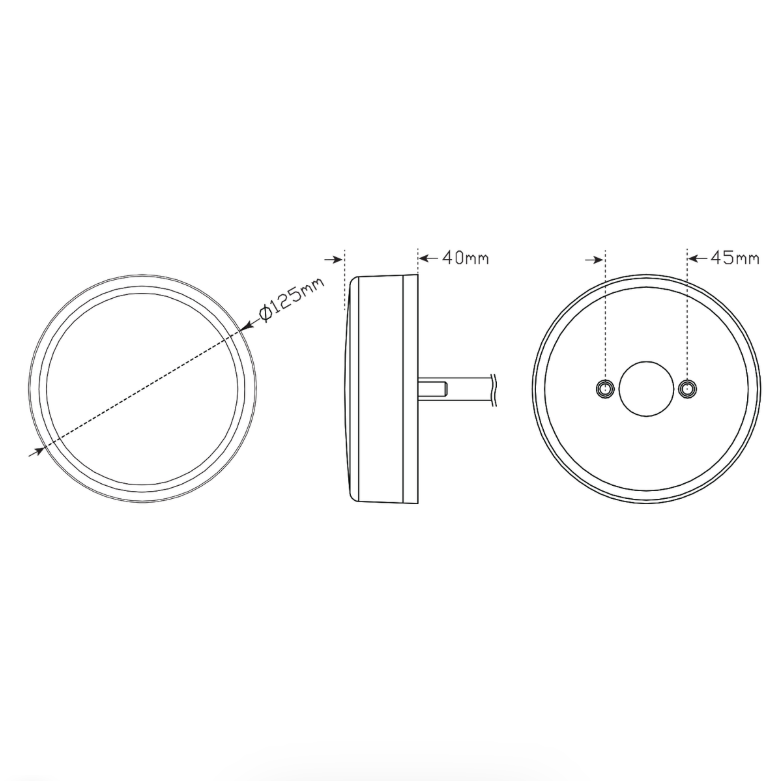

This Maxilamp stop tail indicator lamp measures 125mm round × 40mm deep and runs on 12-24V systems. It uses a PMMA acrylic lens, ABS base and 40cm cable.

The lamp draws 0.34A stop, 0.07A tail and 0.37A indicator at 13.8V. At 28V, it draws 0.17A stop, 0.06A tail and 0.16A indicator.

Part number: MAXILAMPC1XCE.

Use the manufacturer product details for fitting guidance, approval data and series specifications

Compatibility and Fitment

Match the 125mm round body, 40mm depth, 40cm cable and 12-24V input before ordering. Horizontally mount the lamp to a flat surface with the supplied bolts, then run the cable through the fixing surface and test each function after wiring.

This Maxilamp stop tail indicator lamp suits rear combination lighting layouts that need stop, tail, indicator and reflector functions in one round lamp body.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Wire colours are red for stop, yellow for indicator, brown for tail and white for earth. After fitting, confirm the lamp sits flat, avoid overtightening the bolts and test the stop, tail and indicator functions before road use.

Trailer Applications

Workshops fit this round rear combination lamp to trailers, caravans, trays, service bodies and light truck bodies. The compact round body helps when replacing older Maxilamp-style lamps or setting up a rear panel that needs clean stop, tail, indicator and reflector coverage without separate lamp housings.

Why Choose ICS Trailers

ICS Trailers supplies rear trailer lighting for repairs, fleet work and body builds, so match the lamp diameter, cable route and rear lighting layout before fitting this lamp.
