Description

Overview

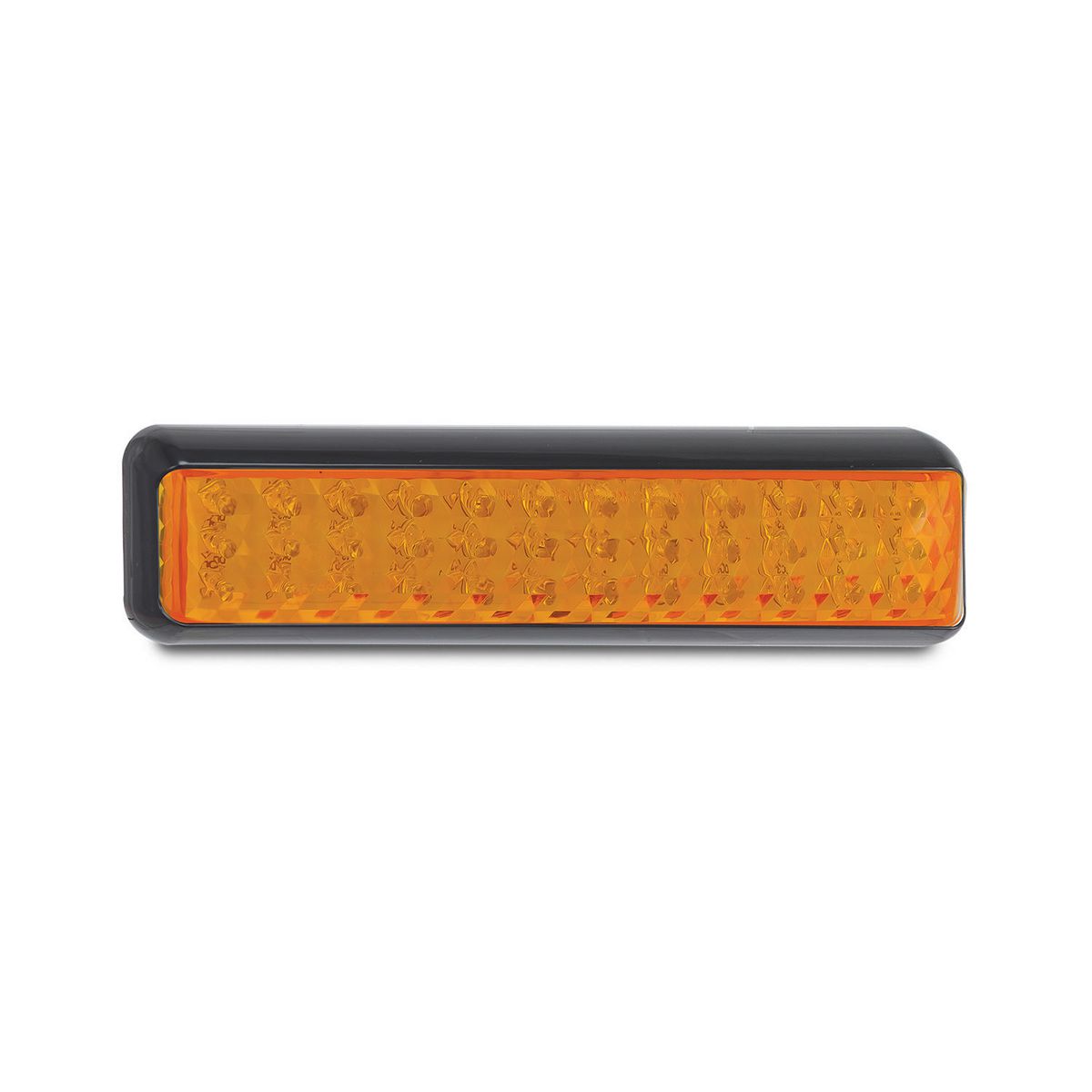

LED indicator lamp 200mm handles rear indicator signalling on trailers, truck bodies, trays and caravan applications that need a slim rectangular amber lamp. The low-profile body suits surface mounting where space is limited, while the 12-24V range lets the same lamp suit common light and heavy vehicle electrical systems.

Features

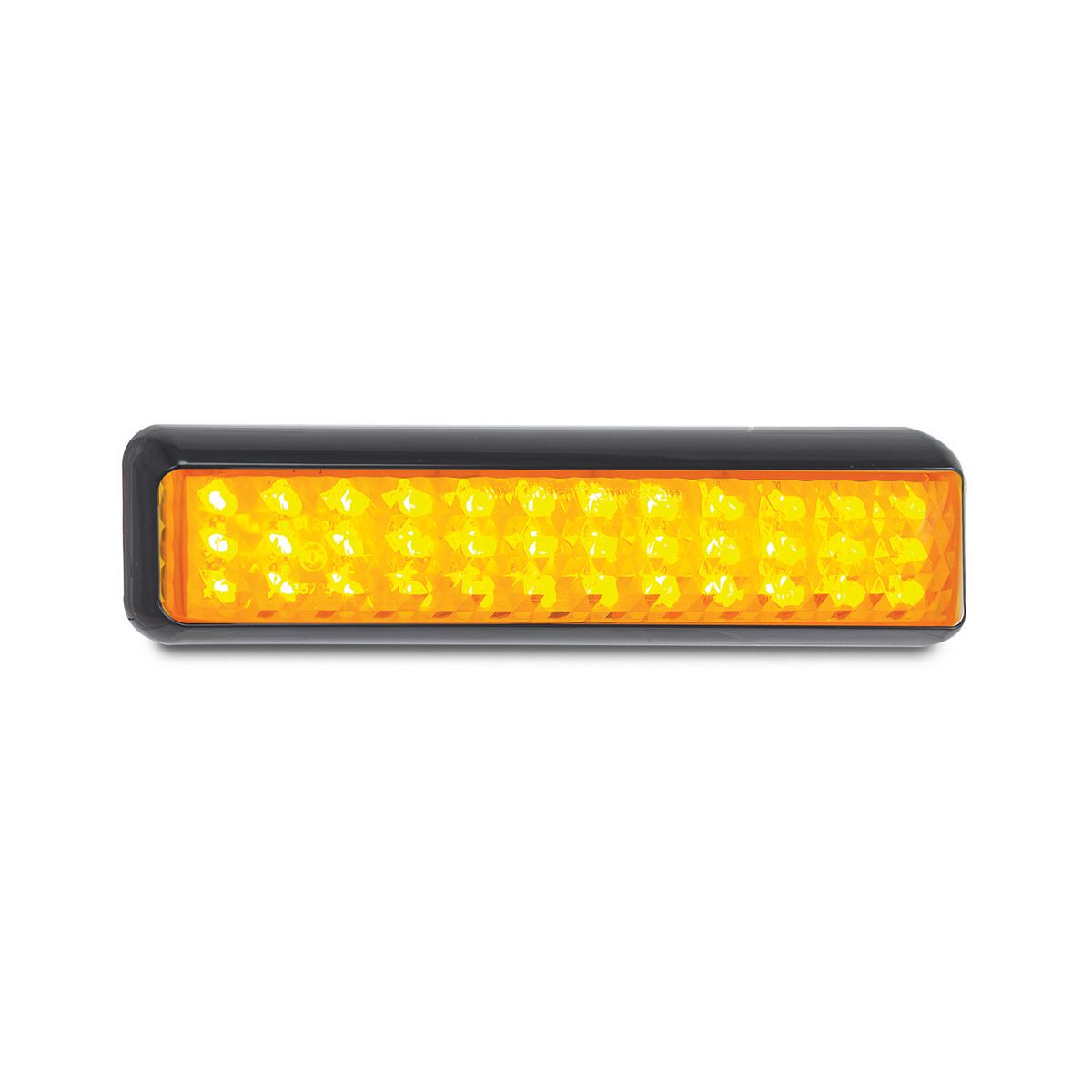

• 36 LEDs support bright rear indicator signalling.
• 200mm × 50mm rectangular body suits slim rear lamp layouts.
• IP67 rating helps protect the lamp against dust and water exposure.
• 40cm cable gives the installer working length behind the panel.

Specifications and Materials

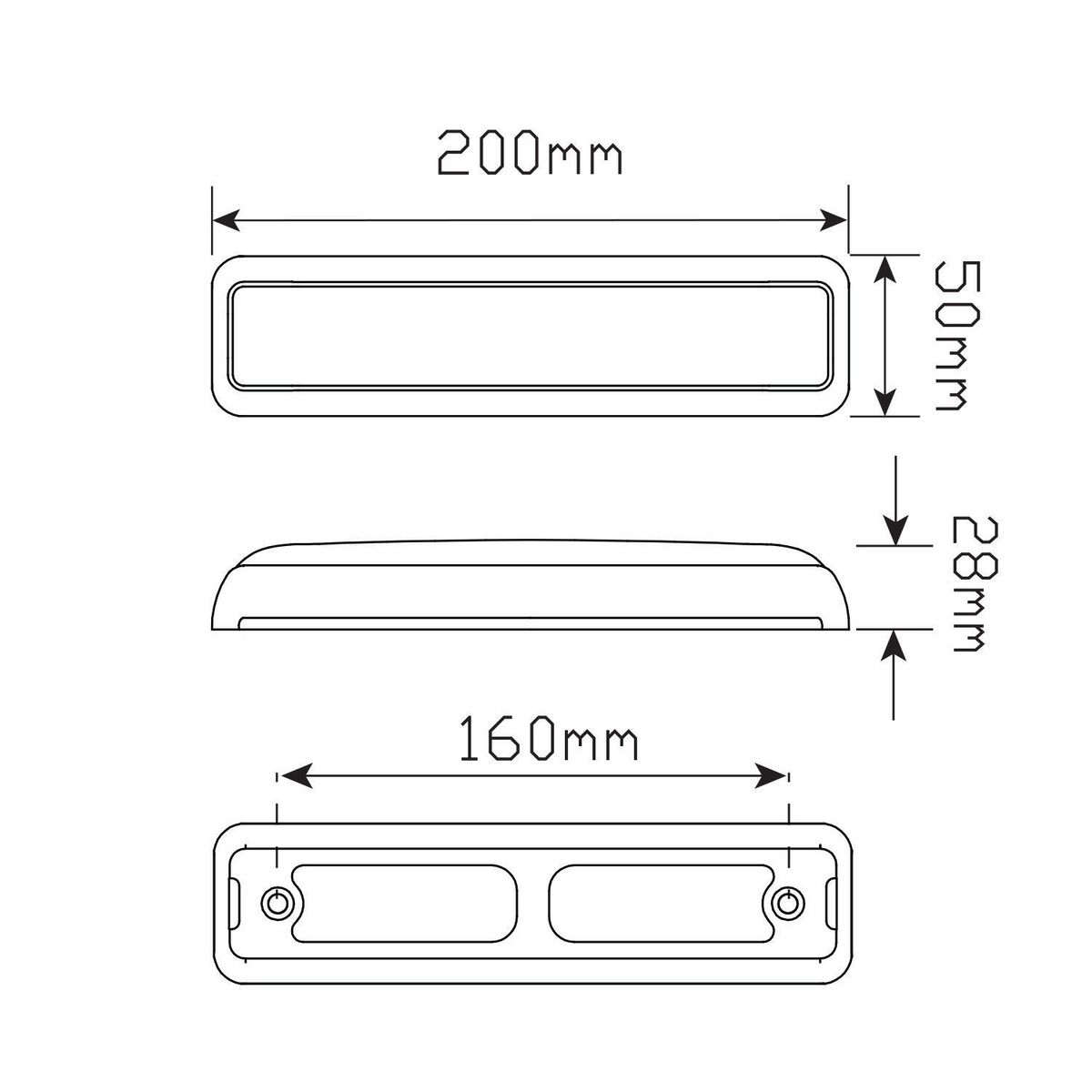

This LED indicator lamp 200mm measures 200mm × 50mm × 28mm and runs on 12-24V systems. It uses a hardened acrylic lens and ABS base, with a black surface mount bracket and clip-in lens design. Current draw is 0.39A at 13.8V and 0.19A at 28V for the indicator function. Part number: 200BAM.
manufacturer technical guide

Compatibility and Fitment

Match the lamp size, voltage range, mounting direction and indicator approval before ordering. For installation, surface mount the bracket horizontally, run the wiring through the back, then clip the lens into place. If a chrome finish is required, check the matching chrome bracket listed in the related parts table.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

This lamp carries ADR Indicator 6/00 category 2a approval for rear indicator use. However, the installer still needs to mount and wire it correctly for the vehicle layout. Check the wiring, lens seating and bracket security before returning the trailer to service.

Trailer Applications

Workshops fit this LED indicator lamp 200mm to trailers, caravans, trays and truck bodies where a compact rectangular rear indicator lamp suits the panel layout. It also suits repair jobs where the existing 200 Series style footprint and surface bracket arrangement need to be matched.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairs, upgrades and workshop stock. Use this lamp when you need a slim rectangular rear indicator with ADR approval, 12-24V operation and a matching bracket system. See more in our LED Lights
