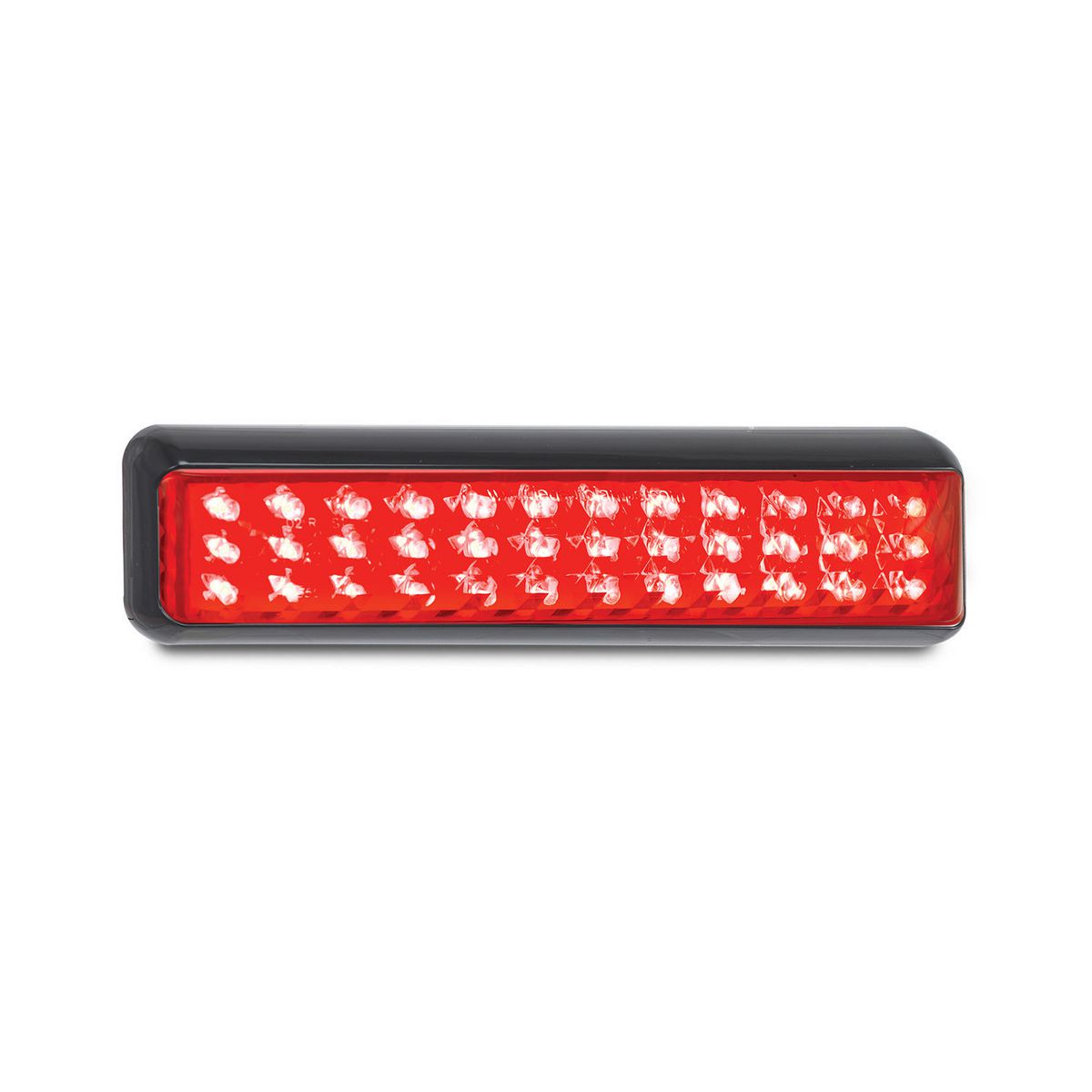

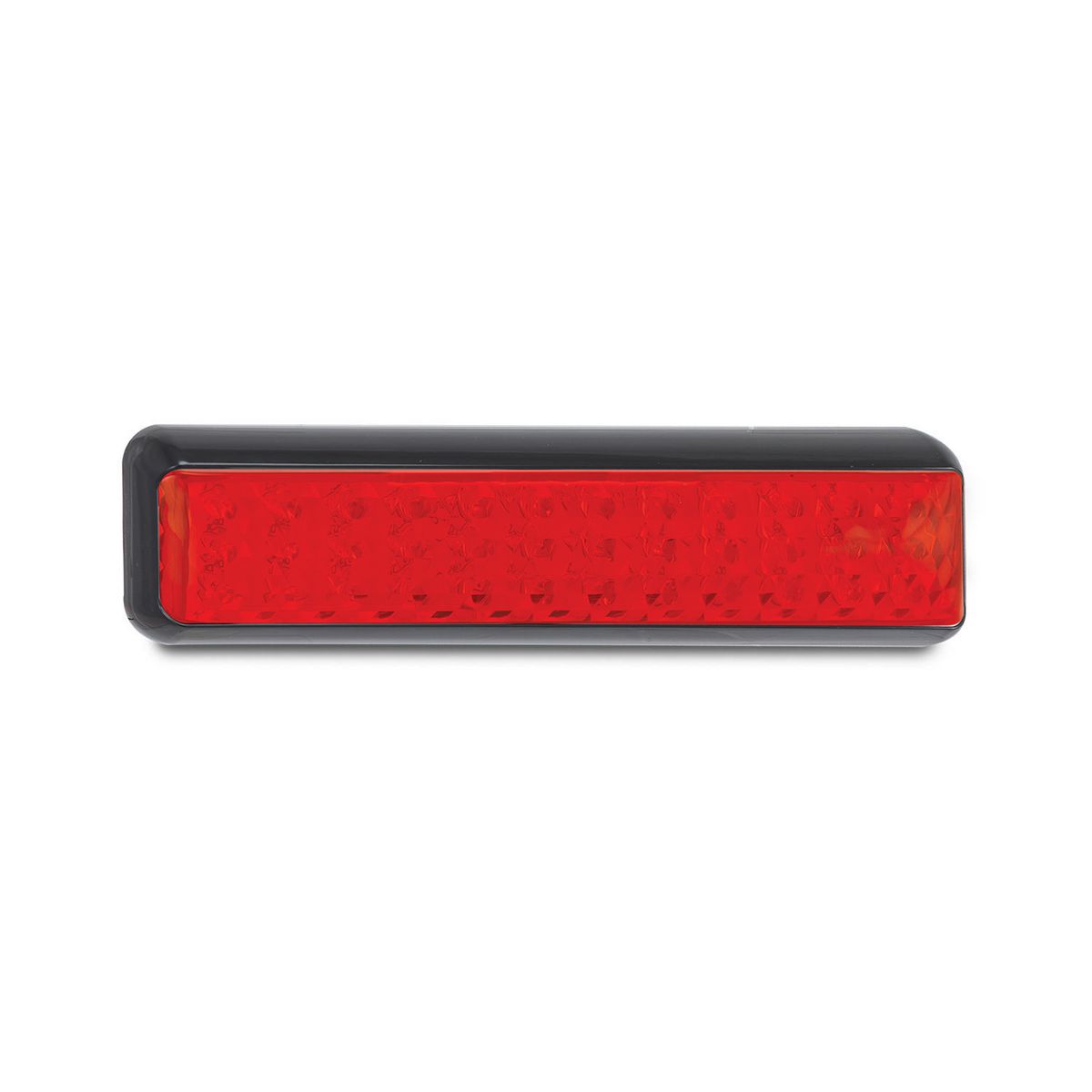

LED stop tail lamp 200mm handles rear stop and tail light signalling on trailers, truck bodies, trays and caravan applications that need a slim rectangular red lamp. The low-profile 200 Series body suits surface mounting where the rear panel has limited space, while the 12-24V range supports common light and heavy vehicle electrical systems.

Features

• 36 LEDs support stop and tail light functions in one red rear lamp.
• 200mm × 50mm rectangular body suits slim rear lighting layouts.
• IP67 rating helps protect the lamp against dust and water exposure.
• 40cm cable gives the installer working length behind the mounting panel.

Specifications and Materials

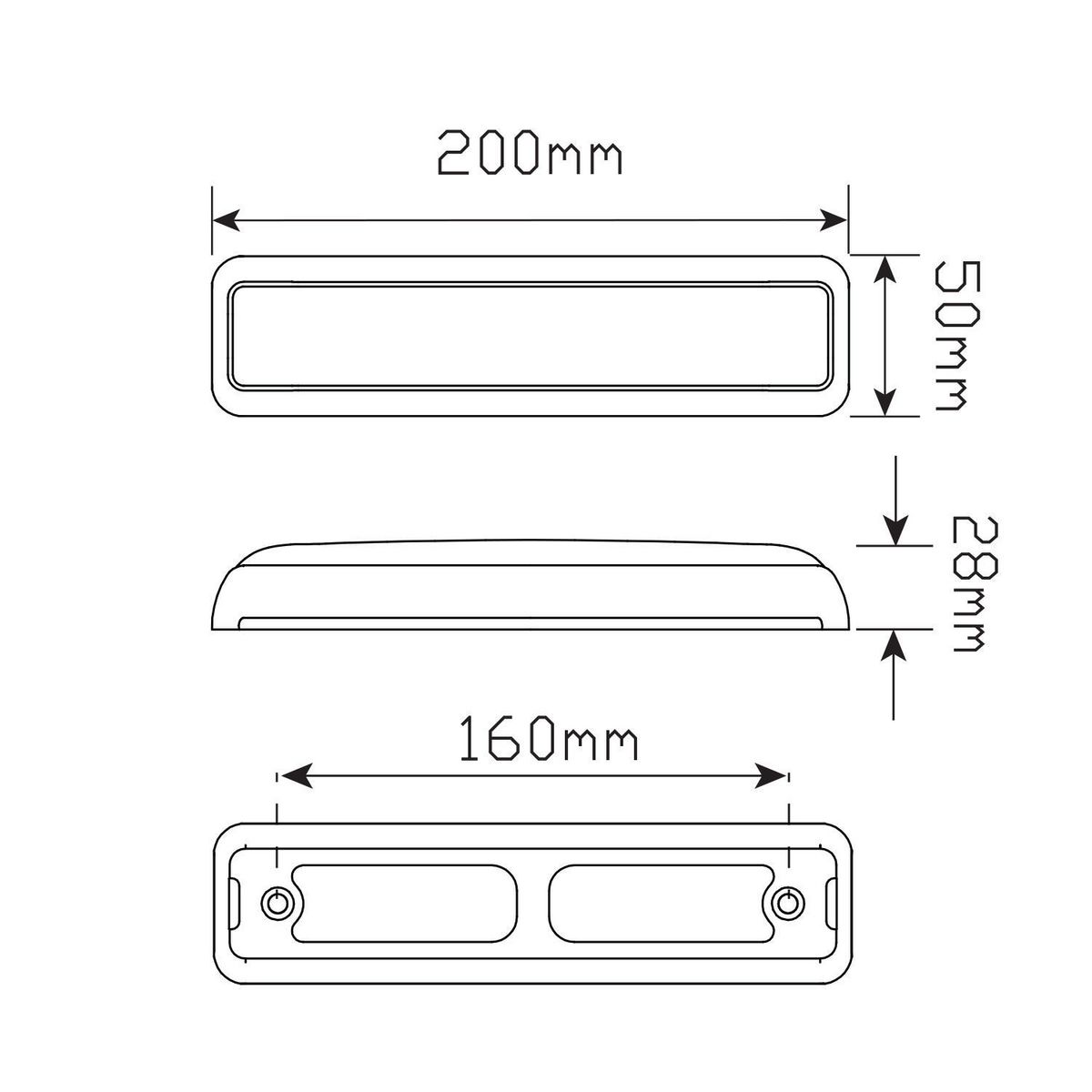

This LED stop tail lamp 200mm measures 200mm × 50mm × 28mm and runs on 12-24V systems. It uses a hardened acrylic lens and ABS base, with a black surface mount bracket and clip-in lens design. Current draw is 0.32A stop and 0.04A tail at 13.8V, then 0.18A stop and 0.04A tail at 28V. Part number: 200BRM.
manufacturer technical guide

Compatibility and Fitment

Match the lamp size, voltage range, mounting direction and stop/tail approval before ordering. For installation, surface mount the bracket horizontally, run the wiring through the back, then clip the lens into place. If the trailer needs a chrome bracket finish, check the matching chrome bracket listed below.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

This lamp carries ADR Stop/Tail 49/00 approval for rear stop and tail light use. However, the installer still needs to mount and wire it correctly for the trailer layout. Check the stop light, tail light, lens seating and bracket security before returning the trailer to service.

Trailer Applications

Workshops fit this LED stop tail lamp 200mm to trailers, caravans, trays and truck bodies where a compact rectangular rear stop/tail lamp suits the panel layout. It also suits repair jobs where the existing 200 Series style footprint and surface bracket arrangement need to be matched.
