Description

Overview

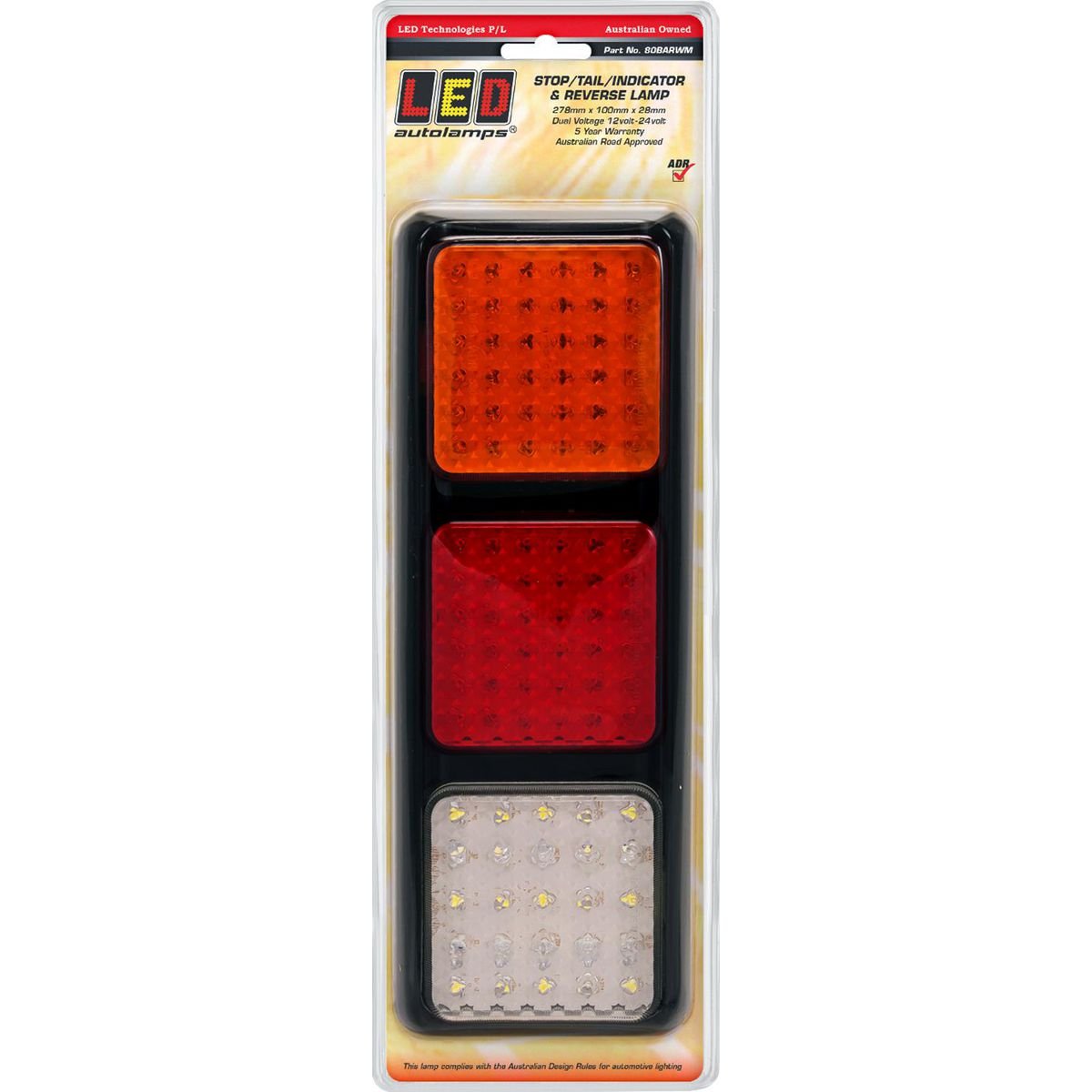

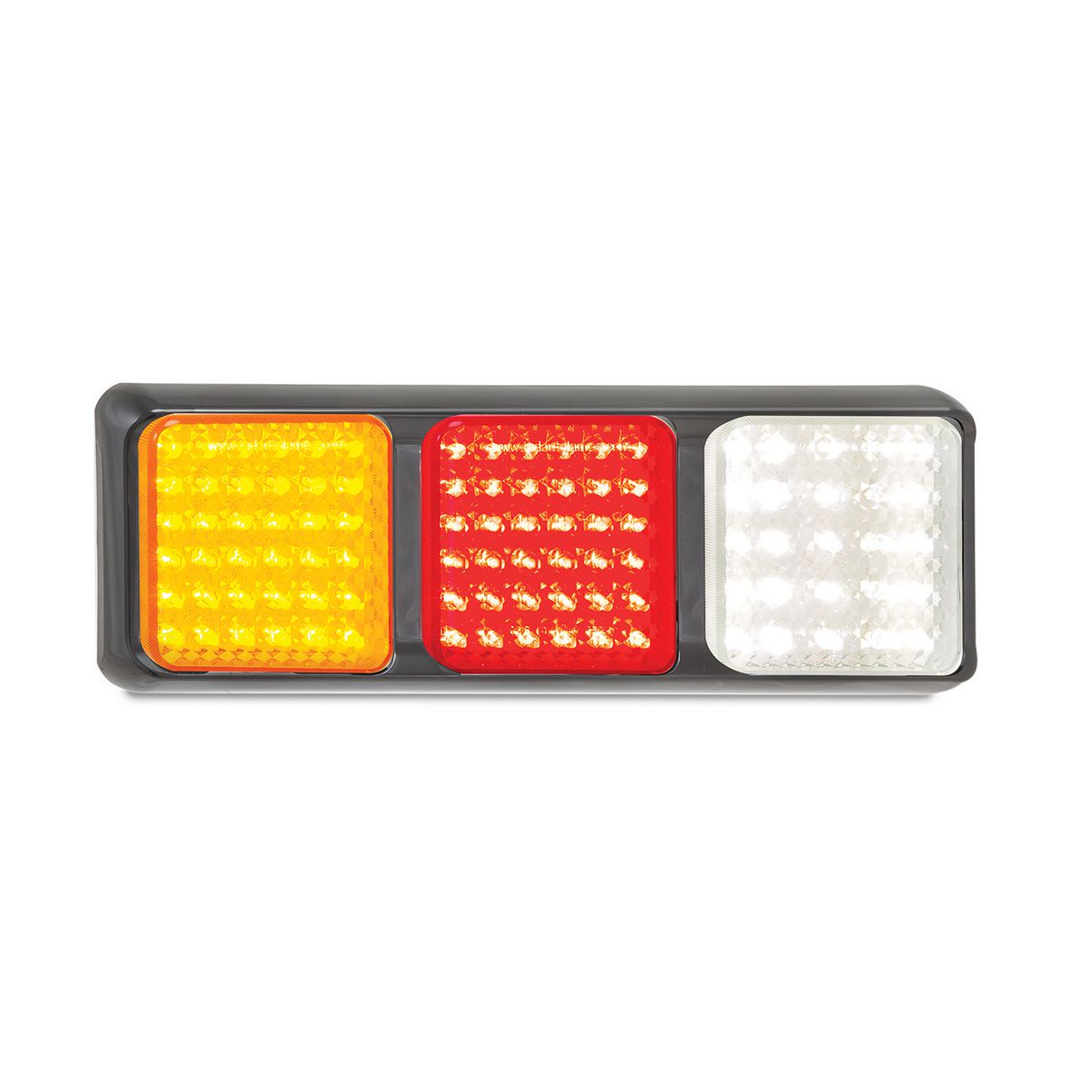

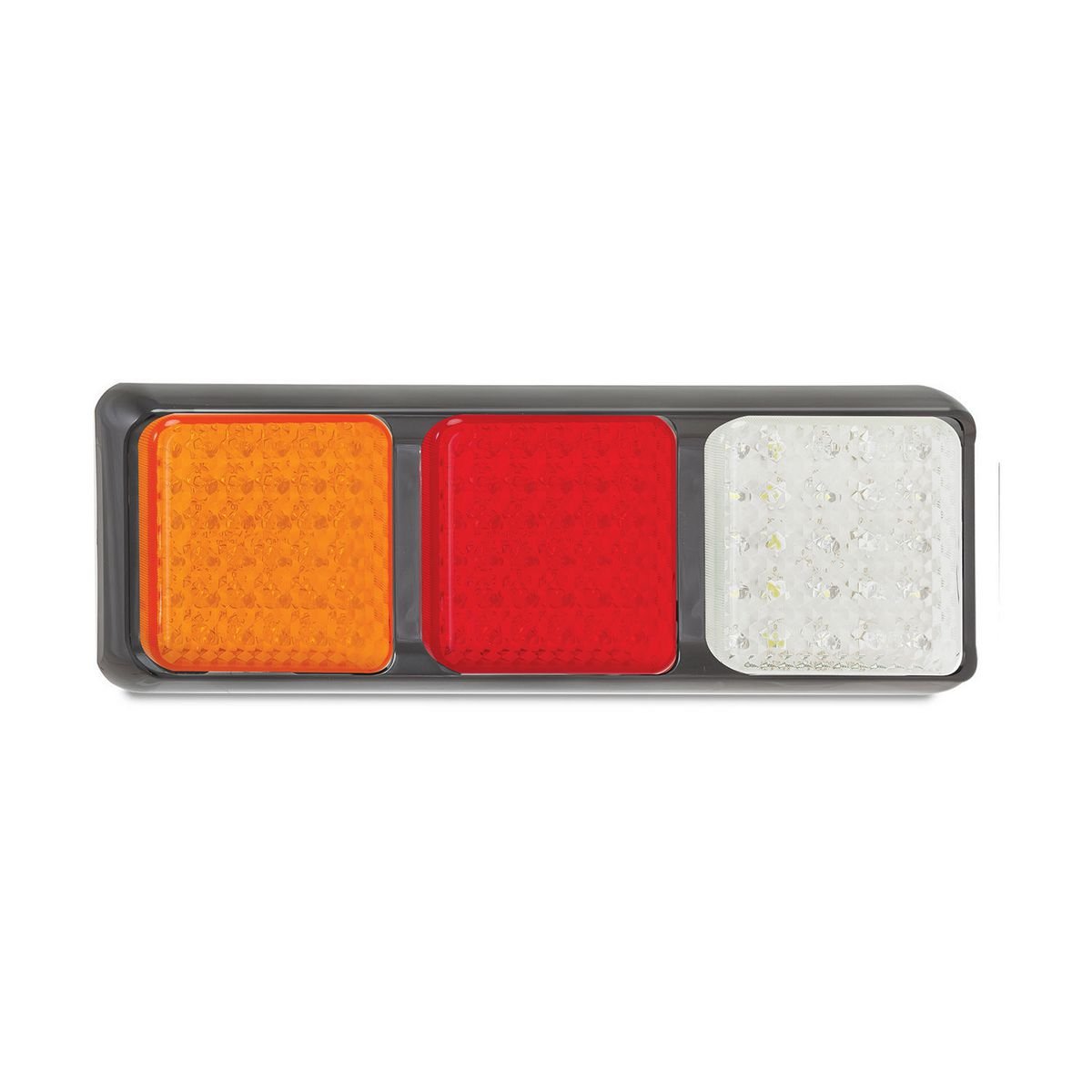

12/24V LED stop tail indicator reverse lamp carries the rear lighting functions needed on trailer and truck setups that run stop, tail, indicator and reverse lighting in one compact assembly.

The lamp suits rear combination lighting replacement where a flat, surface-mounted 80 Series triple lamp matches the existing layout. Also, the clip-in lens setup helps service the lamp without replacing the full assembly every time a lens needs attention.

Features

• Stop, tail, indicator and reverse functions in one rear combination lamp
• 12-24V multivolt operation for mixed trailer and vehicle electrical systems
• IP67-rated body with PMMA lens and ABS bracket construction
• 40cm cable with colour-coded wiring for stop, tail, reverse and earth

Specifications and Materials

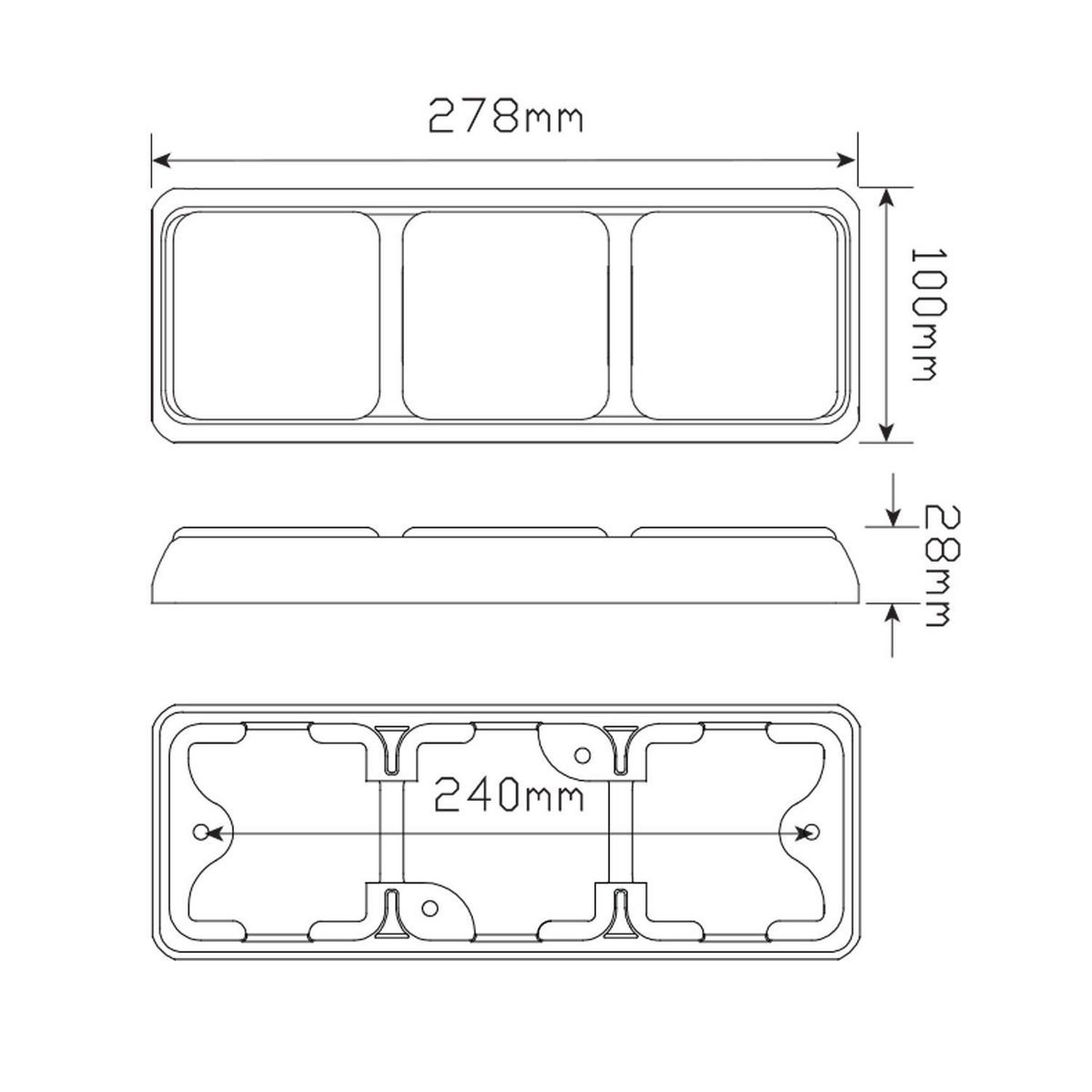

This 12/24V LED stop tail indicator reverse lamp measures 278mm x 100mm x 28mm and uses a 40cm cable. The lens uses PMMA, while the bracket uses ABS.

Part number: 80BARWM.

Current draw is listed across stop, tail, indicator and reverse functions, so check the trailer wiring and load requirements before replacing an existing lamp.

See the official LED Autolamps 80 Series datasheet for manufacturer technical details

Compatibility and Fitment

Match the lamp size, mounting face, voltage range and wiring layout before ordering. This lamp horizontally surface mounts to a flat bracket, with wiring run through the back and the lens clipped into place.

For vertical mounting, check the matching vertical bracket before changing the lamp orientation. Also confirm the trailer’s ADR lighting layout, because rear combination lamps need the correct position and function on the vehicle.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the mounting face, cable condition and earth connection before fitting the replacement lamp. If the old lamp failed because of water entry or wiring damage, fix the cause before installing the new unit.

After fitting, test stop, tail, indicator and reverse functions separately. Then check visibility and mounting security before the trailer returns to road use.

Trailer Applications

Workshops fit this 12/24V LED stop tail indicator reverse lamp to trailers, utes, trays and truck bodies that need a compact rear combination lamp with reverse included.

It suits service work where the buyer needs one rear lamp assembly rather than separate stop, tail, indicator and reverse lamps spread across the rear panel.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting for service, repair and replacement work across heavy vehicle and trailer setups. Check the lamp against the existing mount, wiring and ADR lighting position before ordering.

Find more trailer lighting in our LED Lights
