Description

Overview

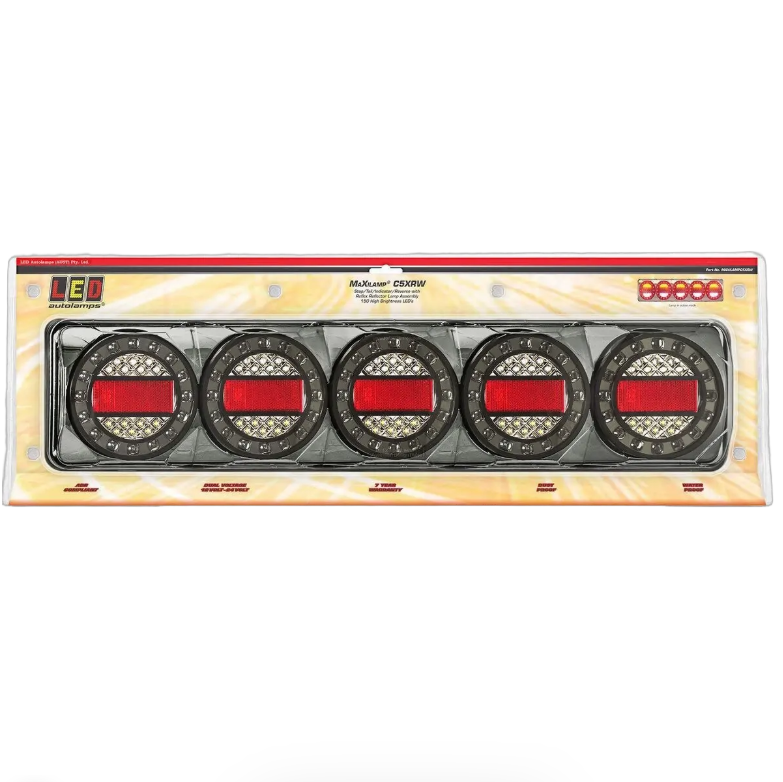

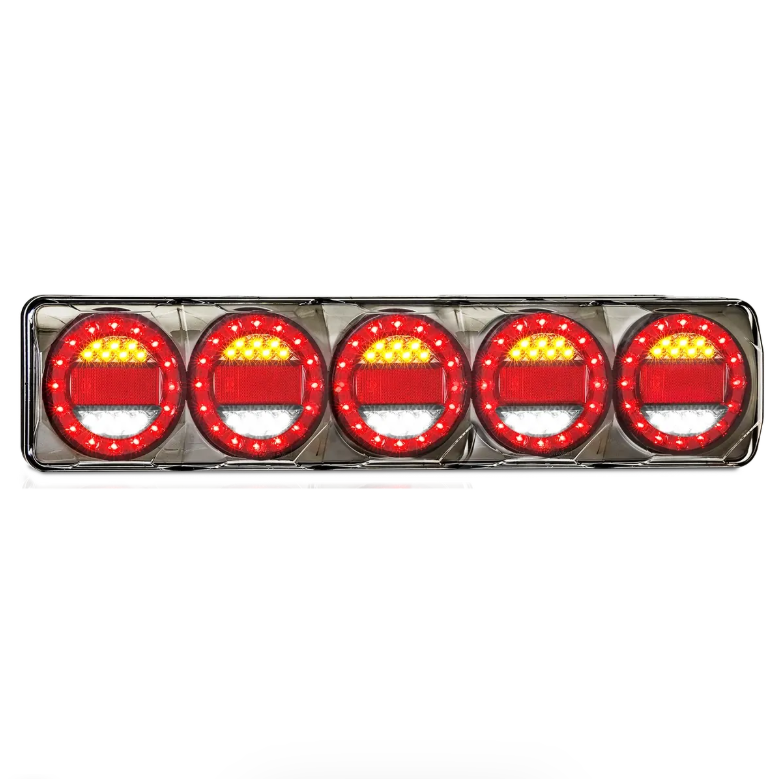

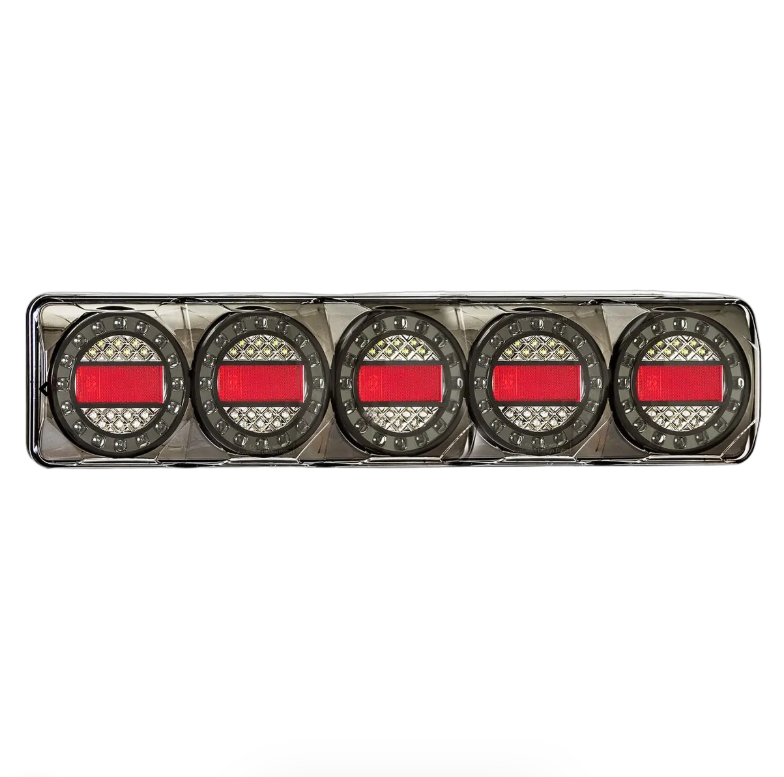

Maxilamp rear combination lamp handles stop, tail, indicator, reverse and reflector functions across one large rear lighting unit. The 5 cell black chrome body suits heavy trailer panels and truck bodies where a wide combination lamp gives a clear rear lighting layout without separate reverse lamp hardware.

Features

• Stop, tail, indicator, reverse and reflector functions in one rear lamp.
• Black chrome Maxilamp 5 design suits larger rear panels.
• 12-24V operation supports mixed trailer and commercial vehicle systems.
• IP67 rating and 40cm cable support exposed rear lighting positions.

Specifications and Materials

Part number: MAXILAMPC5XRW.

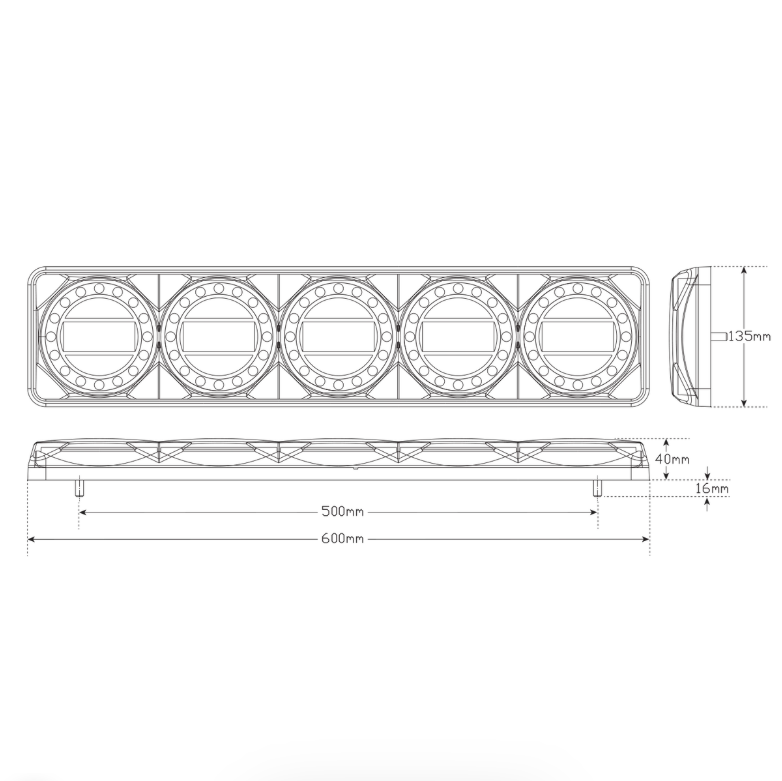

The Maxilamp rear combination lamp measures 600mm x 135mm x 40mm and uses 150 LEDs. It carries ADR approval for stop/tail, indicator and reverse functions, with ECE reflector approval and CTA approval for stop/tail/indicator/reverse/reflector operation.

LED Autolamps Maxilamp 5 technical page

Compatibility and Fitment

Match this Maxilamp rear combination lamp to a 12-24V rear lighting circuit, 600mm x 135mm x 40mm lamp space and stop/tail/indicator/reverse layout before ordering. Mount the lamp horizontally onto a flat surface using the rear bolts, then run the wiring through the fixing surface behind the lamp.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Check stop, tail, indicator, reverse and earth wiring before the vehicle returns to service. Also confirm lamp orientation and reflector visibility, because large rear lamps need a clear mounting position and an unobstructed light face.

Trailer Applications

Fleets, body builders and trailer repairers fit this large rear lamp to semi-trailers, rigid bodies, service bodies, trays and heavy commercial trailer panels. It suits repairs or upgrades where the rear end needs a black chrome 5 cell lamp with reverse function included.
