Description

Overview

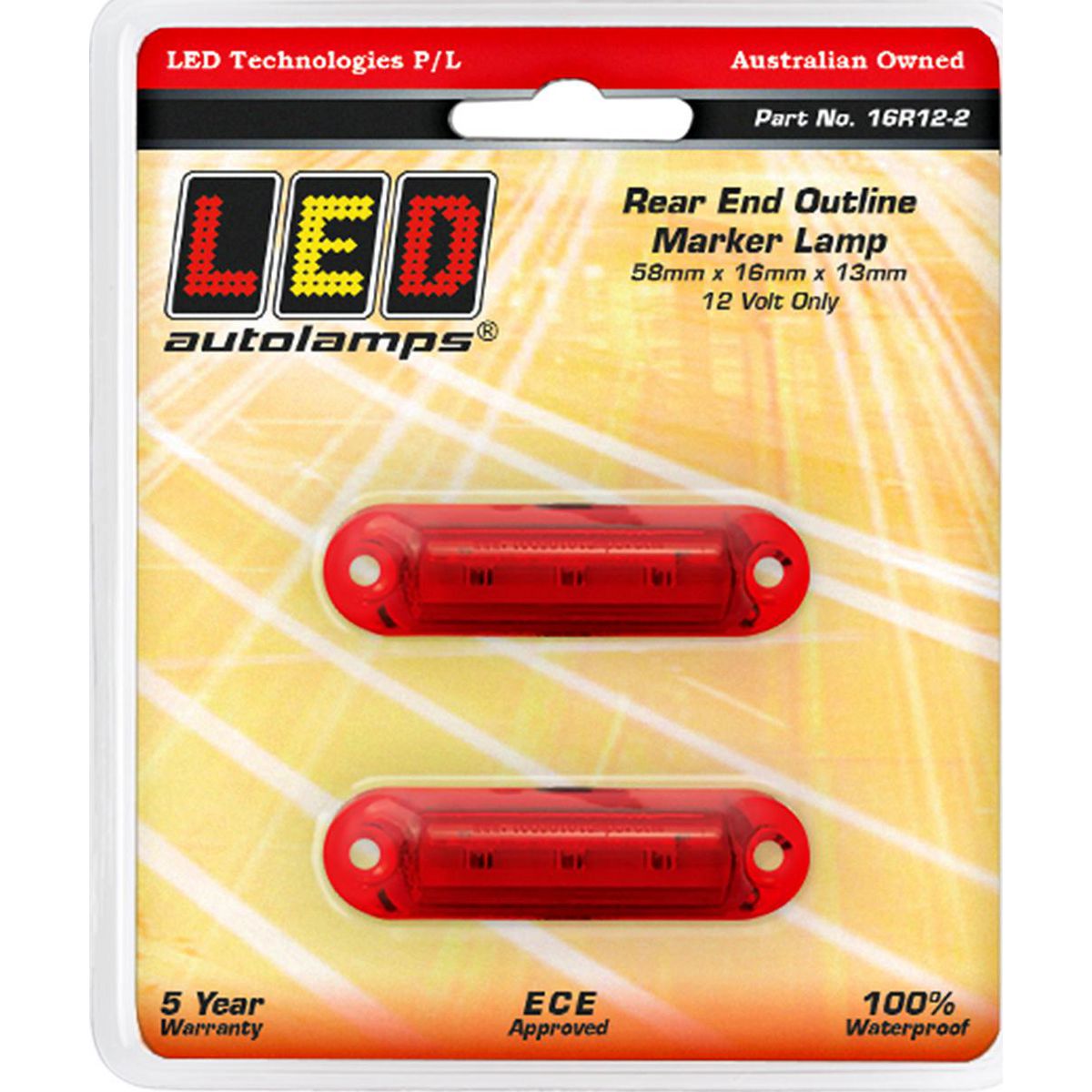

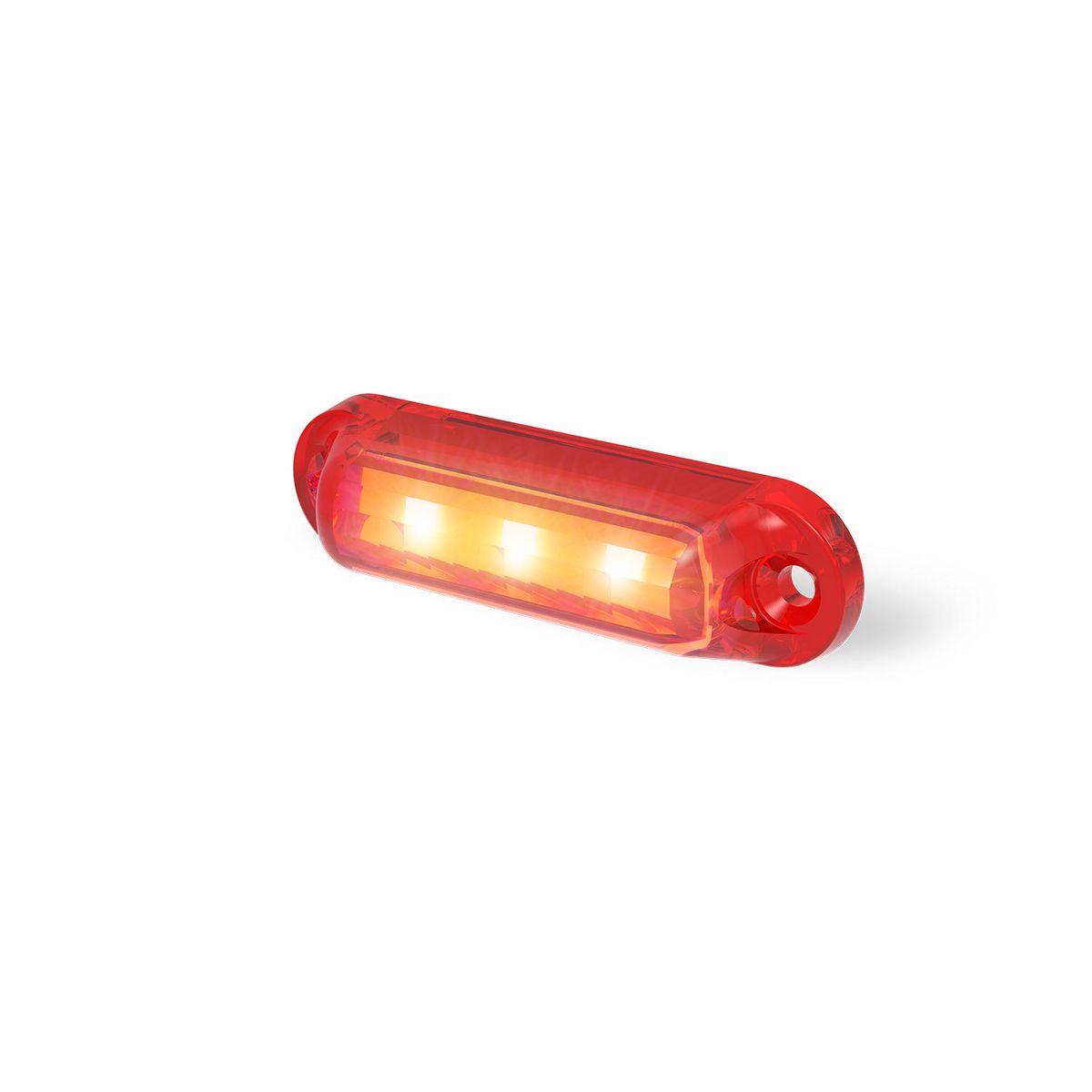

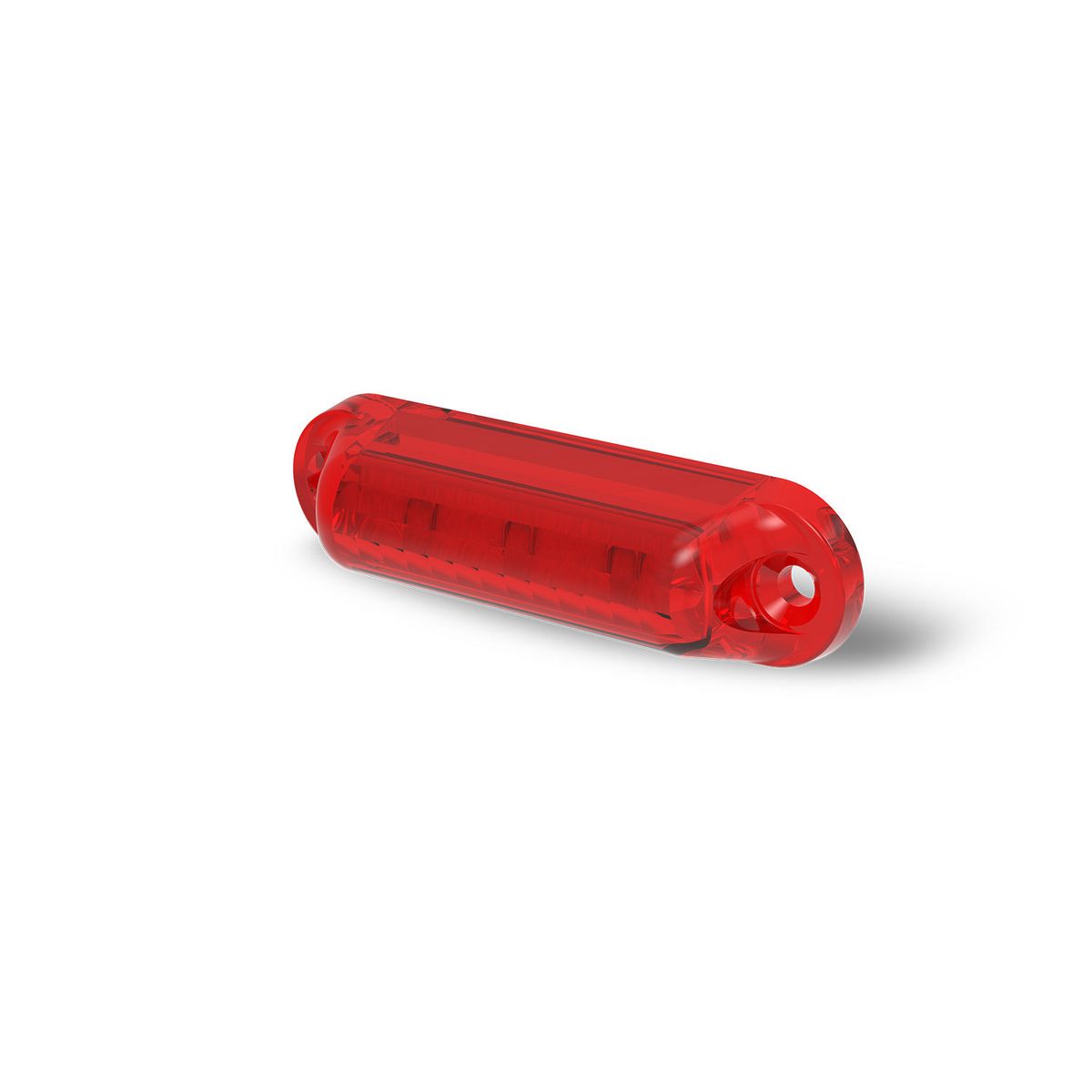

12V LED rear position marker lamp marks the rear outline of a trailer, truck body, ute tray or caravan with a compact red marker light.

The slim 16 Series body suits tight mounting positions where a larger rear marker lamp takes up too much panel space. Also, the screw-mount design lets the lamp mount horizontally or vertically on a flat surface.

Features

• Red rear end outline marker function for trailer and vehicle rear positioning
• Compact 58mm x 16mm body for tight rear lighting locations
• 3 LED design with 20cm cable for straightforward wiring
• IP67-rated PMMA acrylic lens construction with ECE rear end approval

Specifications and Materials

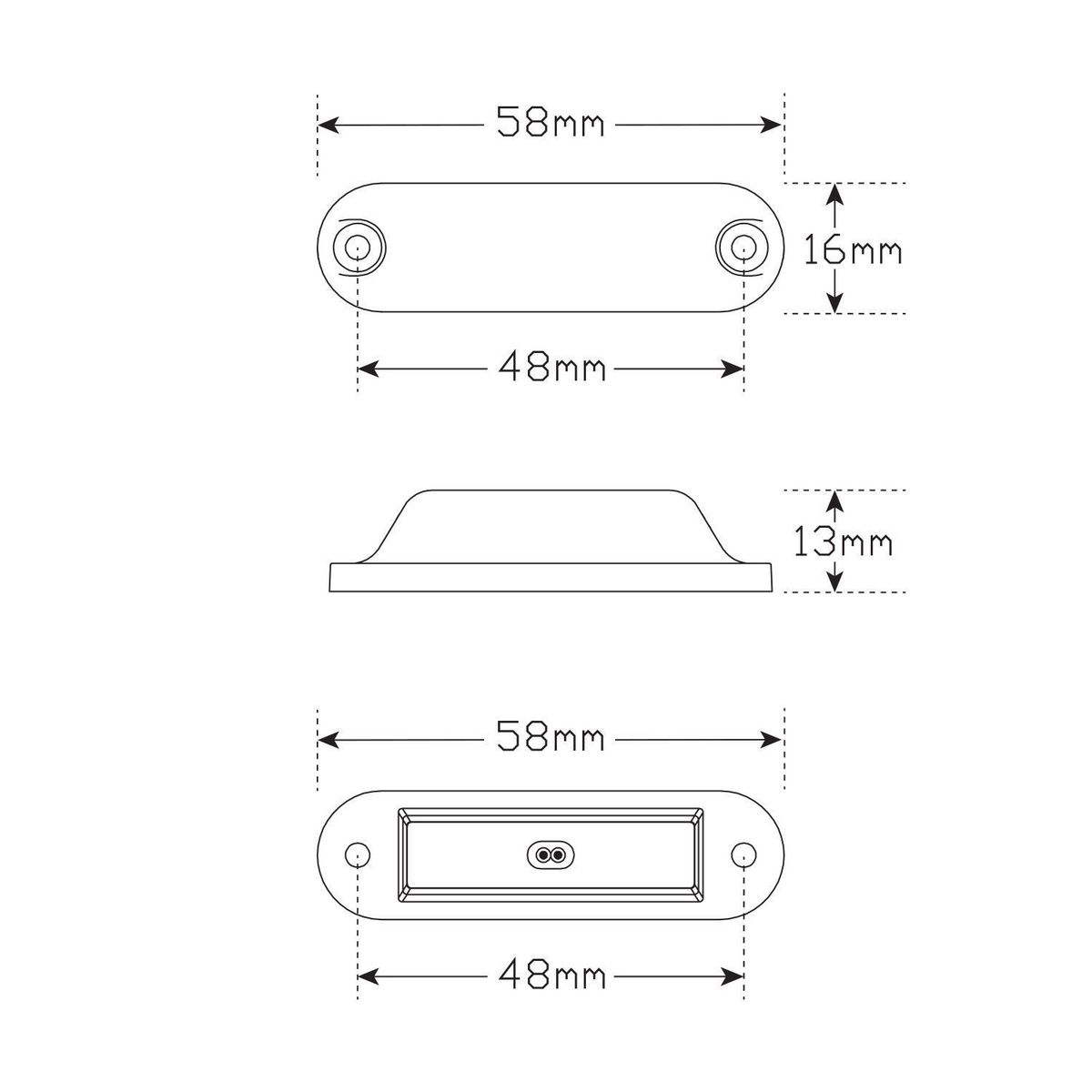

This 12V LED rear position marker lamp measures 58mm x 16mm x 12.6mm and runs a 20cm cable. The lamp uses a PMMA acrylic lens and carries a 3 LED rear end marker function.

Part number: 16R12-2.

The rear end approval number is E9*7R02/27*22158*00, with CTA rear end approval CTA-060173.

See the official LED Autolamps 16 Series datasheet for manufacturer technical details

Compatibility and Fitment

Check the existing marker lamp size, voltage, lens colour and mounting surface before ordering. This red rear marker suits 12V systems and mounts horizontally or vertically with screws on a flat surface.

If the trailer uses separate front, side and rear outline markers, match the correct lens colour and function to the lamp position. For rear fitment, use red rear end marker lamps only.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the mounting surface, screw points and wiring before fitting the replacement lamp. If the old marker failed from water entry or cable damage, repair the cause before installing the new lamp.

After fitting, test the marker circuit and confirm the rear position light works with the trailer lighting system. Then check that the red lens faces rearward and remains clearly visible.

Trailer Applications

Trailers use this 12V LED rear position marker lamp where the rear outline needs a compact red marker light. Workshops fit this style of lamp on trailers, caravans, trays, service bodies and light commercial vehicle bodies.

The small body helps when space around hinges, doors, guards or rear frames limits the mounting area.

Why Choose ICS Trailers

ICS Trailers supplies compact marker lamps for trailer repair, body fit-out and lighting replacement work. Check the existing marker function, colour and voltage before ordering.

Find more trailer lighting in our LED Lights
