Description

Overview

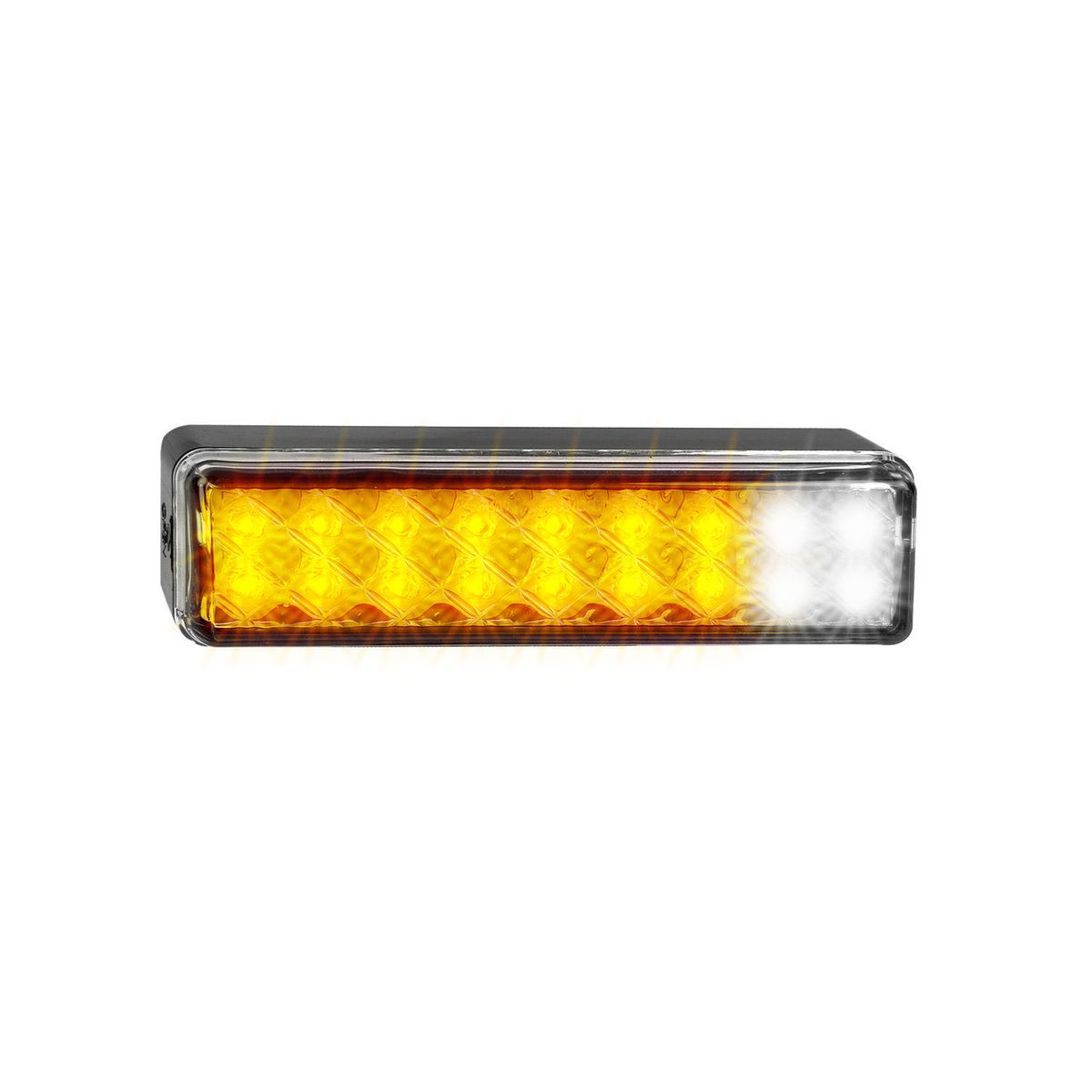

12V LED front indicator position lamp combines amber front indicator lighting and white front marker lighting in one compact front lamp assembly.

The 135 Series body suits bullbar and front vehicle lighting work where a clear lens needs to show amber and white functions when active. Also, the slim rectangular body helps when the available mounting space is narrow.

Features

• Combined front indicator and front marker function

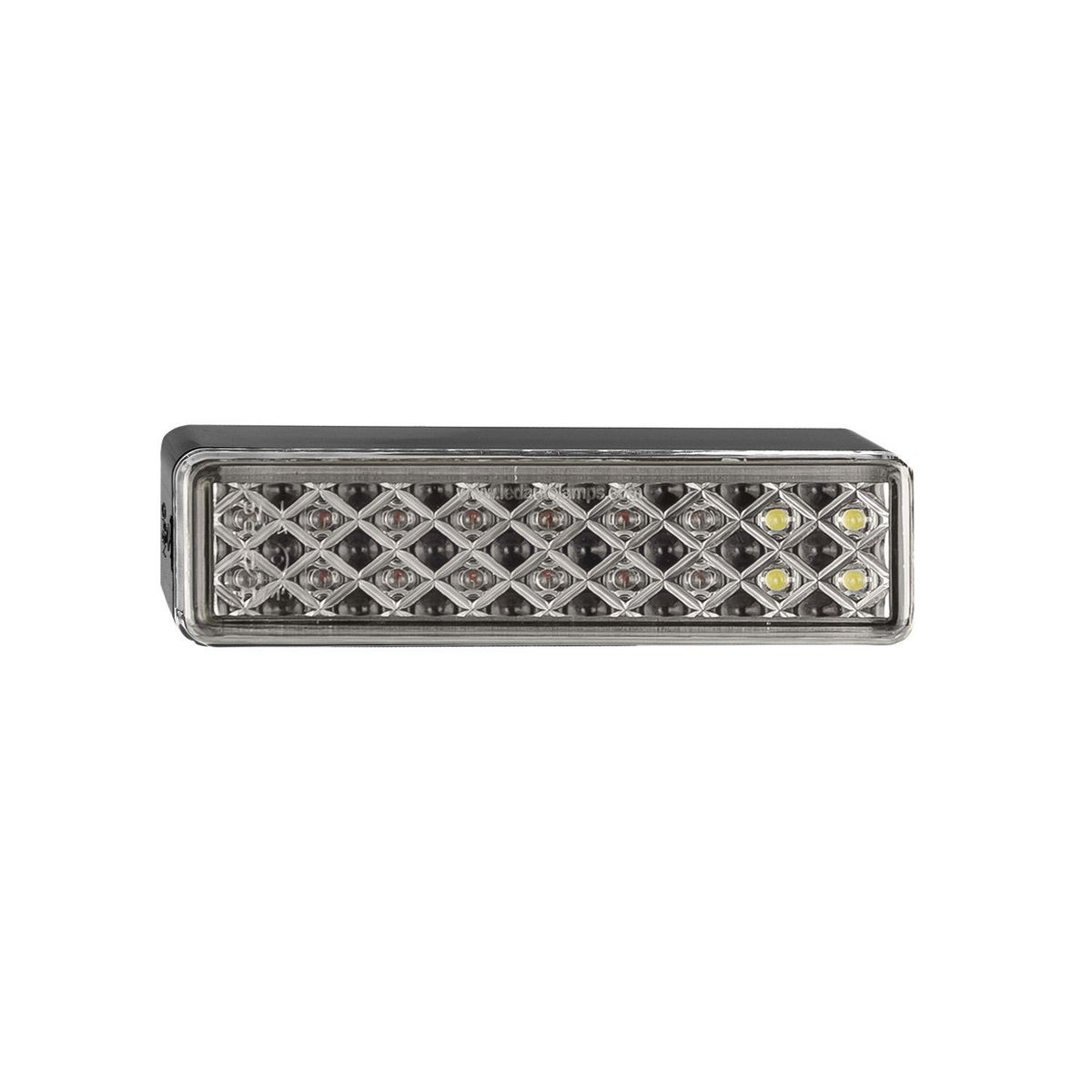

• 18 LED layout with clear lens when inactive
• 12V operation with IP67 protection
• Surface mount or recess mount when matched with the correct grommet

Specifications and Materials

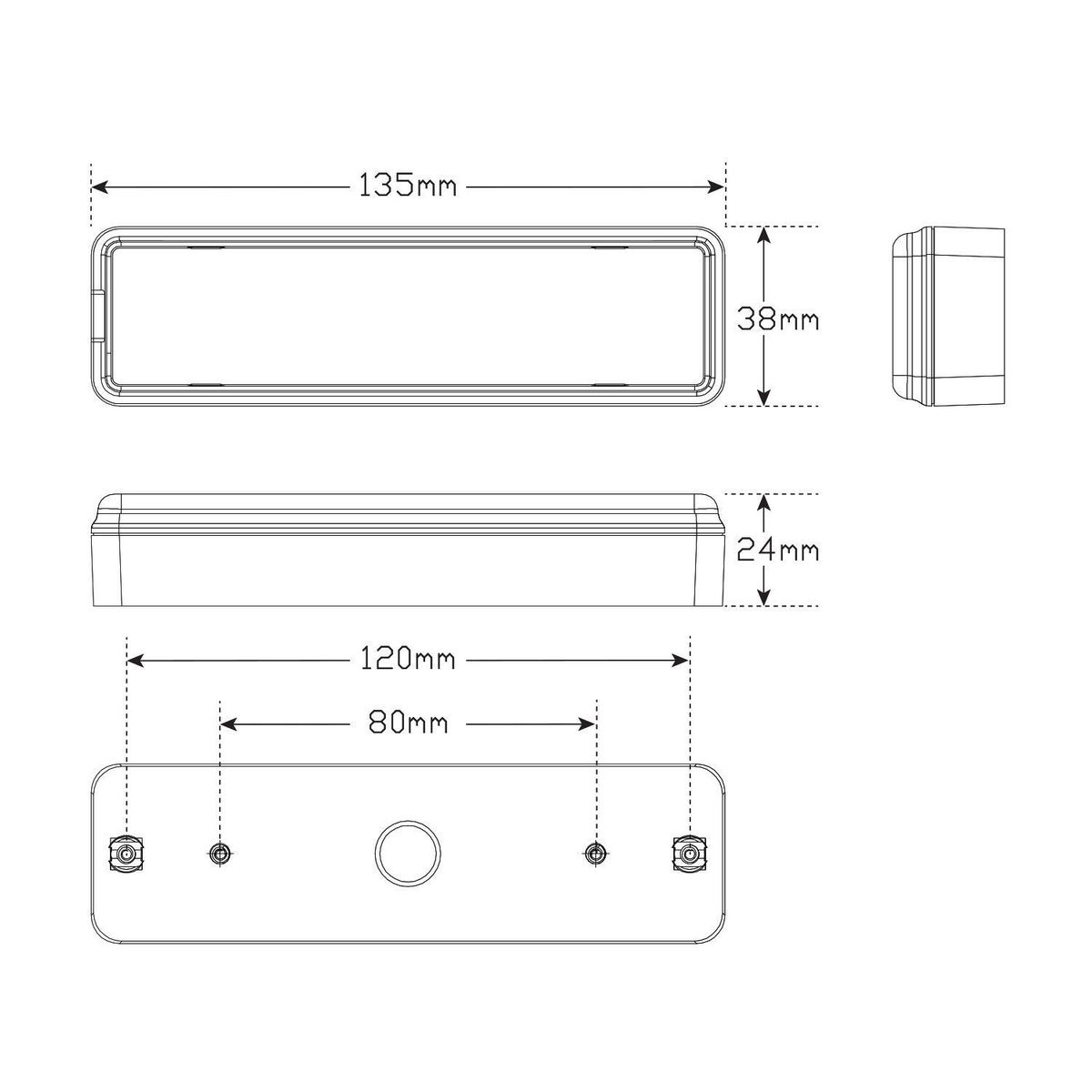

This 12V LED front indicator position lamp measures 135mm x 38mm x 24mm and uses a 20cm cable. The lamp has a hardened acrylic lens, ABS base and 18 LEDs.

Part number: 135AW2.

Current draw at 13.8V is 0.25A for the indicator function and 0.04A for the front marker function.

See the official LED Autolamps 135AW Series datasheet for manufacturer technical details

Compatibility and Fitment

Check the existing lamp size, voltage, mounting style and wiring path before ordering. This lamp suits 12V front indicator and front marker positions, especially on suitable bullbar installations.

For surface mounting, run the wiring through the back and clip the lens into place. For recess mounting, use the matching grommet and check the 133mm x 36mm cut-out before cutting the panel.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the front indicator and front marker functions after fitting, because both functions need to operate correctly before the vehicle returns to road use.

Also check the mounting direction, cable protection and lens seating. If the lamp mounts into a bullbar or body panel, protect the wiring from sharp edges and vibration.

Trailer Applications

Workshops use this 12V LED front indicator position lamp on tow vehicles, 4×4 bullbars, service bodies and front lighting repairs where a combined indicator and position lamp suits the installation.

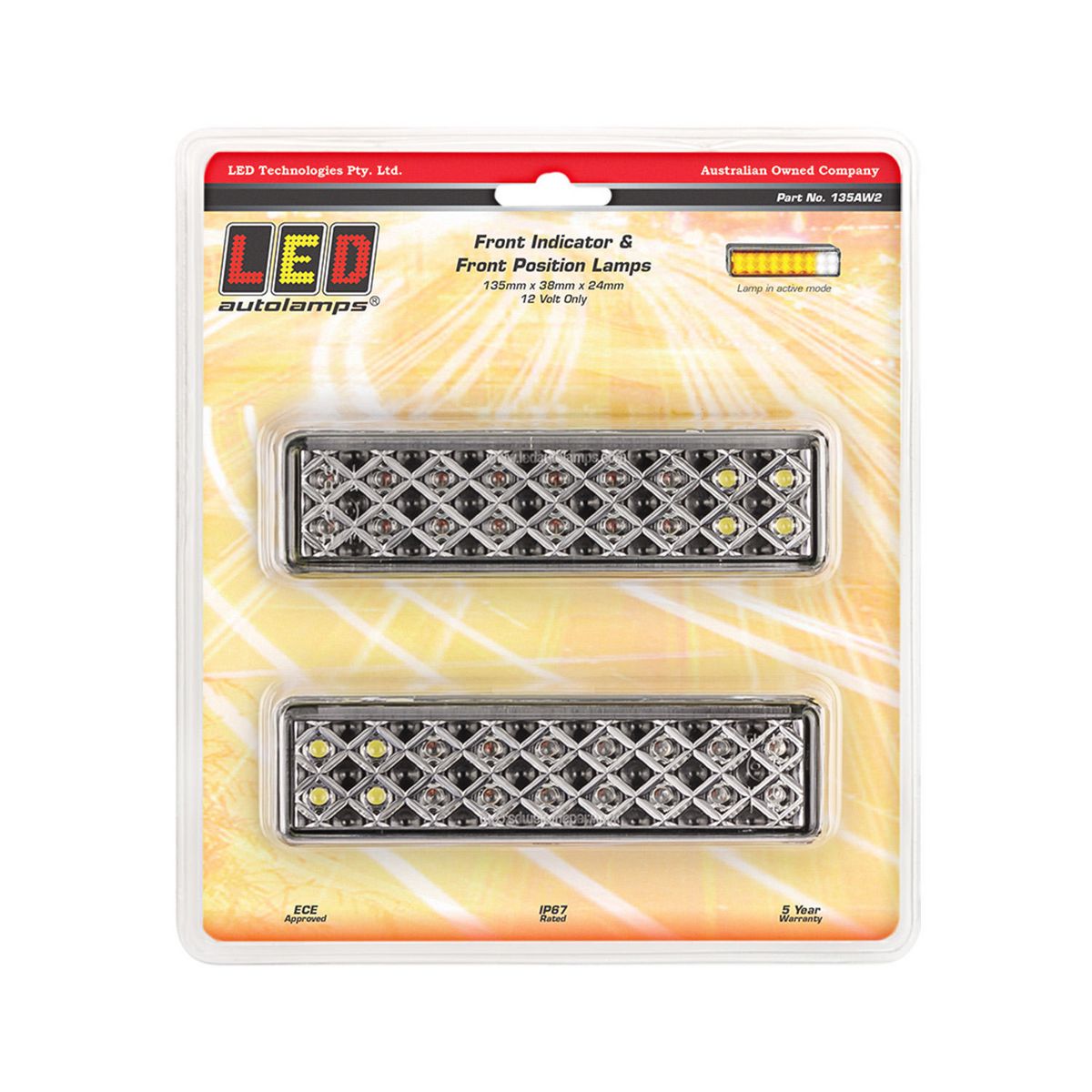

The twin blister pack helps when both front lamps need replacement together, so the lighting appearance and function match across the front of the vehicle.
