Description

Overview

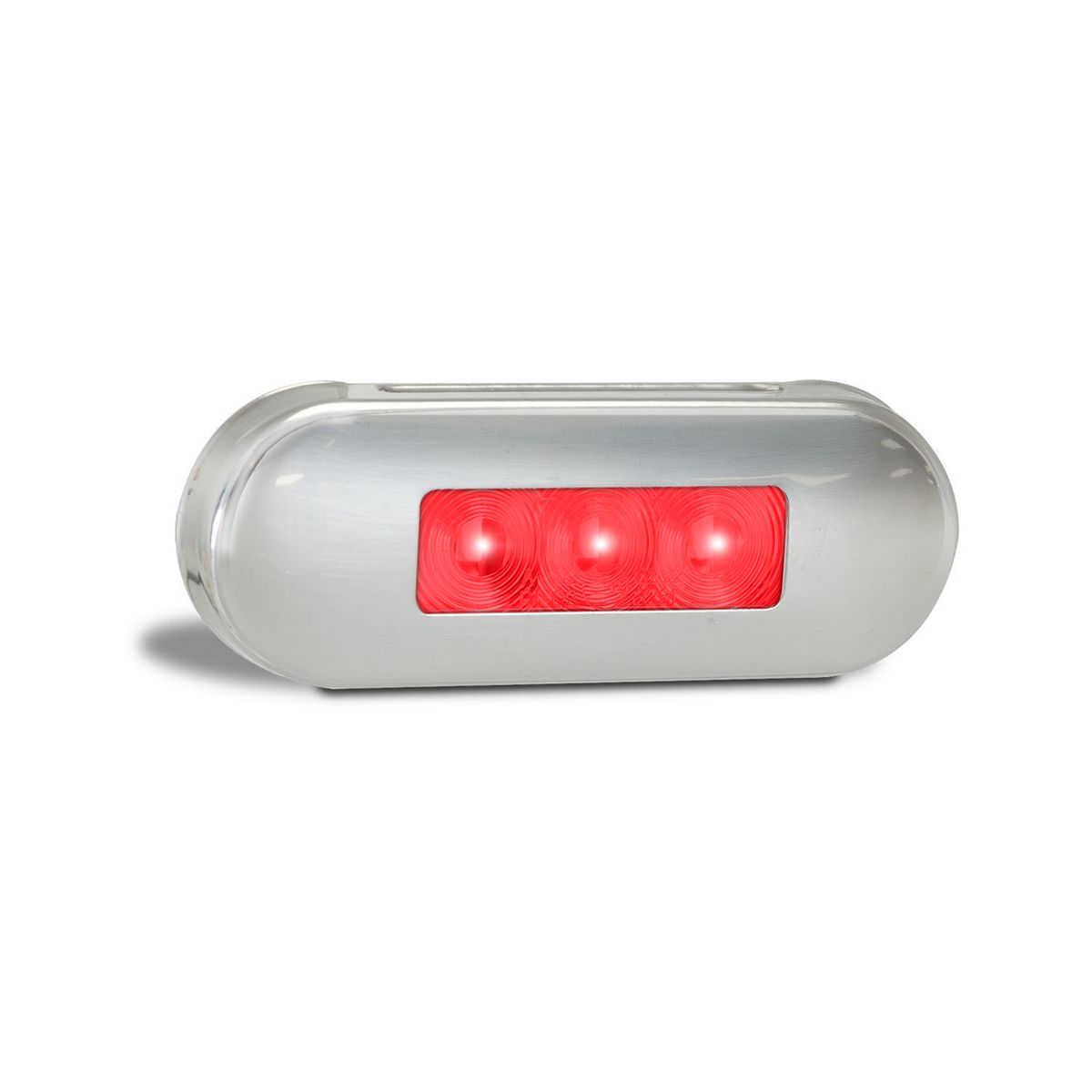

12/24V LED rear end outline marker lamp marks the rear edge of a trailer, truck body, ute tray or service body with a low-profile red marker light.

The 86 Series body suits rear outline lighting where a compact lamp with a stainless steel bezel matches the existing panel layout. Also, the horizontal surface-mount design keeps the install simple on a flat rear mounting face.

Features

• Red rear end outline marker function for trailer and vehicle rear lighting
• 12-24V multivolt operation for mixed vehicle and trailer systems
• 3 LED layout with 15cm bare-wire cable
• IP67-rated construction with polycarbonate lens and stainless steel base

Specifications and Materials

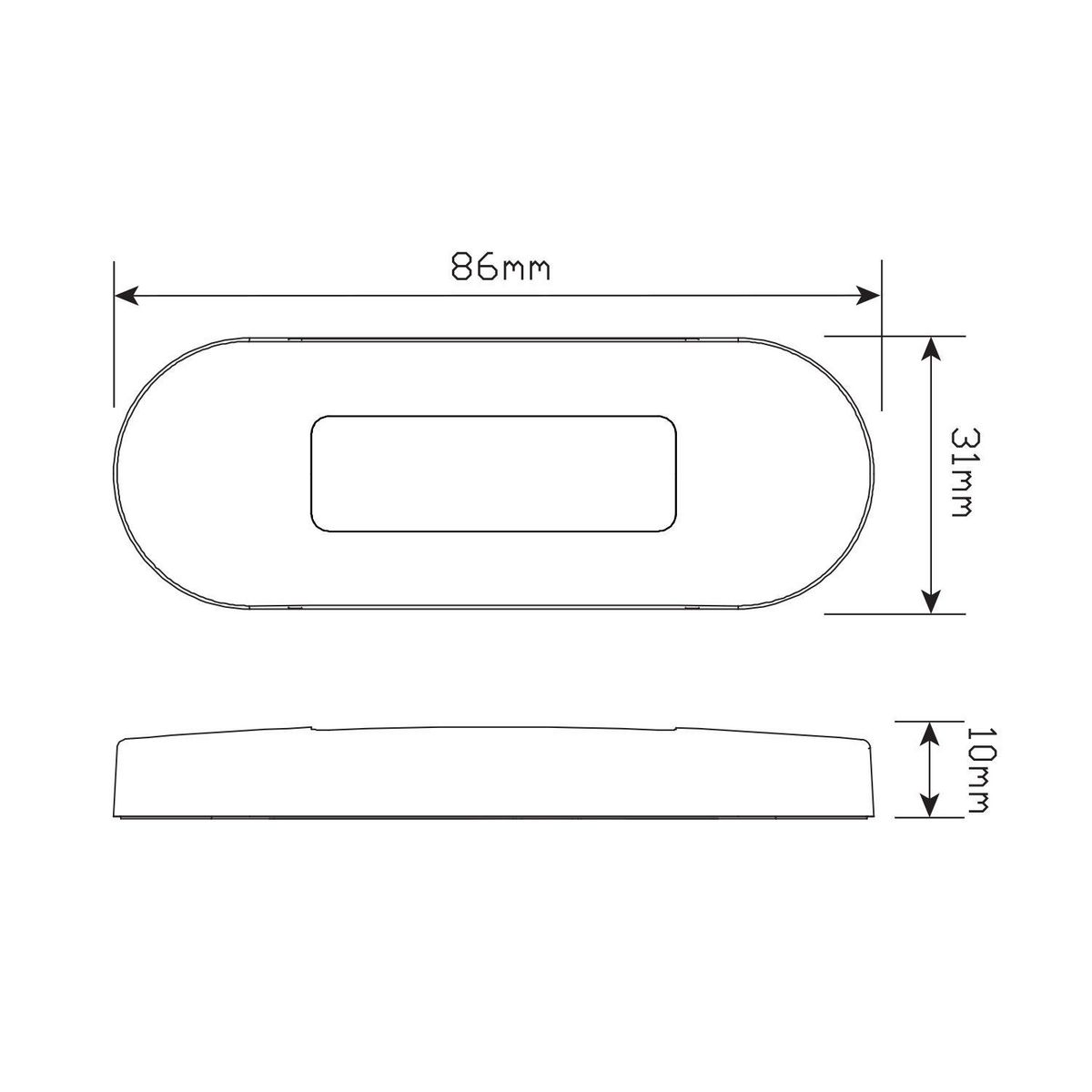

This 12/24V LED rear end outline marker lamp measures 86mm x 31mm x 10mm and uses a 15cm bare-wire cable. The lamp has a polycarbonate lens, stainless steel base and 3 LED rear marker function.

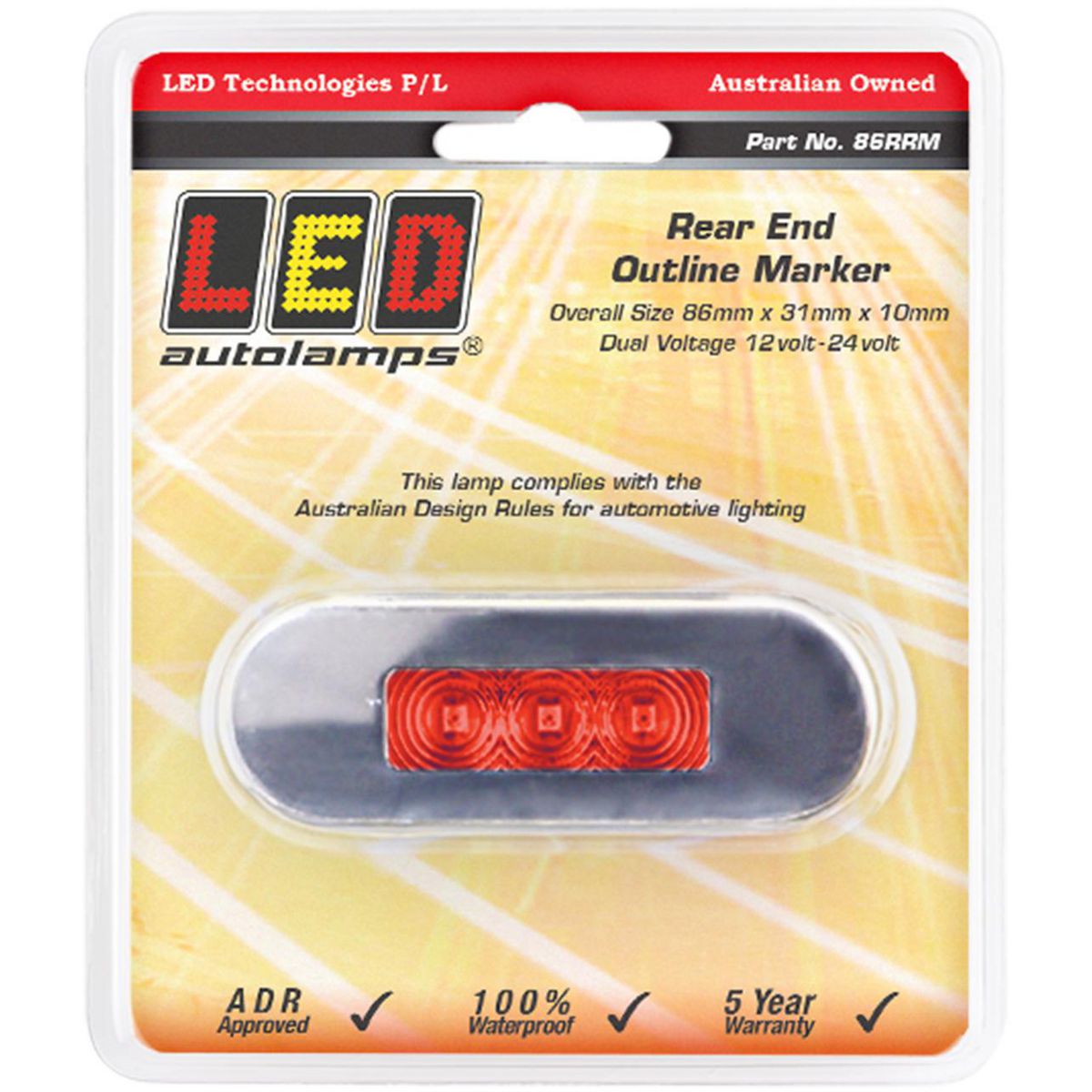

Part number: 86RRM.

Current draw is 0.05A at 13.8V and 0.06A at 28V, with ADR rear end category 49/00 approval and CTA-048251 approval.

See the official LED Autolamps 86 Series datasheet for manufacturer technical details

Compatibility and Fitment

Check the existing lamp size, rear marker function, voltage range and mounting direction before ordering. This lamp mounts horizontally to a flat surface with screws, then the stainless steel bezel clips back over the body.

If the trailer has separate rear, side and front outline markers, match the correct lens colour and function to the lamp position. For rear outline marking, use a red rear end marker lamp.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the mounting face, cable route and screw points before fitting the replacement lamp. If the previous lamp failed from vibration, impact or water entry, fix the cause before installing the new marker.

After fitting, test the rear marker circuit and confirm the red light faces rearward. Then check the bezel sits securely so the lamp stays protected during road use.

Trailer Applications

Workshops fit this 12/24V LED rear end outline marker lamp to trailers, truck bodies, trays, caravans and service bodies that need a compact rear red marker.

The low-profile 86mm body helps on rear frames, guards and body panels where a larger marker lamp takes up too much space.

Why Choose ICS Trailers

ICS Trailers supplies rear marker lamps for trailer repair, body fit-out and lighting replacement work. Match the rear marker function, voltage and mounting face before ordering.
