Description

Overview

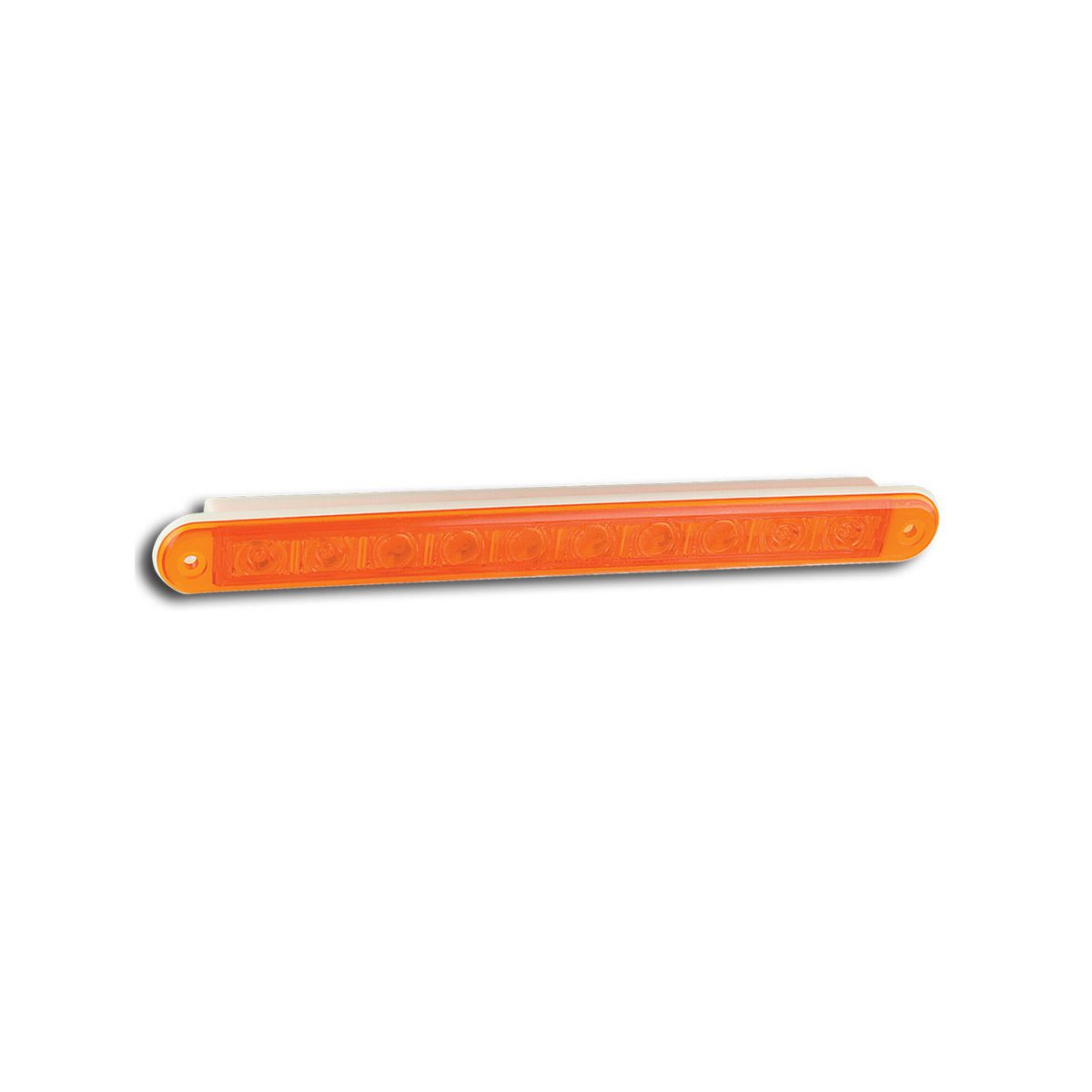

24V LED indicator strip lamp gives trailer, truck body and service vehicle builds a slim amber indicator lamp for recessed mounting.

The 235 Series strip body suits low-profile lighting positions where a standard round or oval indicator takes up too much panel space. Also, the recessed design keeps the lamp face neat once the cut-out and grommet are matched correctly.

Features

• Amber rear indicator function for 24V vehicle and trailer systems

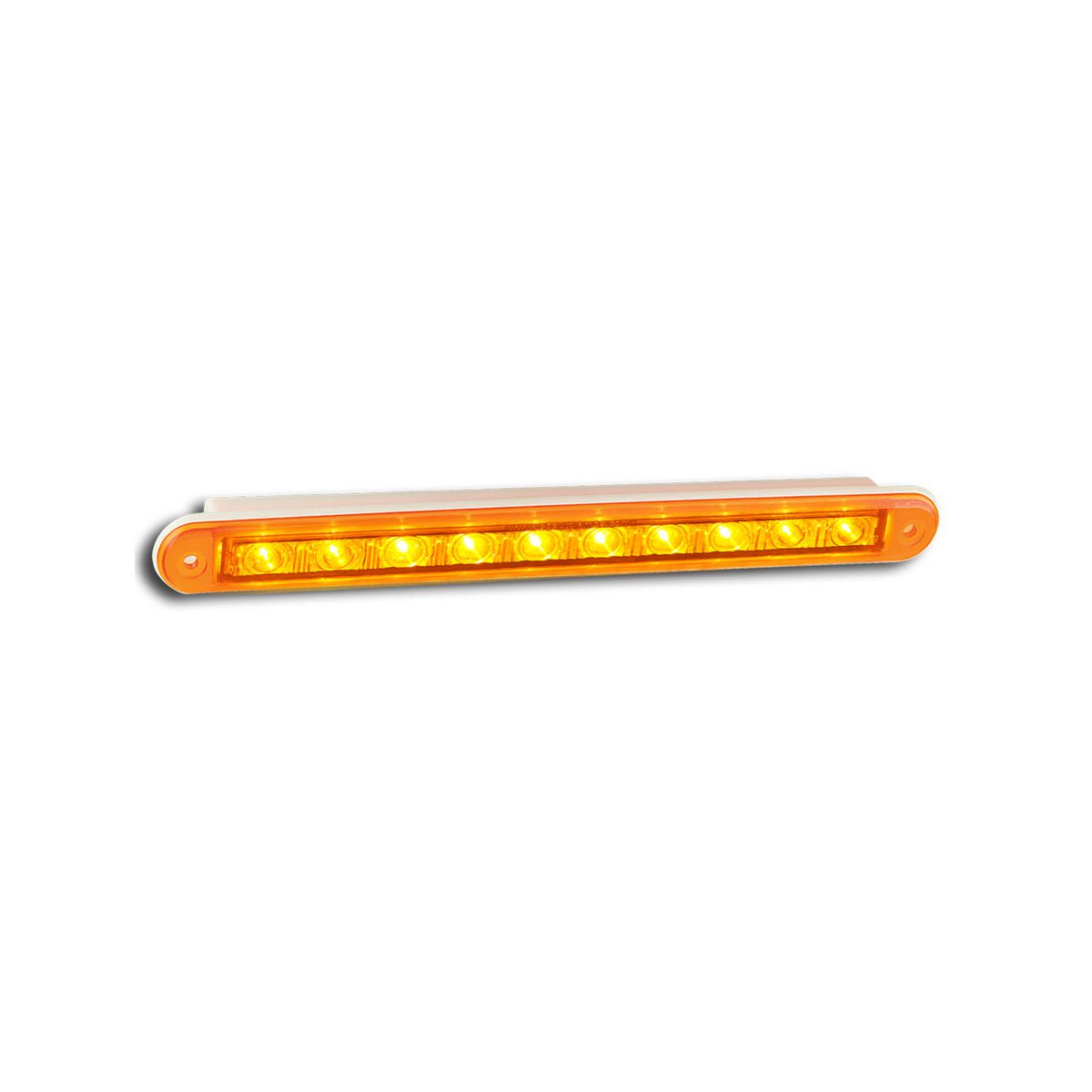

• 10 LED strip layout with 40cm cable
• Low-profile recessed mount body for slim panel installations
• ADR/ECE Australian road approved with IP67 protection

Specifications and Materials

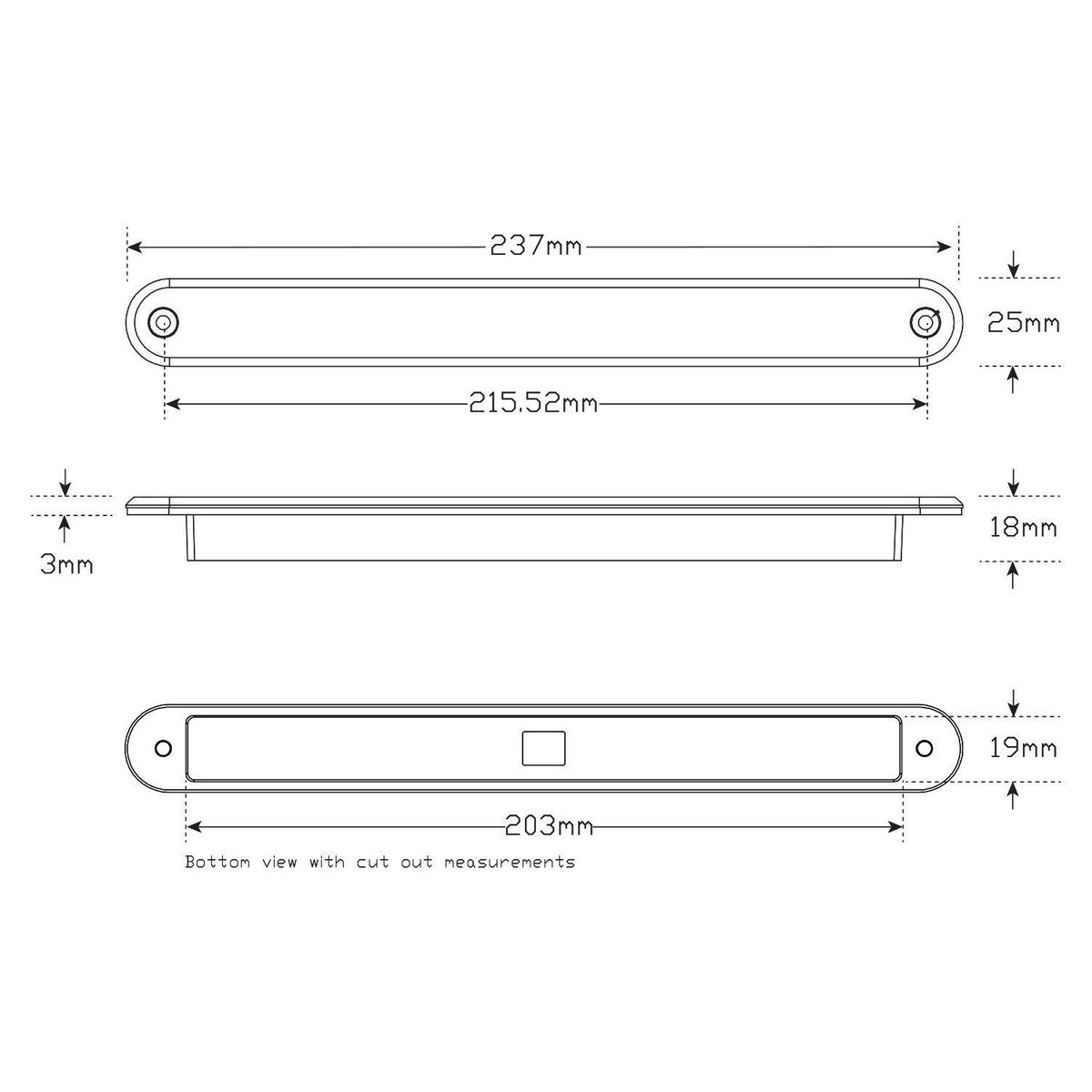

This 24V LED indicator strip lamp measures 237mm x 25mm x 3mm across the lamp face and uses a 40cm cable. The recessed cut-out measures 203mm x 19mm.

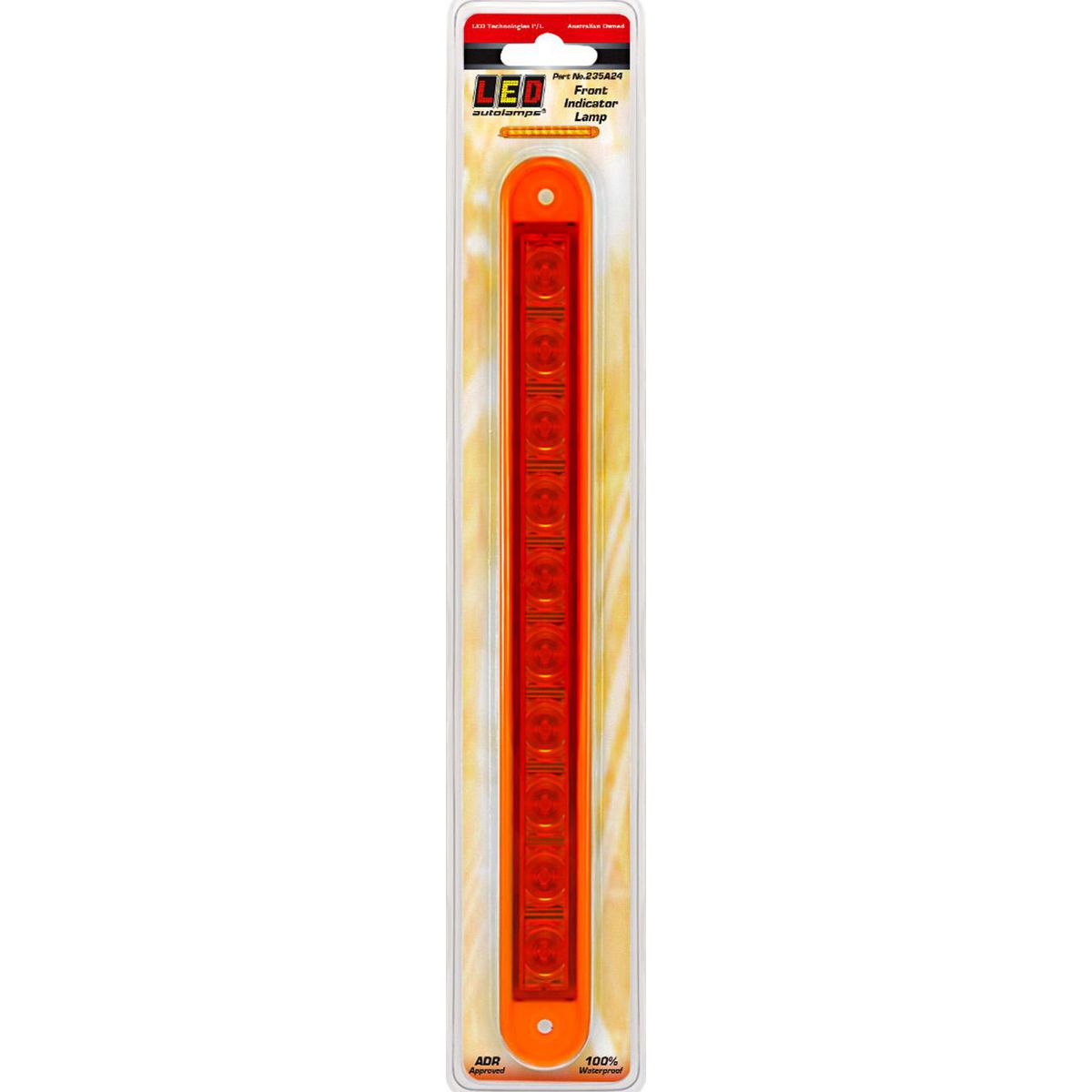

Part number: 235A24.

Indicator current draw is 0.12A at 28V, with ADR Indicator 6/00 Cat2a approval under CRN 39092 and CTA Indicator 6/00 2a approval under CTA-060128.

See the official LED Autolamps 235 Series datasheet for manufacturer technical details

Compatibility and Fitment

Check the existing lamp function, voltage, panel cut-out and mounting direction before ordering. This amber indicator suits 24V systems and recessed mounting into a 203mm x 19mm cut-out.

For amber and red versions, mount the lamp horizontally or vertically on a flat surface. However, check the trailer or vehicle lighting layout before changing the mounting position.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the cut-out, screw points and wiring route before fitting the replacement lamp. If the old lamp failed from water entry, impact or vibration, repair the mounting area before installing the new lamp.

After fitting, test the indicator circuit at the vehicle and trailer plug. Then confirm the amber signal flashes clearly and the lamp sits securely in the recessed mount.

Trailer Applications

Workshops fit this 24V LED indicator strip lamp to trailers, truck bodies, trays and service vehicles that need a slim amber indicator in a recessed panel position.

The strip format helps on rear bars, side panels and bodywork where a narrow lamp gives a cleaner fit than a larger indicator assembly.
