Description

Overview

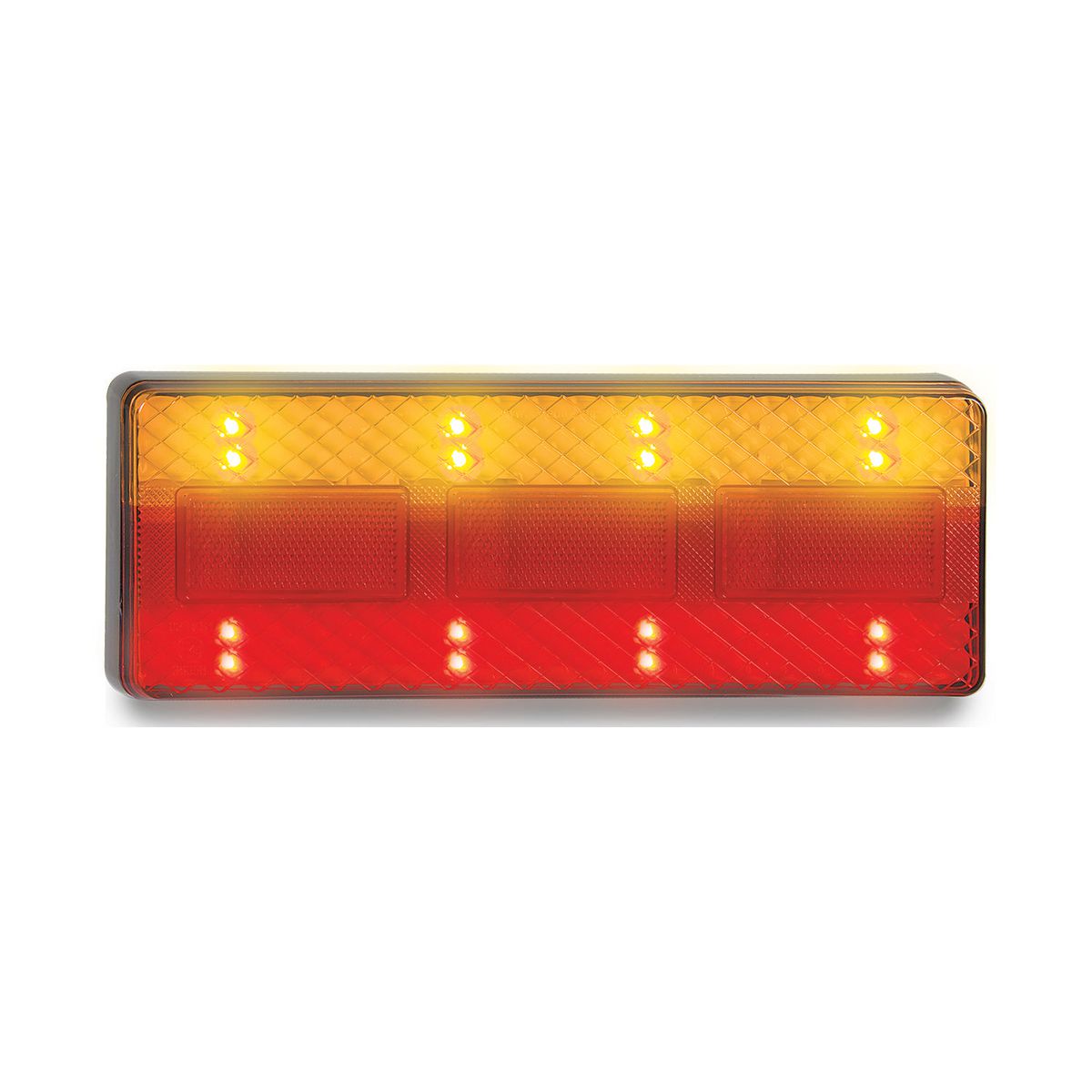

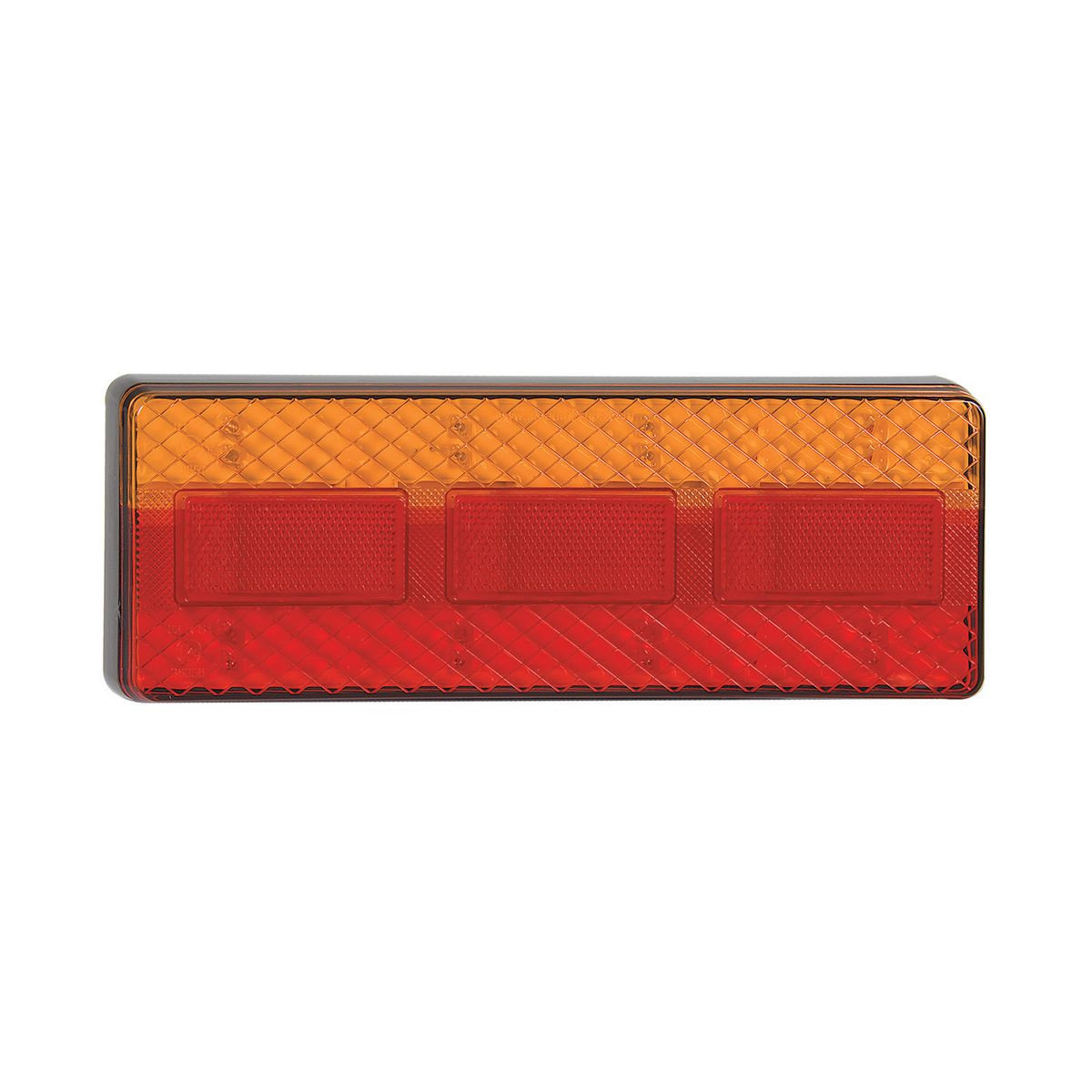

LED stop tail indicator lamp combines rear stop, tail, indicator and reflex reflector functions in one low-profile trailer lamp. It suits rear combination lighting on trailers, tray bodies and light truck applications where 12-24V operation and a compact body help simplify replacement work.

Features

• Stop, tail, indicator and reflector functions in one rear lamp
• 12-24V multivolt operation for mixed vehicle and trailer systems
• Diamond lens pattern with inbuilt reflex reflectors
• IP67 rated body with ADR approved lighting functions

Specifications and Materials

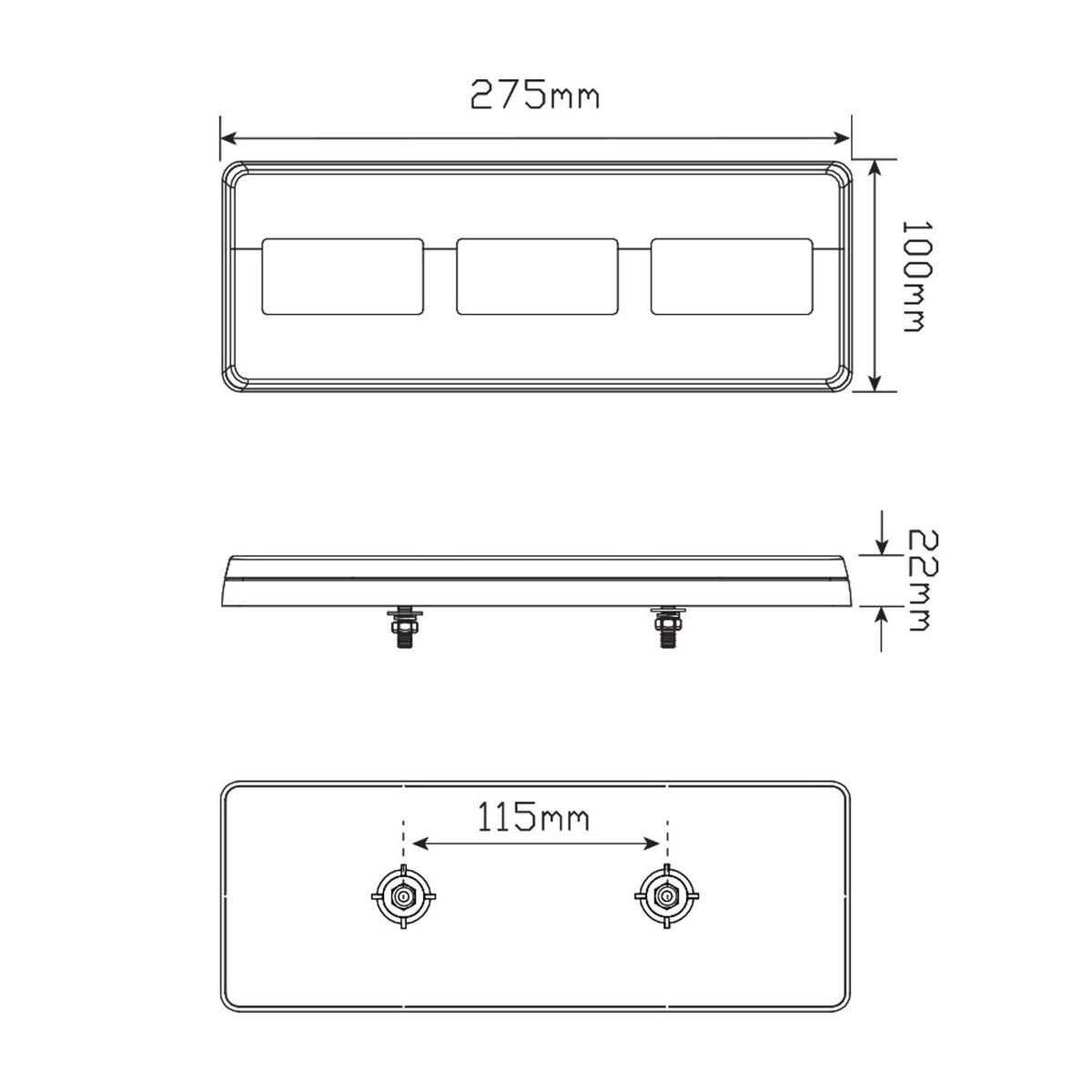

This LED stop tail indicator lamp measures 275mm × 100mm × 22mm and uses 16 LEDs behind a hardened acrylic lens on an ABS base. It includes a 40cm cable with plug, while the current draw covers stop, tail and indicator functions across 12V and 24V systems. Part number: 275ARM.
See the manufacturer 275 G2 Series data

Compatibility and Fitment

Mount the lamp horizontally on a flat rear surface with the indicator section at the top. Then run the plug through a 10mm hole in the fixing surface and confirm the wire colours before connecting tail, stop, left indicator, right indicator and earth circuits.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Check the lamp position, indicator orientation and wiring before returning the trailer to service. Also replace cracked lenses, water-damaged wiring or failed LEDs promptly, because rear lighting faults can affect braking, signalling and night visibility.

Trailer Applications

Workshops fit this LED stop tail indicator lamp to small trays, trailers and truck bodies that need a compact rear combination lamp with inbuilt reflectors. The low-profile body helps when rear panel depth is limited, while the multivolt design suits fleets running both 12V and 24V equipment.
