Description

Overview

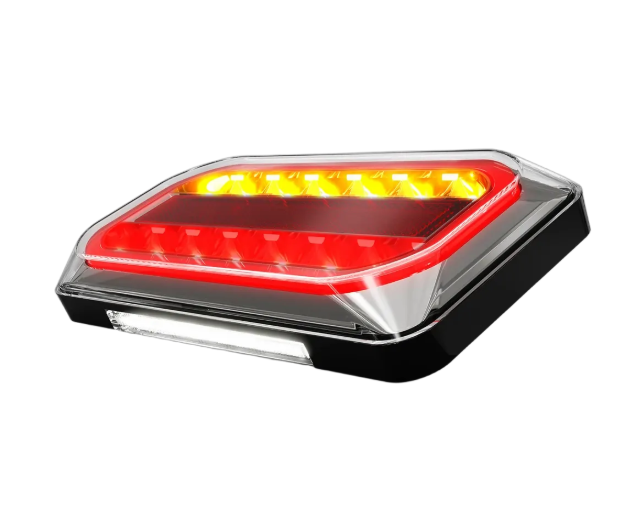

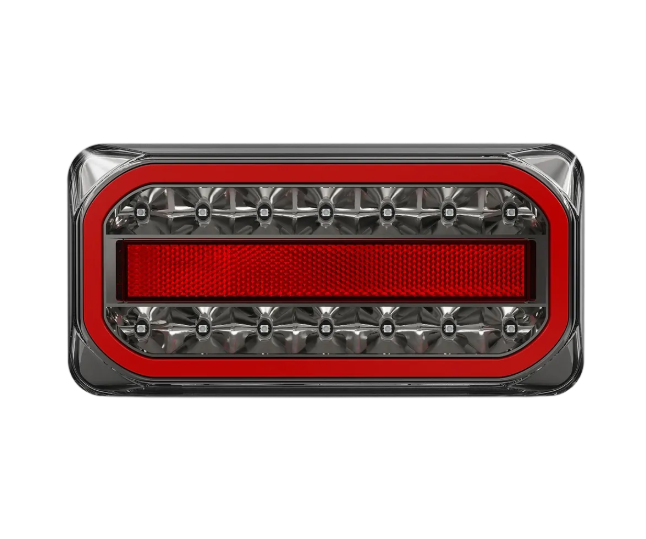

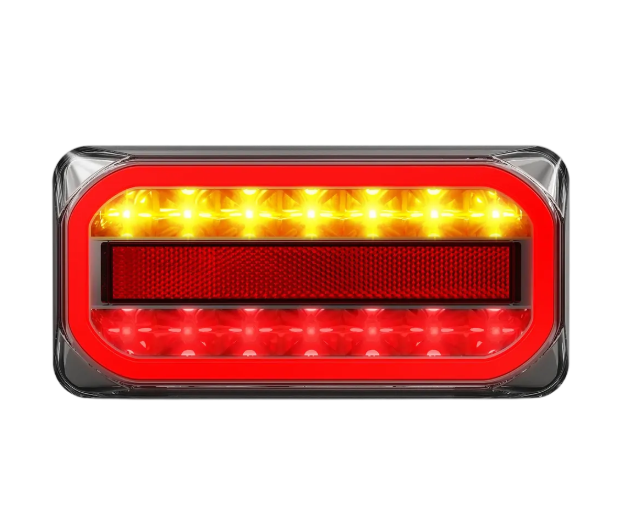

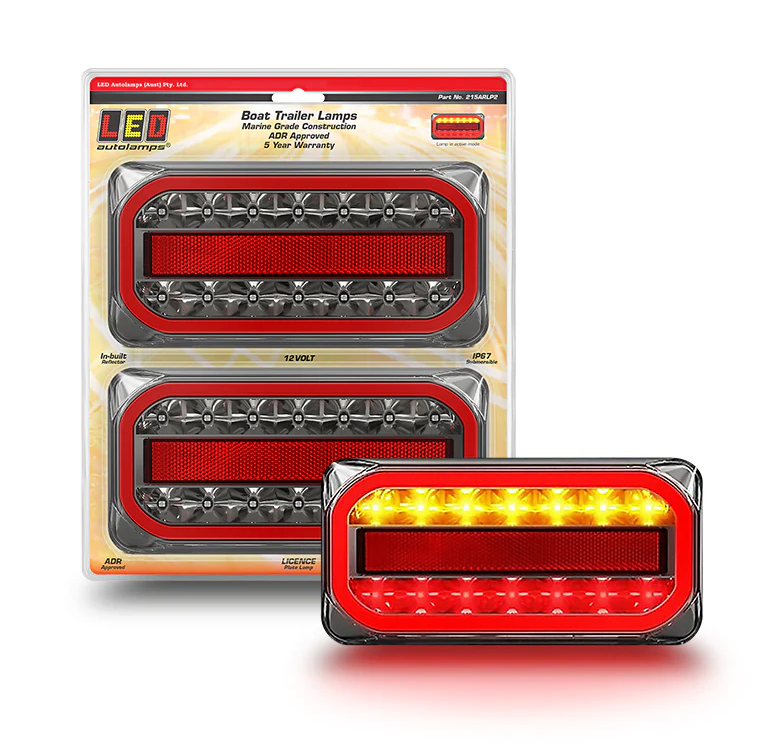

Boat trailer lamp kit combines stop, tail, indicator, licence plate and reflector functions in a sealed LED pair for 12V trailer lighting. The low-profile housings keep the rear of the trailer tidy, while the fully submersible build suits launch ramps, washdowns and regular wet service. It also gives you a matched left and right lamp set, so trailer lighting repairs stay consistent across the rear bar.

Features

• Matched left and right LED lamp kit with integrated licence plate light and reflector functions
• Fully submersible IP67-rated construction for boat trailer service
• Diffused tail lamp function for a clean, even rear light signature
• 40cm cable and stainless steel fittings support straightforward horizontal mounting

Specifications and Materials

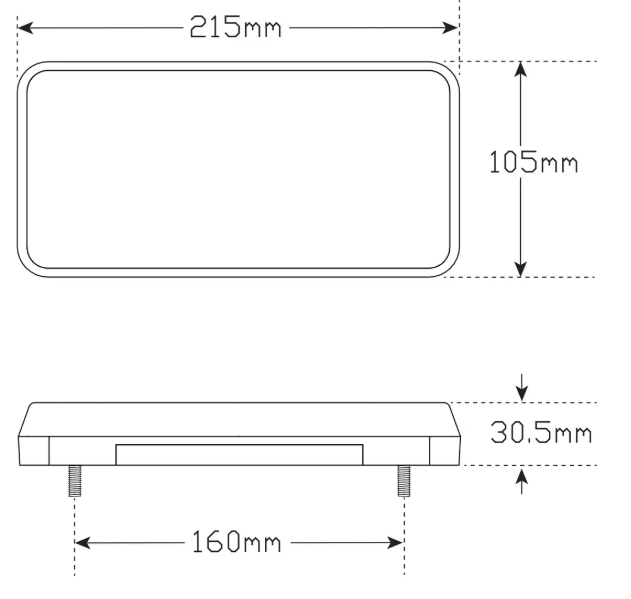

This lamp kit measures 215mm x 105mm x 30.5mm per lamp and runs on 12V systems only. Each lamp uses a PMMA lens, ABS housing and stainless steel fittings, and the pair carries 36 tail LEDs, 8 stop LEDs, 8 indicator LEDs and 6 licence LEDs per lamp assembly. Part number: 215ARLP2.
See the manufacturer technical guide

Compatibility and Fitment

Match this boat trailer lamp kit to a 12V trailer setup, a horizontal flat mounting face and a cable run that suits the 400mm leads before ordering. Check the rear layout, confirm the licence plate lamp side, and compare the lamp size against the mounting space. The fitting uses stainless bolts supplied in the assembly and runs the cable through a 12mm hole, so the trailer panel needs enough clearance behind the mount.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamps horizontally on a flat surface, tighten the stainless hardware securely and protect the wiring where it passes through the trailer body. Then confirm stop, tail, indicator and licence functions before the trailer returns to service. Replace cracked housings or damaged wiring promptly so the lamp kit keeps its sealing and approval performance.

Trailer Applications

Workshops fit this boat trailer lamp kit to marine trailers, small equipment trailers and other 12V trailer builds that need a compact rear combination lamp with an integrated licence plate light. It suits new light-board replacements, damaged rear lamp swaps and trailer rebuilds where submersible LED lighting is the better long-term choice.

Why Choose ICS Trailers

ICS Trailers can supply trailer lighting that suits real repair work, from complete lamp kits through to matching single-side replacements in the same family. Browse more LED Lights
