Amber Emergency Mini Light Bar 380mm Clear Lens
Amber Emergency Mini Light Bar 380mm Clear Lens
$371.00
Amber emergency mini light bar for trailers, service vehicles and plant, with clear lens, 10-30V operation, 42 × 1W LEDs, 18 flash patterns and single bolt mounting.
Part number LB380ACM.
Description
Overview

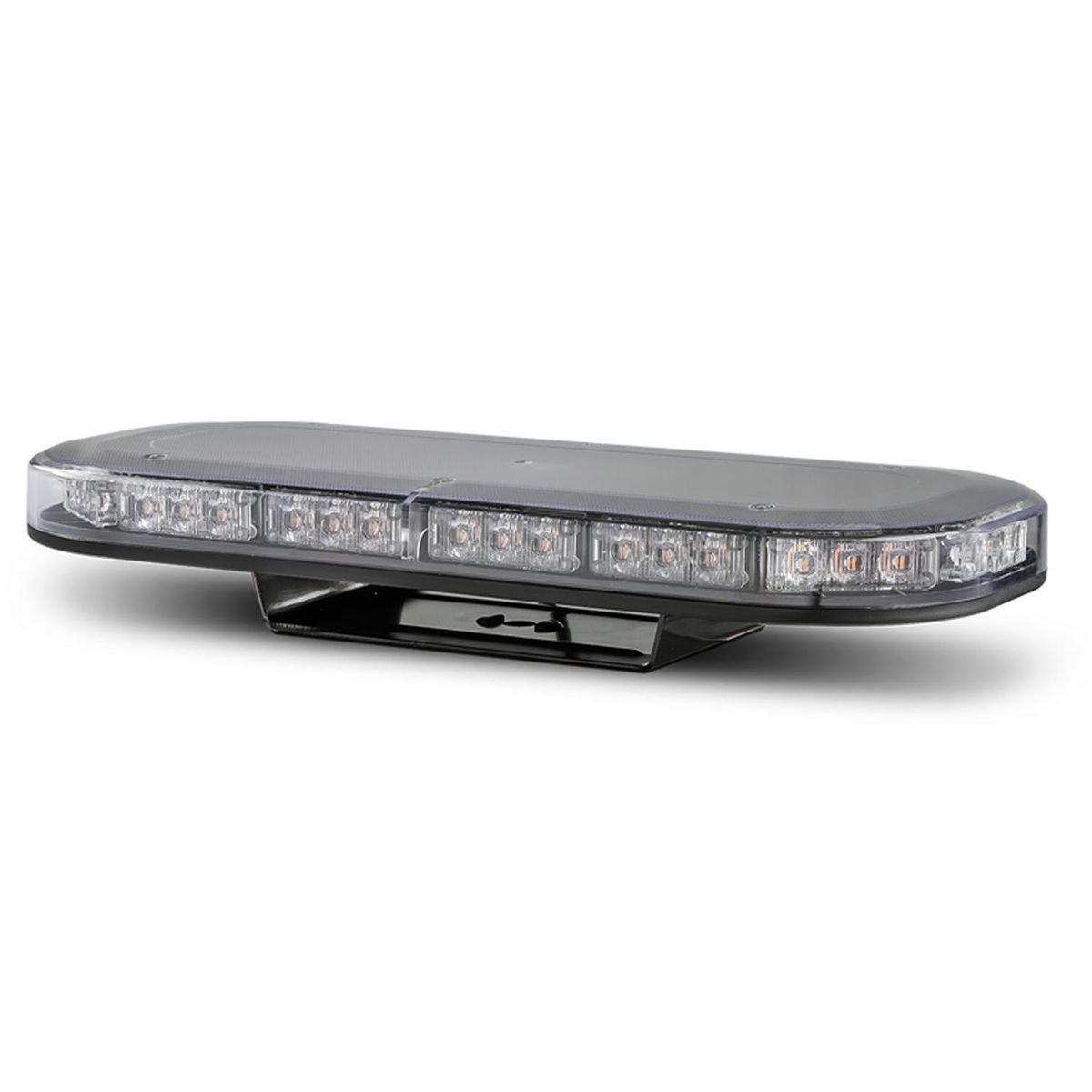

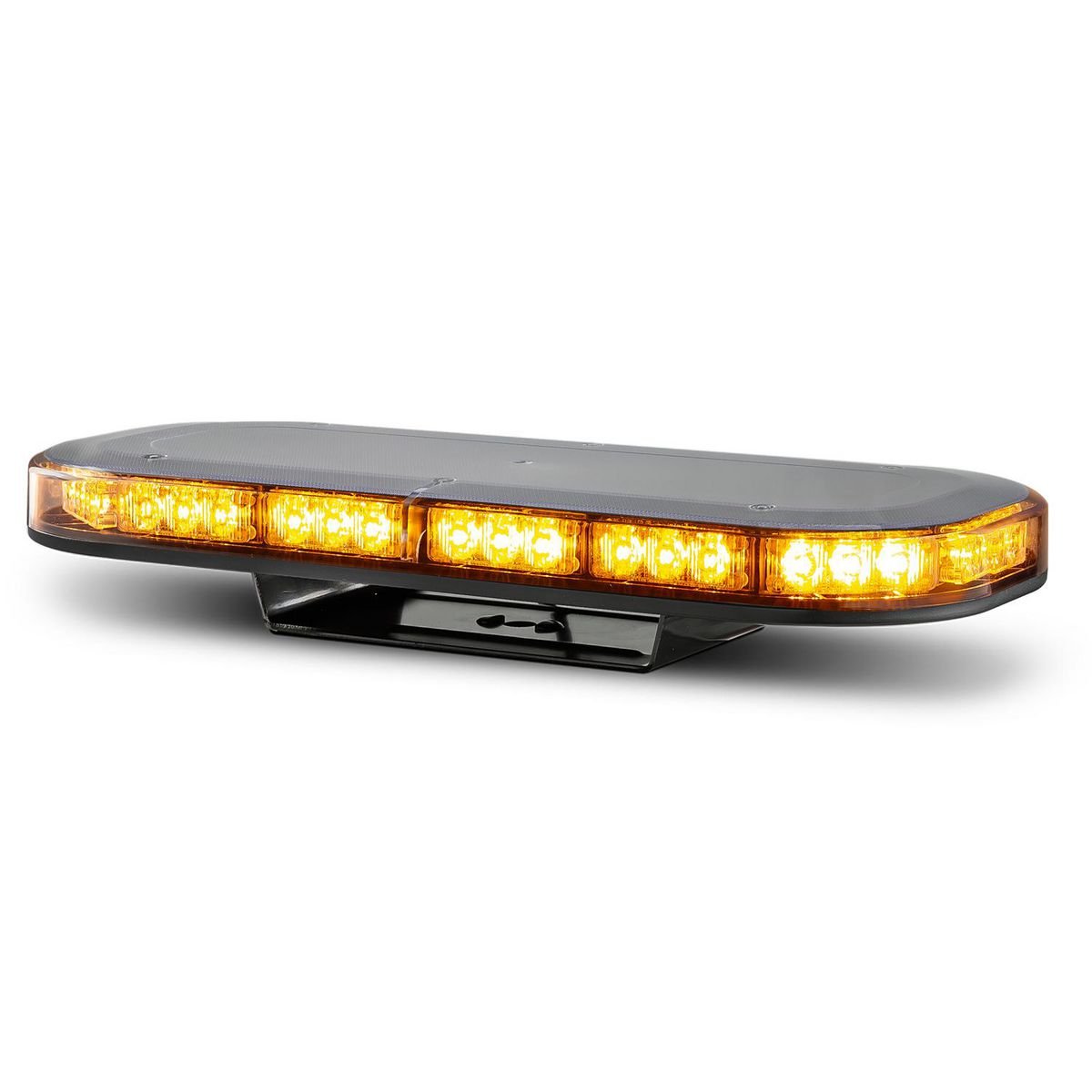

Amber emergency mini light bar adds compact amber warning visibility for trailers, service vehicles and plant where a low-profile 380mm minibar suits the job. The clear lens keeps the unit tidy when inactive, while the amber LEDs deliver the warning output when powered.
Features
- 10-30V multivolt operation for 12V and 24V vehicle systems
- 42 × 1W amber LEDs with 18 selectable flash patterns
- Single bolt mount with base and fittings for level mounting surfaces
- SAE/J845 Class 1 compliant with ECE R65 and ECE R10 approval
Specifications and Materials

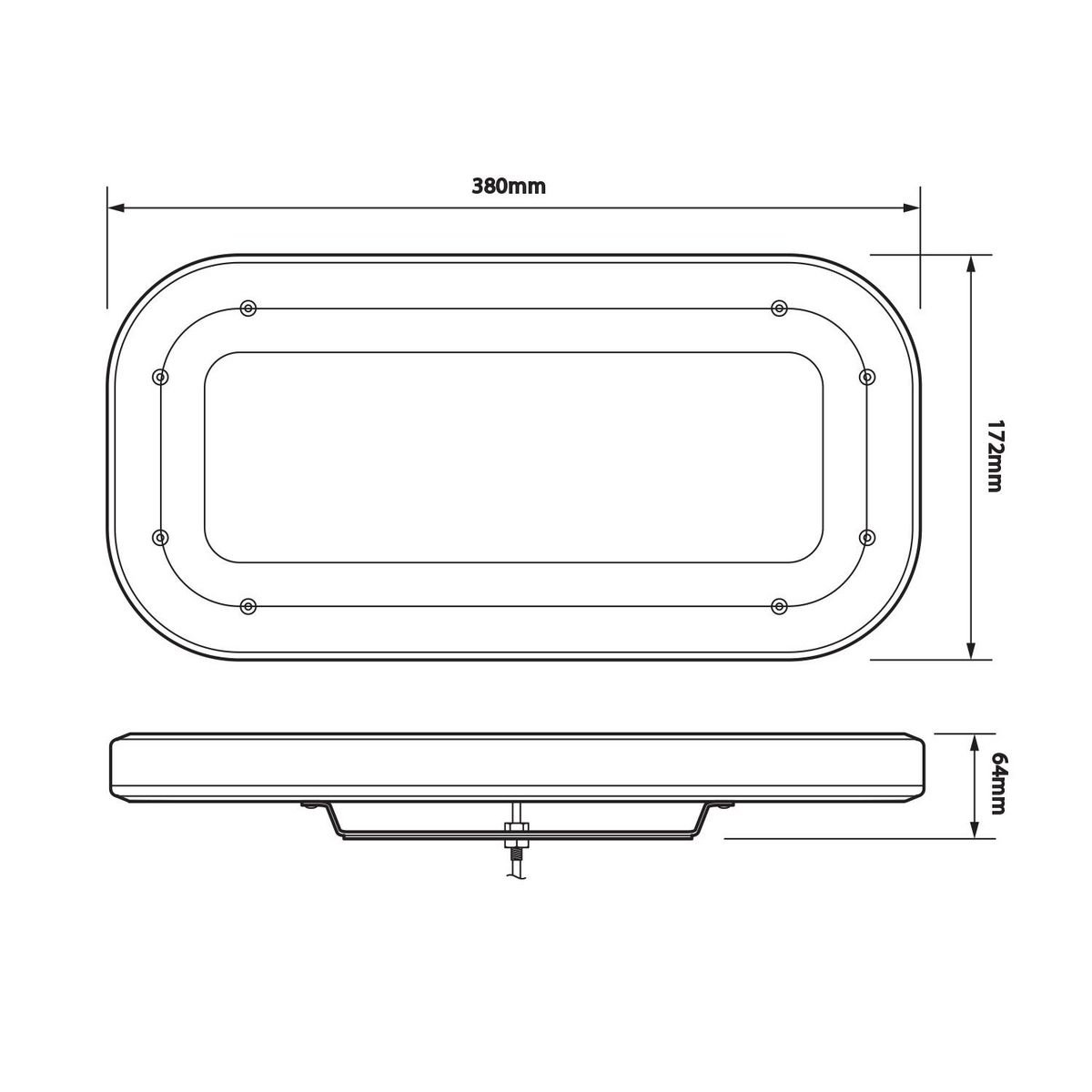

This 380mm amber emergency mini light bar carries a clear polycarbonate lens over amber LEDs and uses an ABS housing with painted steel fittings. It measures 380mm × 172mm × 64mm in the single bolt mount configuration, runs a 45cm cable and draws 2.51A at 13.8V or 0.56A at 28V. Part number: LB380ACM.
See the manufacturer 380mm emergency LED minibar data
Compatibility and Fitment
Confirm the base location on a level mounting surface, then fix the light bar with the supplied base and fittings. If you run multiple warning lamps, select matching flash patterns before linking pattern wires for synchronised operation.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | LB380AM | Amber lens single bolt minibar |
| Related version | LB380ATM | Tinted lens single bolt minibar |
| Related version | LB380ATMM | Tinted lens magnetic vacuum minibar |
Compliance and Safety
Use amber emergency lighting only where it suits the vehicle work role and local site requirements. Also check wiring, mounting tension and flash pattern selection after installation, because loose fittings or poor earth connections can affect warning lamp performance.
Trailer Applications
Fleets, workshops and body builders fit this amber emergency mini light bar to service trailers, utes, maintenance vehicles and equipment that need visible amber warning output. The 360° omnidirectional beam suits roofline or elevated mounting where other road users and site workers need clear warning indication.
Why Choose ICS Trailers
ICS Trailers can pair this light bar with trailer plugs, wiring and LED lighting parts for the same build or repair. Browse more warning and trailer lighting parts in LED Lights
