Description

Overview

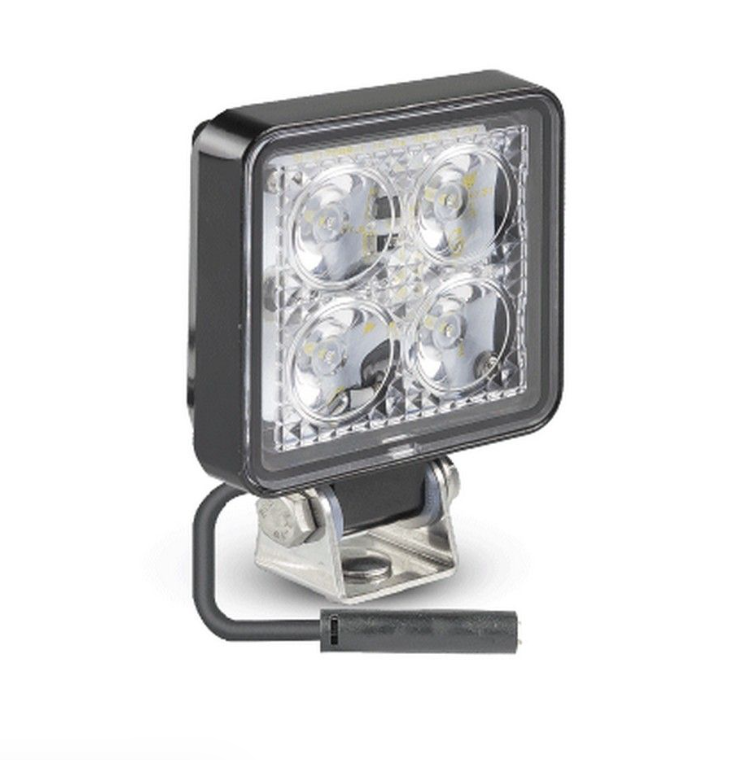

Square LED work lamp delivers flood beam light for reverse and close-range work on trailers, service bodies and heavy vehicles. The compact square housing keeps the mount tidy, while the stainless bracket lets you aim the beam where the job needs it. It also gives you a reverse-approved option when the setup calls for a small lamp with strong local spread rather than long-distance projection.

Features

• Flood beam pattern for reverse and close work areas
• 4 x 3W LEDs with 489 effective lumens and 660 raw lumens
• 9-30V input suits multivolt trailer and vehicle systems
• Stainless bracket and fittings support exposed mounting points

Specifications and Materials

This lamp carries a polycarbonate lens, a black E-coated die cast alloy base and a 40cm bare-wire lead. The housing measures 73mm x 73mm x 31mm, and the lamp draws 0.59A at 13.8V and 0.27A at 28V. It is ECE/ADR approved for 1/00 reverse, and it also carries an IP67 rating with sea spray and salt water resistance. Part number: 7312BM.
See the official 7312 Series technical guide

Compatibility and Fitment

Match this square LED work lamp to a 9-30V system, a flood beam requirement and a mounting point that suits the supplied adjustable bracket. Check the housing size, confirm the reverse or work-light position, and then compare the bare-wire connection before ordering. If the trailer runs in wet or corrosive conditions, this lamp also suits exposed service points better than a light-duty cabin-style fitting.

Compliance and Safety

Fix the bracket to a solid mounting surface with the supplied stainless hardware, then aim the lamp before final tightening. Also confirm beam direction, cable protection and reverse-lamp position before the trailer returns to service. Replace cracked lenses, loose brackets or damaged wiring promptly so the lamp keeps its output and approval status in working order.

Trailer Applications

Workshops fit this square LED work lamp to trailers, service trucks, plant floats and other heavy vehicle builds that need a compact reverse or work-light solution. It suits rear crossmembers, tail sections, side service points and other mounting spots where space is tight but clear flood output still matters.

Why Choose ICS Trailers

ICS Trailers focuses on heavy trailer parts, so this lamp fits naturally into reverse-light and work-light repairs where bracketed LED lighting needs to stay compact, durable and easy to mount. Browse more LED Lights
