Description

Overview

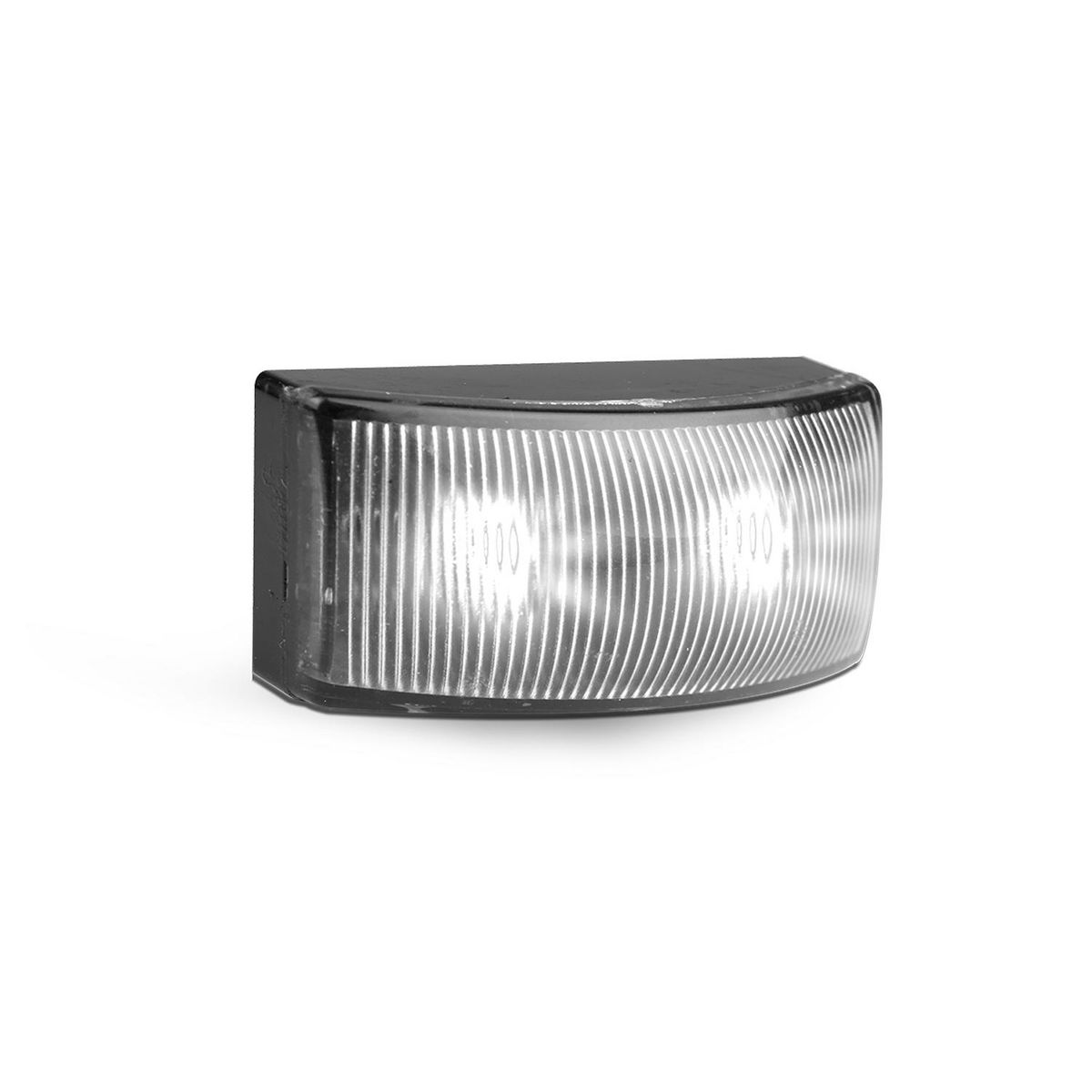

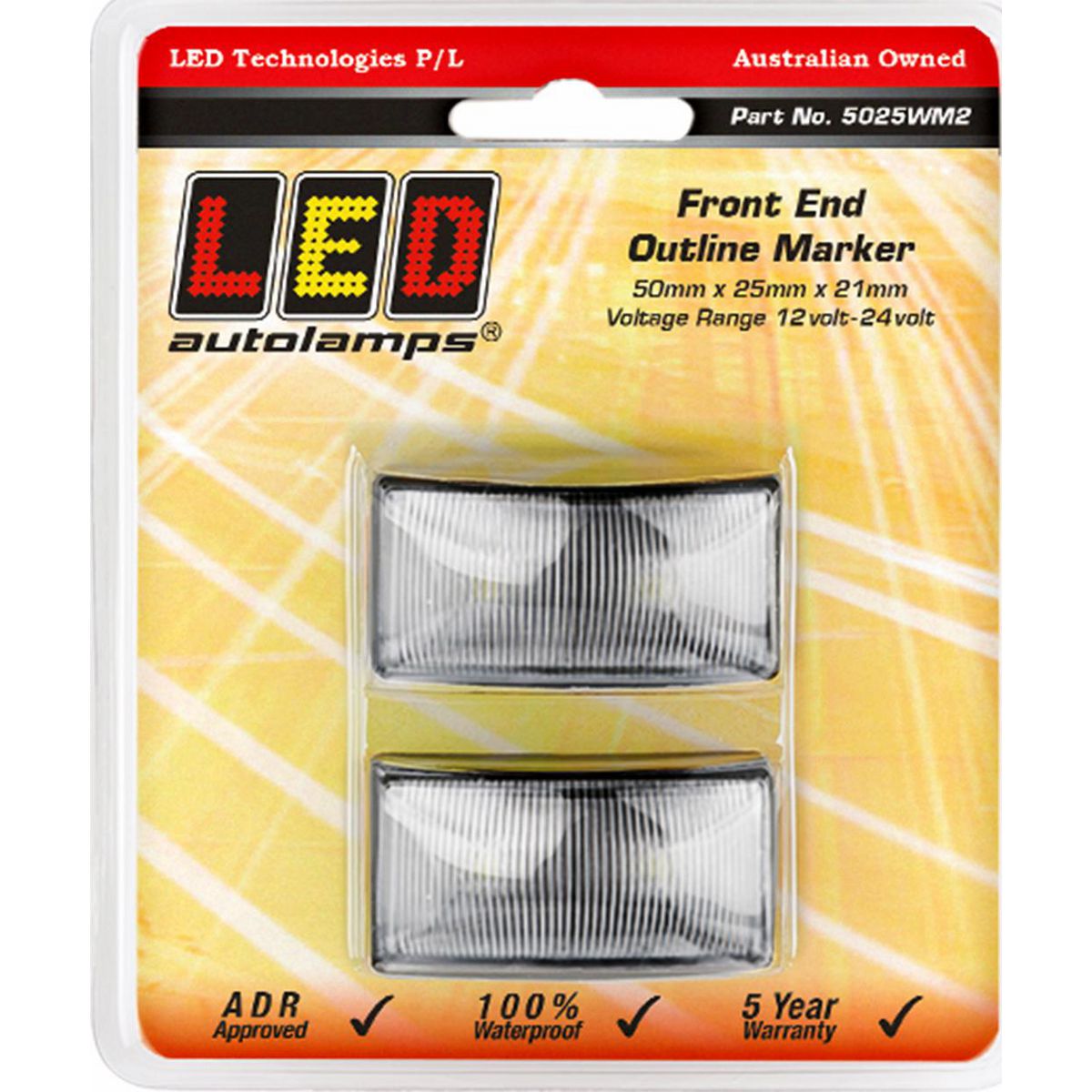

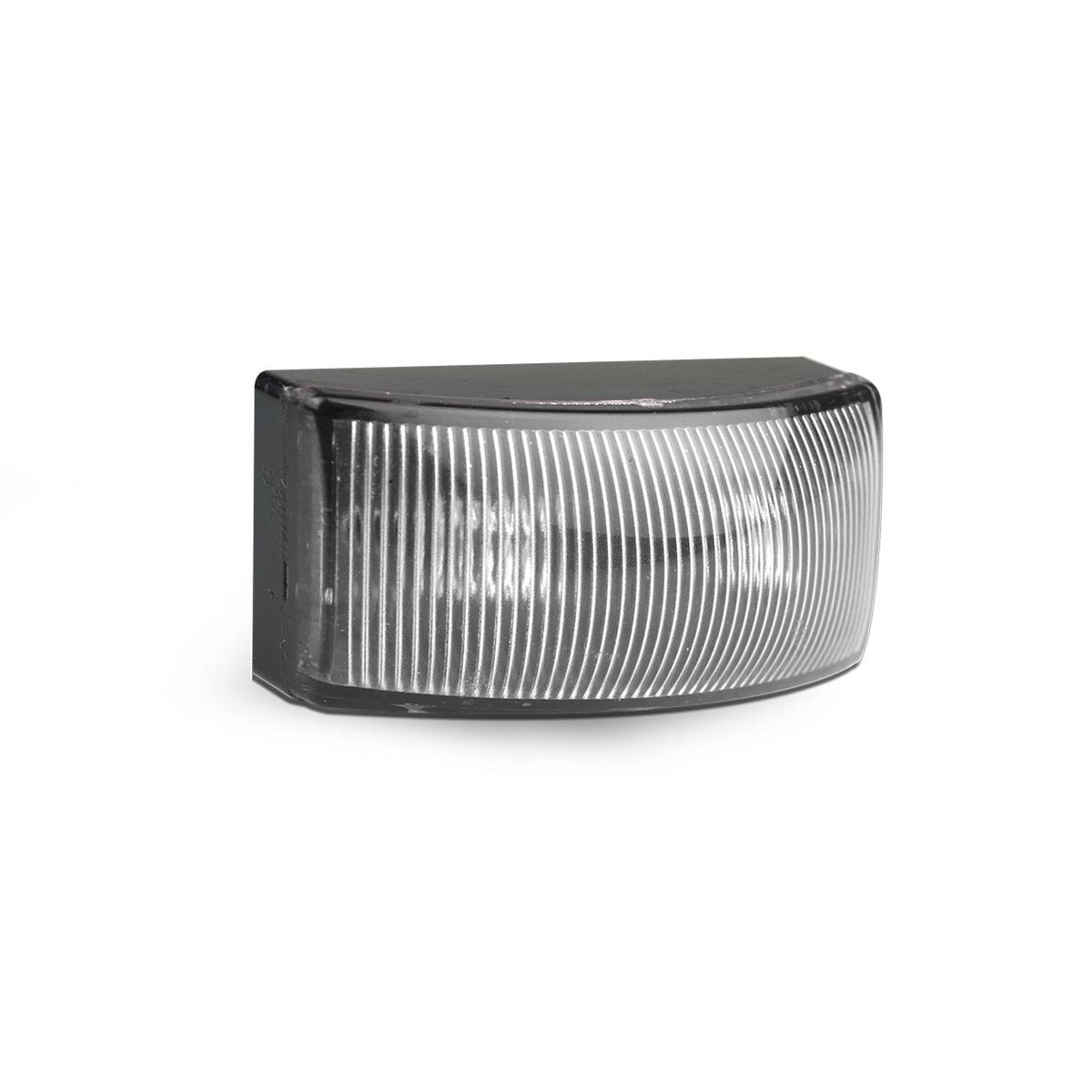

White LED front end outline marker supports front outline lighting on trailers and heavy vehicle bodies where a compact white marker lamp suits the panel layout. The twin pack suits paired replacement or installation work, so both sides can be matched at the same time.

Features

• 12-24V operation for mixed trailer and vehicle electrical systems

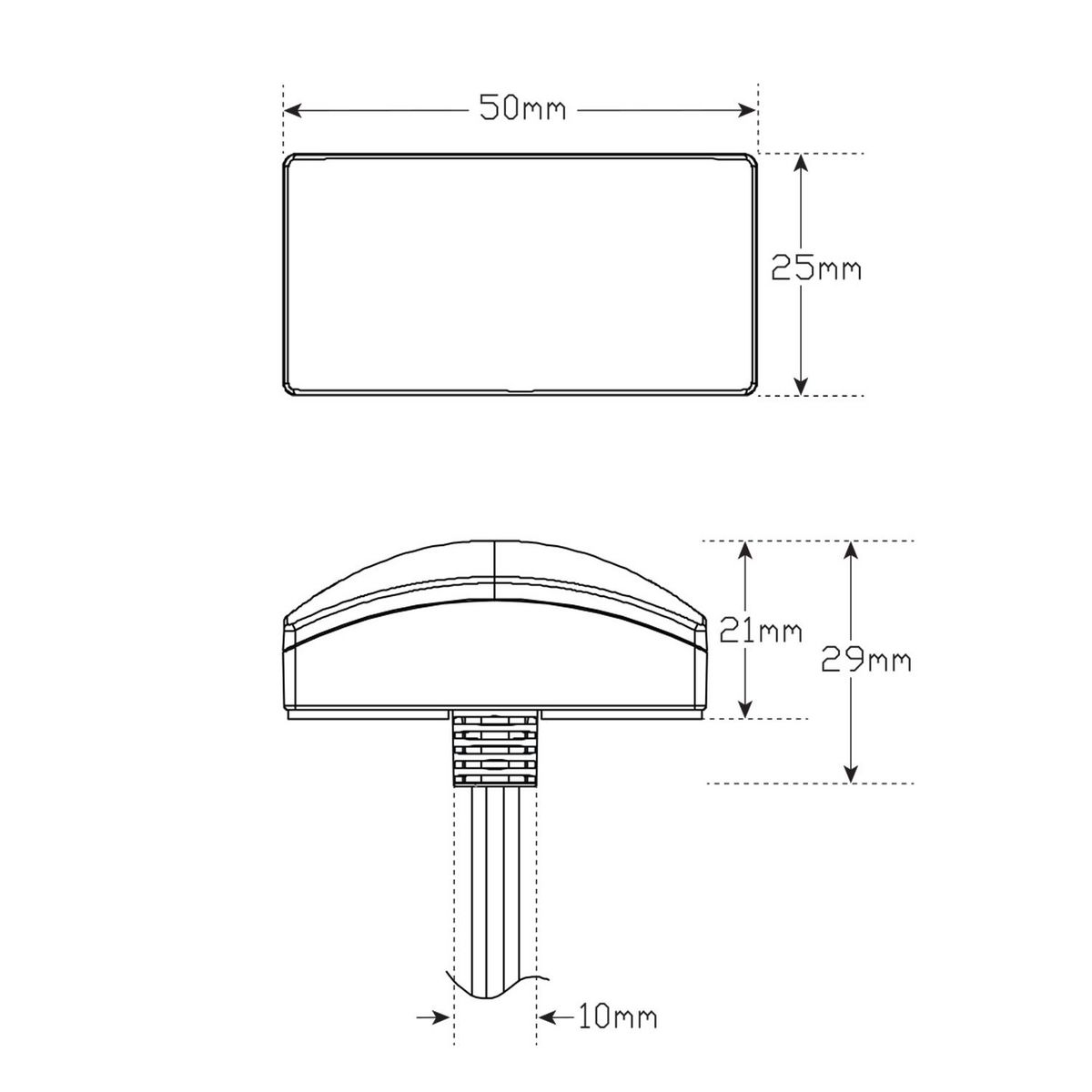

• Low-profile 50mm × 25mm × 21mm lamp body for tight mounting areas
• Non-fastener fitting with serrated plug and 3M tape
• IP67 rated body with ADR front end approval

Specifications and Materials

This white LED front end outline marker has a PMMA lens, ABS base, 20cm cable and two LEDs per lamp. It draws 0.029A at 13.8V and 0.029A at 28V, which suits low-current marker lamp circuits. Part number: 5025WM2.
See the manufacturer 5025 Series marker lamp data

Compatibility and Fitment

Check the mounting area for a 10mm hole before fitting, then route the sheathed cable through the panel. Also confirm the lamp position against front outline marker requirements before wiring it into the trailer lighting circuit.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

When fitting to a road-going trailer, position and wire the lamp to suit the trailer lighting layout and applicable ADR mounting rules. However, replace damaged lenses, loose wiring or failed LEDs before the trailer returns to service.

Trailer Applications

Workshops fit this white LED front end outline marker on trailer bodies, tray bodies, caravans and light commercial equipment that need compact white front outline lighting. Because the pack includes two lamps, it suits left and right front marker replacement work.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting for repairs, refits and body builds, so this compact marker can sit alongside the harness, plug and rear lighting parts needed for the same job. Browse more trailer lighting parts in LED Lights
