Description

Overview

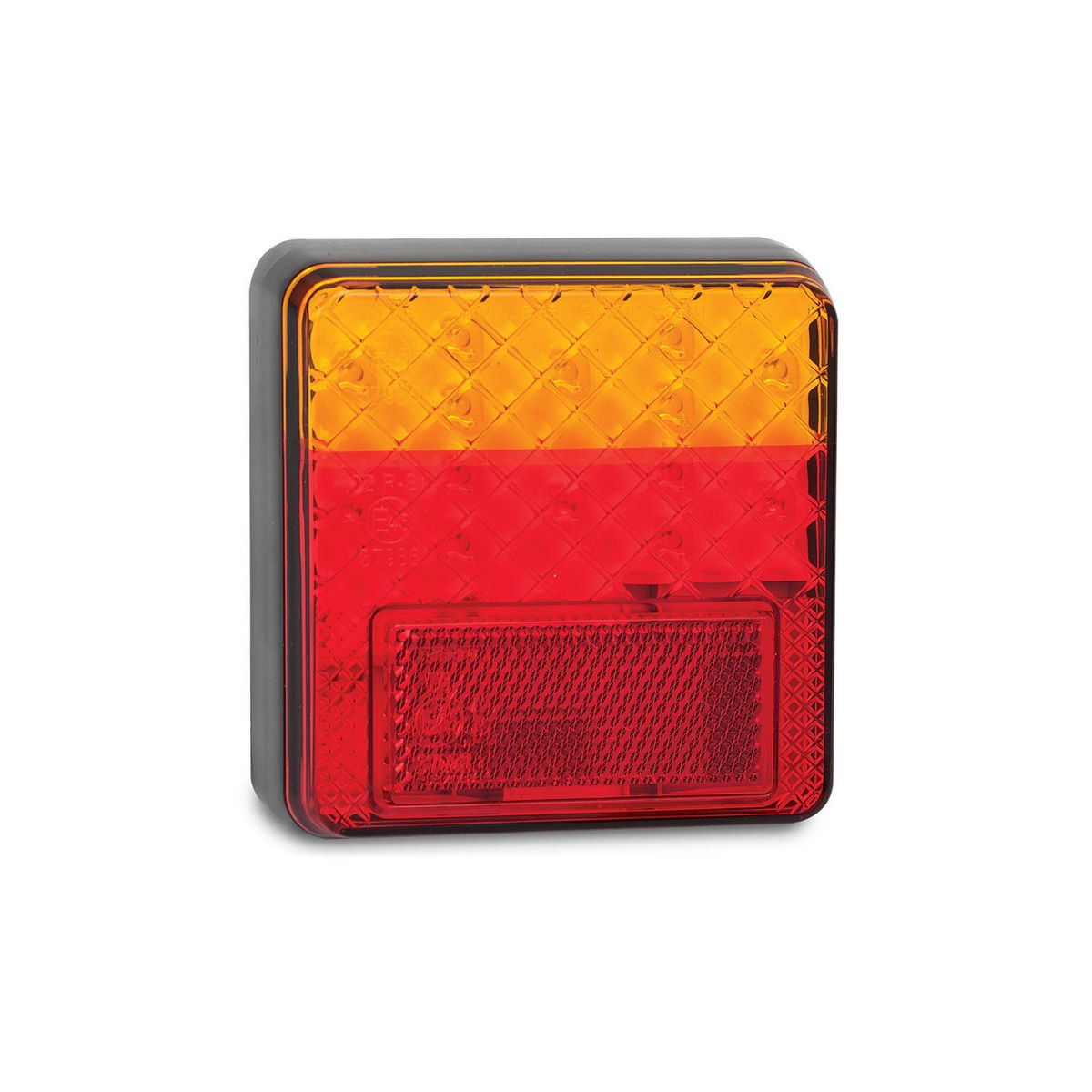

12-24V stop tail indicator lamp combines stop, tail, indicator and reflector functions in one compact trailer lamp. It suits trailers and truck bodies that need a square rear combination lamp with a grey base and low-profile housing.

Features

• Combined stop, tail, indicator and reflector functions
• Diamond pattern lens for clear rear lighting output

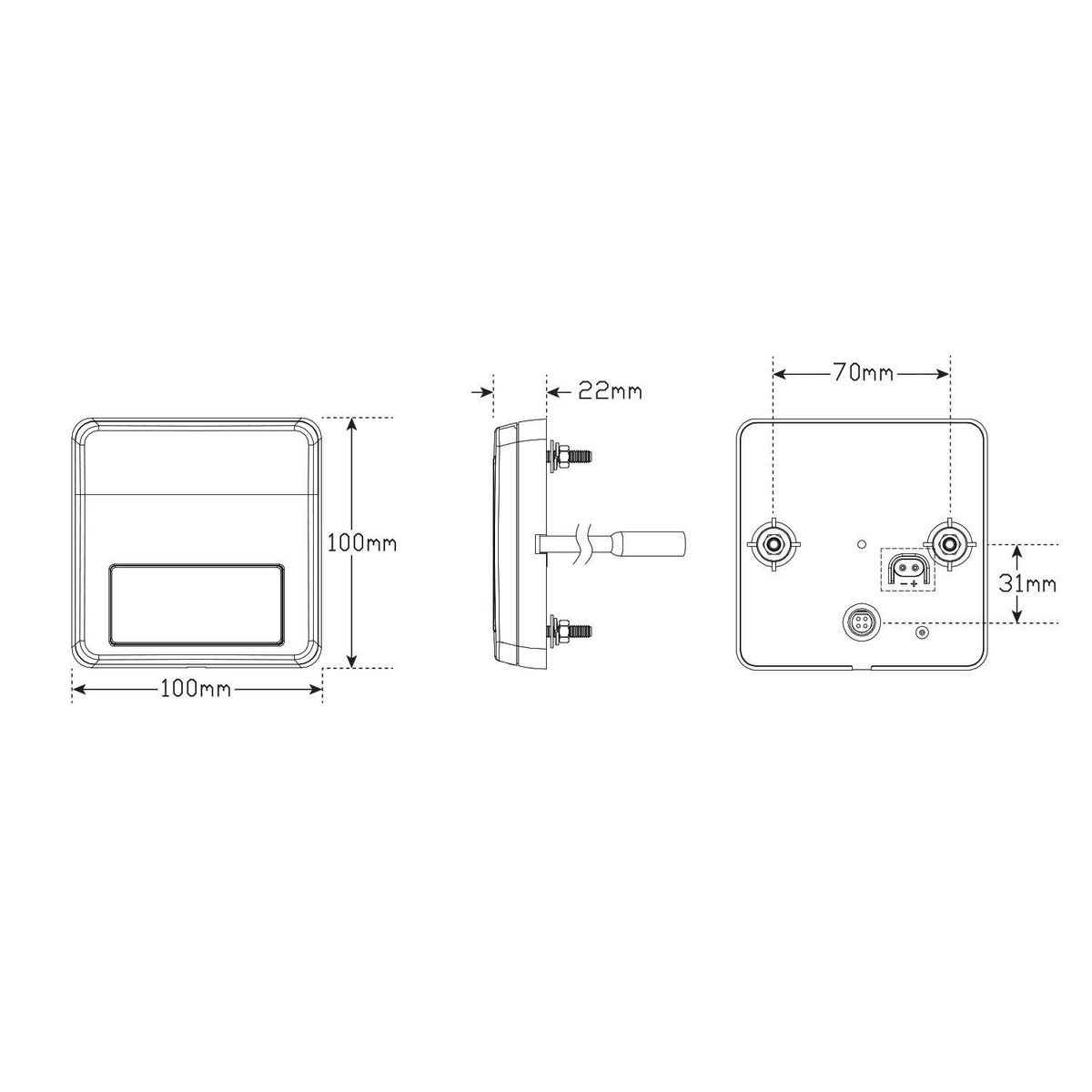

• Low-profile 100mm x 100mm x 22mm body
• IP67 rated body for exposed trailer lighting positions

Specifications and Materials

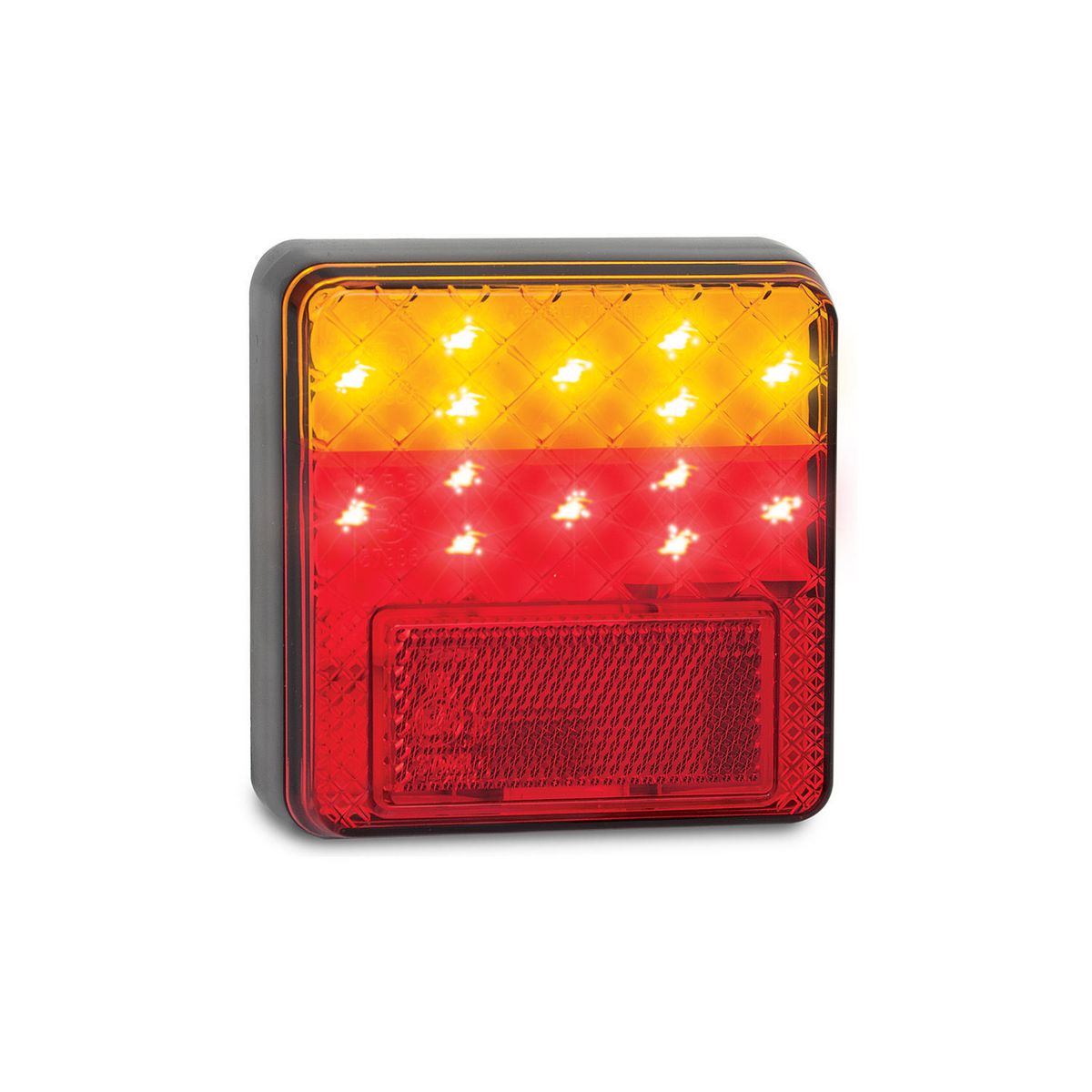

This 12-24V stop tail indicator lamp uses 14 LEDs and a 40cm cable with plug. It draws 0.13A stop, 0.04A tail and 0.12A indicator at 13.8V. At 28V, it draws 0.12A stop, 0.06A tail and 0.07A indicator.

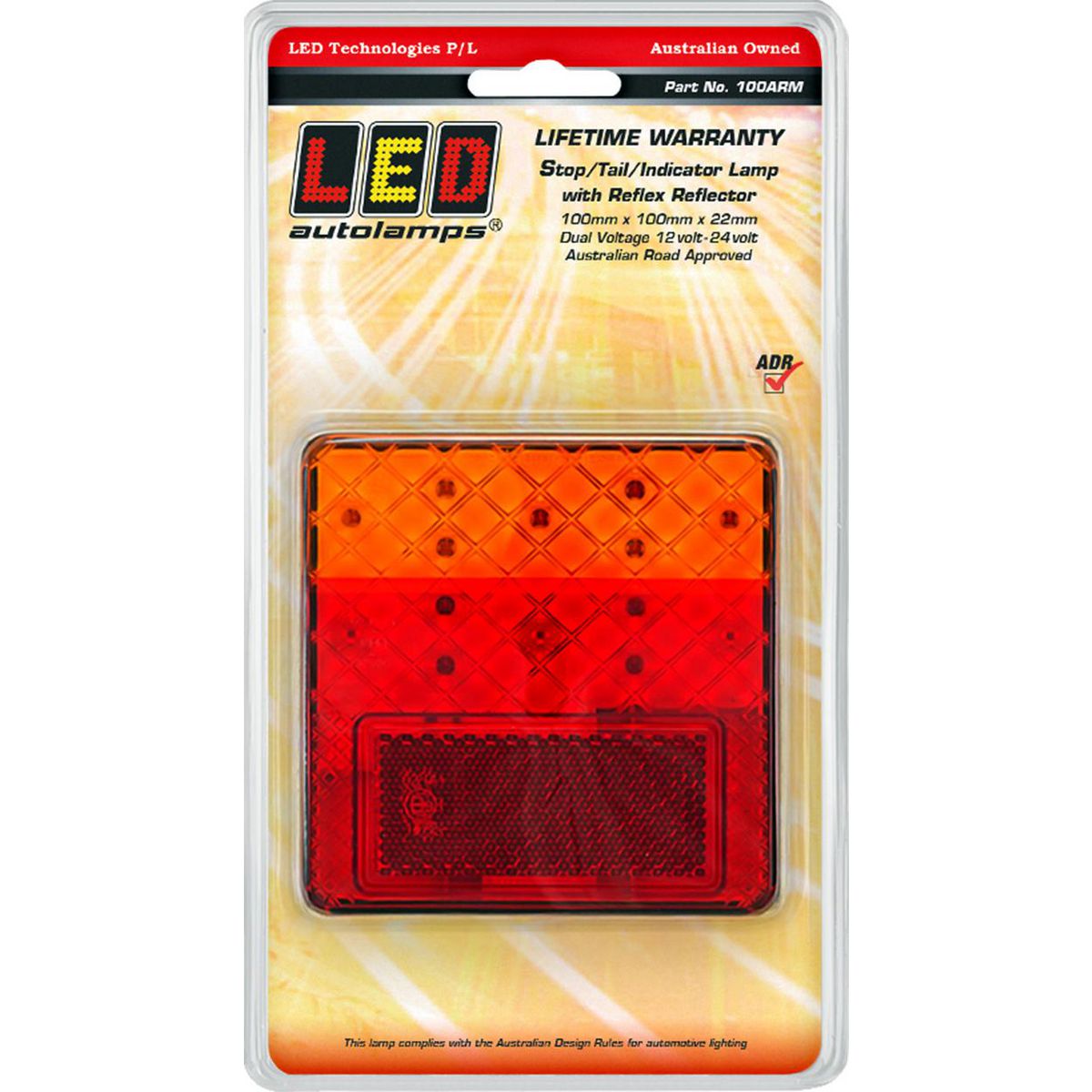

Part number: 100ARM.

manufacturer 100 Series combination lamp guide

Compatibility and Fitment

Match the lamp against the trailer voltage, rear lighting layout and mounting space before ordering. Surface mount the lamp vertically on a flat panel, with the indicator at the top. Then run the wire and plug through a 10mm hole in the fixing surface.

The 12-24V stop tail indicator lamp works with compatible LED Autolamps plug-in trailer cable systems.

Related Parts

Check the related parts below against the trailer wiring setup before ordering.

Compliance and Safety

The lamp carries ADR approval for stop/tail, indicator and reflector functions. Before fitting, check the rear lamp position against the trailer lighting layout and ADR 13/00 mounting guidance.

Trailer Applications

Workshops fit this style of rear combination lamp on box trailers, plant trailers, utility trailers and small truck bodies. Because it combines three lighting functions and a reflex reflector, it keeps the rear lamp layout compact on suitable builds.
