Description

Overview

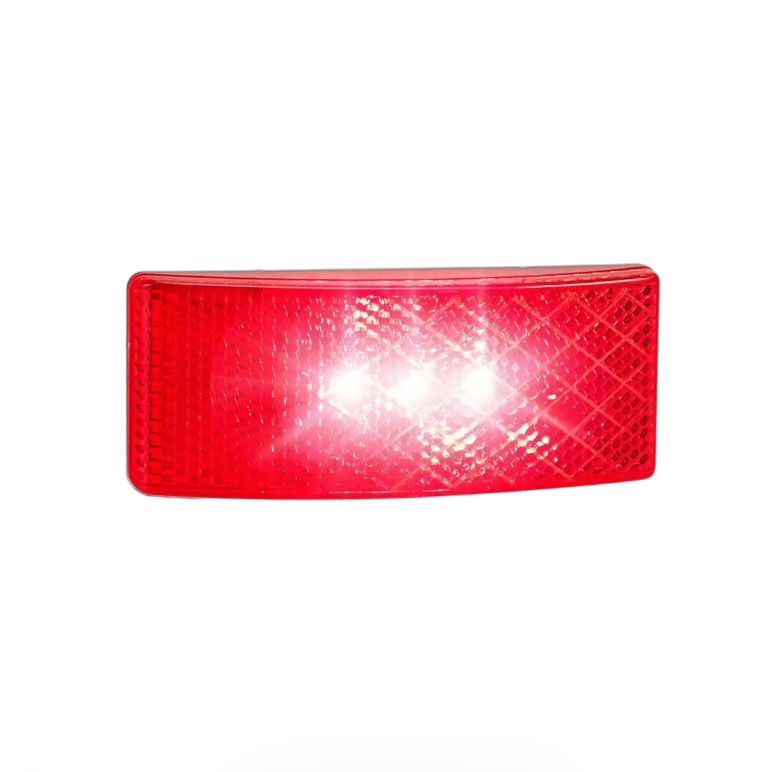

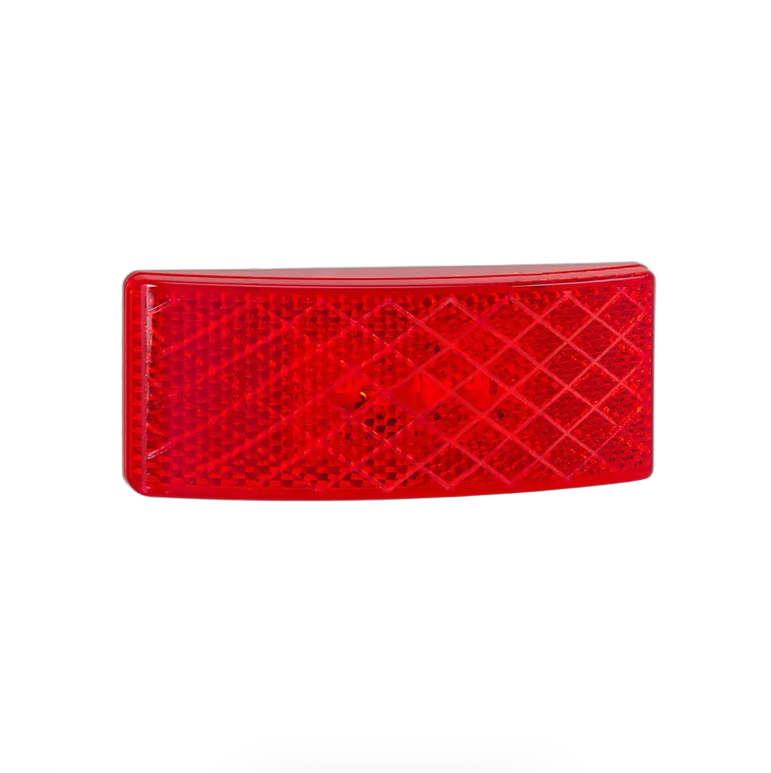

Red LED rear marker lamp gives trailers and truck bodies a compact rear marker with an inbuilt reflector. It suits 12-24V vehicle lighting systems where the rear outline lamp needs to stay low profile and easy to fit.

Features

• Red marker lamp with inbuilt reflector
• Heavy duty 3M tape fitting for surface mounting

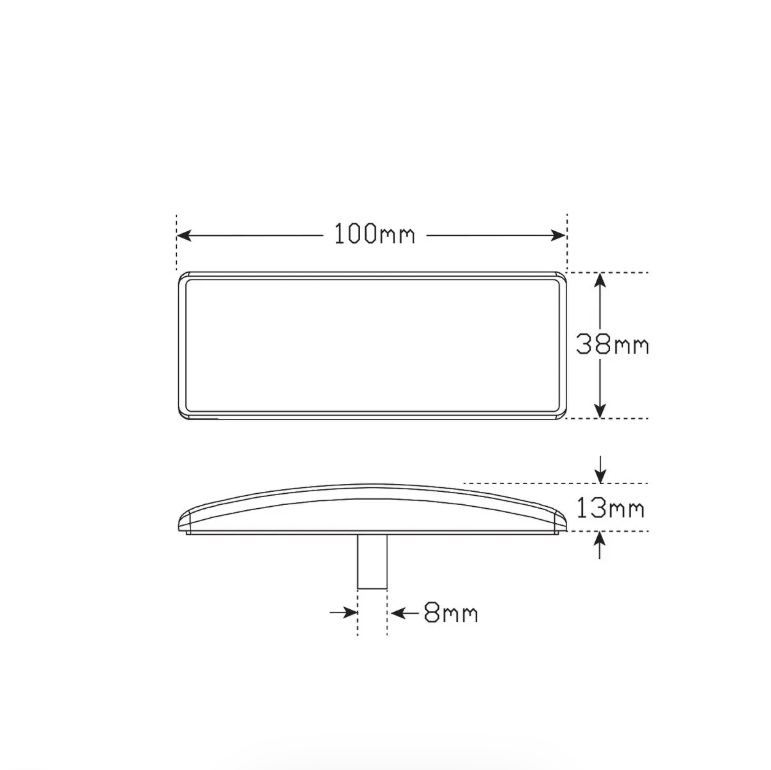

• Low-profile 100mm x 38mm x 13mm body
• IP67 rated body for exposed trailer and truck lighting areas

Specifications and Materials

This red LED rear marker lamp uses 3 LEDs, a PMMA acrylic lens and an ABS base. It suits 12-24V systems and mounts with 3M tape after the cable outlet hole has been drilled.

Part number: EU38RMHDB.

official EU38 Series specification sheet

Compatibility and Fitment

Match this lamp against the rear marker position, voltage system and available mounting area before ordering. Drill a minimum 8mm hole for the wire outlet, then peel the 3M backing and push the lamp firmly into place.

The red LED rear marker lamp suits low-profile body panels where a separate bulky reflector is not wanted. However, the mounting surface still needs to be clean and flat so the tape can hold properly.

Related Parts

Check the related versions below against the trailer setup before ordering.

Compliance and Safety

The lamp carries ECE approval for marker and reflector function. Before fitting, check the rear marker position against the trailer lighting layout and ADR 13/00 mounting guidance.

Trailer Applications

Workshops fit this style of marker lamp on trailers, caravans, truck bodies and transport equipment. Because it combines a red lamp and reflector in one slim body, it can reduce separate rear marker and reflector hardware on suitable builds.

Why Choose ICS Trailers

ICS Trailers supplies trailer and heavy vehicle lighting parts with clear fitment details for matching voltage, body size and lamp function. View more trailer lighting parts in our LED Lights category
