Description

Overview

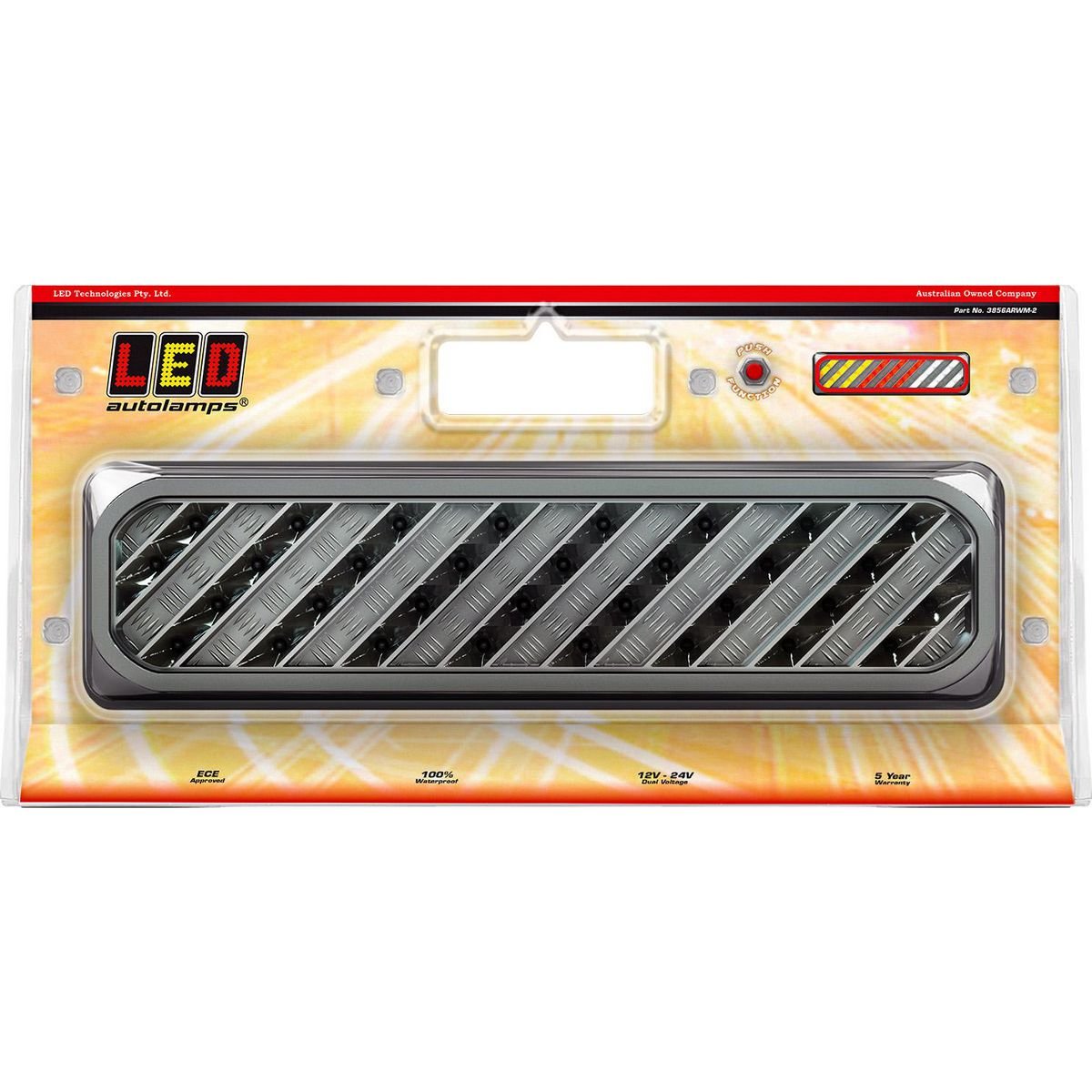

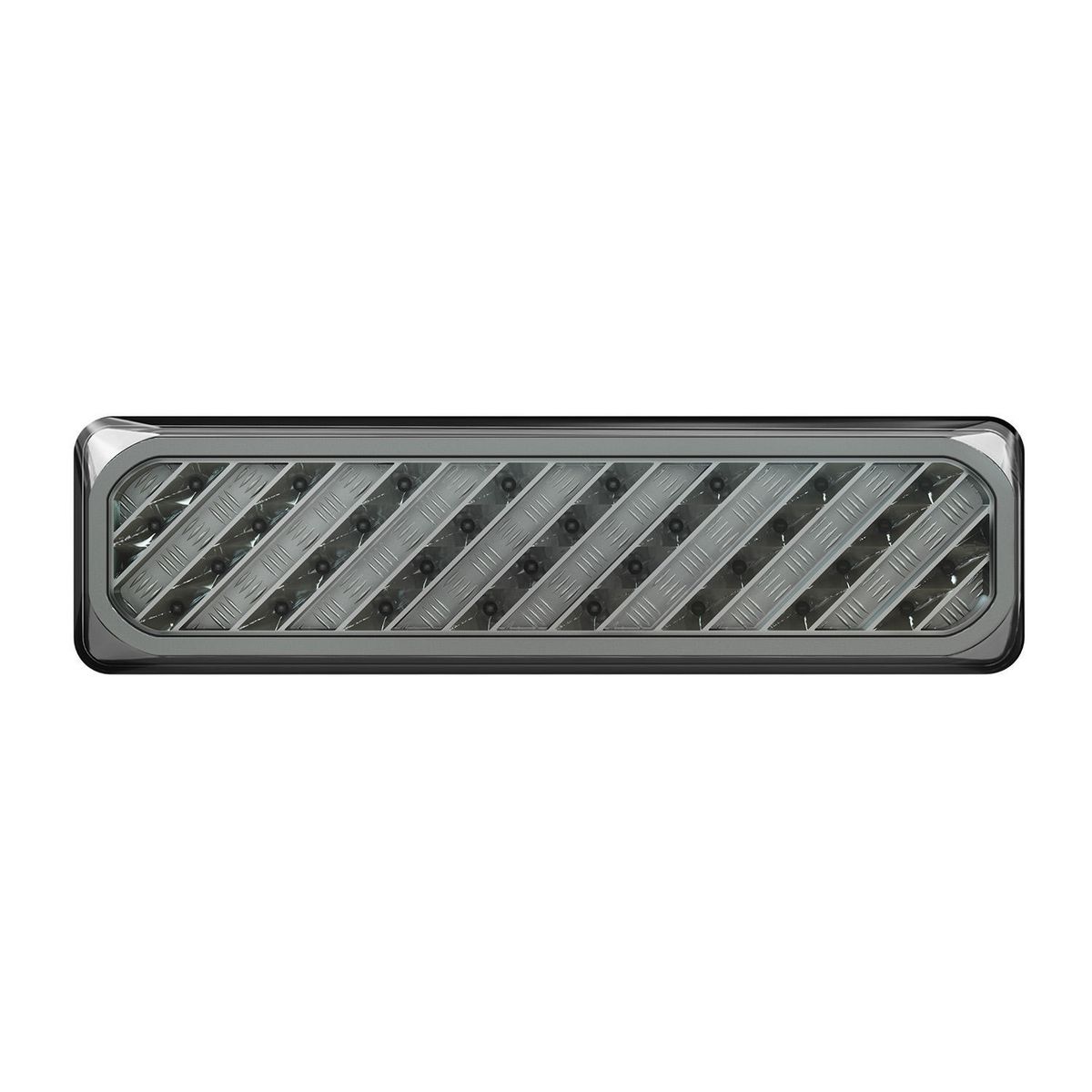

12-24V rear combination lamp combines stop, tail, indicator and reverse lighting in one checker plate style twin lamp pack. It suits trailers and truck bodies that need a wide rear lamp with diffused tail output and low-profile mounting.

Features

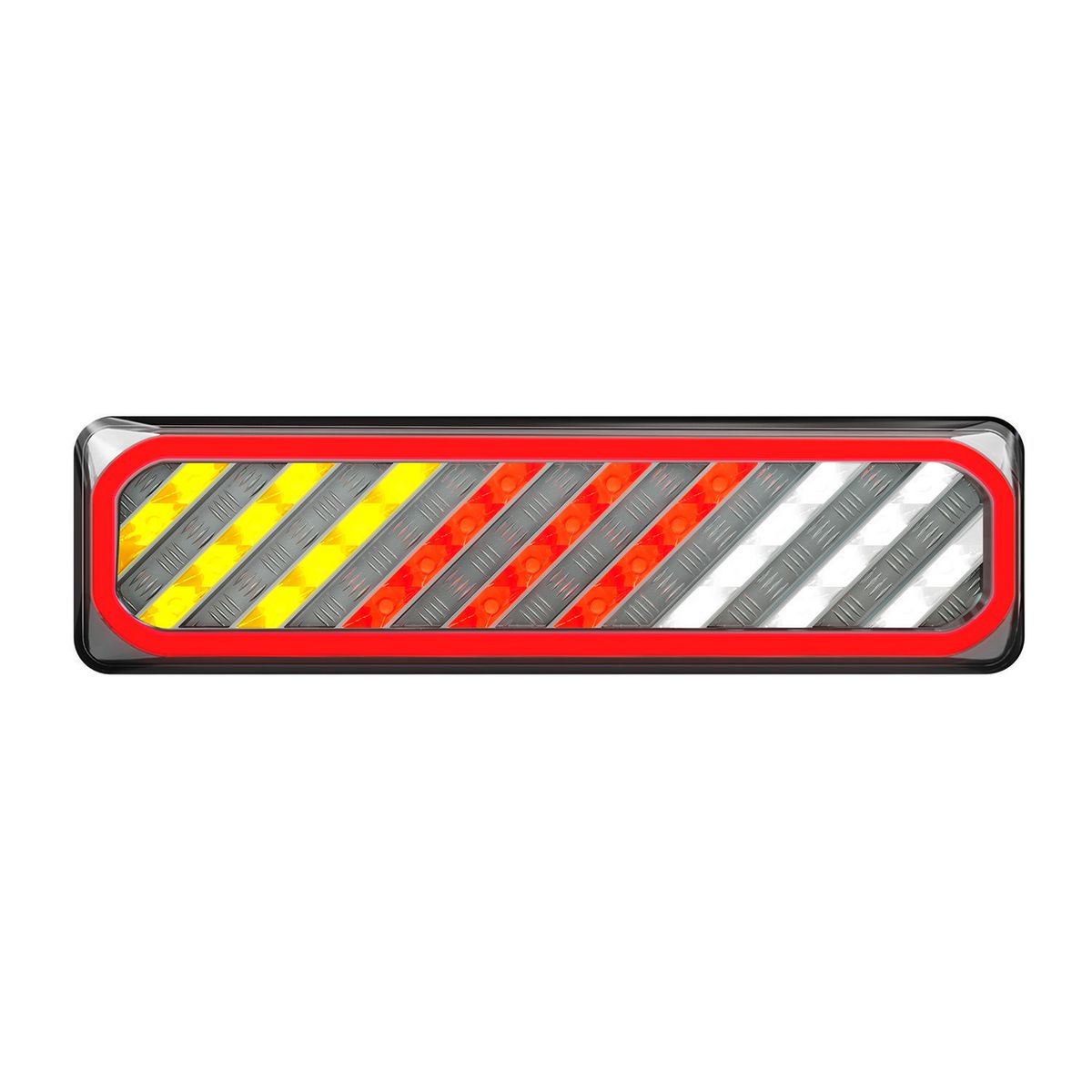

• Stop, tail, indicator and reverse lamp functions
• Diffused tail output with checker plate style face

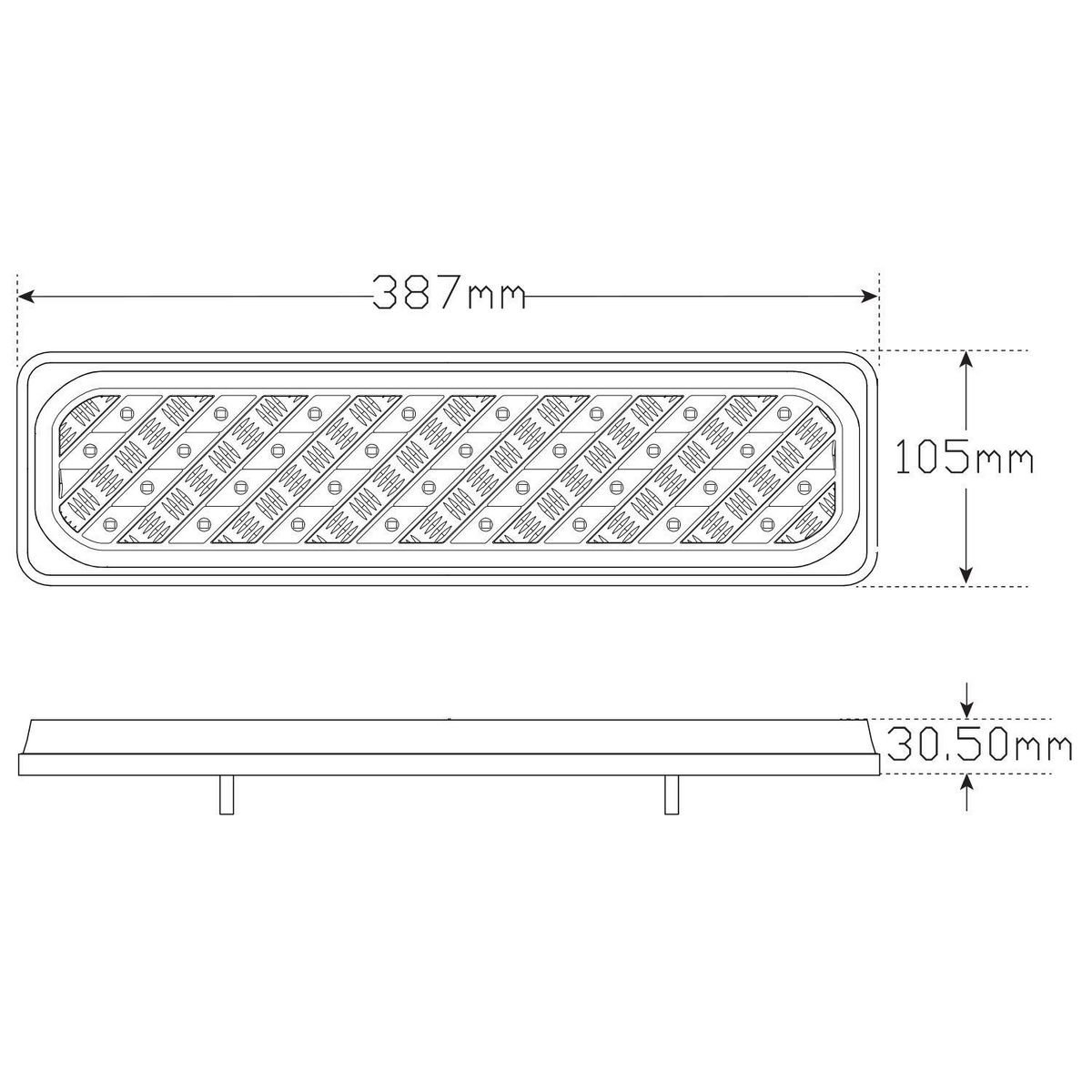

• Low-profile 387mm x 105mm x 30.5mm body
• IP67 rated body for exposed rear lighting positions

Specifications and Materials

The 12-24V rear combination lamp uses 102 LEDs, a PMMA lens and an ABS base. It has a 40cm cable and suits multivolt trailer lighting systems.

Part number: 3856ARWM-2.

manufacturer 3856 Series guide

Compatibility and Fitment

Match the lamp pair against the rear lighting layout, voltage system, mounting width and plug setup before ordering. Separate the base plate and mount it horizontally on a flat surface. Then run the wire through the fixing surface and clip the lamp into the base plate.

This 12-24V rear combination lamp suits rear trailer lighting setups that need reverse lighting in the same lamp body.

Related Parts

Check the related versions below against the trailer wiring setup before ordering.

Compliance and Safety

The lamp carries ECE approval for stop/tail, indicator and reverse functions. It also carries CTA approval for stop/tail/indicator/reverse use. Before fitting, check the rear lamp position against ADR 13/00 mounting guidance.

Trailer Applications

Workshops fit this style of rear combination lamp on trailers, truck bodies and transport equipment. Because it includes reverse lighting, it suits builds that need more than a basic stop/tail/indicator rear lamp.
