Description

Overview

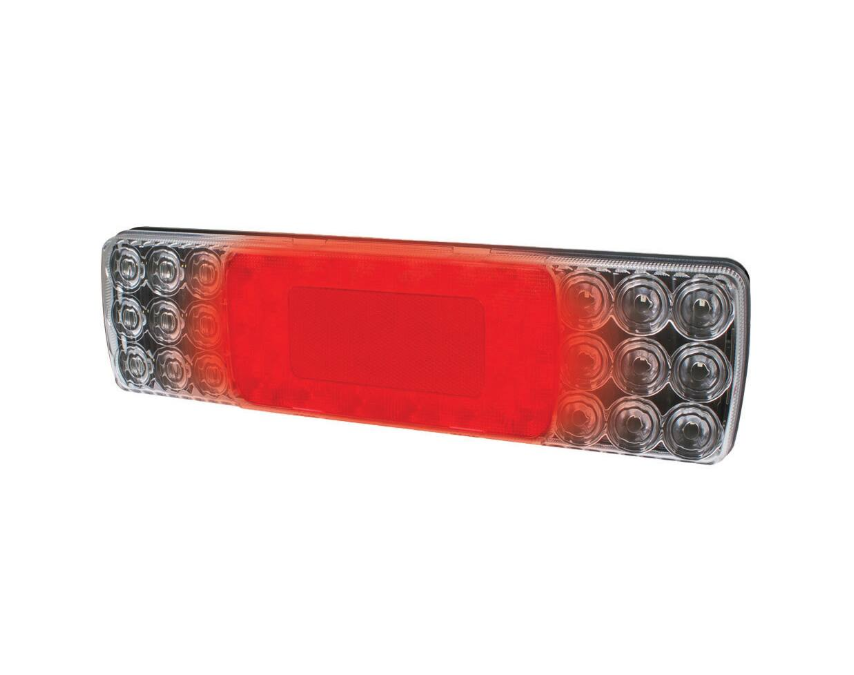

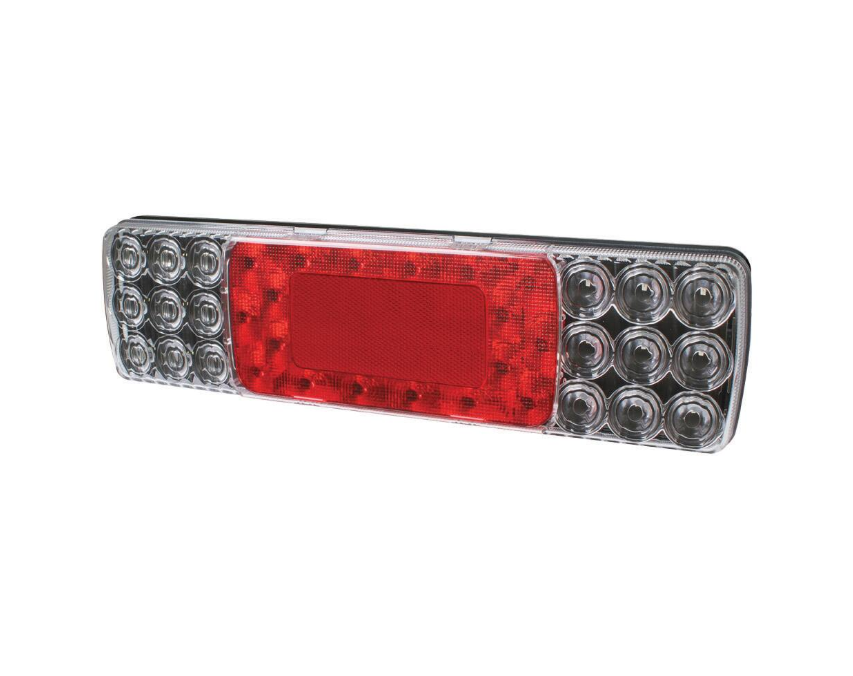

Hella LED rear combination lamp combines stop, rear position, rear direction indicator, reversing and reflector functions in one surface mount rear lamp. It suits 12V and 24V trailer and truck body electrical systems where the rear lamp needs HCS indicator monitoring, a sealed housing and a built-in red retro reflector.

Features

• LED rear combination lamp with central 64cm² red retro reflector.
• HCS Technology supports ISO 13207-1 compliant direction indicator monitoring.
• Two bolt surface mount design with mounting accessories supplied.

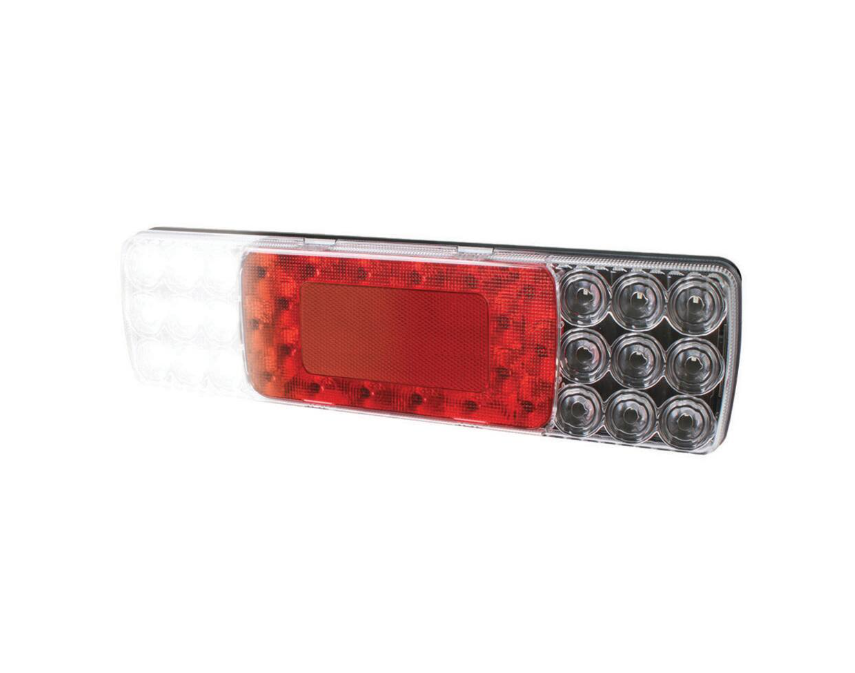

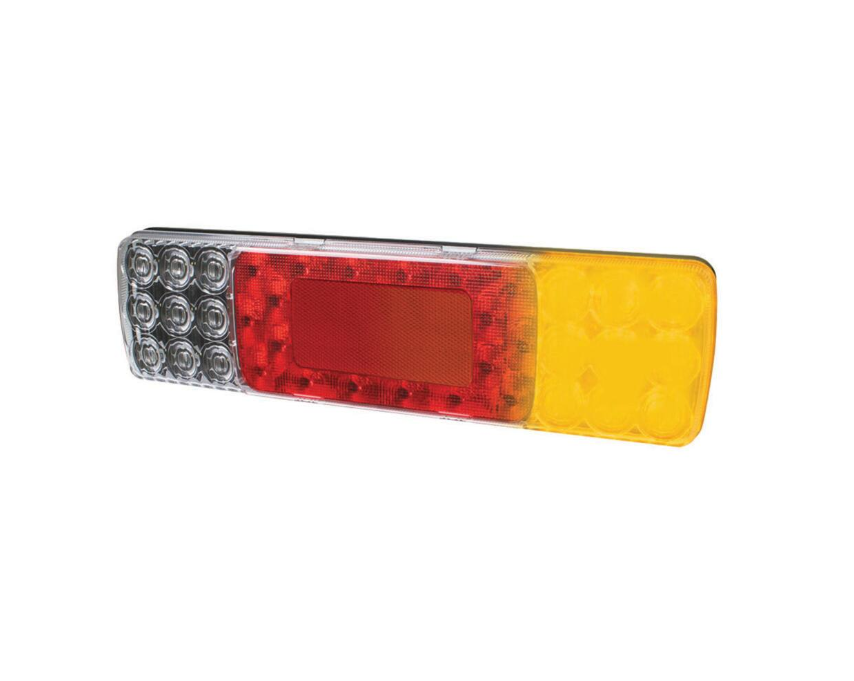

• Indicator and reverse optics appear clear until illuminated.

Specifications and Materials

Product type: LED rear combination lamp with retro reflector.

Functions: stop, rear position, rear direction indicator, reversing and reflector.

Voltage: Multivolt 12V and 24V DC.

Power consumption: stop 5W, rear position under 2W, rear direction indicator 6W and reverse 5W.

Protection: reverse polarity protection, 5000W Transient Voltage Suppressor, IP6K7 and IP6K9K.

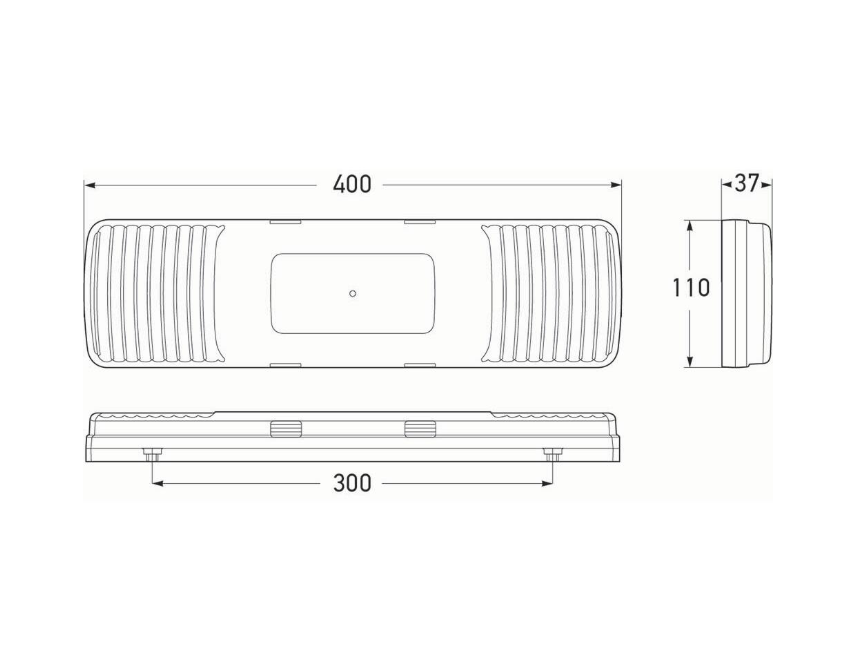

Mounting: horizontal two bolt surface mount with 300mm mounting centres.

Part number: 2391.

Use the Hella LED rear combination lamp technical page for lamp specifications and installation details

Compatibility and Fitment

Match this lamp to the vehicle voltage, rear lamp layout, HCS indicator monitoring setup and available mounting area before ordering. Also check the cable route and mounting face because the lamp needs a flat vertical surface and horizontal mounting.

Fit the Hella LED rear combination lamp with sealed wiring joins, clear rear visibility and correct circuit protection. Then test stop, tail, indicator and reverse functions separately before road use.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2VP 980 980-001, 2VP980980001, 980.980-001, 980980001, ELH2391

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Disconnect power before fitting or rewiring the lamp. After installation, confirm the mounting accessories, wire polarity, sealed cable joins and visibility angles. Because this lamp carries multiple rear functions, protect the lamp circuit with the correct fuse before road use.

Trailer Applications

Trailers, truck bodies, utes, buses and commercial vehicles use the Hella LED rear combination lamp where one rear unit needs to handle multiple lighting functions. The built-in reflector helps when the body layout has limited space for separate reflector mounting.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match rear combination lamps, marker lamps and wiring accessories to the lighting layout already fitted to the trailer or truck body. See more parts in ICS Trailers LED lights
