Description

Overview

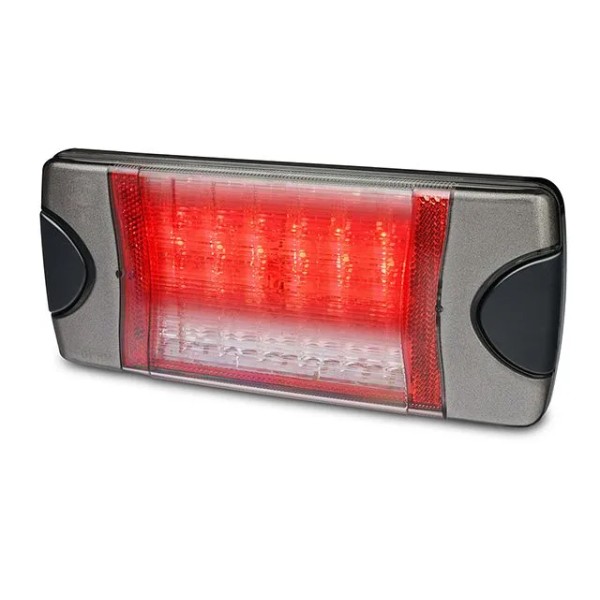

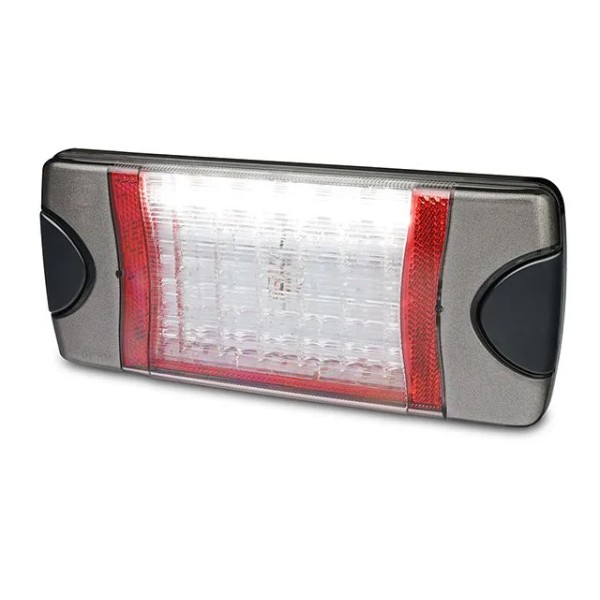

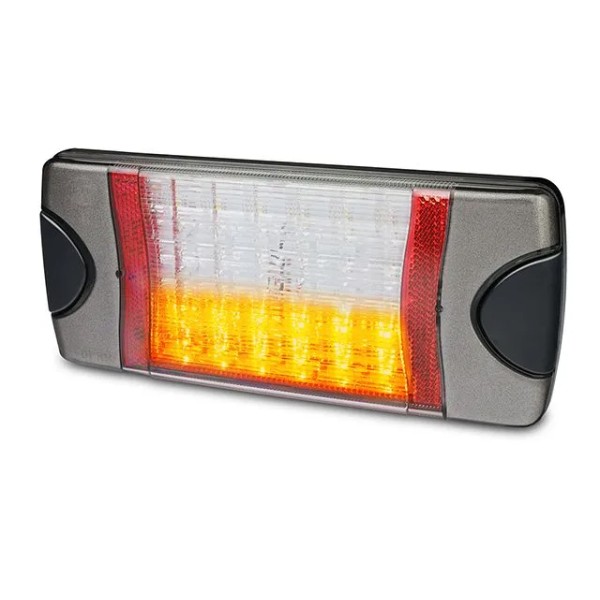

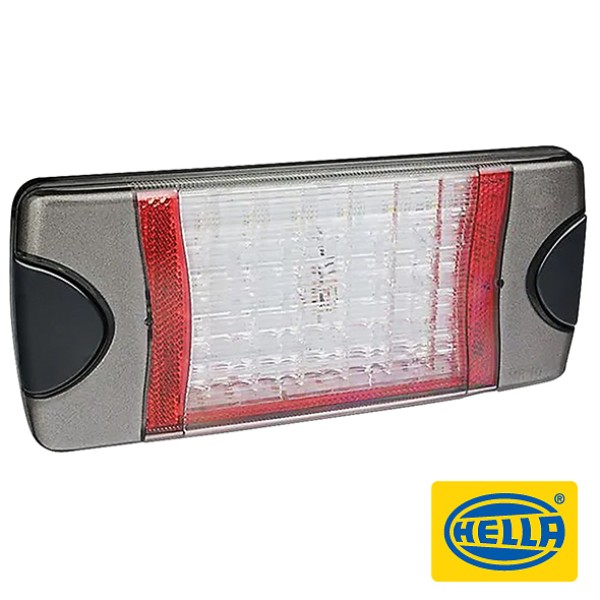

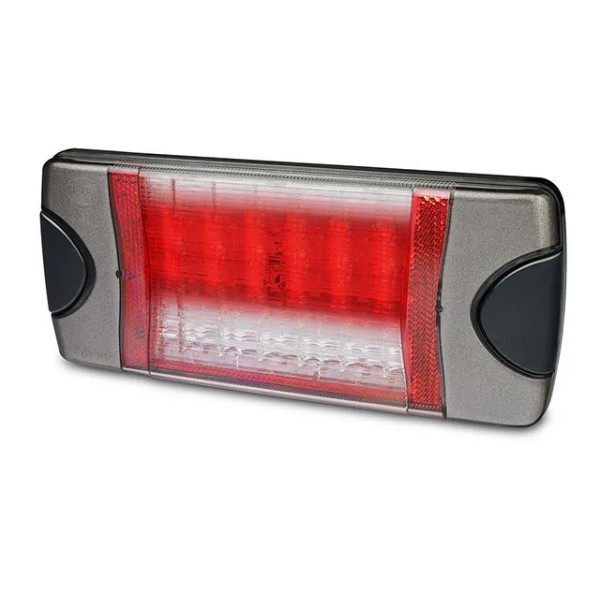

Hella DuraLED Combi-SR lamp combines five rear lighting functions in one compact surface mount unit. It suits trailer and truck body rear lighting where stop, rear position, rear direction indicator, reverse and reflector functions need to fit into limited mounting space.

Features

• All-in-one 5 function rear combination lamp with built-in retro reflector.
• Multivolt operation supports 12V and 24V trailer electrical systems.
• Pre-wired with 2.5m sheathed multi-core cable for installation.
• Surface mount design with mounting bushes supplied.

Specifications and Materials

Product type: DuraLED Combi-SR rear combination lamp.

Functions: stop, rear position, rear direction indicator, reverse and retro reflector.

Voltage: Multivolt for 12V and 24V systems.

Power consumption: stop 5W, rear position 1.5W, rear direction indicator 6W and reverse 2W.

Protection: reverse polarity protection, 5000W Transient Voltage Suppressor, IP6K7 and IP6K9K.

Lens material: Grilamid.

Compliance: ECE R148/00, ECE R150/00, E24 5925, ISO 13207-1 and ECE R10/05.

Part number: 2VP015074001.

Use the Hella DuraLED Combi-SR technical page for lamp specifications and installation details

Compatibility and Fitment

Match this lamp to the vehicle voltage, rear lighting layout and available mounting space before ordering. Also confirm the cable route, mounting face and rear visibility angles before fitting.

Mount the Hella DuraLED Combi-SR lamp horizontally on a flat vertical surface. Then protect the wiring, fuse the circuit correctly and test every lamp function before road use.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. ELH2380, 2380, 2380GMD, 2381

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Disconnect power before fitting or rewiring the lamp. After installation, confirm mounting bush position, cable protection, polarity and circuit operation. Because this lamp carries multiple rear functions, test stop, tail, indicator and reverse circuits separately.

Trailer Applications

Trailers, truck bodies and commercial vehicle builds use the Hella DuraLED Combi-SR lamp where rear lighting needs a compact combination lamp with an integrated reflector. The slim body helps when there is limited space for separate reverse lamps or rear reflectors.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Videos

Official product overview for the Combi-SR 5 function lamp.
