Hella KL7000 LED Magnetic Beacon Amber
Hella KL7000 LED Magnetic Beacon Amber
$267.00
Magnetic LED beacon with amber rotating warning signal, 12V and 24V Multivolt operation, DIN ISO 4165 plug, 600mm cable, 165mm lens diameter and IPX9K protection for vehicle and trailer warning light setups.
Part number 2RL011.484-021.
Description
Overview

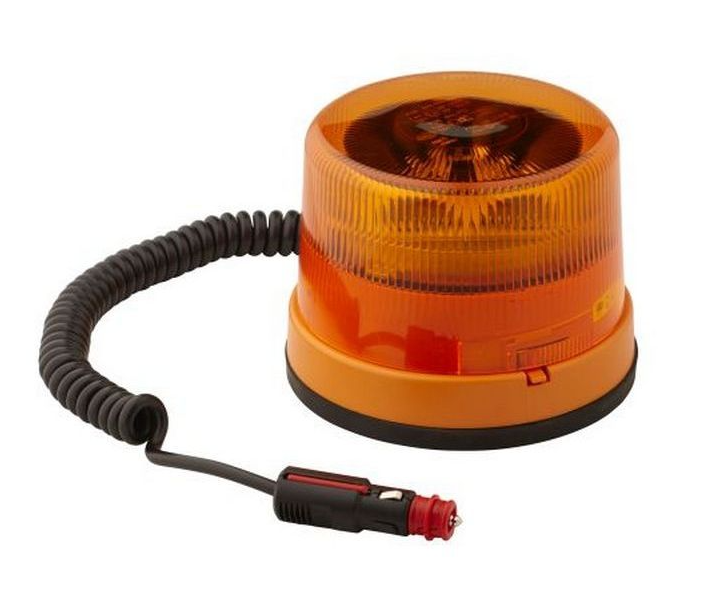

Magnetic LED beacon provides amber rotating warning light coverage for service vehicles, trailers, plant support vehicles and mobile worksites. The KL7000 LED design uses electronic rotation without moving drive parts, so it gives strong visual warning performance with lower power draw than older halogen beacon setups.
Features
- Magnetic mount amber beacon with DIN ISO 4165 plug connection.
- Multivolt 12V and 24V operation across a 10-32V input range.
- Rotating LED warning signal with 120-133 rpm simulated rotation.
- Impact and dirt-resistant PMMA lens with reverse polarity protection.
Specifications and Materials

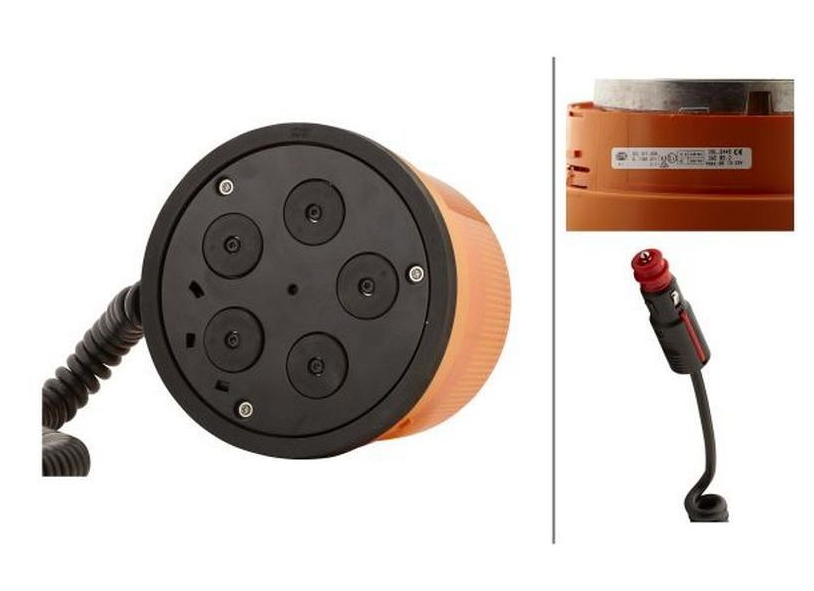

This magnetic LED beacon uses an amber PMMA lens, plastic housing and 600mm cable with DIN ISO 4165 plug. It measures 165mm in outside diameter and 118.9mm high for the magnetic mount version.
The unit carries ECE-R10, ECE-R65 TA1, SAE J845 Class 2, CISPR 25 Class 5 and RCM compliance references. Protection ratings include IP5K4K and IPX9K, with operating temperature from -40 °C to +60 °C.
Part number: 2RL011.484-021.
See the HELLA KL 7000 LED technical data for beacon specifications
Compatibility and Fitment
Check roof surface suitability, cable route, plug connection and vehicle speed requirement before ordering. Also confirm the beacon location gives clear visibility around the vehicle without interfering with other equipment.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 011 484-021, 011484021, 2RL 011 484-021, 2RL011484021, E1 36194, E136194, 52541213, 0004-036-671, 0004036671
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Replacement component | 9EL 190 025-001 | Amber PMMA dome |
| Related version | 2XD 012 972-021 | Magnetic flashing beacon |
| Related version | 2RL 011 484-001 | Fixed mount rotating beacon |
| Related version | 2RL 011 484-011 | Pipe mount rotating beacon |
Compliance and Safety
Clean the mounting surface before fitting the beacon, then check magnetic hold and cable security before use. Because warning lights rely on visibility, inspect the lens for damage, dirt and reduced light output during regular servicing.
Trailer Applications
Fleets use this beacon on service vehicles, roadside support vehicles, yard trailers, maintenance utes and mobile plant support setups. The magnetic base suits temporary fitment where the warning light needs to move between vehicles or trailers.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| 011 484-021 | 011484021 | 2RL 011 484-021 |
| 2RL011484021 | E1 36194 | E136194 |
| 52541213 | 0004-036-671 | 0004036671 |
Why Choose ICS Trailers
ICS Trailers supplies warning lights and trailer electrical parts for fleet maintenance, workshop repairs and vehicle fit-outs. Match voltage range, mounting style, plug type and approval requirements before fitting this magnetic LED beacon.
View more trailer electrical parts in the Electrical range from ICS Trailers
