Description

Overview

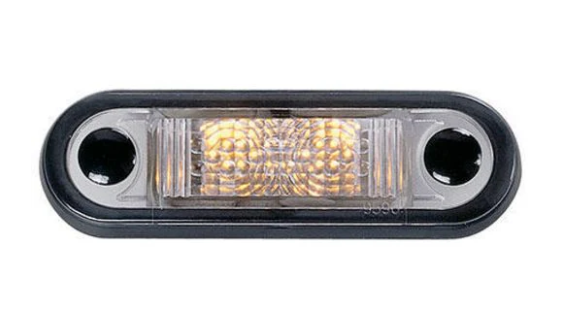

Amber front end outline lamp provides trailer front marker visibility with a clear optic that illuminates amber when powered. The compact recess mount body suits trailer fronts where a low mounting depth and sealed LED marker lamp are needed.

Features

• Amber LED front end outline function for trailers.
• Recess mount body suits horizontal mounting.
• 9-33V DC Multivolt operation suits 12V and 24V systems.
• Includes gasket and screw caps for installation.

Specifications and Materials

This amber front end outline lamp uses an acrylic lens for increased chemical resistance, reverse polarity protection and a sealed body with IP6K6 and IP6K7 protection ratings. It measures 79mm long, 22.4mm wide and 20mm deep, with 44.1mm mounting hole centres.

The lamp runs at 0.4W on 12V and 0.8W on 24V, and it comes pre-wired with 2.5m of sheathed multi-core cable.

Part number: 2056BULK.

See the HELLA recess mount front end outline lamp technical data for product specifications

Compatibility and Fitment

Check the mounting hole centres, recess depth, cable route and trailer lamp position before ordering. Also confirm the lamp faces the correct direction and mounts on a vertical surface so it meets the required front end outline visibility angle.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2PF 959 590-357, 2PF959590357, 959.590-357, 959590357

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamp to a flat surface with the gasket seated correctly, then seal cable joins with solder and heat shrink where possible. Use a continuous 12V or 24V DC supply, because alternating current or modulated DC can shorten LED lamp life.

Trailer Applications

Trailer builders and repairers fit this LED marker lamp to trailer front corners and front outline positions. Because the optic appears clear when unlit, the lamp keeps a clean appearance while still giving amber marker visibility once powered.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
