Description

Overview

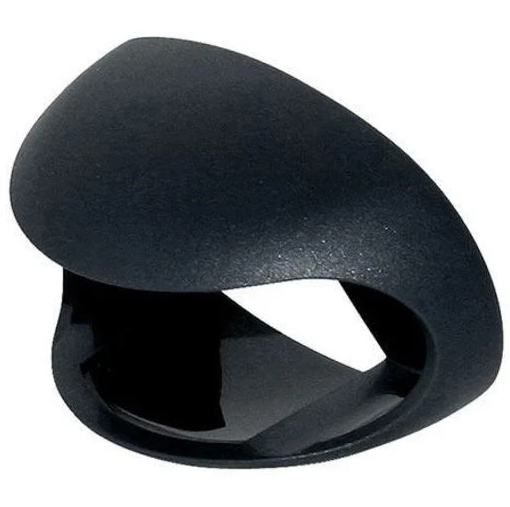

DuraLED mounting shroud holds compatible HELLA surface mount marker and courtesy lamp inserts in a black nylon housing. The rear-entry design lets the lamp insert pass through from behind, so repairers can retrofit installed lamps without re-running the lamp wiring.

Features

• Black nylon mounting shroud for compatible HELLA DuraLED lamps.
• Suits surface mount marker and surface mount courtesy lamp ranges.
• Allows rear lamp insert installation during retrofit work.
• One mounting shroud is required per lamp.

Specifications and Materials

This DuraLED mounting shroud uses a black nylon body for the compatible HELLA DuraLED surface mount lamp range. The matching lamp installation uses 4mm bolts with a maximum head height of 4.5mm, and the housing can act as a mounting hole template during new installations.

Part number: 9205308Bulk.

See the HELLA DuraLED marker lamp shroud technical data for mounting shroud details

Compatibility and Fitment

Match the shroud to the existing HELLA DuraLED lamp insert before ordering. This black housing suits surface mount DuraLED signal, marker and courtesy lamp inserts, including the 2053 side marker lamp and 2026 cab marker or supplementary side indicator lamp family.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 9205308, 9.2053.08, 9205308BULK, 9.2053.08BULK, 9BG 910 274-001, 9BG910274001, 910.274-001, 910274001

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the housing on a flat surface and keep the lamp clear of tie-downs or other areas likely to be struck in service. When refitting the lamp insert, push it firmly into the housing until it snaps into position.

Trailer Applications

Trailer workshops use this black mounting shroud when replacing damaged DuraLED lamp housings or changing the outer surround during body repairs. It suits trailer marker light repairs where the wiring remains serviceable but the housing needs replacement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for body repairs, lamp replacements and electrical maintenance. Match the lamp family, housing colour and mounting style before fitting this DuraLED mounting shroud.
