Description

Overview

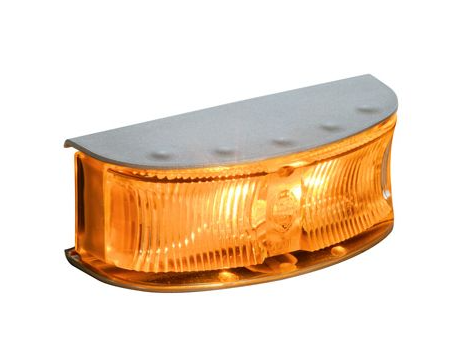

DuraLED side indicator lamp provides amber cab marker and supplementary side direction indicator function in one heavy-duty surface mount lamp. The satin stainless steel housing and Grilamid lens suit trailer, truck body and cab applications that need compact sealed lighting with strong impact, UV and chemical resistance.

Features

• Individual amber illuminated DuraLED cab marker and side indicator lamp.
• Satin stainless steel housing with ultra durable Grilamid lens.
• Multivolt 8-28V DC operation suits 12V and 24V systems.
• Fully sealed to IP6K6 and IP6K7 for exterior vehicle lighting work.

Specifications and Materials

This DuraLED side indicator lamp uses a surface mount body, satin stainless housing and clear optic that illuminates amber when powered. It supports ADR 45/01 cab marker function and ADR 6/00 Category 5 supplementary side direction indicator function.

The lamp comes pre-wired with 2.5m sheathed multi-core cable. It measures 58mm long, 23mm high and 24.5mm deep, with 28.5mm mounting hole centres.

Part number: 2027BULK.

See the HELLA DuraLED cab marker technical data for lamp specifications

Compatibility and Fitment

Check the lamp function, mounting surface, cable route and available mounting depth before ordering. The reference axis must sit horizontal, and the mounting surface needs to suit the cab marker or supplementary side indicator position being wired.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2BP 980 660-118, 2BP980660118, 980.660-118, 980660118, 8-2027-17, 8202717

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamp on a flat vertical surface, then protect the circuit with a fuse rated at 2A maximum. Solder and heat shrink wiring joins where possible, because sealed joins help protect the circuit from moisture and vibration faults.

Trailer Applications

Body builders and repairers fit this DuraLED side indicator lamp to truck cabs, trailers and heavy vehicle bodies that need amber side visibility. It also suits supplementary side indicator work where a compact stainless housing gives the lamp extra protection.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for body builds, electrical repairs and heavy vehicle maintenance. Match the lamp function, mounting position and cable length before fitting this cab marker and side indicator lamp.
