Description

Overview

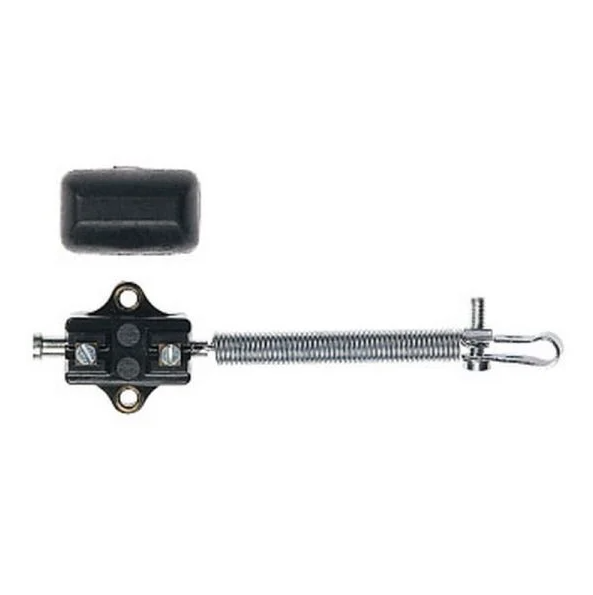

Spring pull stop lamp switch closes the brake light circuit when tension pulls on the spring. This normally open mechanical switch suits brake linkage setups where pedal or linkage movement needs to trigger stop lamps without a pedal-box style plunger switch.

Features

• Normally open Off-On spring pull stop lamp switch.
• Contacts close when tension is applied to the spring.
• Includes splash-proof rubber cap for switch protection.
• Includes 6mm brake linkage clamp for linkage connection.

Specifications and Materials

This spring pull stop lamp switch carries a maximum load rating of 12V 10A or 24V 5A. It includes the spring pull switch body, splash-proof rubber cap and 6mm brake linkage clamp for mechanical brake linkage activation.

The switch body is 30mm wide, the overall pull assembly length is 100mm, and the clamp end is shown with 24mm overall width. Check the mounting area and spring travel before fitting.

Part number: 4560.

See the HELLA stop lamp switch technical data for switch specifications

Compatibility and Fitment

Match the switch to the brake linkage layout, spring pull direction and available mounting space before ordering. Also confirm the electrical load on the stop lamp circuit, because the switch rating changes between 12V and 24V systems.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 6DD 905 374-002, 6DD905374002

Compliance and Safety

After fitting, test the stop lamps with the brake linkage at rest and under tension. The lamps should remain off until the linkage pulls the spring, then illuminate cleanly without flicker or delayed release.

Trailer Applications

Repairers use this switch on trailers, older vehicles, machinery and custom brake linkage setups. It suits mechanical brake light activation where a simple pull action gives a cleaner fit than a fixed plunger switch.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies trailer electrical parts for repairs, wiring work and workshop maintenance. Match the voltage, switch action and brake linkage clamp size before fitting this spring pull stop lamp switch.

View more trailer electrical parts in the Electrical range from ICS Trailers
