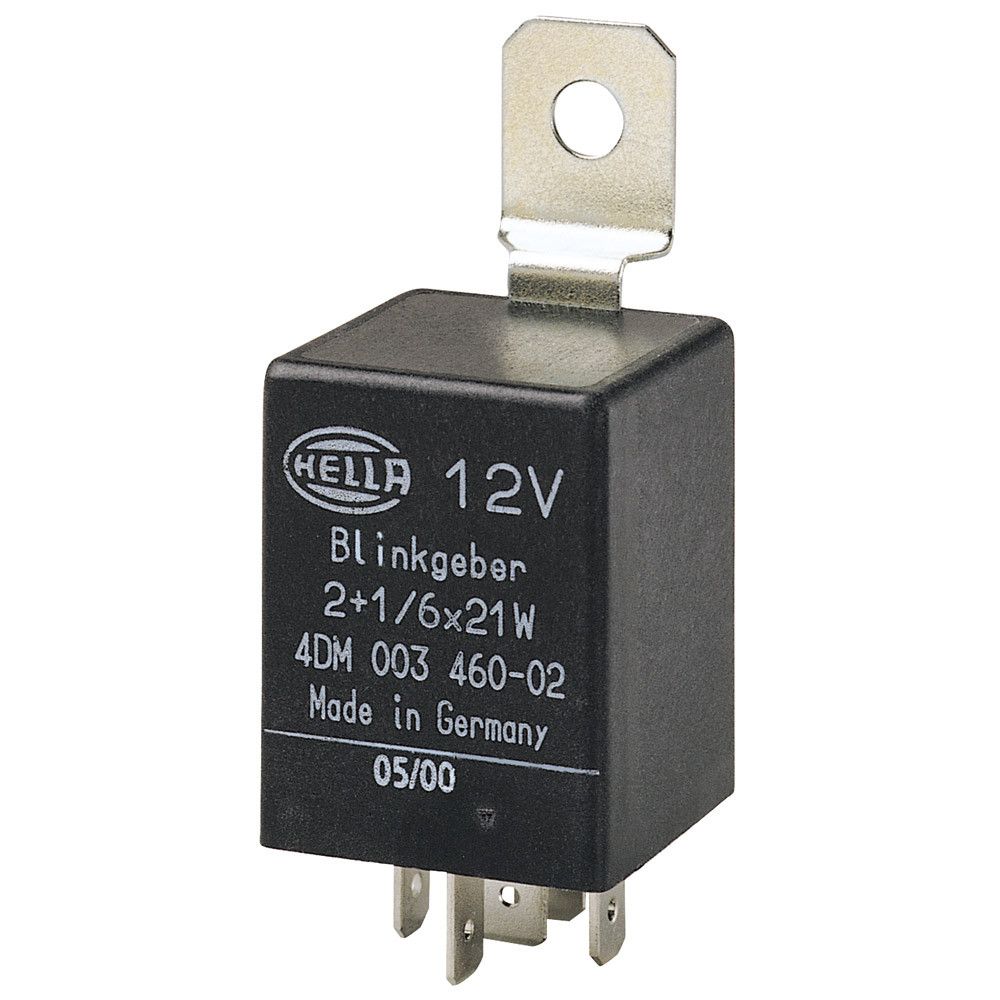

Trailer flasher relay controls caravan and trailer indicator circuits where a 12V towing vehicle needs to operate two or three lamps on each side. This 5 terminal unit also provides a separate trailer pilot lamp output, so the driver can monitor trailer indicator operation from the towing vehicle.

Features

• 12V DC electronic flasher for caravan and trailer indicator circuits.
• Operates 2 or 3 lamps on either side of the vehicle.
• Includes mounting bracket for secure installation.
• Supports hazard warning function when used with switch 5227.

Specifications and Materials

This trailer flasher relay uses a 5 terminal layout with 49/X flasher input, 49a/L output to lamps or indicator switch, 31 earth, C/C1/CP/P vehicle pilot output and C2 trailer pilot output. Maximum load is 2+1 (6) x 21W.

Part number: 3017.

See the HELLA electronic flasher unit technical data for 12V 5 terminal specifications

Compatibility and Fitment

Check the vehicle voltage, terminal layout, lamp count and pilot lamp wiring before ordering. The unit suits 12V caravan and trailer setups that need 2+1 indicator operation, while the hazard function requires the correct matching switch.
