Description

Overview

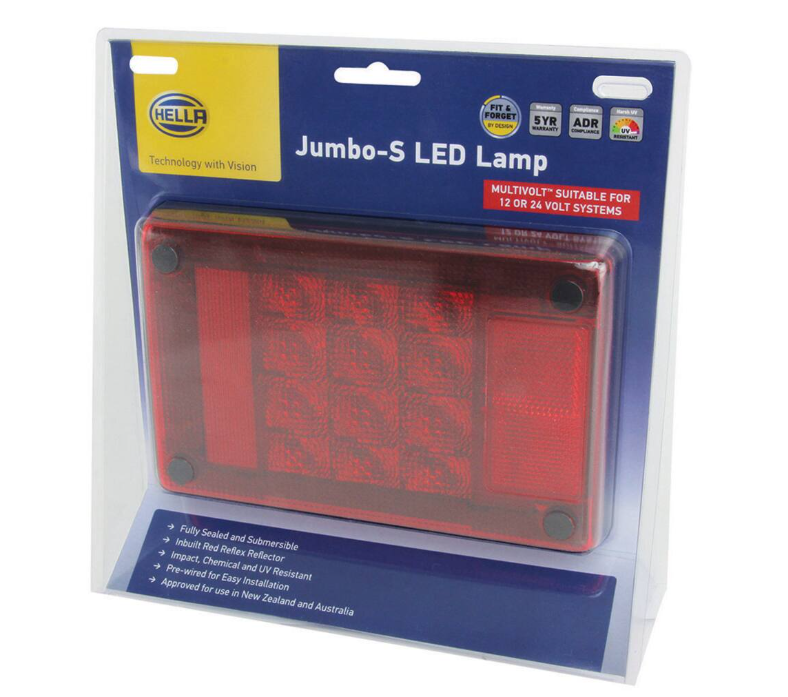

Jumbo-S LED stop rear position lamp updates existing Jumbo or Designline rear lamp assemblies with stop, rear position and red reflector functions. This low profile module suits horizontal or vertical mounting, so it can replace the matching Jumbo-S lamp in either orientation. Because it uses 12V and 24V multivolt operation, it suits mixed heavy trailer fleets.

Features

• Stop and rear position LED lamp with inbuilt 23cm² red retro reflector
• Enhanced Definition Technology for the stop signal function
• Low profile design for surface mounting with gasket accessory
• Pre-wired with 200mm of cable for installation

Specifications and Materials

This Jumbo-S LED stop rear position lamp supports 12V and 24V electrical systems. It has 5W stop function power consumption, 1W rear position function power consumption, reverse polarity protection, 5000 watt transient voltage suppressor protection, IP 6K7 and IP 6K9K sealing. Part number: 2361BL.

Use the manufacturer Jumbo and Designline LED catalogue for module identification

Compatibility and Fitment

Match the lamp body, stop rear position function, mounting orientation and wiring route before ordering. This lamp updates existing Jumbo or Designline lamps, but it must match the fitted rear lamp layout and required ADR lighting function. If the trailer needs a rear direction indicator or reversing lamp, use the matching function module instead.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

This lamp carries ADR 47/00 and ADR 49/00 compliance for supported rear reflector, stop and rear position lamp applications. Inspect the lamp housing, sealing surface and cable route before fitting it. If the mounting face has damage or the old gasket no longer seals properly, replace the gasket before returning the trailer to service.

Trailer Applications

Trailer workshops fit this Jumbo-S LED stop rear position lamp during stop lamp faults, rear position lamp repairs and rear lamp LED upgrades. Fleets also use it when replacing older Jumbo or Designline lamp modules while keeping the same rear lamp layout.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for stop lamp faults, rear position lamp repairs and heavy vehicle maintenance. Match this Jumbo-S LED stop rear position lamp against the existing lamp body and required lighting function before installation. For more trailer lighting parts, browse the ICS Trailers LED Lights category
