Description

Overview

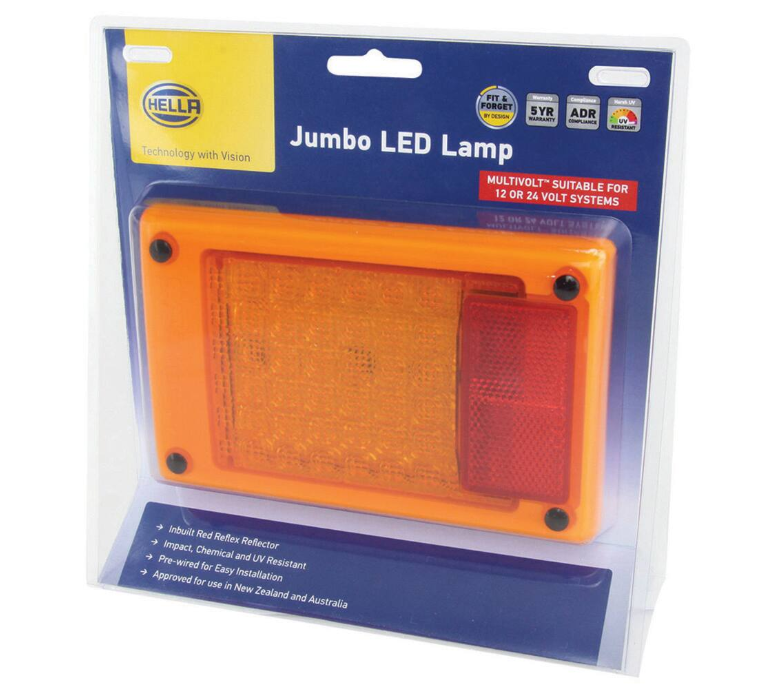

Jumbo LED rear indicator module updates existing Jumbo or Designline rear lamp assemblies with a rear direction indicator and red retro reflector. This module suits trailer rear lighting repairs where the existing lamp body uses the matching HELLA Jumbo recess mount format. Because it runs on 9-33V multivolt power, it suits both 12V and 24V vehicle electrical systems.

Features

• LED rear direction indicator module with red retro reflector
• Designed to update existing Jumbo or Designline lamps
• 9-33V multivolt operation for mixed trailer fleets
• Pre-wired with 200mm of cable for installation

Specifications and Materials

This Jumbo LED rear indicator module uses a four point recess mount and suits horizontal or vertical mounting. It has a 33cm² reflector area, 9W power consumption, reverse polarity protection and a 5000 watt transient voltage suppressor. Part number: 2138BL.

Use the manufacturer Jumbo and Designline LED catalogue for module identification

Compatibility and Fitment

Match the recess mount body, indicator function, reflector requirement and existing lamp housing before ordering. This module updates existing Jumbo or Designline lamps, but it must match the rear lamp assembly already fitted to the trailer. Do not use it as a stop, tail or reversing module.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

This module carries ADR 6/00 Cat 2a and ADR 47/00 compliance for supported rear direction indicator applications. Inspect the surrounding lamp body, wiring and sealing surfaces before fitting it. If the existing connector, housing or cable route has corrosion or damage, repair those faults before returning the trailer to service.

Trailer Applications

Trailer workshops fit this Jumbo LED rear indicator module during rear lamp repairs, LED upgrades and indicator fault work. Fleets also use the module when replacing older globe type rear indicator modules while keeping the existing Jumbo or Designline rear lamp body.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for rear lamp repairs, LED upgrades and heavy vehicle maintenance. Match this Jumbo LED rear indicator module against the existing lamp body and required rear lighting function before installation. For more trailer lighting parts, browse the ICS Trailers LED Lights category
