Description

Overview

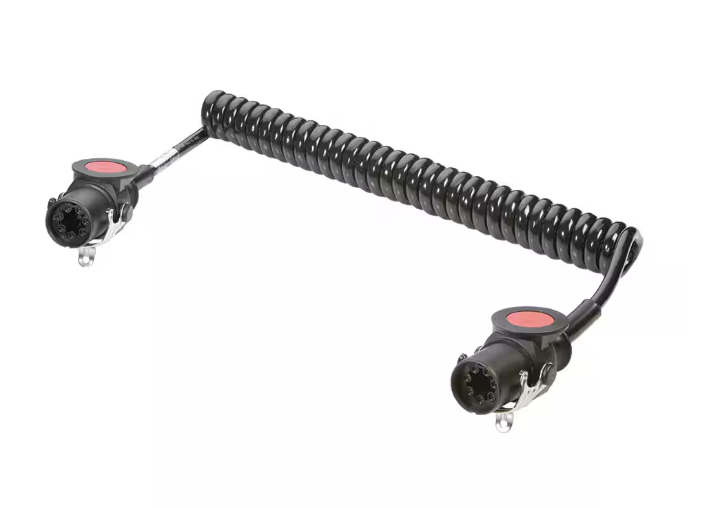

24V ABS/EBS suzi coil connects heavy vehicle braking electronics between the prime mover and trailer through 7 pin ISO 7638-1 plugs. This HELLA cable suits 24V ABS and EBS trailer connections where both ends require the matching ISO 7638-1 plug standard. Because it has plugs at both ends, it suits direct ABS/EBS lead replacement without changing to bare end wiring.

Features

• 7 pin 24V ABS/EBS suzi coil for heavy vehicle braking connections
• ISO 7638-1 plug standard for 24V trailer ABS/EBS systems
• Plug fitted at both ends for direct lead replacement
• Bending protection grommet and 50mm outer cable diameter

Specifications and Materials

This 24V ABS/EBS suzi coil runs on 24V DC and uses 7 pin ISO 7638-1 plugs. It has a 4m maximum working length, 4.5m maximum extension length, 50mm outer cable diameter and bending protection grommet. Part number: 8KA227440061.

Use the manufacturer ABS/EBS cable catalogue for cable identification

Compatibility and Fitment

Match this cable to 24V ISO 7638-1 ABS/EBS sockets before ordering. Do not use it on 12V ISO 7638-2 systems or on lighting-only sockets such as ISO 1724, AS 2513, AS 4735 or SAE J560. Also check both sockets for pin damage, loose covers and sealing faults before fitting the replacement lead.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect both ABS/EBS sockets before fitting the cable, because poor pin contact can create braking system faults. Route the coil clear of sharp edges, fifth wheel contact points and moving suspension parts. If the plug does not lock firmly, repair the socket before returning the trailer to service.

Trailer Applications

Workshops fit this 24V ABS/EBS suzi coil during ABS/EBS lead replacement, braking fault repairs and prime mover to trailer electrical connection work. Fleet maintenance teams also use it when replacing damaged 24V ISO 7638-1 coiled leads on heavy trailers.
