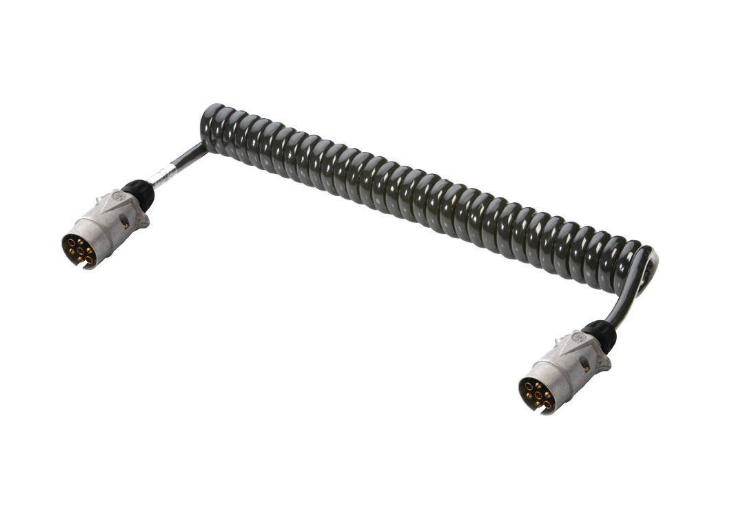

7 core suzi lead connects trailer lighting circuits through 7 pin ISO 1724 or AS 2513 metal plugs. This HELLA suzi coil suits light duty trailer electrical connections between towing vehicles and trailers. Because it has a 4.6m maximum working length, it suits standard trailer lighting lead replacement where a long tail version is not required.

Features

• 7 pin lighting suzi coil for trailer electrical connections
• Metal 7P ISO 1724 or old AS 2513 plugs at both ends
• PG gland cable outlet for protected cable entry
• 50mm outer coil diameter for controlled cable movement

Specifications and Materials

This 7 core suzi lead uses silver coloured break-proof metal housings with 6 × 1.5mm² conductors and 1 × 2.5mm² conductor. It has a 4.6m maximum working length, 50mm outer coil diameter, 220mm Tail 1 and 220mm Tail 2. Part number: 8KA227440101.

Use the manufacturer towing and trailer lighting cable catalogue for cable identification

Compatibility and Fitment

Match this cable to 7 pin ISO 1724 or AS 2513 lighting plug connections before ordering. Do not use it where the trailer requires SAE J560 heavy duty plugs or ISO 7638 ABS/EBS braking plugs. Also check the required working length, because this standard tail version differs from the long tail suzi lead.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect both plugs and sockets before fitting the cable, especially if the old lead has worn pins, damaged glands or intermittent lighting faults. Route the coil clear of drawbar pinch points, sharp edges and moving suspension parts. If the plug does not seat firmly, repair the socket before returning the trailer to service.

Trailer Applications

Workshops fit this 7 core suzi lead during trailer lighting repairs, cable replacement and prime mover to trailer lead changeover work. Fleets also use it where ISO 1724 or AS 2513 lighting connections need a standard 4.6m coiled cable.
